Gray aluminium mini PC with external USB fan kit, compact industrial form factor

partaker

partaker I8 barebone mini PC i7-12700T 32G RAM 1TB SSD

SKU CH-B04V-DAXPM

Fan-cooled industrial mini PC with a 12-core i7-12700T, 32 GB DDR4, 1 TB NVMe SSD, dual HDMI plus VGA for triple 4K output, dual Gigabit LAN, four RS485 ports, GPIO and CAN expansion.

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I8 H610 I7 12700T FAN 32GB RAM / 1TB SSD

  • Industrial-grade aluminium chassis withstands -20°C to 60°C for 24/7 reliability
  • 12-core i7-12700T with 32GB DDR4 3200MHz powers heavy multitasking
  • Dual 4K HDMI plus VGA drives three independent displays

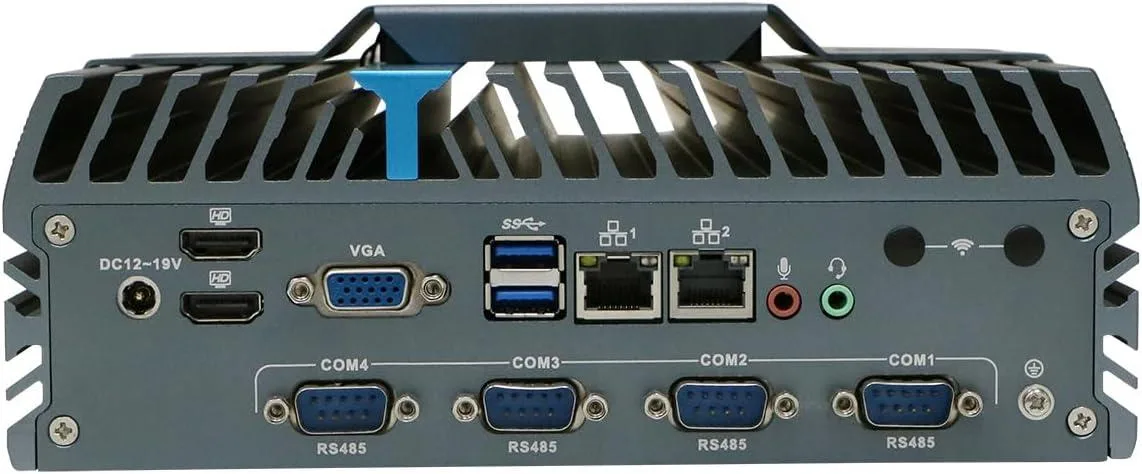

  • Two Gigabit LAN, four RS485 COM, six USB for industrial connectivity
  • Wide 12V-19V DC input, watchdog, TPM2.0, wake-on-LAN for managed deployment

Industrial Mini PC for Edge Computing

The Partaker I8 is a fanless aluminum barebone built around a 12-core Intel Core i7-12700T processor with 20 threads and 25 MB cache. It ships with 32 GB of DDR4 3200 MT/s SODIMM memory and a 1 TB NVMe SSD installed. Dual HDMI and VGA ports drive three independent 4K displays. Four RS485 COM ports, dual Gigabit LAN and six USB ports provide extensive industrial connectivity.

Verify Power and Mounting Requirements

The unit requires a DC 12 V to 19 V input and includes a 100-240 V AC adapter rated at 12 V 10 A. Confirm your cabinet or rack can supply stable power within this range. Wall-mount ears are included; desktop feet are optional. Operating temperature spans -20 °C to 60 °C with the supplied USB external fan kit attached. Ensure airflow clearance matches the 215 x 210 x 75 mm chassis dimensions.

Expansion Slots and Storage Headroom

One full-length Mini PCIe slot with a Nano SIM socket accepts 4G or Wi-Fi modules. A second M.2 2280 M-key PCIe 3.0 x4 slot and a 2.5-inch SATA bay remain free for additional NVMe or SATA storage. The SO-DIMM sockets support up to 64 GB total memory. TPM 2.0, watchdog timer and wake-on-LAN enable remote management in unattended deployments.

أبرز المميزات

  • Industrial-grade aluminium chassis withstands -20°C to 60°C for 24/7 reliability
  • 12-core i7-12700T with 32GB DDR4 3200MHz powers heavy multitasking
  • Dual 4K HDMI plus VGA drives three independent displays
  • Two Gigabit LAN, four RS485 COM, six USB for industrial connectivity
  • Wide 12V-19V DC input, watchdog, TPM2.0, wake-on-LAN for managed deployment

المواصفات

ColorGray
CPU TypeIntel Core i7 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Does the unit ship with RAM, storage, power supply and mounting hardware, or do I need to add them?

The box includes the I8 chassis with 32 GB DDR4 already installed, a 1 TB NVMe SSD, a 12 V 10 A power supply with cord, USB external fan kit, wall-mount bracket and warranty card.

Is the 32 GB DDR4 configuration the only memory option, or can I expand it later?

Two SODIMM slots support DDR4 3200 up to 64 GB total, so the supplied 32 GB can be doubled by adding a second module.

What does the 4.70 GHz turbo frequency mean for sustained workloads inside the fan-cooled aluminium chassis?

The 12-core i7-12700T can reach 4.70 GHz on short bursts; the external USB fan kit and aluminium body keep thermals stable for continuous 24/7 operation at the rated 35-99 W TDP.
