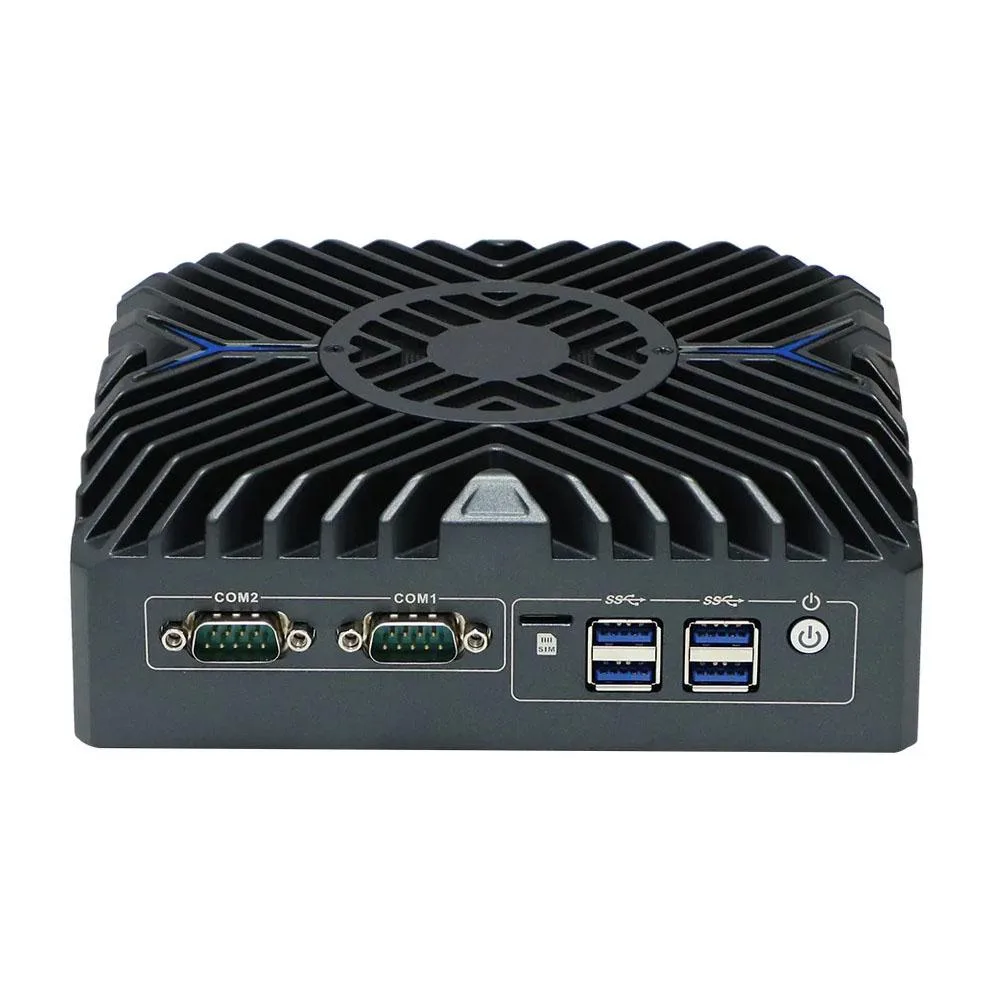

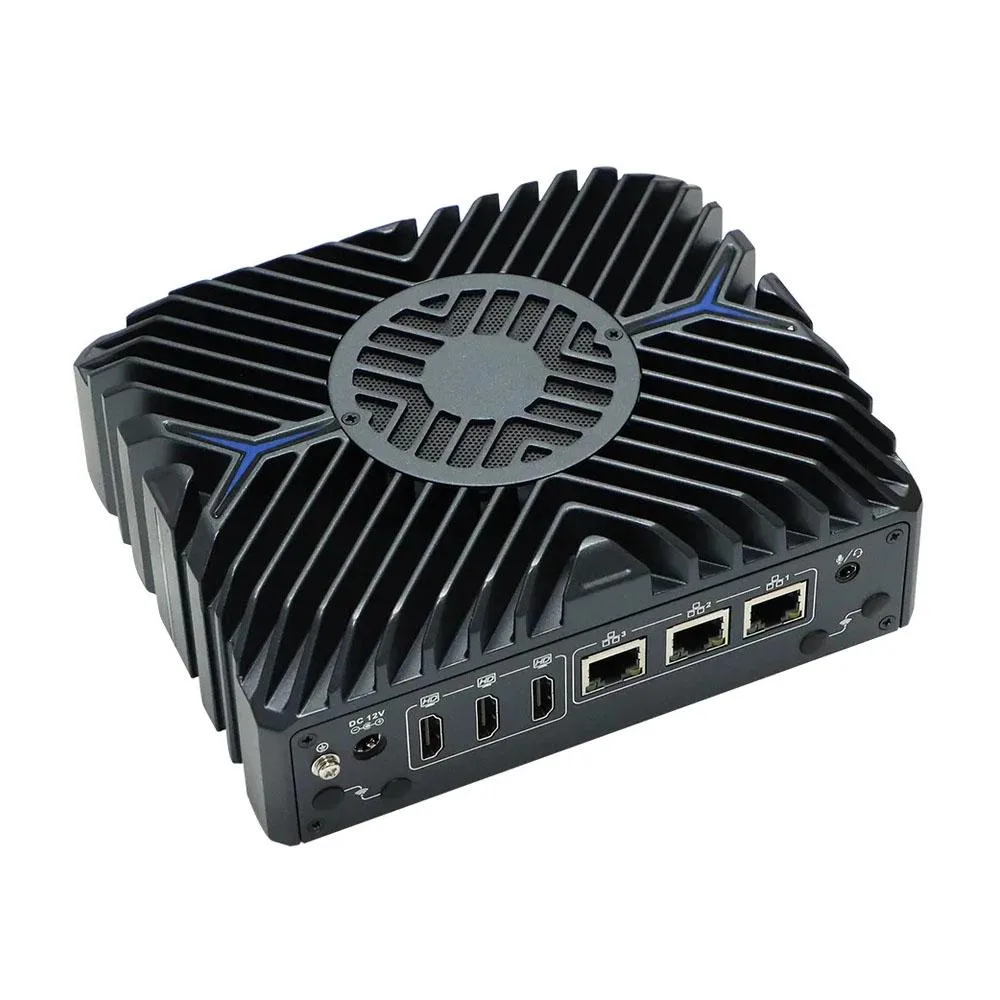

Compact black aluminium mini PC with fan cooling

partaker

partaker N7 i5-1235U 16GB 256GB barebone mini PC

SKU CH-HST0-50XBW

Fan-cooled 12th-Gen Core i5 mini PC with triple 2.5 GbE, three HDMI 4K outputs, dual COM ports, 16 GB DDR5 and 256 GB SSD

  • ColorBlack
  • CPU TypeIntel Core i5 12th Gen

CPU Type Intel Core i5-1235U

Group 16GB RAM / 256GB SSD

  • 12th Gen Intel Core i5 1235U ten-core CPU powers demanding workloads
  • 16 GB DDR5 4800 memory and 256 GB NVMe SSD deliver fast responsiveness
  • Three Intel i225-V 2.5G LAN ports enable high-speed multi-network connectivity
  • Three HDMI 4K outputs drive triple independent displays
  • Fan-cooled aluminium chassis supports 0 °C to 50 °C industrial operating range

Industrial mini PC with triple 2.5G LAN

The Partaker N7 is a fan-cooled barebone built around an Intel Core i5-1235U processor with ten cores and twelve threads. It arrives with 16 GB of DDR5 memory and a 256 GB NVME drive installed. The aluminium chassis measures 170 by 140 by 58 mm and supports VESA mounting for space-constrained deployments.

Suits automation and edge gateway roles

This unit targets integrators who need three independent 2.5G Ethernet ports, dual COM ports with RS232 or RS485, and triple 4K HD-MI outputs for industrial displays. It operates from 0 to 40 °C with a commercial drive or -20 to 50 °C with an industrial SSD. Buyers who require passive cooling or a wider temperature range without an industrial drive should look elsewhere.

Single DDR5 SODIMM slot limits memory to 32 GB

The board provides one DDR5 4800 MHz SODIMM socket with a 32 GB ceiling, so the pre-installed 16 GB can be doubled but not expanded further. Storage expansion uses one M.2 2280 M-key slot for NVME and one 2.5-inch bay. Wireless connectivity requires adding a module to the M.2 3052 B-key or Mini-PCIe slot.

أبرز المميزات

  • 12th Gen Intel Core i5 1235U ten-core CPU powers demanding workloads
  • 16 GB DDR5 4800 memory and 256 GB NVMe SSD deliver fast responsiveness
  • Three Intel i225-V 2.5G LAN ports enable high-speed multi-network connectivity
  • Three HDMI 4K outputs drive triple independent displays
  • Fan-cooled aluminium chassis supports 0 °C to 50 °C industrial operating range

المواصفات

ColorBlack
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

What maintenance or replacement will the N7's fan and storage drives need later?

The unit uses an active fan for cooling and offers one M.2 2280 slot plus a 2.5-inch bay; both drive types are user-replaceable and the fan can be cleaned or swapped if it wears out.

Which limit appears first when the i5-1235U runs sustained workloads in the N7?

The CPU turbo reaches 4.4 GHz but the 0°C to 40°C operating range with forced-air cooling means thermal throttling will likely cap performance before power or memory bandwidth does.

How much noise, heat and power does the N7 produce running all day?

The fan-cooled aluminium chassis dissipates heat within the 0°C to 40°C commercial range while drawing 12 V DC; exact acoustic and thermal figures depend on workload and ambient conditions.
