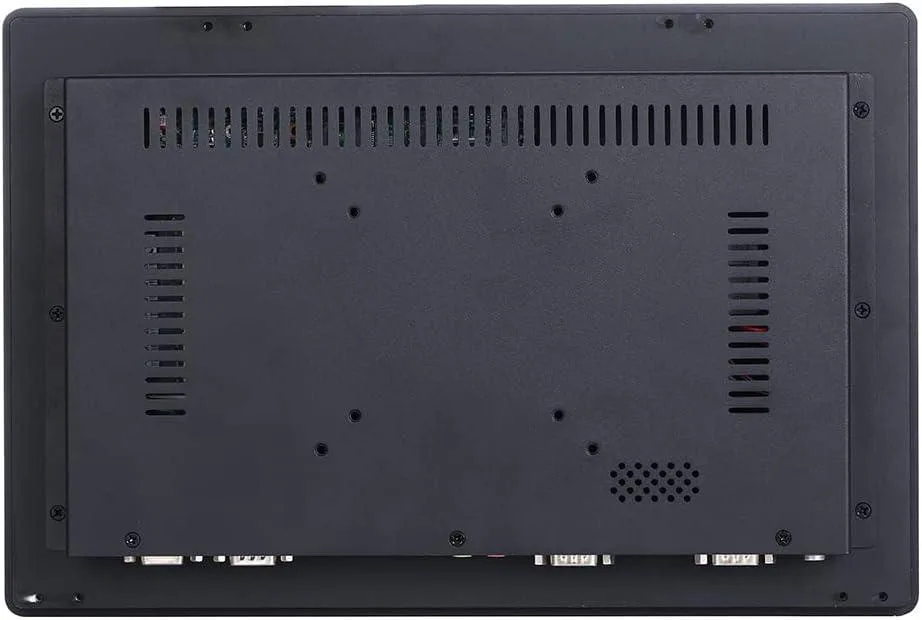

Gray 14-inch all-in-one industrial panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

partaker Z10-I5 6200U-8G512G 14" all-in-one PC

SKU CH-XV4D-PC4HW

A 14-inch IP65 rugged all-in-one with a 10-point capacitive touchscreen, Intel Core i5-6200U, 8GB DDR4 and 512GB SSD for industrial environments

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i5 6th Gen

CPU Name Intel Core i5-6200U

Memory Capacity 8GB DDR4

SSD 512GB

HDD None

  • 1TB
  • None

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 industrial use
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Dual LAN and dual COM ports connect legacy and modern equipment
  • Windows 11 Pro pre-installed on 8 GB DDR4 and 512 GB SSD

Industrial panel PC for harsh environments

The Partaker Z10-I5 6200U-8G512G is a 14-inch all-in-one computer with an IP65-rated front panel and 10-point projected capacitive touch screen. It runs Windows 11 Pro on an Intel Core i5-6200U processor with Intel HD Graphics 520. The system includes 8GB DDR4 memory and a 512GB SSD in a fanless aluminium chassis rated for 0 to 50°C operation.

Sustained load on fanless aluminium cooling

Passive cooling dissipates heat from the 6th Gen i5 without moving parts, enabling silent 24/7 operation in dusty or wet conditions. The 10 to 50°C operating range with SSD is maintained under continuous workloads because the aluminium alloy chassis acts as a heatsink. No fan curves or acoustic thresholds apply, and the watchdog timer monitors system stability during extended industrial shifts.

Connectivity limited to legacy and industrial I/O

Video output uses HDMI and VGA ports only, with no modern display interfaces present. Networking relies on two LAN ports, while serial equipment connects through two COM ports. Expansion is restricted to a Mini PCIe slot with SIM holder for optional wireless modules. The 12V DC input accepts 100 to 240V AC via the bundled adapter, and auto-restart recovers operation after power loss.

أبرز المميزات

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 industrial use
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Dual LAN and dual COM ports connect legacy and modern equipment
  • Windows 11 Pro pre-installed on 8 GB DDR4 and 512 GB SSD

المواصفات

ModelZ10-I5 6200U-8G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen Size14"
TouchscreenYes

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How much power does the 12V DC input draw when the fanless i5-6200U runs 24/7?

The 12V DC supply handles 100-240V AC at 50-60Hz; the fanless aluminium chassis keeps the i5-6200U cool without a fan, so power draw stays low during continuous operation.

Which mounting hardware must I already have to install the 346.3mm panel in a cutout?

Embedded buckle kits are included; you only need to prepare a 340.3 x 225.3 mm opening for panel-mount installation.

Can the VGA and HDMI ports drive a legacy 1600x900 monitor alongside the built-in 14" screen?

Yes, both VGA and HDMI outputs are present and support the panel's native 1600x900 resolution for dual-display setups with older monitors.
