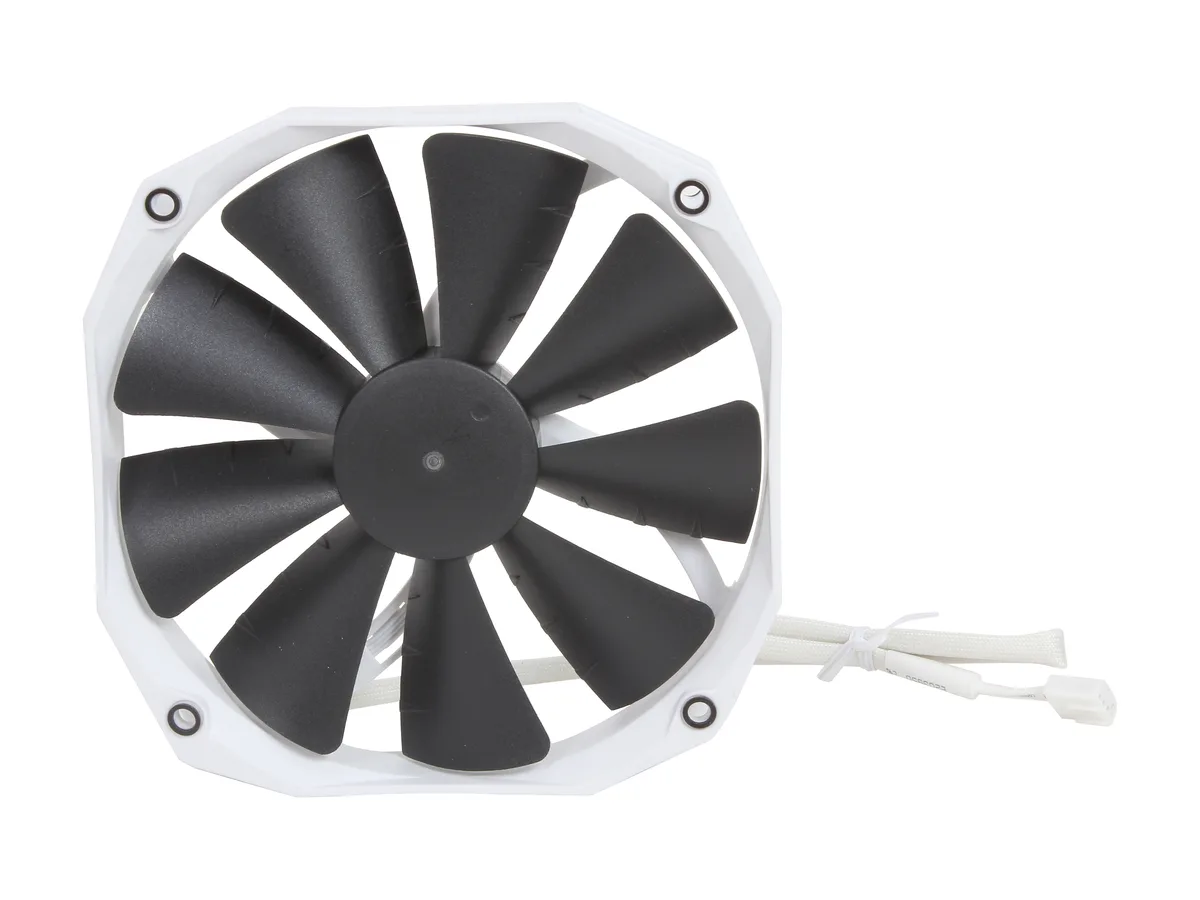

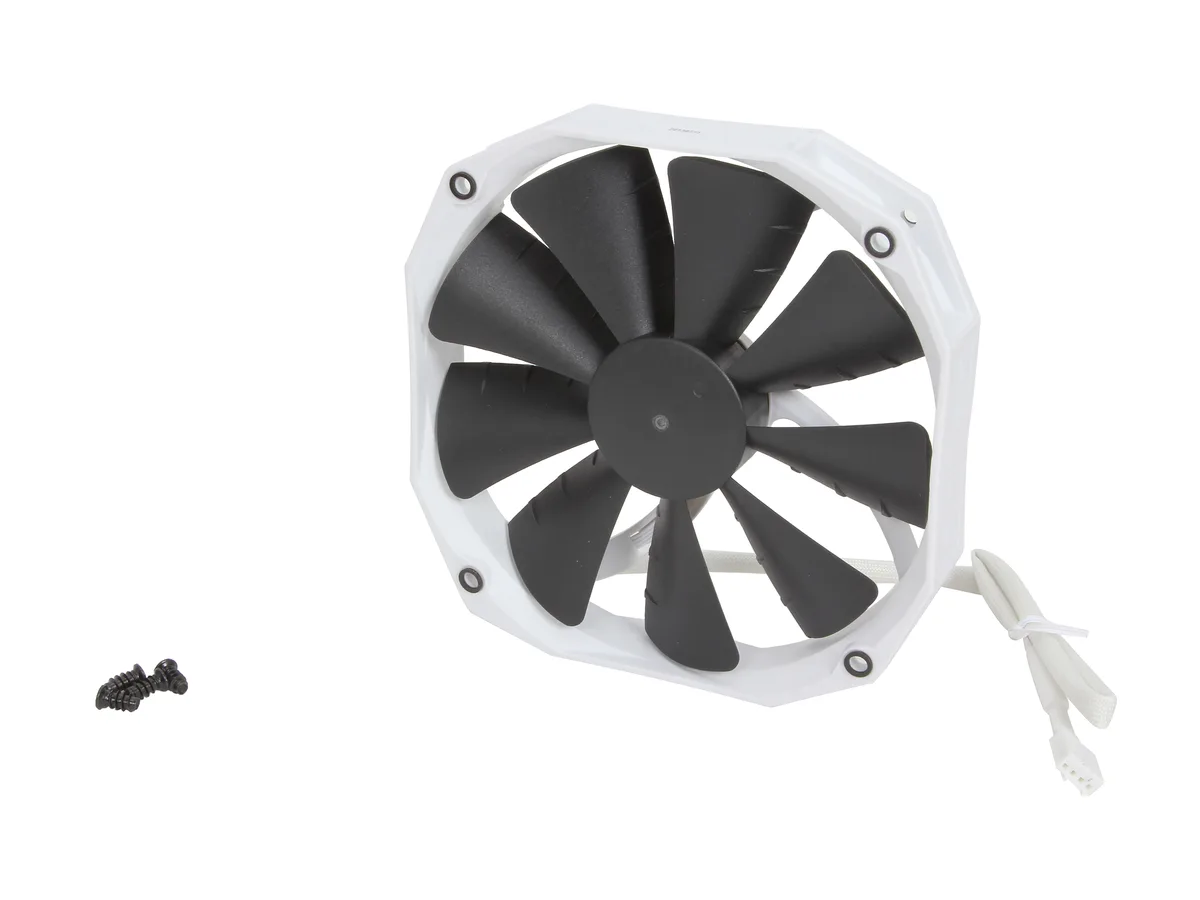

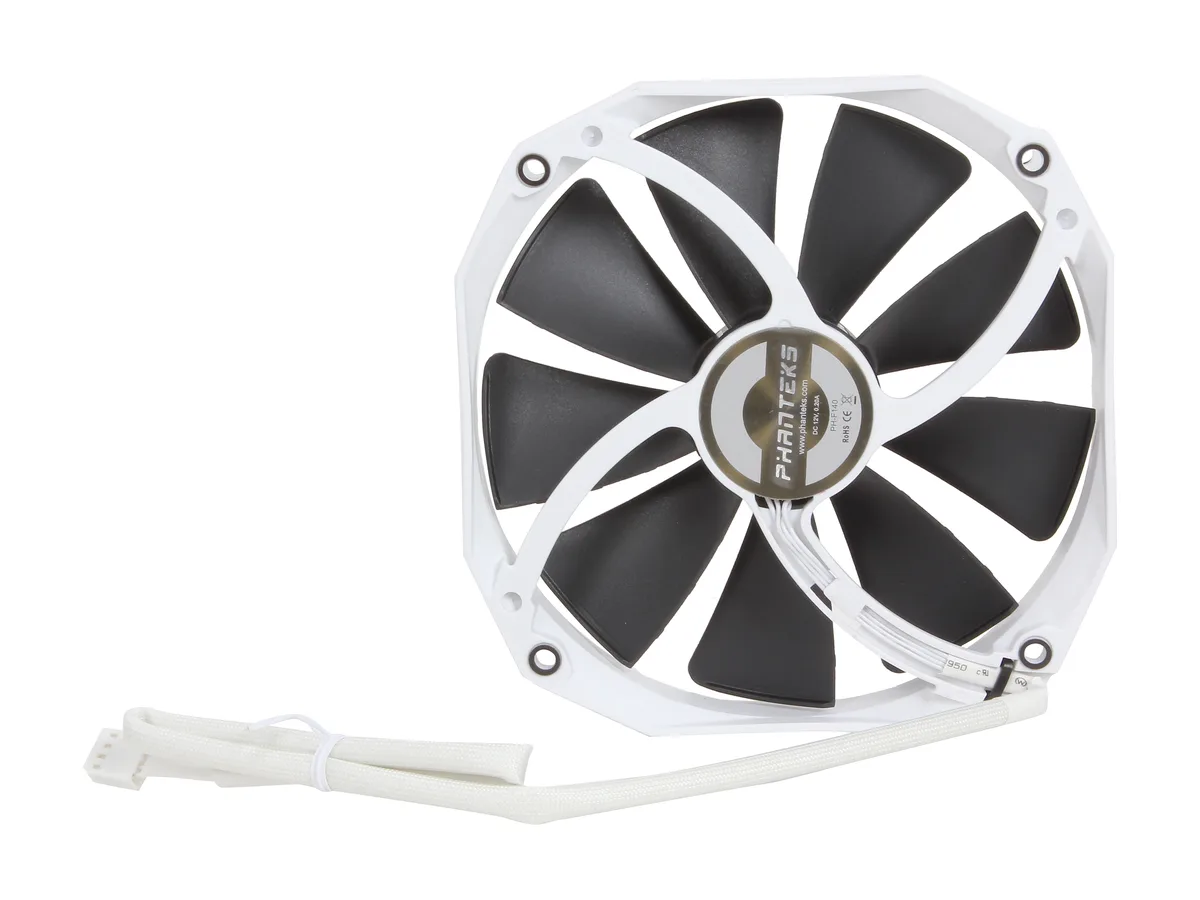

Black 140mm square case fan with nine curved blades, 25mm thick frame, 400mm cable and four mounting screws

Phanteks

Phanteks PH-F140HP_BK 140mm case fan

SKU CH-4X41-92GTA MPN PH-F140HP_BK

A 140 mm PWM case fan with UFB bearings, nine MVB blades and a 600–1300 rpm range delivering 40.9–88.6 CFM at 15.22–19 dB(A)

  • TypeCPU Cooler Fan
  • CompatibilityCPU Cooler
  • Fan Size140mm
  • Bearing TypeUFB (Updraft Floating Balance)
  • RPM600 - 1300 +/- 250 rpm
  • Air Flow40.9 - 88.6 CFM
  • 140 mm frame fits standard CPU cooler mounts
  • UFB bearing with MOSS and SSC cuts vibration and extends life to 150,000 hours
  • PWM speed range 600 to 1,300 RPM adjusts cooling to load
  • MVB nine-blade design delivers 40.9 to 88.6 CFM airflow at 15.22 to 19 dB(A)
  • 4-pin connector and 400 mm cable simplify installation

Phanteks 140mm CPU cooler fan

The Phanteks PH-F140HP_BK is a 140mm fan designed for CPU cooler mounting. It uses a UFB bearing with MOSS and SSC systems for low vibration and a rated life above 150,000 hours. Nine MVB blades create a downdraft vortex that increases air passage while reducing turbulence. PWM control adjusts speed between 600 and 1300 RPM with a tolerance of +/- 250 RPM.

Builders wanting quiet high-static-pressure cooling

This fan suits builders who need strong static pressure of .39 to 1.64 mm H2O for dense heatsinks or radiators. Noise stays between 15.22 and 19 dB(A) across the speed range. Buyers who need multiple fans in a single pack or prefer a different colour scheme should look elsewhere. The single-fan retail pack includes four mounting screws and a 400mm cable.

Check 140mm mounting points and 4-pin PWM header

Verify your CPU cooler or case has 140mm mounting holes with 25mm thickness clearance. Ensure the motherboard or fan controller provides a 4-pin PWM header for automatic speed control. The fan draws 0.14 A at 12 V for 1.8 W total power. Confirm cable routing can accommodate the 400mm lead without strain.

أبرز المميزات

  • 140 mm frame fits standard CPU cooler mounts
  • UFB bearing with MOSS and SSC cuts vibration and extends life to 150,000 hours
  • PWM speed range 600 to 1,300 RPM adjusts cooling to load
  • MVB nine-blade design delivers 40.9 to 88.6 CFM airflow at 15.22 to 19 dB(A)
  • 4-pin connector and 400 mm cable simplify installation

المواصفات

BrandPhanteks
SeriesPH-F140HP
ModelPH-F140HP_BK
TypeCPU Cooler Fan
CompatibilityCPU Cooler
Fan Size140mm
Bearing TypeUFB (Updraft Floating Balance)
RPM600 - 1300 +/- 250 rpm
Air Flow40.9 - 88.6 CFM
Noise Level15.22 - 19 dB(A)
Power Connector4 Pin
ColorBlack Blade
FeaturesBlade Geometry: Nine Colored Blades with MVB (Maelstrom Vortex Booster) Design
Static Pressure: .39-1.64mm H2O
Input Current: 0.14 A
Rate Voltage: DC 12V
Input Power: 1.8 W
MTBF: >150,000 h
Cable Length: 400mm
Dimensions140 x 140 x 25mm
Package Contents1x 140mm Premium Fan
4x Fan Screws
وزن الشحنة0.25 kg
أبعاد الطرد301 × 290 × 33 mm

إصدارات أخرى من هذا الطراز

1 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Do I need a 4-pin PWM header on my motherboard or fan controller for the PH-F140HP_BK to run?

Yes, the fan uses a 4-pin connector for PWM speed control and requires a compatible 4-pin header to operate.

Will the 140mm frame and 25mm thickness fit the mounting holes on my existing CPU cooler?

The fan measures 140 x 140 x 25mm, matching the standard 140mm mounting pattern used on most CPU coolers.

How can I verify the fan is spinning within its 600 to 1300 RPM range after installation?

Monitor the RPM reading in your BIOS or fan-control software; it should stay between 600 and 1300 RPM depending on the PWM duty cycle.
