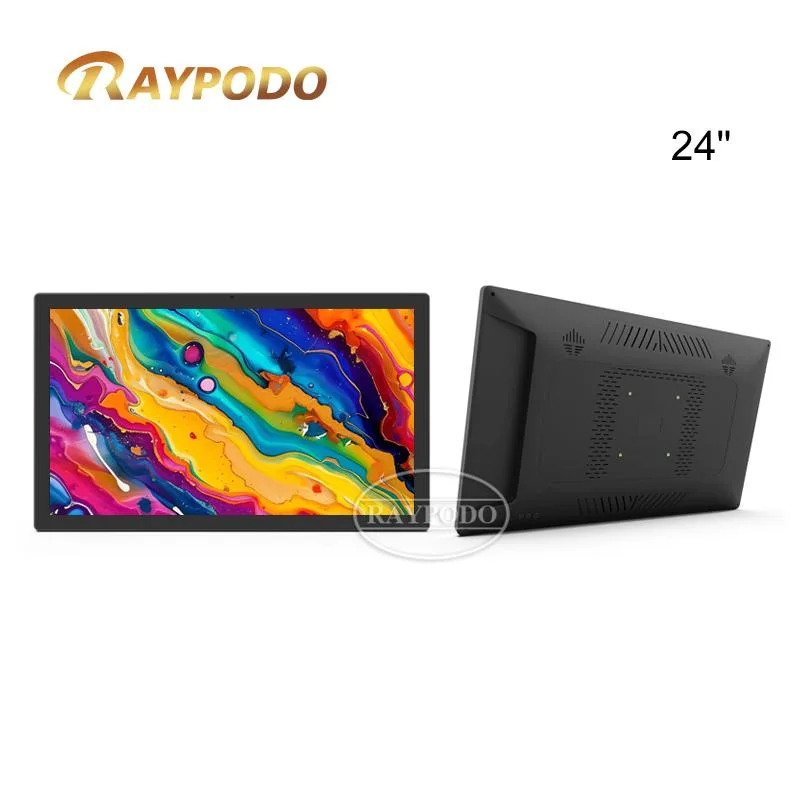

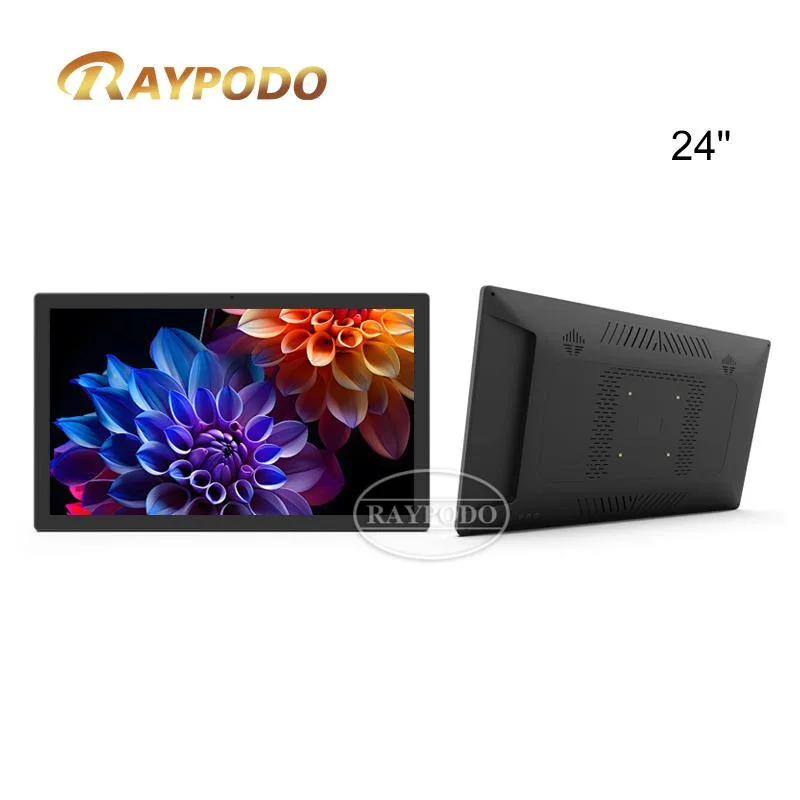

Black 23.8 inch all-in-one touchscreen with wall-mount design

RAYPODO

RAYPODO 23.8" RK3568 2GB 32GB Android 11 All-in-One PC

SKU CH-SREP-FZPMA

A 23.8-inch 1920×1080 IPS touchscreen all-in-one running Android 11 on an RK3568 quad-core Cortex-A55 at 2.0 GHz with 2 GB LPDDR4X and 32 GB eMMC.

  • Screen Size23.8"
  • Screen Resolution1920*1080
  • TouchscreenYes
  • Screen Type10-Point capacitive touch, LCD IPS panel
  • Display Feature23.8" 1920*1080 IPS, 10-Point capacitive touch, Normally bla
  • CPU NameRK3568

model RK3568

  • RK3566
  • RK3568

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

memory 2GB+32GB

  • 2GB+32GB
  • 2GB+16GB

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • 8" 1920×1080 IPS touchscreen gives crisp 10-point interaction
  • RK3568 quad-core Cortex-A55 at 2.0 GHz runs Android 11 smoothly
  • 2 GB LPDDR4X plus 32 GB eMMC stores commercial media
  • PoE and RJ45 Ethernet enable 24/7 wall-mounted operation
  • Fanless commercial build with no battery fits indoor signage

Commercial Display Unit

The RAYPODO 23.8-inch all-in-one PC runs Android 11 on a Rockchip RK3568 quad-core Cortex-A55 processor clocked at up to 2.0 GHz. It integrates a 10-point capacitive IPS touchscreen with a 1920 by 1080 resolution and 16:9 aspect ratio. The system includes 2 GB of LPDDR4X memory and 32 GB of eMMC storage. It is designed specifically for continuous indoor commercial applications such as digital signage and information kiosks.

Fanless Thermal Design

The unit operates without an internal battery and relies on a passive cooling architecture suited for 24/7 duty cycles. Power is delivered via Power over Ethernet or an external adapter, eliminating the need for a separate mains cable at the display location. The RK3568 chipset and Mali-G52-2EE graphics maintain stable temperatures during extended content playback. A single RJ45 Ethernet port provides the wired network link required for reliable remote management.

Mounting and Connectivity Kit

The package includes hardware for both wall-mounted and desktop installations, allowing flexible placement in shopping centres, hotel corridors or corporate reception areas. The POE capability simplifies cabling by combining data and power over one Ethernet run. Android 11 provides a familiar platform for deploying commercial display applications directly on the device. The absence of a battery reduces long-term maintenance in permanently installed scenarios.

أبرز المميزات

  • 8" 1920×1080 IPS touchscreen gives crisp 10-point interaction
  • RK3568 quad-core Cortex-A55 at 2.0 GHz runs Android 11 smoothly
  • 2 GB LPDDR4X plus 32 GB eMMC stores commercial media
  • PoE and RJ45 Ethernet enable 24/7 wall-mounted operation
  • Fanless commercial build with no battery fits indoor signage

المواصفات

Screen Size23.8"
Screen Resolution1920*1080
TouchscreenYes
Screen Type10-Point capacitive touch, LCD IPS panel
Display Feature23.8" 1920*1080 IPS, 10-Point capacitive touch, Normally black, 250cd/m2, 16:9
CPU NameRK3568
CPU TypeQuad-core Cortex-A55 up to 2.0GHz
Installed Qty1
Turbo Frequency-
CPU Main FeaturesRK3568 Quad-core Cortex-A55 up to 2.0GHz
Memory Capacity2GB
Form FactorAll-in-One
Memory Spec2GB LPDDR4X/LPDDR4
SSD32GB EMMC
HDD32GB EMMC
HDD InterfaceEMMC
Storage Spec2GB+32GB
GPU/VGA TypeMali-G52-2EE
Graphics CardMali-G52-2EE
Graphics InterfaceMali-G52-2EE
WLAN802.11b/g/n
ModemWiFi 802.11b/g/n, Bluetooth 5.0
LAN Speed100M/1000M
BluetoothBluetooth 5.0
BrandRaypodo
TypeWall-mounted Commercial Display
UsageElectronic displays, 24/7 operation, Wall-mounted
AI FeaturesSupport 1T NPU
ColorBlack
ProcessorRK3568
Processor Main FeaturesQuad-core Cortex-A55 up to 2.0GHz, Support 1T NPU
Memory2GB LPDDR4X/LPDDR4
Storage32GB EMMC
GraphicsMali-G52-2EE
Audio2*1.5W/2*8Ω 2W speaker, 3.5mm earphone port (Optional), supports MP3/WMA/AAC etc.
Ethernet100M/1000M Ethernet, RJ45 (No POE)
Wireless Card802.11b/g/n WiFi, Bluetooth 5.0
Monitor23.8" LCD IPS panel
Speaker2*8Ω 2W
Software IncludedAndroid 11
Special FeaturesTouchscreen, Android 11, Ethernet, Wall-mounted, 24/7 operation
Cosmetic ConditionBlack
ChipsetRK3568
Audio Channels2 channels
Audio FeaturesSupports MP3/WMA/AAC etc. audio format
Front USB2
Front Audio Ports3.5mm earphone port (Optional)
Card ReaderTF card (Max Support 128GB)
Video PortsHD-MI output
Rear USB2 x USB ports
RJ45RJ45
PC Card SlotTF card (Max Support 128GB)
WebcamFront Camera 2.0 M/P
Speaker Configuration2*8Ω 2W
Speaker FeaturesSupports MP3/WMA/AAC etc. audio formats
Consumer AlertNot include a battery, Not Consumer Tablet

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How is the 23.8" RK3568 all-in-one mounted and where do installers go wrong?

It supports VESA wall-mount and desktop placement; the common mistake is forgetting that PoE requires a compliant switch or injector, so the single Ethernet cable must carry both 24/7 power and data.

What maintenance will the 2GB LPDDR4X / 32GB eMMC Android 11 unit need over time?

No user-serviceable parts exist; plan for occasional touchscreen cleaning and OS security updates, while the soldered memory and storage cannot be upgraded or replaced.

Which limit appears first during continuous 24/7 commercial playback on the RK3568 Mali-G52 graphics?

The 2GB LPDDR4X RAM ceiling is reached before thermal throttling, restricting concurrent apps and large cached media during sustained signage loops.
