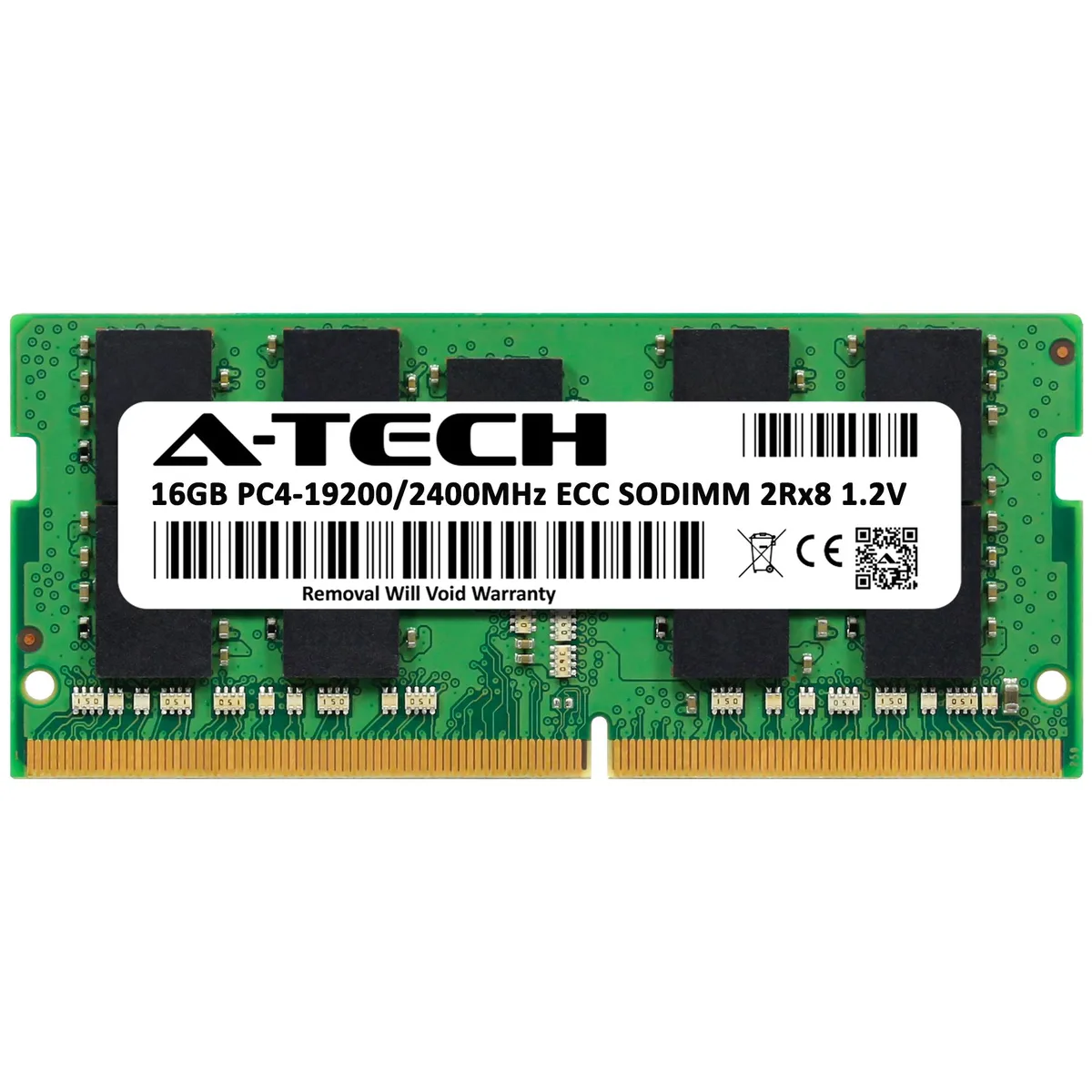

Green circuit board with black memory chips, 260-pin SO-DIMM form factor

A-Tech

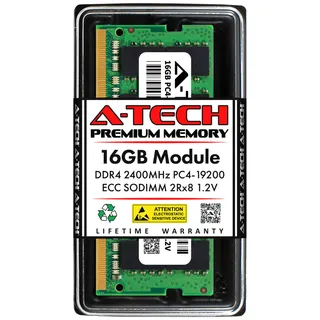

A-Tech 16GB DDR4 2400 ECC SODIMM CL17 1.2V 2Rx8

SKU CH-GG1B-2P16C

Adds 16GB of DDR4 ECC SODIMM memory at 2400MHz with CL17 latency and 1.2V operation for compatible microservers and workstations

  • Capacity16GB
  • Type260-Pin DDR4 SO-DIMM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Voltage1.20V
  • ECCYes

Capacity 16GB

Speed DDR4 2400 (PC4 19200)

CAS Latency CL17

  • ECC protection guards data integrity with built-in error correction
  • 16 GB capacity expands multitasking headroom for demanding workloads
  • 2400 MHz DDR4 speed accelerates data throughput for responsive performance
  • Dual-rank 2Rx8 organisation increases memory bandwidth efficiency
  • 2 V JEDEC standard voltage lowers power draw and heat output

ECC SODIMM for Microservers & NAS

This 16 GB DDR4 2400 MHz module adds error-correcting memory to compatible laptops, mobile workstations and small servers. It runs at the standard 1.2 V JEDEC voltage and uses a 260-pin SO-DIMM form factor. The unbuffered design keeps latency low while the ECC function protects data integrity.

Suits ECC-capable DDR4 systems only

Builders whose hardware lacks ECC support in the chipset or BIOS should choose non-ECC memory instead. Systems limited to lower densities or single-rank modules may not recognise this dual-rank 2Rx8 stick. Always verify the platform qualification list before ordering.

2Rx8 dual-rank organisation decides fit

The module presents two ranks of x8 chips to the memory controller, which some microserver and NAS platforms require for full capacity utilisation. Single-rank boards or those capped at one rank per slot will not address the full 16 GB. Check the system manual for rank population rules.

Přednosti

  • ECC protection guards data integrity with built-in error correction
  • 16 GB capacity expands multitasking headroom for demanding workloads
  • 2400 MHz DDR4 speed accelerates data throughput for responsive performance
  • Dual-rank 2Rx8 organisation increases memory bandwidth efficiency
  • 2 V JEDEC standard voltage lowers power draw and heat output

Specifikace

BrandA-Tech
SeriesA-Tech DDR4 ECC SODIMM
ModelA-Tech 16GB 2Rx8 PC4-19200 ECC SODIMM
Part NumberNE-SS-0576
Capacity16GB
Type260-Pin DDR4 SO-DIMM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Voltage1.20V
ECCYes
Buffered/RegisteredUnbuffered
Heat SpreaderNo
FeaturesECC SODIMM
Recommend UseAMD & Intel Compatible
OptionECC SODIMM

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How can I confirm the module is running at DDR4 2400 with ECC active after installation?

Check the BIOS memory information or a tool like CPU-Z; it should show 2400 MHz speed, CL17 timings, 1.20 V voltage and ECC enabled for the 2Rx8 module.

What comes in the package and do I need anything else to install it?

The box contains one 16 GB DDR4 260-pin ECC SODIMM (part NE-SS-0576); no extra parts are required if your laptop or microserver has a free SODIMM slot.

Should I choose this 16 GB dual-rank ECC SODIMM or a different capacity for my NAS?

Pick this 16 GB 2Rx8 module when your system supports ECC unbuffered SODIMMs and you want maximum capacity per slot; use smaller modules only if the board limits rank count or total memory.
