Black rectangular plastic power supply brick with 5.5x2.5mm barrel connector and 6.2ft cable

ALITOVE 24V 3A 72W Industrial Power Supply 5.5x2.5mm 6.2ft

SKU CH-XG4G-2C4W8

Converts 100-240V AC to 24V DC at 3A 72W with 5.5x2.5mm barrel, 6.2ft cord and built-in overload, over-voltage, over-current, over-temperature and short-circuit protection

  • TypeInverter Generators
  • Engine BrandALITOVE
  • Voltage12
  • Amps8.5
  • Size/Dimensions6.7056 cm x 7.1882 cm x 13.3096 cm
  • Horsepower15
  • Delivers up to 72W for demanding 24V devices
  • Universal 100-240V input works worldwide without a converter
  • 2ft cable and included female connector simplify installation
  • Multiple safety protections guard against overload and short circuits
  • Compact plastic housing measures 6.7 x 7.2 x 13.3 cm

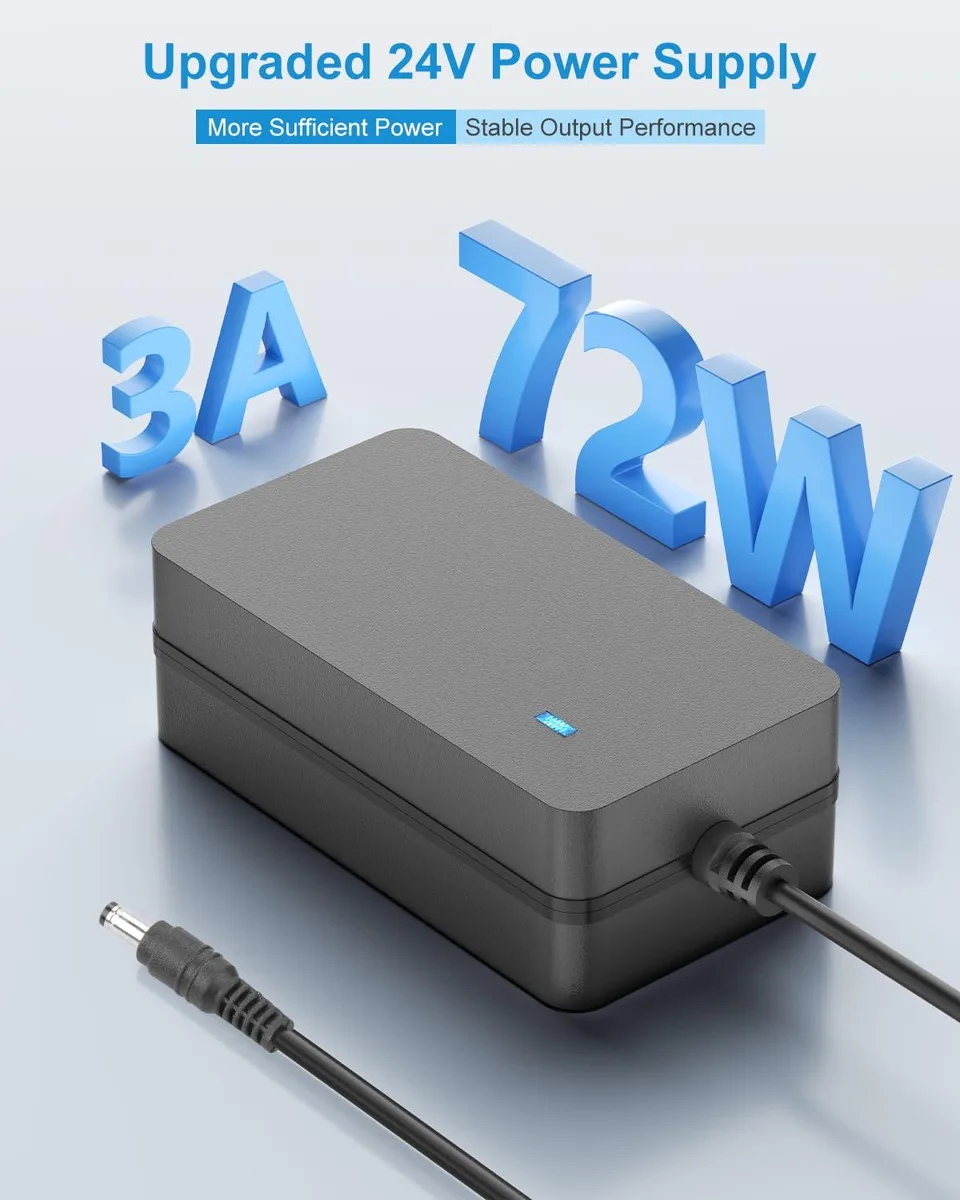

24 V 3 A industrial power supply

This 24 volt 3 amp AC to DC adapter delivers up to 72 watts and accepts 100 to 240 volt input at 50 or 60 hertz. It suits installers and technicians powering LED strips, CCTV cameras, DVR or NVR units, routers, keyboards and similar 24 volt equipment. A 6.2 foot output cord and an included female DC barrel connector allow solder-free wiring. The unit is new and built with a plastic enclosure.

72 watt headroom and protection limits

The supply comfortably runs devices drawing up to 3 amps or 72 watts, including loads rated at 1, 1.5, 2 or 2.5 amps. Built-in safeguards provide overload, over-voltage, over-current, over-temperature and short-circuit protection that shut the output down before damage occurs. It cannot sustain loads above 3 amps or 72 watts, so higher-power LED arrays or multi-camera banks need a larger unit.

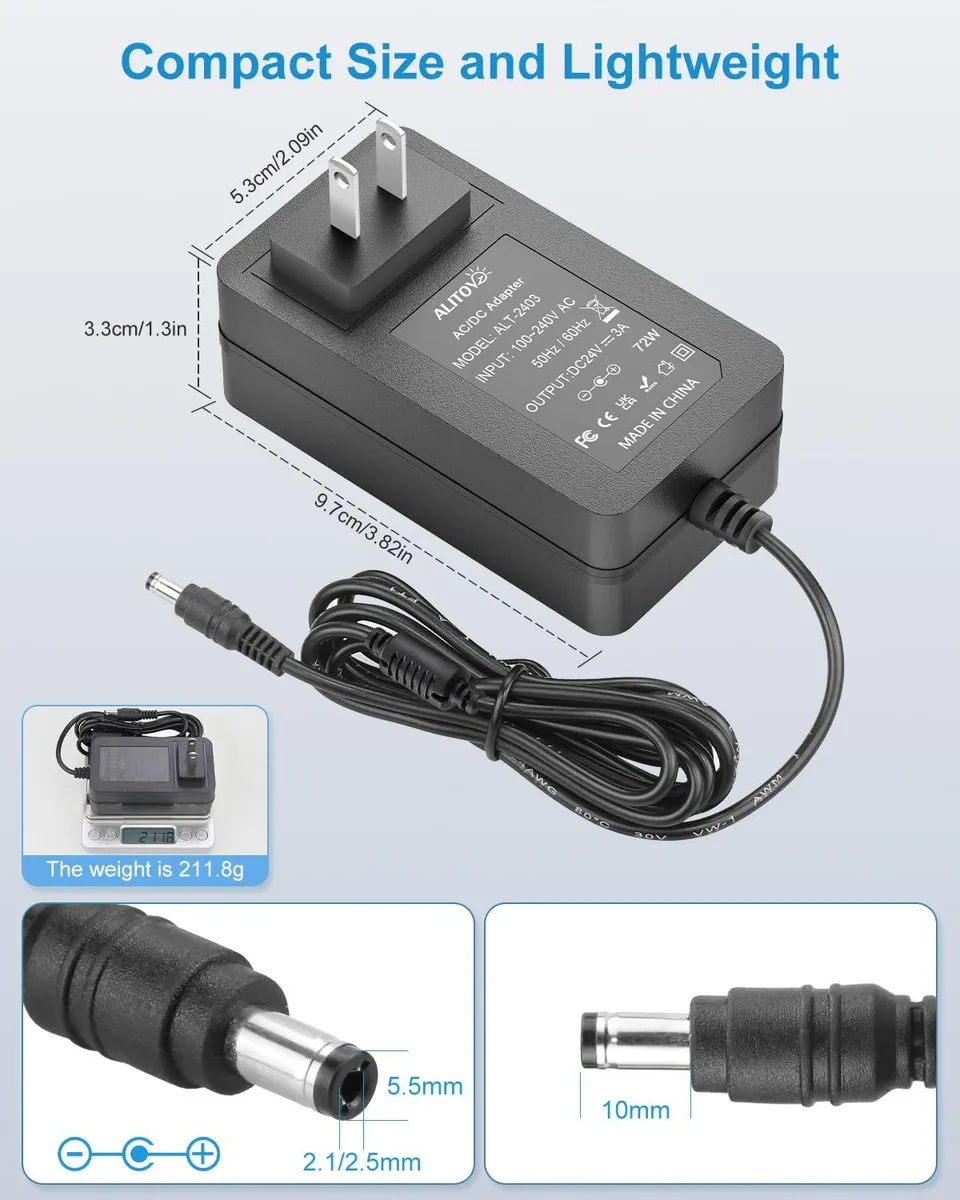

5.5 by 2.5 mm centre-positive barrel

The output connector is a 5.5 millimetre outer, 2.5 millimetre inner diameter DC barrel with centre-positive polarity. This single interface determines compatibility; devices requiring a different barrel size, a locking connector, stripped leads or reverse polarity cannot be connected without an adapter.

Přednosti

  • Delivers up to 72W for demanding 24V devices
  • Universal 100-240V input works worldwide without a converter
  • 2ft cable and included female connector simplify installation
  • Multiple safety protections guard against overload and short circuits
  • Compact plastic housing measures 6.7 x 7.2 x 13.3 cm

Specifikace

TypeInverter Generators
Engine BrandALITOVE
Voltage12
Amps8.5
Size/Dimensions6.7056 cm x 7.1882 cm x 13.3096 cm
Horsepower15
Input Voltage110 volts_of_alternating_current
Output Voltage24 volts_of_direct_current
MaterialPlastic
Compatibility/FitmentAdhesives; Enamels; Epoxies
Number of Polesno_plug
Parts1 Year
Labor1 Year

Otázky k tomuto produktu

Will this 24V 3A 72W supply safely run my existing 2A LED strip without overloading it?

Yes, the 72W maximum rating covers any 24V load up to 3A, so a 2A strip draws only what it needs and the built-in over-current protection will trip if a fault occurs.

How can I confirm the adapter is delivering the correct 24V DC after I plug it in?

Measure the barrel connector with a multimeter set to DC volts; you should read 24V with the centre pin positive and the outer sleeve negative.

Does the package include the 5.5×2.5mm barrel plug for my device, or must I buy it separately?

The box contains the 24V 3A AC/DC adapter and a female DC connector that accepts a 5.5×2.5mm plug; you only need to supply the matching male plug for your device.
