ARCTIC COOLING

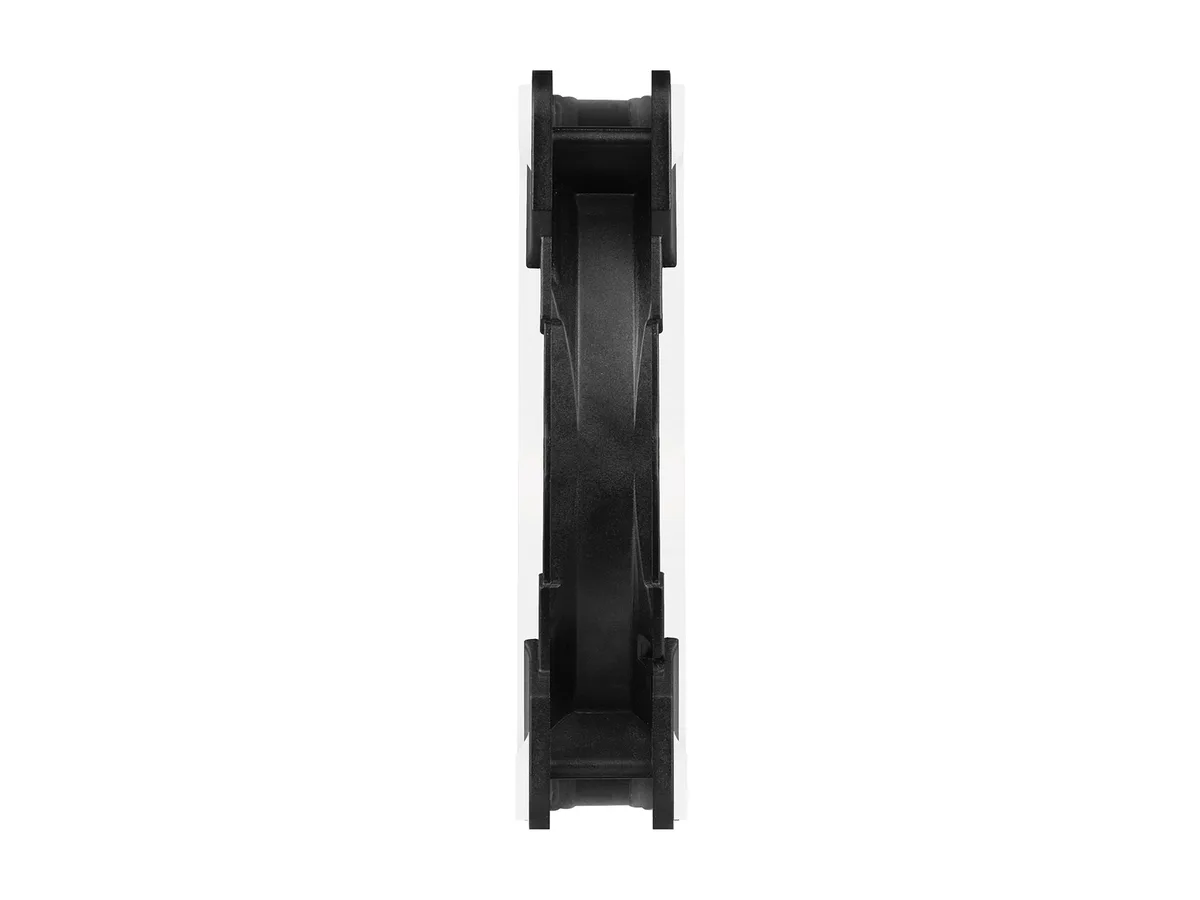

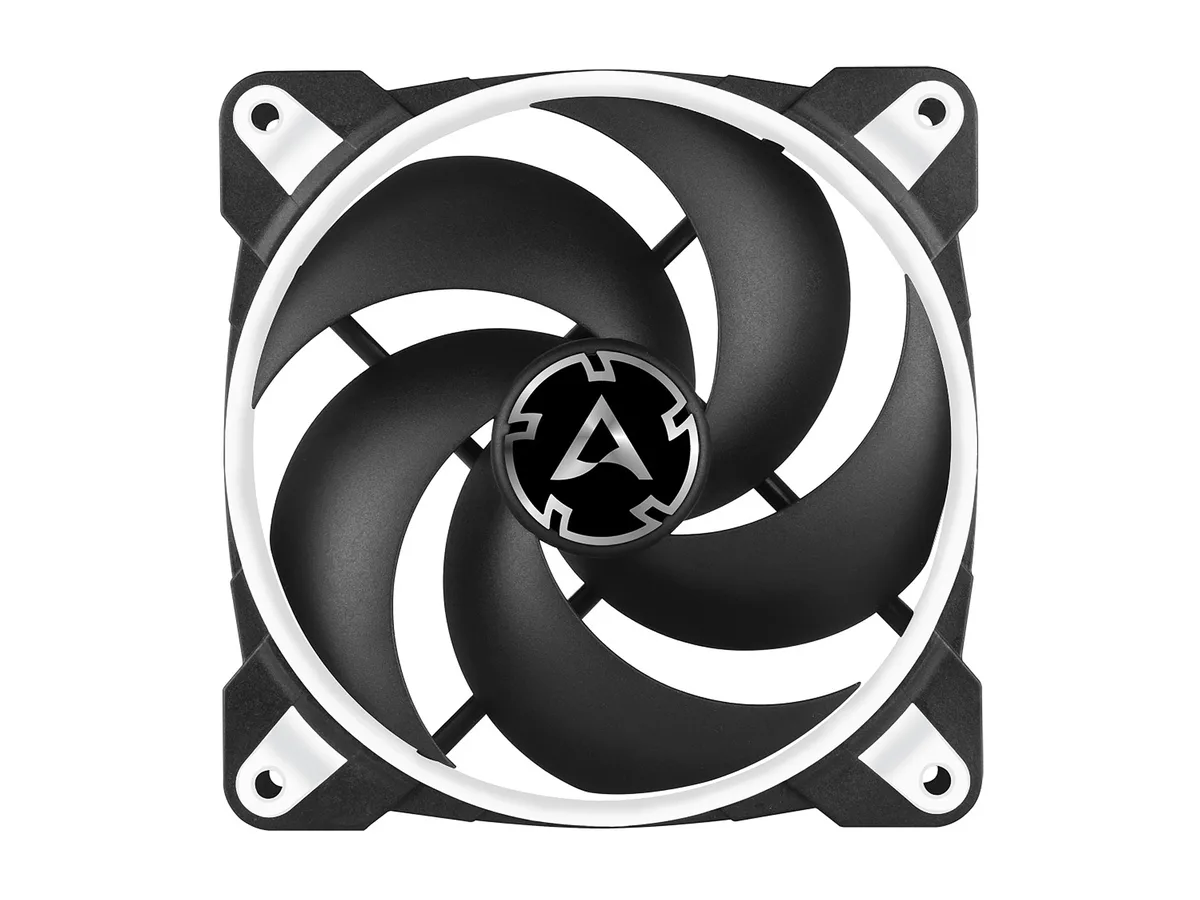

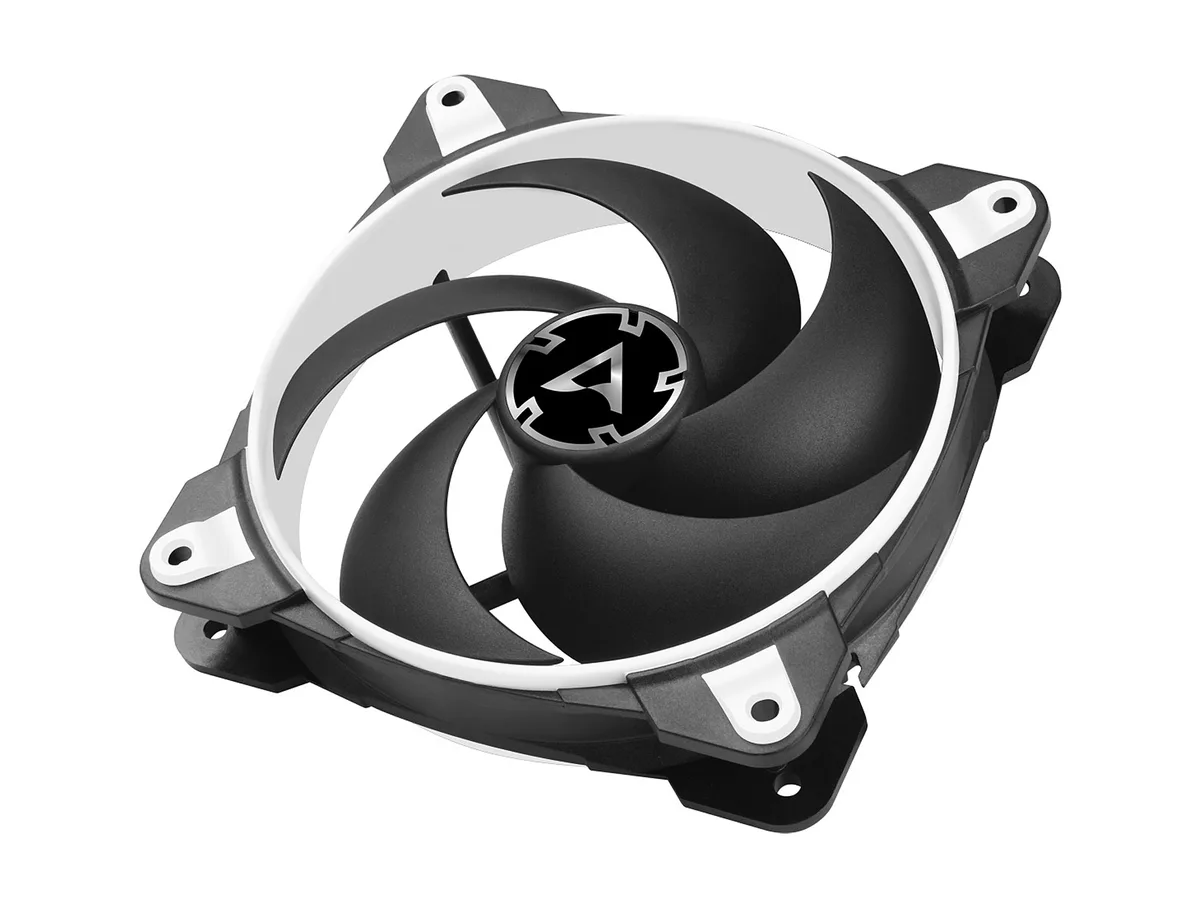

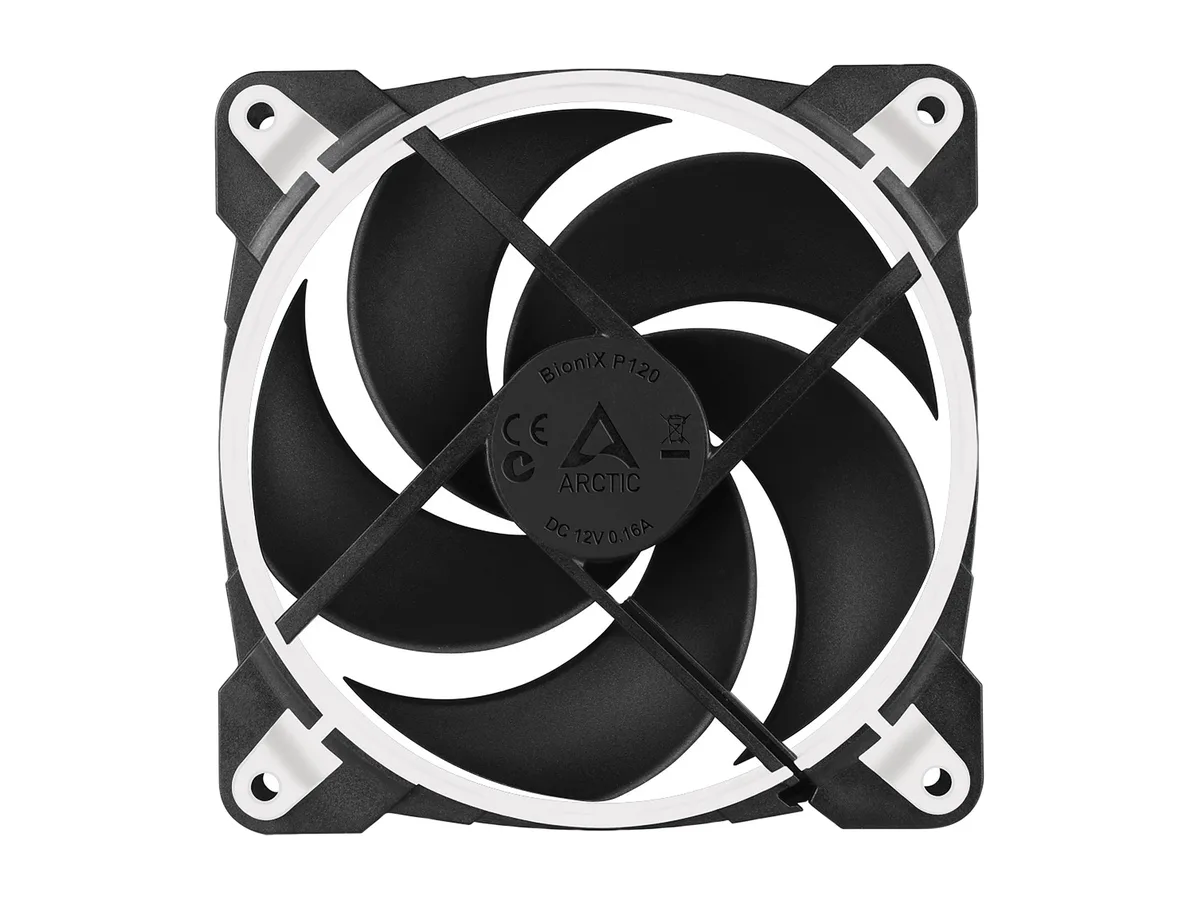

ARCTIC COOLING ACFAN00116A BioniX P120 White 120 mm case fan 27 mm 200-2100 RPM
Pressure-optimised 120 mm fan runs 200 to 2100 RPM, moves 67.56 CFM at 0.45 Sone, and uses fluid-dynamic bearings with PWM sharing for synchronised control
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeCase Fan
- CompatibilityCase
- Fan Thickness27mm
- Bearing TypeFluid Dynamic
- Pressure-optimised airflow suits heatsinks and radiators
- Fluid-dynamic bearing runs at 0.45 Sone minimum noise
- PWM sharing technology synchronises multiple fans automatically
- 200 to 2100 RPM range covers silent to performance modes
- 27 mm thick frame fits standard 120 mm mounts
BioniX P120 White 120 mm pressure fan
The ARCTIC COOLING BioniX P120 White is a 120 mm case fan built for static-pressure tasks. Its 27 mm thick frame houses a fluid-dynamic bearing that spins between 200 and 2100 RPM. The white finish suits colour-coordinated builds while the pressure-optimised blades target heatsinks, radiators and partly covered vents. A 4-pin PWM connector plus a 4-pin socket enable daisy-chaining.
PWM sharing and daisy-chain mounting
PWM sharing technology (PST) lets the motherboard regulate several fans in sync from a single header. The 4-pin socket passes the signal to the next unit so one cable run serves multiple fans. Four mounting screws are included for standard 120 mm hole patterns. The 27 mm thickness fits most radiator and heatsink stacks without extra clearance checks.
Sustained airflow at 0.45 Sone
At full speed the fan moves 67.56 CFM while registering 0.45 Sone, a level that stays consistent during extended loads. The fluid-dynamic bearing maintains stable RPM without the wear spike seen in sleeve designs. Speed ramps smoothly from 200 RPM for idle silence to 2100 RPM under load, keeping static pressure steady across long gaming or rendering sessions.
Přednosti
- Pressure-optimised airflow suits heatsinks and radiators
- Fluid-dynamic bearing runs at 0.45 Sone minimum noise
- PWM sharing technology synchronises multiple fans automatically
- 200 to 2100 RPM range covers silent to performance modes
- 27 mm thick frame fits standard 120 mm mounts
Specifikace
| Brand | ARCTIC COOLING |
|---|---|
| Series | BioniX P120 - White |
| Model | ACFAN00116A |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Case Fan |
| Compatibility | Case |
| Fan Thickness | 27mm |
| Bearing Type | Fluid Dynamic |
| RPM | 200 - 2100 RPM |
| Air Flow | 67.56 CFM |
| Noise Level | 0.45 Sone |
| Power Connector | 4-pin connector + 4-pin socket |
| Color | White |
| Features | Optimized for static pressure Ideal on heatsinks, radiators, and partly covered vents PWM sharing technology (pst) regulates fans in sync |
| Dimensions | 120.00 x 120.00 x 27.00 mm |
| Package Contents | 1 x FAN 4 x Screw |
| Přepravní hmotnost | 0.18 kg |
| Rozměry balení | 132 × 130 × 36 mm |
Otázky k tomuto produktu
Will the fluid-dynamic bearing handle continuous 2100 RPM operation without wearing out quickly?
The fluid-dynamic bearing is rated for sustained speeds up to 2100 RPM and is designed for long-life operation under constant load.
How loud is the fan at full 2100 RPM when running all day in a closed case?
At maximum speed the fan produces 0.45 sone, which remains a low noise level even during extended use.
Does the 4-pin socket on the fan let me daisy-chain another fan without a separate motherboard header?
Yes, the 4-pin connector and 4-pin socket support PWM sharing technology so multiple fans can run in sync from a single header.
