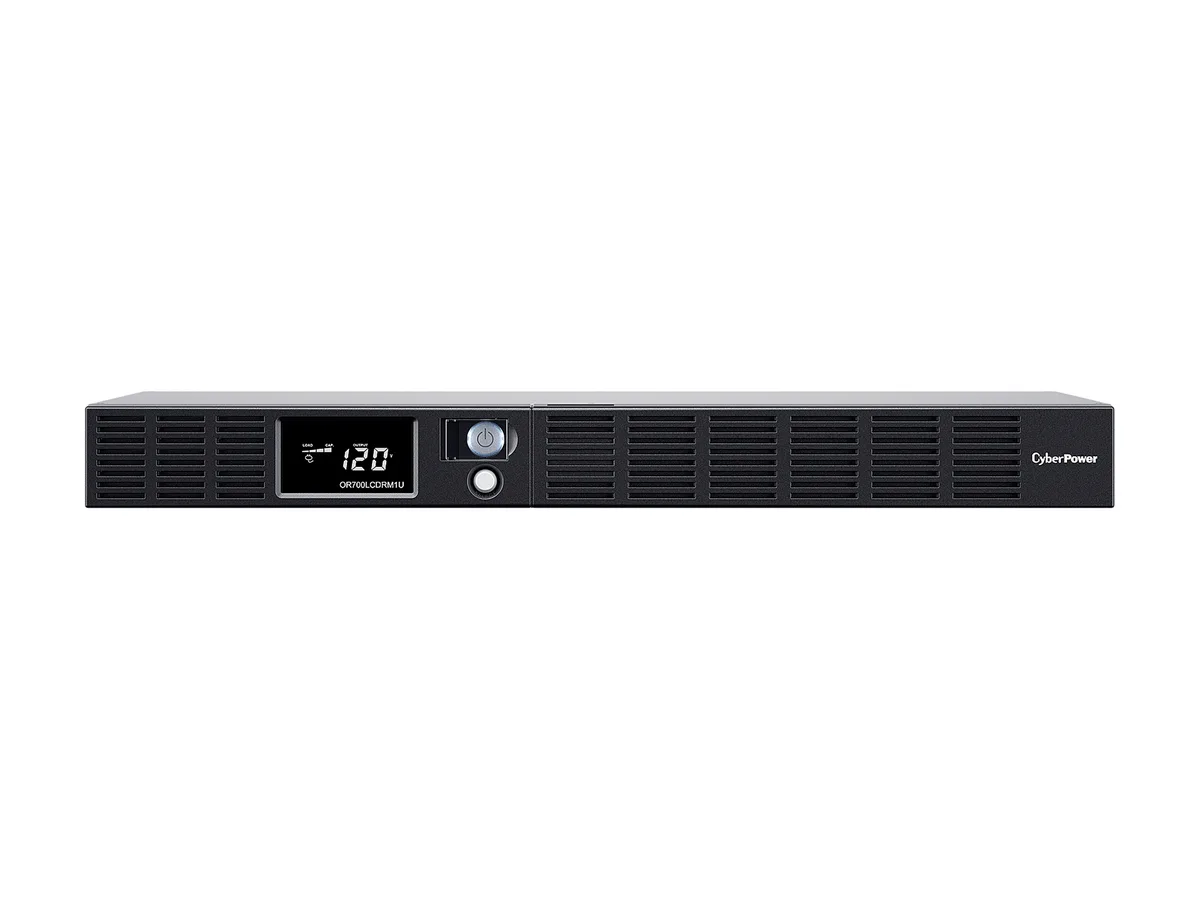

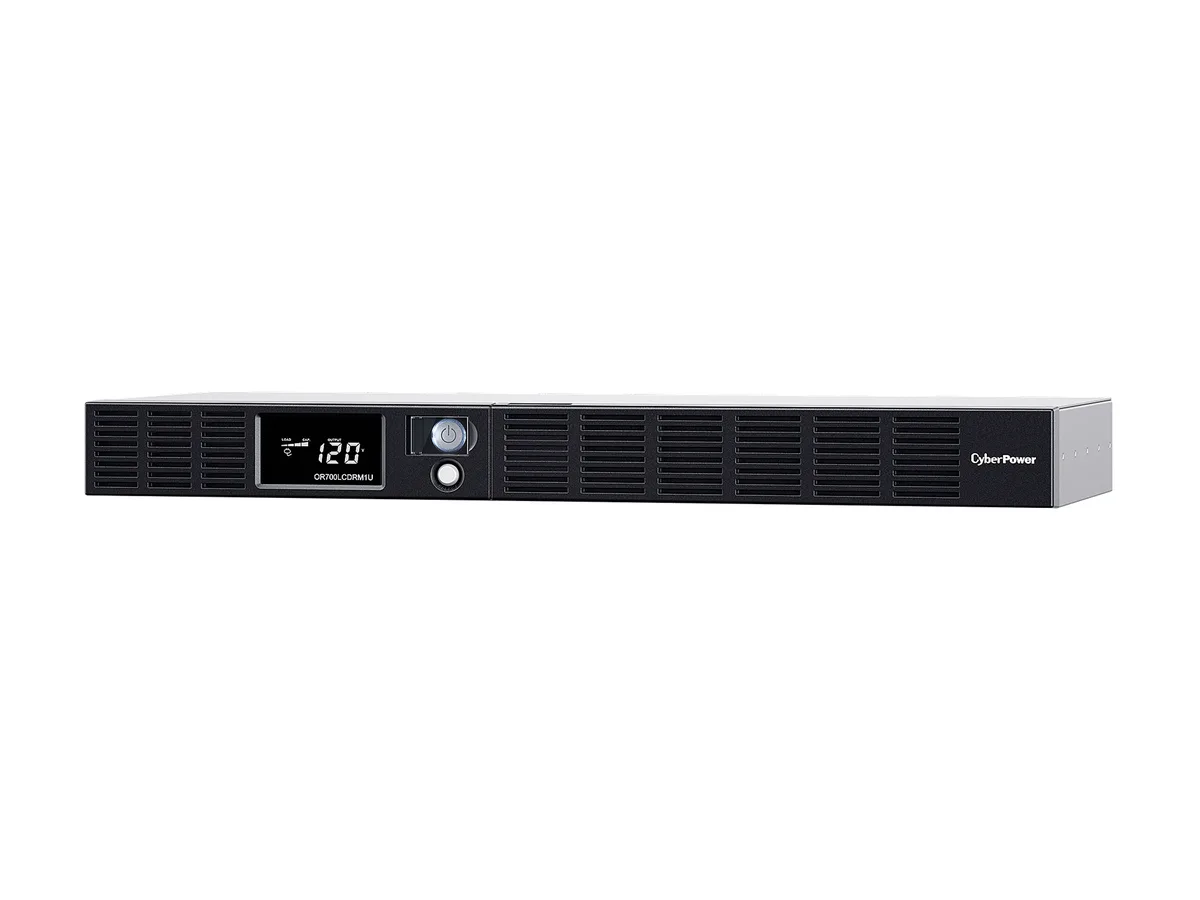

Black 1U rackmount UPS with blue LCD screen and six rear outlets

CyberPower

CyberPower OR700LCDRM1U 700VA/400W 1U Rackmount UPS 6 Outlets 120V

SKU CH-NGQK-EXY49 MPN OR700LCDRM1U

Line-interactive UPS delivers 700 VA and 400 W with simulated sine-wave output, six NEMA 5-15R outlets, AVR, LCD diagnostics, USB and serial management.

  • International Version120V
  • Input Voltage Range90 - 140 VAC
  • Input Frequency57 - 63 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating700 VA
  • Watts400W

VA 700 VA

  • 700 VA / 400 W capacity protects servers and workstations
  • Line-interactive topology with AVR delivers stable 120 V output
  • LCD panel shows voltage, load, battery capacity and runtime
  • USB, serial and SNMP ports enable PowerPanel Business management
  • 3 minutes at full load, 11 minutes at half load

Smart App LCD UPS for 1U Racks

The CyberPower OR700LCDRM1U is a 1U rackmount UPS rated at 700 VA and 400 W. It delivers simulated sine-wave output at 120 VAC and is intended for servers, workstations and network gear that do not use active PFC power supplies.

Verify Input Voltage and Outlet Count

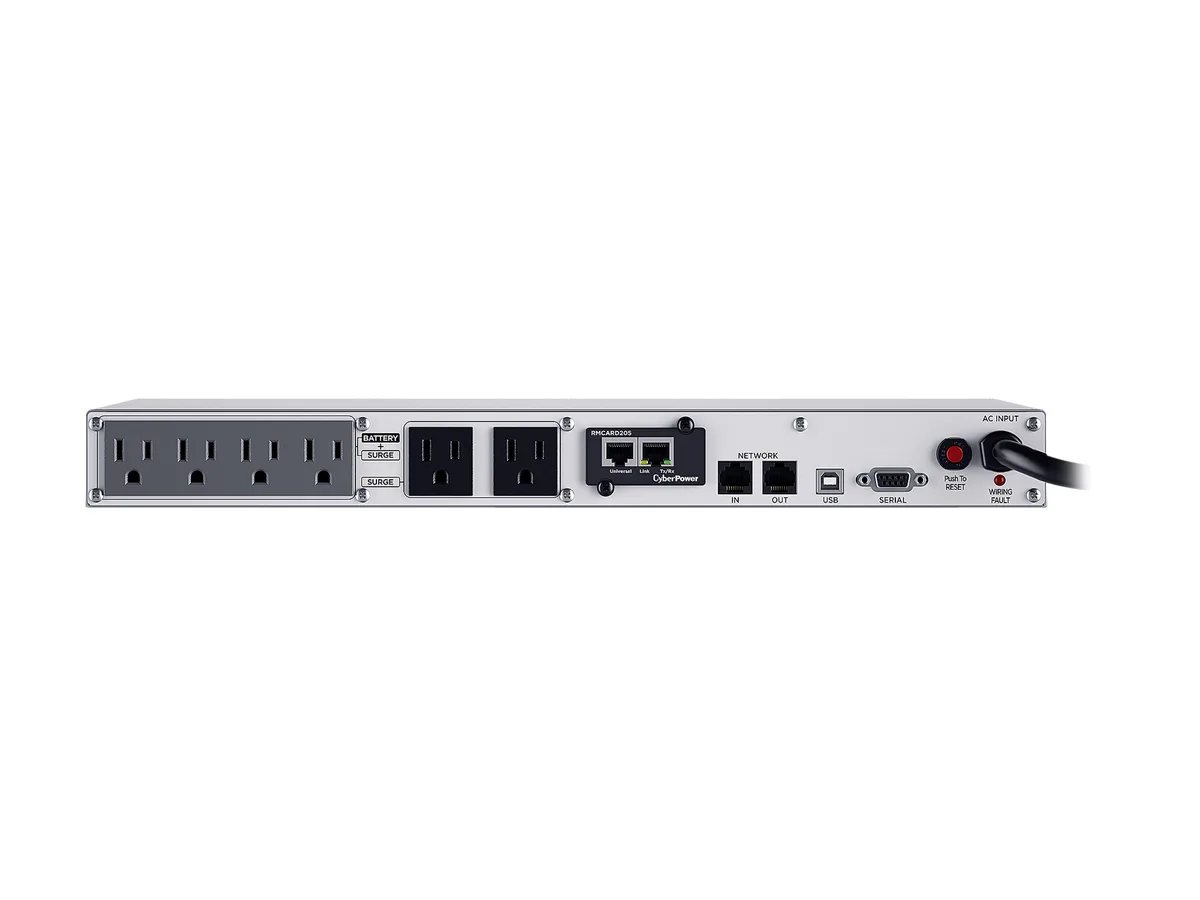

Confirm your facility provides 90–140 VAC at 57–63 Hz and that the NEMA 5-15P plug matches your receptacle. The unit offers six NEMA 5-15R outlets, a 10 ft input cord and USB plus RS-232 ports for PowerPanel Business management.

Replaces Basic Surge Strips Without Runtime

It upgrades from a simple surge protector by adding battery backup with 3 minutes at full load and 11 minutes at half load. The jump is worthwhile when you need graceful shutdown time or AVR correction for voltage sags and swells.

Přednosti

  • 700 VA / 400 W capacity protects servers and workstations
  • Line-interactive topology with AVR delivers stable 120 V output
  • LCD panel shows voltage, load, battery capacity and runtime
  • USB, serial and SNMP ports enable PowerPanel Business management
  • 3 minutes at full load, 11 minutes at half load

Specifikace

BrandCyberPower
SeriesSmart App LCD UPS Series
ModelOR700LCDRM1U
International Version120V
Input Voltage Range90 - 140 VAC
Input Frequency57 - 63 Hz
Input ConnectionNEMA 5-15P
VA Rating700 VA
Watts400W
Output Voltage120 VAC +/- 10%
Output Frequency60 Hz +/- 1%
Outlets6
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeAt Full Load: 3 min
At Half Load: 11 min
Battery Recharge Time8 Hours
Battery ReplaceableRB0690X2
AlarmsBattery Mode
Low Battery
Overload
Fault
Interface PortRS-232, USB
Management SoftwarePowerPanel Business
ApprovalsUL1778
cUL107.1
FCC Class B
Rackmountable1U
Data Line ProtectionNetwork Protection RJ45: 1-in / 1-Out (10/100/1000)
Surge Energy Rating1150 Joules
ProtectionInternal Circuitry Limiting
Circuit Breaker Protected
FeaturesCapacity: 700 VA / 400W
Topology: Line Interactive
Waveform: Simulated Sine Wave
Output: 120 VAC +/- 10%
Plug type & cord: NEMA 5-15P, 10 ft. cord
Outlet types: 6 x NEMA 5-15R
Communication: USB, Serial, SNMP
Management software: PowerPanel Business
Remote management: Yes, with optional RMCARD205
ENERGY STAR certified: Yes

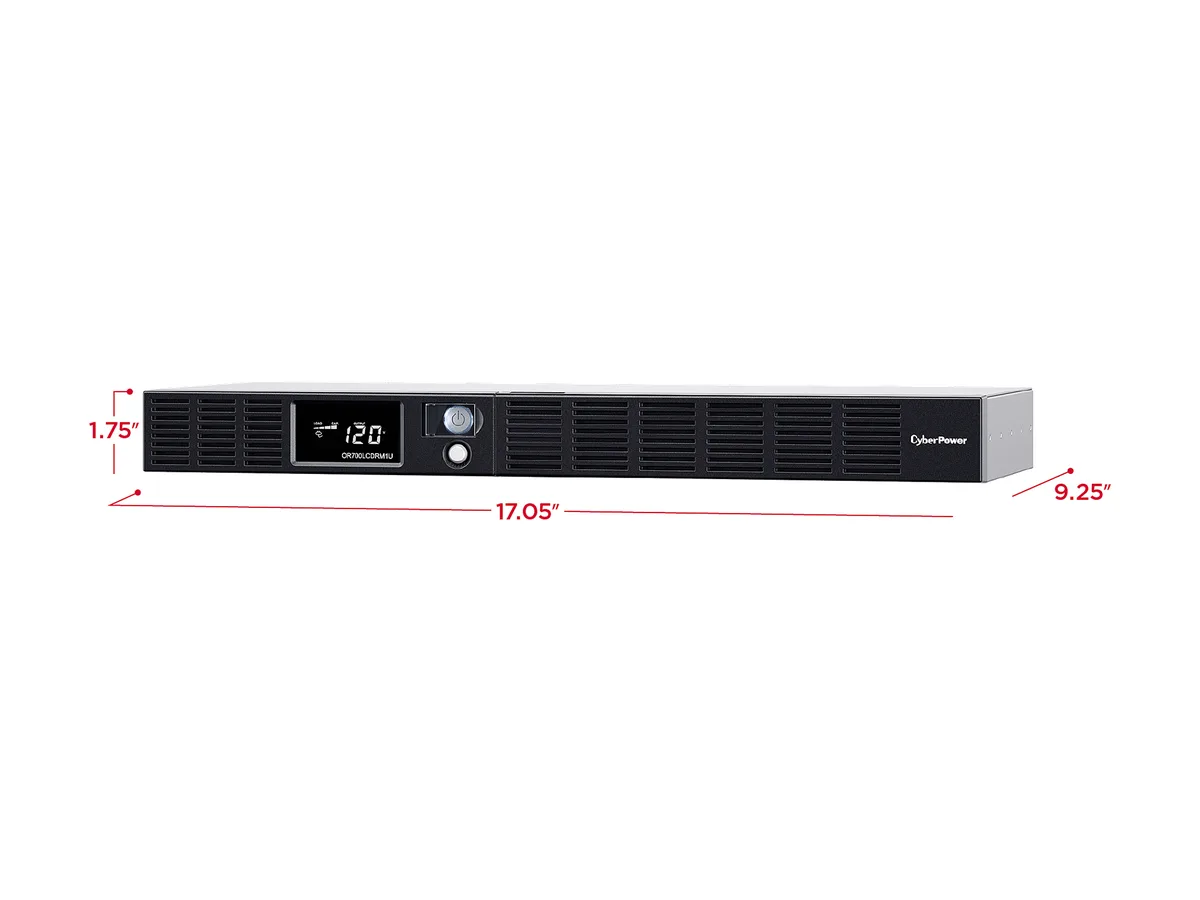

Dimensions1.75" x 17.05" x 9.25"
Weight18.50 lbs.
Přepravní hmotnost9.87 kg
Rozměry balení528 × 315 × 150 mm

Další verze tohoto modelu

Dalších 3 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What comes in the box and what must I buy separately?

The UPS ships with a 10 ft NEMA 5-15P cord, six NEMA 5-15R outlets, USB and RS-232 cables, and PowerPanel Business software. Network cables for the RJ11/RJ45 protection ports are not included.

Which capacity should I choose for my rack?

This single model delivers 700 VA and 400 W in a 1U rackmount form factor; there are no alternate capacities or versions listed for this SKU.

What does the 400 W rating mean for my servers?

At full 400 W load the battery runs for 3 minutes; at half load it runs for 11 minutes, giving time to save work and shut down gracefully.
