Black aluminium M.2 SATA NGFF enclosure with USB-C cable and screwdriver

EN-Labs

EN-Labs ENNGFF2U310GC M.2 SATA NGFF to USB 3.1 10Gbps Type-C Enclosure Black Aluminum

SKU CH-0S6P-C5ND2

Aluminum enclosure converts B-key or B+M-key SATA M.2 drives (2230, 2242, 2260, 2280) to USB 3.1 Type-C at 10Gbps

  • ColorBlack
  • MaterialAluminum
  • External InterfaceUSB 3.1 Type-C
  • HDD Count SupportedNo
  • Number of Bay1
  • FeaturesOnly fit for SATA-bus NGFF M.2 SSD with Key B/B+M,Can't fit

External Interface USB 3.1 Type-C

  • USB 3.1 10Gbps Type-C speed for rapid SATA NGFF transfers
  • Tool-free installation supports 2230 2242 2260 2280 B-key M.2 SATA drives
  • Aluminium housing protects the SSD and aids heat dissipation

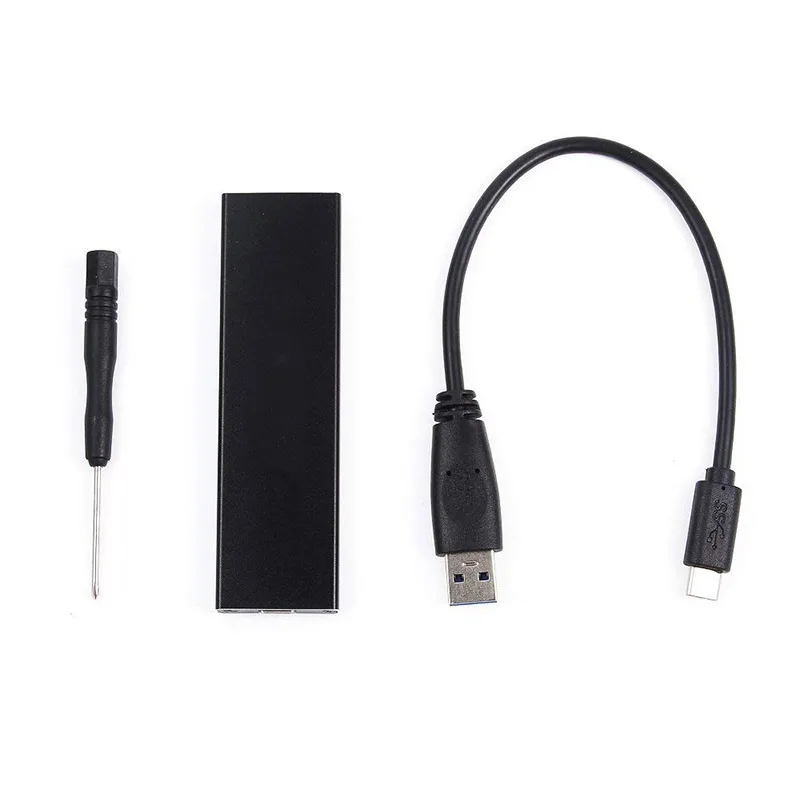

  • Includes USB-A to USB-C cable and screwdriver for immediate use
  • Plug-and-play across Windows Linux macOS with no drivers required

Target Drive & Compatibility

This enclosure accepts SATA-bus M.2 NGFF SSDs with B-key or B+M-key layouts in 2230, 2242, 2260 and 2280 lengths. It cannot accommodate PCIe NVMe or PCIe AHCI drives with M-key interfaces, so buyers must verify their module type before purchase.

Build & Connectivity

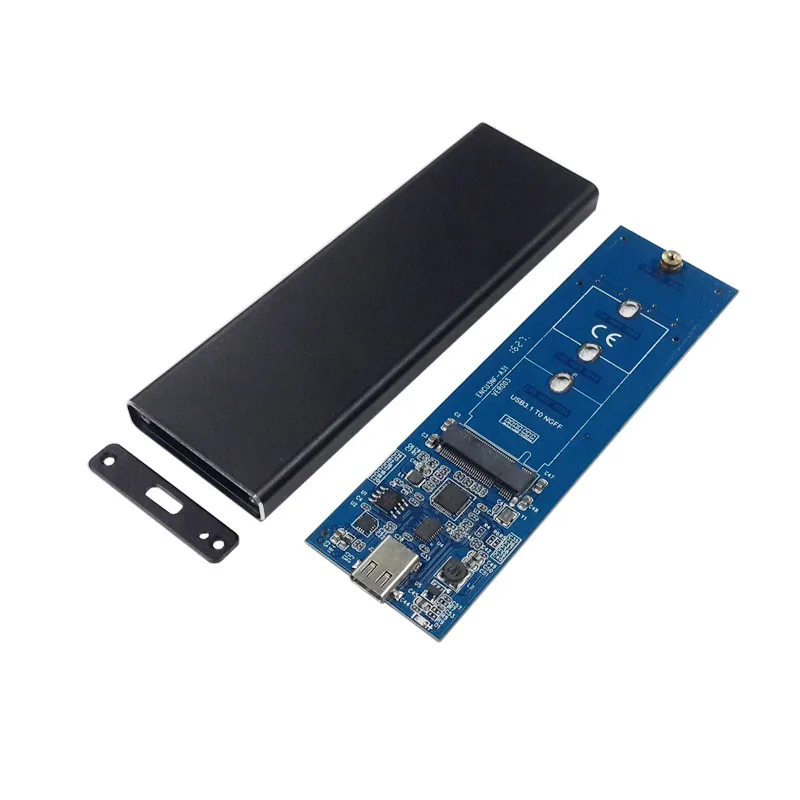

The black aluminium housing acts as a heatsink and protects the drive with a slide-in drawer mechanism. A USB 3.1 Type-C port delivers up to 10Gbps bandwidth and is backward compatible with USB 3.0, 2.0 and 1.1 hosts. The package includes a 1ft USB-A to USB-C cable and a screwdriver for tool-free assembly.

Thermals, Noise & Power

Passive aluminium construction means zero fan noise during operation. The enclosure draws all power from the host USB port, requiring no external adapter. Thermal performance depends on the installed SATA SSD and ambient airflow, with the metal chassis helping to dissipate heat during sustained transfers.

Přednosti

  • USB 3.1 10Gbps Type-C speed for rapid SATA NGFF transfers
  • Tool-free installation supports 2230 2242 2260 2280 B-key M.2 SATA drives
  • Aluminium housing protects the SSD and aids heat dissipation
  • Includes USB-A to USB-C cable and screwdriver for immediate use
  • Plug-and-play across Windows Linux macOS with no drivers required

Specifikace

BrandEn-Labs
ModelENNGFF2U310GC
ColorBlack
MaterialAluminum
External InterfaceUSB 3.1 Type-C
HDD Count SupportedNo
Number of Bay1
FeaturesOnly fit for SATA-bus NGFF M.2 SSD with Key B/B+M,Can't fit any PCI-E based B key and PCIe NVMe / PCIe AHCI NGFF M.2 SSD with Key M devices Pls check your M.2 SSD type before place order. This is a compact NGFF (M.2) SSD Enclosure which will allow you to plug in your NGFF (M.2) SSD and use it as a portable external drive at USB 3.1 Type-C super speed data transfer rate up to USB 3.1(GNE2) 10Gbps - much faster than USB 3.0. By formatting this case with a drawer function, there is now extra protection for your hard drive. Reverse compatible with USB 3.0/2.0 and 1.1,and the speed turn w
Package Contents1 x M.2 NGFF(Socket 2 SATA Channel)SSD to USB-C enclosure 1x Screw Driver. 1ft USB-A to USB-C male-male cable

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What speeds does the USB 3.1 Gen 2 Type-C interface actually reach with a SATA M.2 drive?

The enclosure supports up to 10 Gbps, but a SATA 3.0 drive caps real-world throughput at roughly 6 Gbps, so that is the practical limit.

Which M.2 module lengths fit inside the aluminum case?

The tray accepts 2230, 2242, 2260 and 2280 modules, all 22 mm wide, and includes the standoff screws for each length.

How do you install a drive without shorting the B-key connector?

Slide the drive in at a slight angle, press it down flat, then secure it with the correct-length standoff screw before closing the drawer; forcing it straight down can bend the key.
