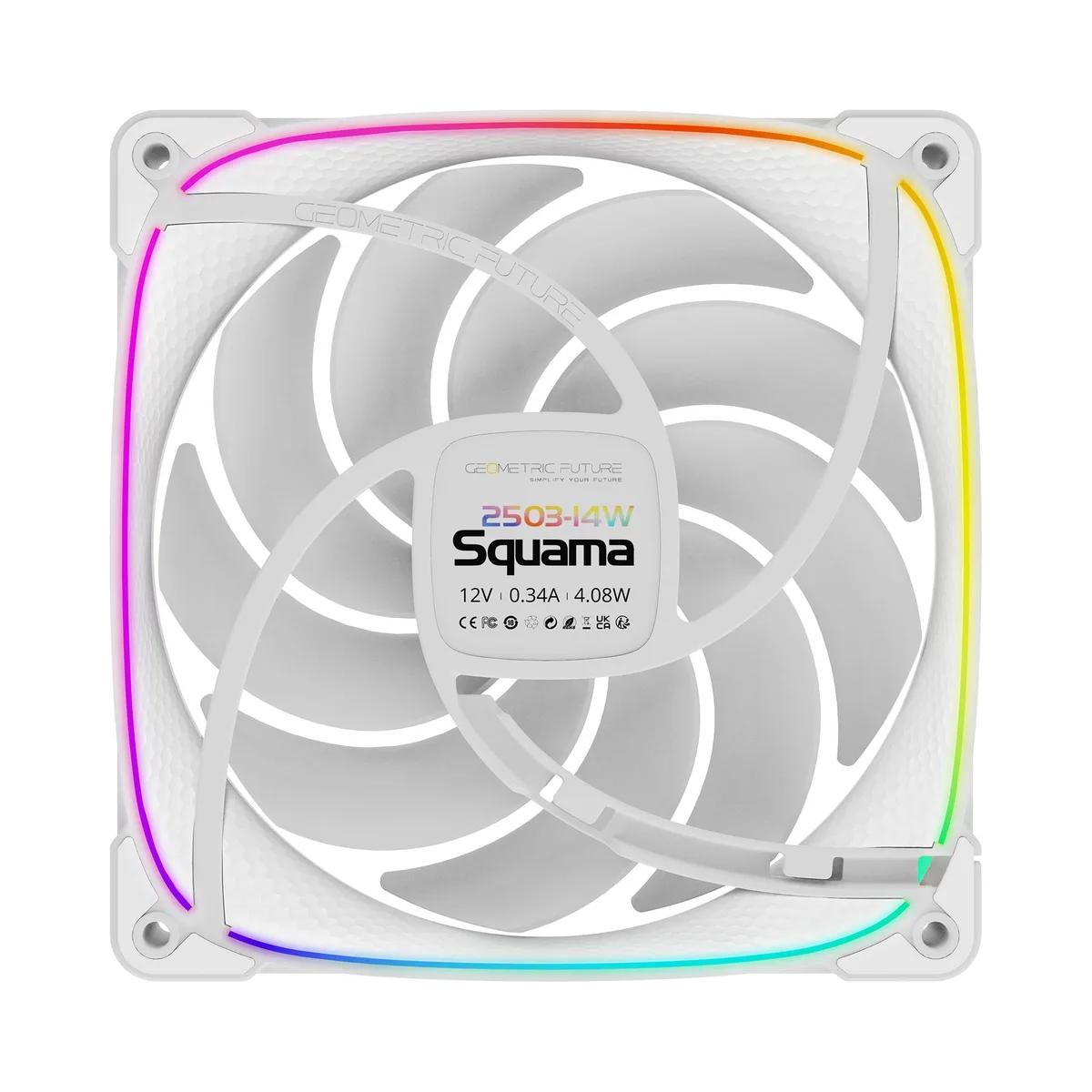

White 140mm square case fan with dual ARGB light rings and rubber anti-vibration corners

Geometric Future

Geometric Future Squama 2503 140mm case fan White

SKU CH-PSHF-GXZ28

140 mm PWM case fan with addressable RGB dual light loop, hydro dynamic bearings and 800–2400 rpm speed range for 91.15 CFM airflow at 34 dB(A)

  • Fan Size140mm
  • Fan Thickness25
  • Bearing TypeHydro Dynamic Bearings
  • RPM800~2400
  • Air Flow91.15
  • Air Pressure2.63

Color White

Model Squama 2503 140x25mm Standard

Option 1 Pack

  • Quiet operation with 34 dB(A) maximum noise
  • Strong cooling delivering 91.15 CFM airflow
  • Precise speed control from 800 to 2400 RPM via PWM
  • Addressable RGB dual light rings sync with motherboard
  • Patented Squama frame particles boost airflow efficiency

140 mm PWM case fan with addressable RGB

The Geometric Future Squama 2503 is a 140 mm fan built for builders who want a single unit that fits standard mounting points and adds addressable lighting. It connects via a 4-pin PWM header and a 5 V 3-pin ARGB header for motherboard synchronisation. The white finish suits light-themed builds.

Hydro Dynamic Bearing thermals

Hydro Dynamic Bearings support a speed range of 800 to 2400 rpm, delivering 91.15 CFM airflow and 2.63 mm H₂O static pressure. At maximum speed the fan reaches 34 dB(A). Anti-vibration rubber pads reduce transmitted vibration to the chassis.

Squama frame particles sustain airflow under load

The patented Squama particles on the frame reduce turbulent flow noise while maintaining airflow and pressure efficiency during prolonged operation. PWM control adjusts speed dynamically so the fan balances cooling performance and acoustic output over extended workloads.

Přednosti

  • Quiet operation with 34 dB(A) maximum noise
  • Strong cooling delivering 91.15 CFM airflow
  • Precise speed control from 800 to 2400 RPM via PWM
  • Addressable RGB dual light rings sync with motherboard
  • Patented Squama frame particles boost airflow efficiency

Specifikace

Fan Size140mm
Fan Thickness25
Bearing TypeHydro Dynamic Bearings
RPM800~2400
Air Flow91.15
Air Pressure2.63
Noise Level34
Power ConnectorPWM 4Pin
ColorWhite
LEDAddressable RGB
Dimensions140mm

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I install the 140mm fan with the 4-pin PWM connector and the 5V 3-pin ARGB header, and what step do people often miss?

Mount the fan using the four screw holes, connect the 4-pin PWM cable to the motherboard fan header and the 5V 3-pin ARGB cable to a 5V 3-pin addressable RGB header; the step often missed is plugging in the ARGB cable so the dual light loop can synchronise with motherboard software.

What maintenance or replacement will the hydro dynamic bearing fan need later?

The hydro dynamic bearing is sealed and requires no lubrication; over time dust can accumulate on the blades and the squama particle frame, so periodic cleaning with compressed air keeps airflow at 91.15 CFM and noise at 34 dB(A).

What limit appears first when the fan runs at 2400 RPM for long periods?

At the maximum 2400 RPM the noise level reaches 34 dB(A), which is the first noticeable limit under sustained use; the 4-pin PWM curve will reduce speed when thermal headroom allows.
