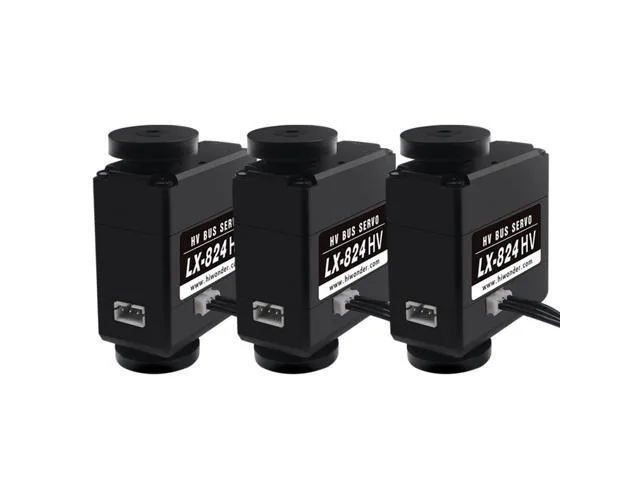

LORDWORLD LX-824HV high-voltage bus servo with three connectors

LORDWORLD

LORDWORLD LX-824HV 17KG 11.1V Bus Servo 240°/360°

SKU CH-QY0P-2DPTN

High-torque bus servo delivering 17 kg force at 11.1 V with 240° or 360° rotation modes and position feedback

  • Simplify wiring with serial bus connectors daisy-chaining servos
  • Extend operating time through reduced power consumption design
  • Achieve precise positioning via internal high-precision potentiometer feedback
  • Control from phone, handle or computer interfaces flexibly
  • Switch between 240° servo and 360° gear motor modes

High-torque bus servo for robotics projects

The LORDWORLD LX-824HV delivers 17 kg of torque at 11.1 V, making it suited for demanding joint actuation in humanoid robots or heavy-duty manipulators. It operates in two distinct modes: a servo mode limited to 240° and a continuous gear-motor mode covering 360°. Builders who need absolute position feedback for closed-loop control will benefit from the internal high-precision potentiometer. This unit is not for lightweight hobby arms that run on standard 5 V or 6 V supplies.

Daisy-chain wiring with three bus connectors

Three serial bus connectors allow multiple servos to be linked in a chain, reducing cable clutter inside a robot frame. The high-voltage design lowers current draw, which extends operating time on a single battery pack. An internal potentiometer provides real-time angle, temperature and voltage data back to the controller. Users who require PWM-only interfaces or single-cable hookups will find the bus architecture incompatible with their existing electronics.

Check voltage, protocol

Verify that your control board speaks the same serial bus protocol and can supply a stable 11.1 V rail under load. Confirm that 240° of travel in servo mode meets the range-of-motion requirement for your joint design. Ensure the mounting pattern and output shaft match the brackets or horns already in your build. Teams using 5 V or 6 V servo buses cannot power this unit without a dedicated regulator.

Přednosti

  • Simplify wiring with serial bus connectors daisy-chaining servos
  • Extend operating time through reduced power consumption design
  • Achieve precise positioning via internal high-precision potentiometer feedback
  • Control from phone, handle or computer interfaces flexibly
  • Switch between 240° servo and 360° gear motor modes

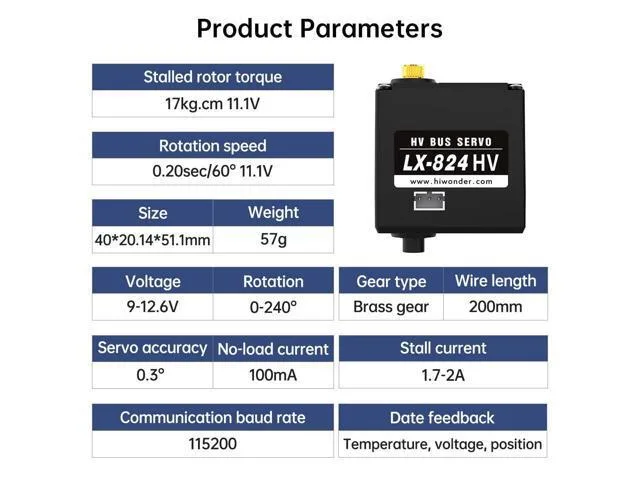

Specifikace

BrandLORDWORLD

Otázky k tomuto produktu

What bus interface does the LX-824HV servo use and what practical limit does it set?

The servo connects through a serial bus connector that lets you daisy-chain multiple units on one line, simplifying wiring for larger builds.

What physical mounting details apply to the LX-824HV?

The unit is a standard high-voltage bus servo with 17 kg·cm torque; mount it using the integrated horn and case screw pattern common to this class of servo.

How do I switch the LX-824HV between its two operating modes?

Select Servo mode for 0–240° position control or Gear motor mode for continuous 0–360° rotation via the controller software or app before powering the servo.
