Aluminium case for Jetson Orin with adjustable camera mount 180°

MCDODO

MCDODO Aluminum Alloy Case for Jetson Orin with Camera Holder 180°

SKU CH-V1H4-6VB7J

Aluminium case for Jetson Orin boards with 180° adjustable camera mount and vented cooling

  • TypeSingle Board Computers
  • Aluminium construction protects the Jetson Orin board from impact and EMI
  • Three-sided airflow vents and a top fan cut-out deliver strong passive cooling
  • Adjustable camera mount supports single or stereo modules up to 180° roll
  • Silicone feet minimise bottom contact to maximise heat dissipation and stability
  • Precision CNC finish ensures exact port alignment and a professional appearance

Aluminium Alloy Case for Jetson Orin

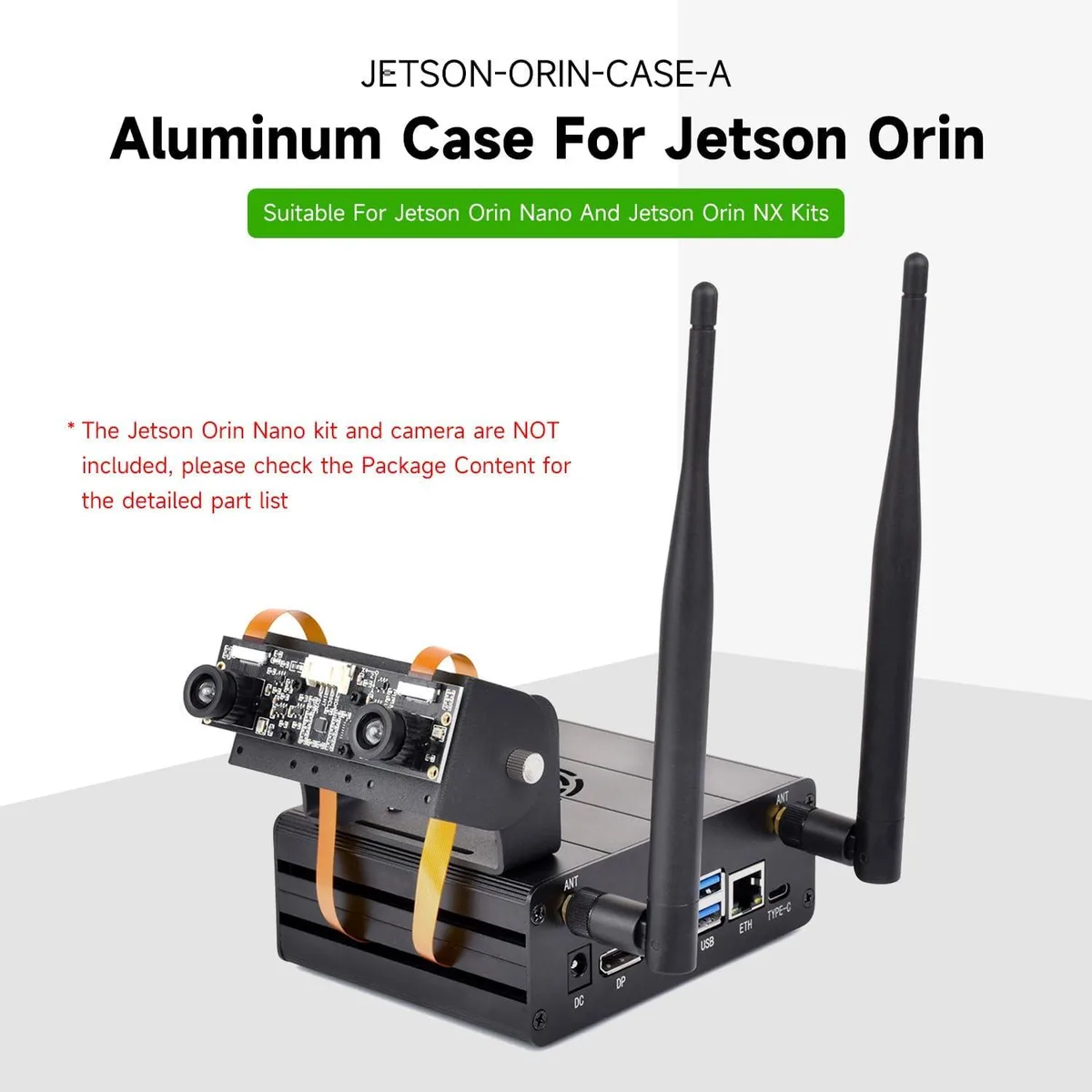

This aluminium alloy enclosure is designed for the Jetson Orin Nano Super Developer Kit, the Jetson Orin Nano and the Jetson Orin NX kits. It provides a rigid housing for edge-AI development boards used in robotics, drones and embedded vision projects. The case is sold separately; the compute module and camera are not included.

Camera Mount and Cooling Headroom

Mounting holes accept a single camera or a binocular pair with up to 180° roll adjustment for flexible sensor positioning. Reserved vents on three sides and dedicated top holes for the built-in fan create a directed airflow path that keeps the module within thermal limits during sustained inference workloads. Silicone feet lift the base to increase the dissipation surface.

Mechanical Limits of the Enclosure

The fixed internal dimensions accept only the listed Orin Nano and Orin NX form factors; larger carrier boards or add-on HATs will not fit. The 180° camera roll range is the maximum angular travel the mounting pattern allows; wider pan or tilt movement requires an external gimbal. No provision is made for additional storage drives or PCIe expansion cards inside the chassis.

Přednosti

  • Aluminium construction protects the Jetson Orin board from impact and EMI
  • Three-sided airflow vents and a top fan cut-out deliver strong passive cooling
  • Adjustable camera mount supports single or stereo modules up to 180° roll
  • Silicone feet minimise bottom contact to maximise heat dissipation and stability
  • Precision CNC finish ensures exact port alignment and a professional appearance

Specifikace

TypeSingle Board Computers

Otázky k tomuto produktu

Will the 180° camera holder clear the fan vents on my Jetson Orin Nano Super Developer Kit?

The case reserves three sides of airflow vents and dedicated top holes for the built-in fan, so the camera mount does not block cooling.

How can I confirm the case is dissipating heat properly once installed?

With the board mounted, the built-in fan should spin freely through the top cut-outs and the silicone feet keep the base slightly raised for maximum airflow.

What parts come in the box and what must I supply myself?

The package includes only the aluminum alloy case and camera holder; the Jetson Orin Nano kit and camera are not included and must be purchased separately.
