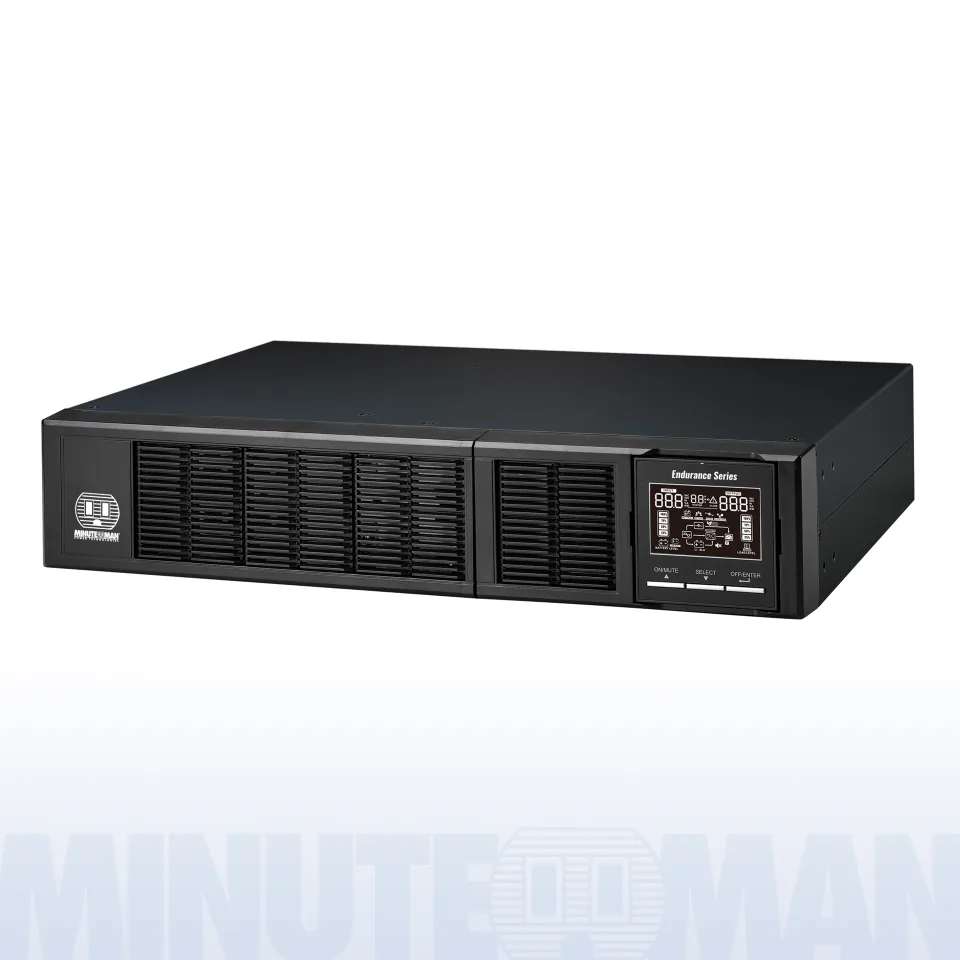

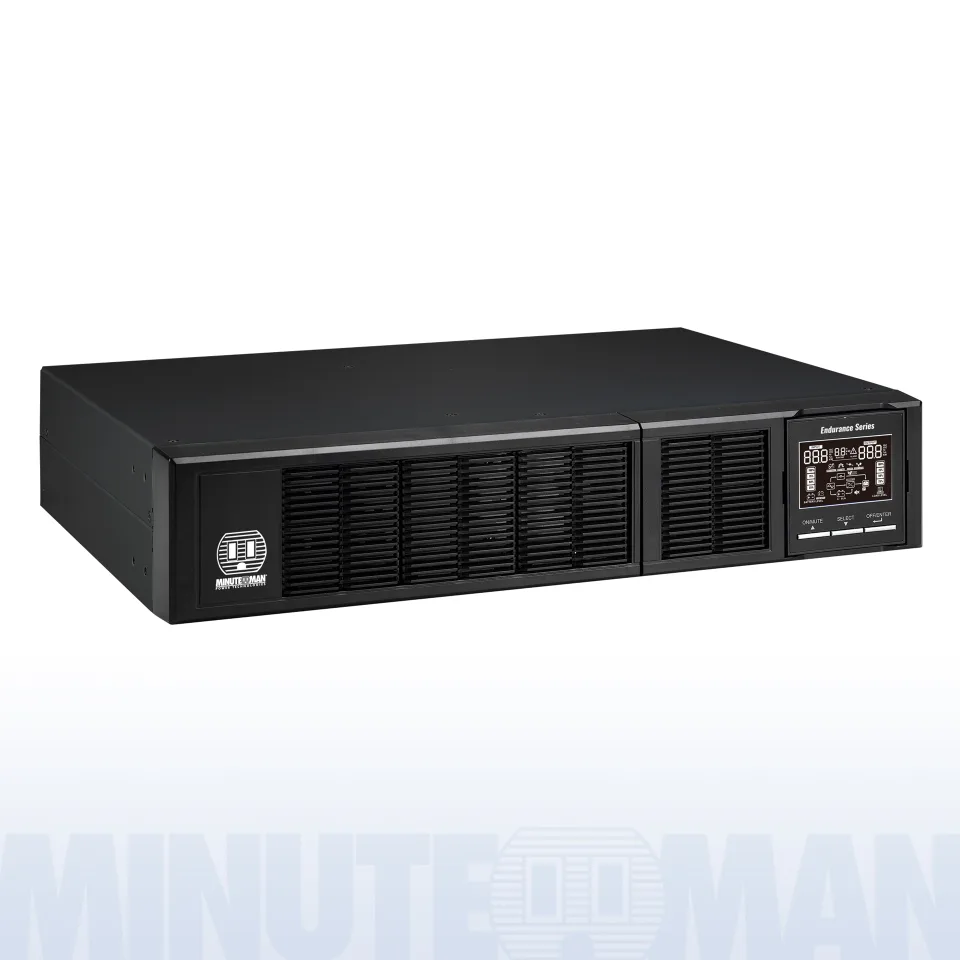

Black rectangular rackmount UPS unit with front LCD display and ventilation grilles

MINUTEMAN

MINUTEMAN END1500RT2U-LNC UPS 1500VA 1350W 120V Online Lithium Rack/Tower

SKU CH-7AHZ-XREDH MPN END1500RT2U-LNC

Online UPS delivers 1500VA and 1350W with lithium batteries in a 2U rack or tower form factor

  • International Version120V
  • Input Voltage Range55VAC-160VAC +/- 5 % ( Load Dependent)
  • Input Frequency40Hz ~ 70 Hz
  • VA Rating1500VA
  • Watts1350W
  • Output Voltage100/110/115/120/125/127 VAC

Model END1500RT2U-LNC

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers clean power continuously
  • Lithium-ion battery recharges to full capacity in two hours
  • Rack or tower form factor fits diverse installation spaces
  • Unity power factor provides 1350 watts from 1500 VA rating

Product Identity

The Minuteman END1500RT2U-LNC is a new online UPS rated at 1500VA and 1350W with a 0.9 power factor. It uses lithium batteries and fits a 2U rack or tower footprint, delivering a true sine-wave output at 120V.

Who It Suits

This unit suits operators who need continuous double-conversion protection for servers or network gear in a compact rack space. Buyers who require a different input voltage range or a form factor other than 2U rack/tower should look at other models.

Deciding Specification

The online topology with lithium batteries that recharge to full capacity in 2 hours is the specification that determines fit. It provides zero transfer time and a longer service life than lead-acid alternatives in the same 2U envelope.

Přednosti

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers clean power continuously
  • Lithium-ion battery recharges to full capacity in two hours
  • Rack or tower form factor fits diverse installation spaces
  • Unity power factor provides 1350 watts from 1500 VA rating

Specifikace

BrandMINUTEMAN
ModelEND1500RT2U-LNC
International Version120V
Input Voltage Range55VAC-160VAC +/- 5 % ( Load Dependent)
Input Frequency40Hz ~ 70 Hz
VA Rating1500VA
Watts1350W
Output Voltage100/110/115/120/125/127 VAC
Output Frequency47 ~ 53 Hz or 57 ~ 63 Hz
Battery TypeLIFE-247500
Battery Recharge Time2 hours recover to 100% capacity @ 4A charging current
Humidity20-95 % RH @ 0- 40°C (non-condensing)
Dimensions16.1” x 17.2” x 3.5”
Weight25.6 lbs.
Přepravní hmotnost11.25 kg
Rozměry balení437 × 409 × 86 mm

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How often will the LIFE-247500 lithium battery pack need replacing?

The lithium chemistry is rated for far more cycles than lead-acid, typically lasting 8-10 years before capacity drops to the point where a pack swap is needed.

What is the first limit reached when the unit runs at 1350 W continuously?

Thermal protection will trip if the internal temperature exceeds the 40 °C operating ceiling, so sustained full-load runtime depends on keeping ambient air below that threshold.

How much heat and noise does the END1500RT2U-LNC produce during all-day operation?

Online double-conversion topology means the inverter runs constantly, generating steady heat that requires front-to-rear airflow; fan speed ramps with load, so a 1350 W load produces audible but not disruptive airflow noise.
