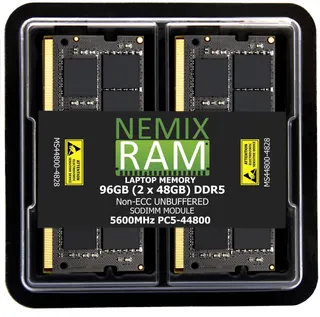

Two green circuit boards with black memory chips, no heat spreader, 262-pin SODIMM form factor

NEMIX RAM

NEMIX RAM 96GB (2×48GB) DDR5 5600 CL46 2Rx8 1.1V 262-pin SODIMM memory upgrade for Supermicro X14SAV-LVDS

SKU CH-MF2P-6JG34

A 96GB kit of two 48GB DDR5 SODIMM modules running at 5600MHz with CL46 latency and 1.1V operation, validated for the Supermicro X14SAV-LVDS motherboard

  • Capacity96GB (2 x 48GB)
  • Type262-Pin DDR5 SODIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.10V
  • ECCNo

Size 96GB 2X48GB

  • 96GB dual-channel kit gives maximum capacity for memory-intensive workloads
  • DDR5-5600 speed with CL46 latency delivers rated bandwidth for the platform
  • 10V operation matches the motherboard's memory controller specification exactly
  • 2Rx8 organisation on 262-pin SODIMM ensures correct rank population rules
  • Built with Samsung, Micron or Hynix chips and tested for stability at rated settings

Targeted memory kit

This 96 GB kit is built specifically for the Supermicro X14SAV-LVDS motherboard. It delivers two 48 GB DDR5 SODIMM modules that match the board's required 262-pin form factor, 1.1 V voltage and CL46 timing. The exact rank and speed profile ensures the memory controller recognises the full capacity at the rated 5600 MT/s data rate. Builders using a different platform or a desktop UDIMM slot will find these modules incompatible.

Straightforward SODIMM install

Installation follows the standard SODIMM procedure: power down, open the access panel, align the notch on the 262-pin edge connector and press firmly until the retention clips engage. The unbuffered, non-ECC design means no extra configuration is needed in most BIOS versions. The most common issue is inserting a single module into the wrong slot or mixing ranks, which can prevent the system from posting at the full 96 GB.

Matched DDR5-5600 specification

The decisive figure is the DDR5-5600 (PC5-44800) speed grade combined with CL46 latency at 1.1 V. The memory controller on the X14SAV-LVDS is tuned for this exact data rate and timing; modules rated higher or lower will either down-clock or fail to train. If your system manual specifies a different speed or voltage, this kit will not operate as intended.

Přednosti

  • 96GB dual-channel kit gives maximum capacity for memory-intensive workloads
  • DDR5-5600 speed with CL46 latency delivers rated bandwidth for the platform
  • 10V operation matches the motherboard's memory controller specification exactly
  • 2Rx8 organisation on 262-pin SODIMM ensures correct rank population rules
  • Built with Samsung, Micron or Hynix chips and tested for stability at rated settings

Specifikace

BrandNEMIX RAM
SeriesNEMIX RAM Original Series Memory
ModelDDR5 Non-ECC Unbuffered SODIMM Memory
Part NumberMS44800-4828K2
Capacity96GB (2 x 48GB)
Type262-Pin DDR5 SODIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.10V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor OEM Samsung, Micron, Hynix
Heat SpreaderNo
Compatible SystemSupermicro
FeaturesDDR5 Non-ECC Unbuffered SODIMM Motherboard Compatible
Package Content96GB 2X48GB DDR5 5600MHz PC5-44800 2Rx8 1.1V 262-PIN Non-ECC SODIMM KIT

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How can I confirm the kit is running at DDR5 5600 with CL46 after installation?

Open the BIOS or a tool such as CPU-Z and verify the memory frequency reads 5600 MT/s and the CAS latency shows 46; the modules operate at 1.1 V so the voltage reading should match.

What does the package contain and is anything else required for the upgrade?

The box includes two 48 GB DDR5 5600 SODIMM modules for a total of 96 GB; no additional parts are needed, but check the Supermicro X14SAV-LVDS manual for the approved slot population order before installing.

Which capacity version should I choose for the Supermicro X14SAV-LVDS?

This kit provides the maximum 96 GB (2 × 48 GB) supported by the board; select it if you need the full capacity, otherwise a smaller matched pair of DDR5 5600 CL46 2Rx8 SODIMMs would also be compatible.
