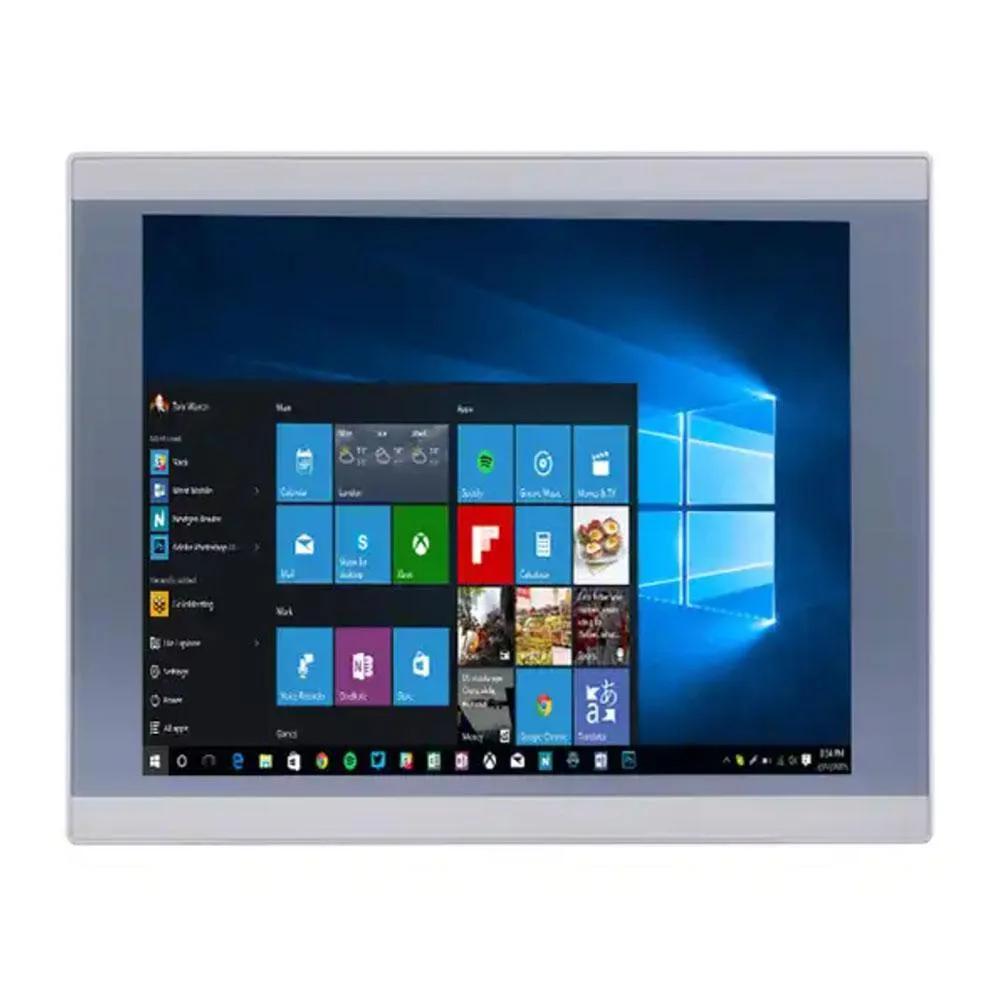

Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A2 12.1" IP65 Core i7-1165G7 16GB DDR4 256GB SSD 1TB HDD all-in-one PC

SKU CH-WMGV-BYA37

A 12.1 inch IP65 industrial panel PC with Core i7-1165G7, 16GB DDR4, 256GB SSD and 1TB HDD for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 16GB DDR4

SSD 256GB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel protects against dust and water ingress
  • Intel Core i7-1165G7 with 16 GB DDR4 handles demanding industrial workloads
  • Fanless aluminium alloy chassis runs silently 24/7
  • Dual storage: 256 GB SSD plus 1 TB HDD for speed and capacity
  • Rich I/O including 2 × LAN, 2 × COM, HDMI, VGA, 4 × USB

Industrial Panel PC for 24/7 Operation

The Partaker A2 is a 12.1 inch fanless all-in-one computer rated IP65 on the front panel. It runs an Intel Core i7-1165G7 processor with 16GB DDR4 memory, a 256GB SSD and a 1TB HDD. Windows 11 Pro is pre-installed for immediate deployment in industrial environments requiring continuous 7 x 24 hour operation.

Verify Power, Mounting and I/O Requirements

Confirm your site supplies 12V DC power within the 100-240V AC input range of the included adapter. The panel cut-out measures 301 x 229mm for embedded installation; VESA or desktop mounting are alternatives. Check that your peripherals match the two LAN ports, two COM ports, HDMI, VGA, two USB 3.0 and two USB 2.0 connectors. Operating temperature is 0 to 50°C with the SSD and 0 to 40°C with the HDD.

Suits HMI, Kiosk and Machine-Control Roles

This unit fits operators needing a compact resistive touchscreen with wide 80-degree viewing angles and 350 cd/m² brightness for indoor or sheltered outdoor use. The fanless aluminium chassis meets silent-running and dust-resistance demands. Buyers who require a projected-capacitive multitouch screen, higher IP rating on the rear, or a larger display diagonal should evaluate other models.

Přednosti

  • IP65 front panel protects against dust and water ingress
  • Intel Core i7-1165G7 with 16 GB DDR4 handles demanding industrial workloads
  • Fanless aluminium alloy chassis runs silently 24/7
  • Dual storage: 256 GB SSD plus 1 TB HDD for speed and capacity
  • Rich I/O including 2 × LAN, 2 × COM, HDMI, VGA, 4 × USB

Specifikace

ModelA2-PA-121TPC-CE5B(I7B)-16G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What comes in the box and what must I supply myself?

The box includes the A2 panel PC, a 12 V power supply and a power cord. You will need to provide any mounting hardware, additional storage drives or expansion cards such as Wi-Fi 6 or 5G modules.

Which memory and storage configuration should I choose for this unit?

It ships with 16 GB DDR4 and both a 256 GB M.2 SSD plus a 1 TB 2.5" HDD installed. Two SODIMM slots support up to 64 GB total, and the M.2 slot accepts 2260 or 2280 SATA or PCIe drives.

How does the Core i7-1165G7 perform in a fanless industrial chassis?

The processor runs at up to 4.70 GHz with Intel Iris Xe graphics while the aluminium alloy body dissipates heat silently. Operating range is 0–50 °C with the SSD and 0–40 °C when the HDD is active.
