Gray 21.5 inch industrial all-in-one PC with flat resistive touch front panel and fanless aluminum alloy body

partaker

partaker A30 21.5" industrial all-in-one PC i5-7200U 16GB 256GB resistive touch

SKU CH-JXZF-YV0F4

21.5" fanless industrial panel PC with IP65 front, resistive touch, dual LAN, dual COM, four USB 3.0 and 16 GB DDR4 for 24/7 automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

A30 21.5" Resistive I5 7200U 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets in harsh factories

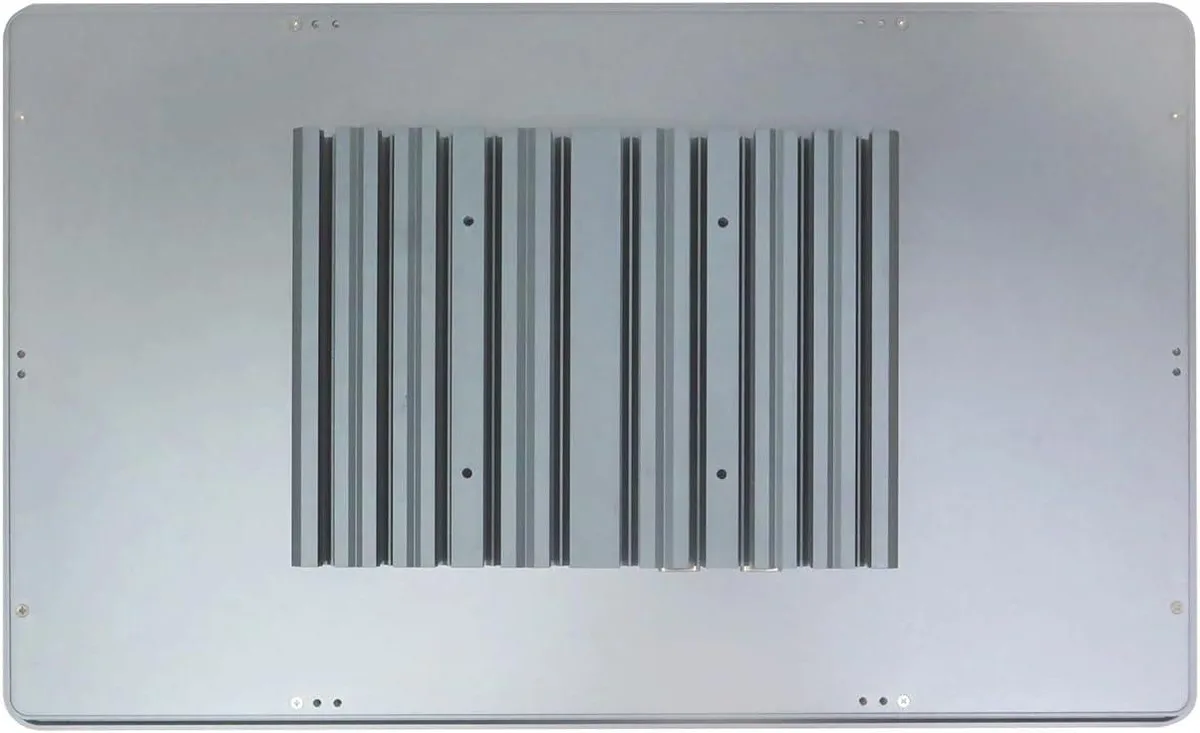

  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial gear
  • Resistive touch rated for 50 million touches ensures long service life
  • Two Mini PCIe slots with SIM slot allow 4G or Wi-Fi expansion

Industrial All-in-One with Resistive Touch

The Partaker A30 is a 21.5" fanless panel PC built for factory automation and HMI duties. It combines an Intel Core i5-7200U processor with 16 GB of DDR4 memory and a 256 GB SSD, running Windows 11 Pro out of the box. The IP65-rated flat front panel resists dust and water jets, while the resistive touchscreen works reliably with gloves or a stylus in harsh conditions.

Connectivity Limits for Field Deployment

Dual Gigabit LAN ports and four USB 3.0 sockets handle standard peripheral and network links. Two COM ports support RS232 or RS485 serial protocols for legacy PLCs and sensors. Expansion relies on two Mini PCIe slots with a SIM holder, so adding Wi-Fi, Bluetooth or cellular modules requires compatible cards that fit this specific interface.

Resistive Touch Decides Suitability

The 1920×1080 display uses a resistive layer rated beyond 50 million touches, which is the defining factor for gloved operation and contaminant resistance. Buyers who need projected-capacitive multi-touch gestures or higher brightness for direct sunlight should look elsewhere, as this panel is optimised for controlled industrial environments instead.

Přednosti

  • IP65 front panel resists dust and water jets in harsh factories
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial gear
  • Resistive touch rated for 50 million touches ensures long service life
  • Two Mini PCIe slots with SIM slot allow 4G or Wi-Fi expansion

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Should I pick the 16GB DDR4-2133 memory and 256GB SATA SSD, or upgrade to the maximum 32GB RAM and add a second 2.5" SATA drive?

The system ships with 16GB DDR4-2133 in two SODIMM slots and a 256GB SSD on the mSATA interface; the board supports up to 32GB total RAM and also provides a 2.5" SATA bay for an additional SSD or HDD if more capacity is needed.

What does the Core i5-7200U actually deliver inside this fanless all-in-one running 24/7?

The dual-core i5-7200U runs without a fan in an aluminum chassis rated for -20 °C to 60 °C, so sustained performance stays stable for industrial HMI and automation workloads without thermal throttling.

What do the dual Gigabit LAN ports and four USB 3.0 ports cap at in real use?

Each Realtek Gigabit LAN port tops out at 1 Gbps wired throughput, while the four USB 3.0 ports share the platform's 5 Gbps signalling rate for peripherals and expansion modules.
