Gray 21.5 inch fanless all-in-one PC with flat IP65 capacitive touchscreen

partaker

Partaker A30 21.5" IP65 All-in-One PC i5-6200U 32GB 512GB SSD

SKU CH-YQ5S-3GHMT

A 21.5" IP65-rated industrial all-in-one PC with capacitive touchscreen, fanless cooling, Intel Core i5-6200U, 32GB DDR4, and 512GB SSD for harsh automation environments

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A30 21.5" Capacitive I5 6200U 32GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • Two Mini PCIe slots with SIM holder allow 4G or Wi-Fi expansion
  • Capacitive touch rated for 50 million touches ensures long service life

Industrial All-in-One with IP65 Front Panel

The Partaker A30 is a 21.5-inch industrial panel PC built around an Intel Core i5-6200U processor. It ships with 32 GB of DDR4-2133 memory and a 512 GB SSD, running Windows 11 Pro out of the box. The flat capacitive touchscreen carries an IP65 rating for dust and water resistance at the front.

Replaces Legacy Panel PCs in Harsh Environments

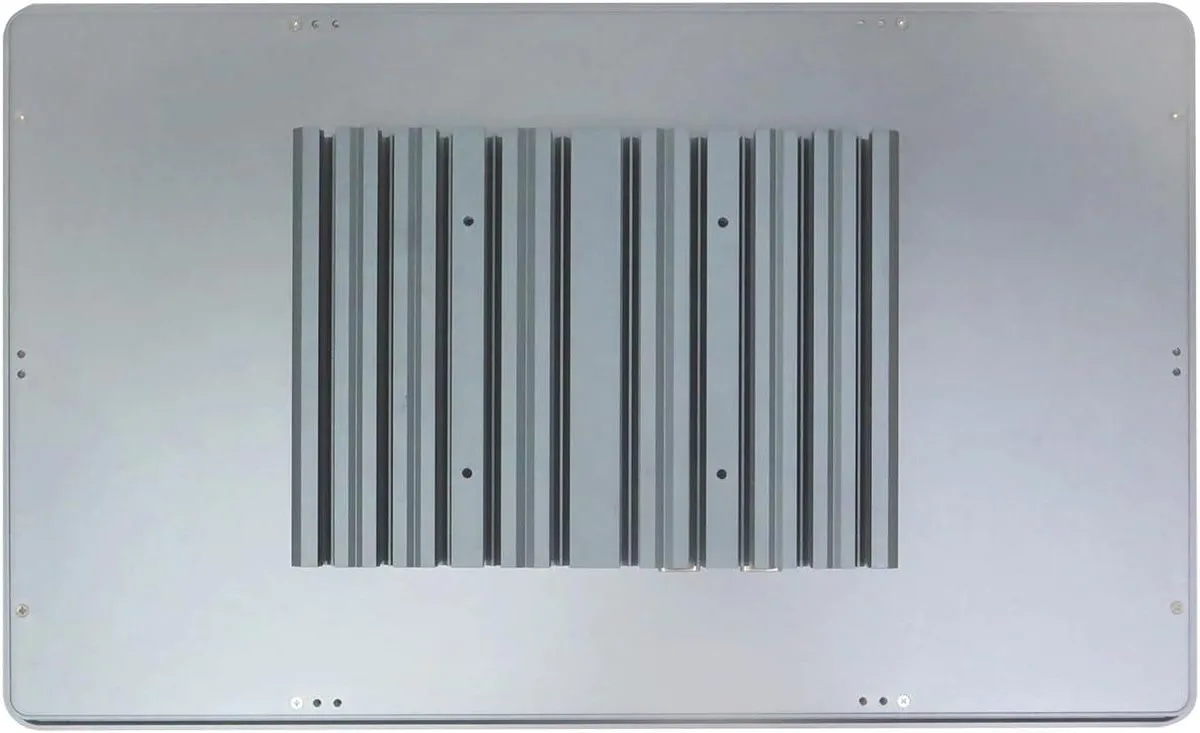

Fanless aluminium-alloy cooling enables silent 24/7 operation from -20 °C to 60 °C, removing the mechanical failures common in older ventilated units. Dual Gigabit LAN, two COM ports with RS232/485 support and four USB 3.0 interfaces cover most automation I/O without extra adapters. Two Mini PCIe slots with a SIM holder allow wireless upgrades when wired runs are impractical.

Sustained Load Behaviour in Wide-Temperature Use

Passive cooling maintains CPU performance without throttling across the full -20 °C to 60 °C range because the i5-6200U’s low TDP matches the thermal mass of the chassis. The watchdog timer (0–255 levels), auto power-on, Wake-on-LAN and PXE boot keep the system recoverable after power events without on-site intervention. Touch longevity is rated beyond 50 million actuations for continuous HMI duty.

Přednosti

  • IP65 front panel resists dust and water jets
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • Two Mini PCIe slots with SIM holder allow 4G or Wi-Fi expansion
  • Capacitive touch rated for 50 million touches ensures long service life

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What are the embedded cut-out dimensions for mounting the 540 x 332 x 78 mm panel PC?

The embedded installation cut-out is 528 x 320 mm; secure the unit with the four included mounting clips.

How do I install an mSATA SSD and a 2.5" SATA drive without loosening the IP65 front seal?

Remove the rear cover only; the mSATA slot and 2.5" SATA bay are accessible internally while the front panel stays sealed.

When should the two 8-ohm 2-watt speakers be checked or replaced in a 24/7 industrial environment?

Inspect speaker cones annually for dust buildup or cone fatigue; replace if output becomes distorted or volume drops noticeably.
