Gray 21.5 inch industrial all-in-one with flat IP65 resistive touchscreen, fanless aluminum chassis

partaker

Partaker A30 21.5" IP65 Resistive All-in-One PC i5-6200U 16GB 512GB

SKU CH-6RVM-F6BGZ

21.5-inch IP65 resistive touch all-in-one PC with fanless aluminium cooling, dual LAN, dual COM and four USB 3.0 ports for industrial automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A30 21.5" Resistive I5 6200U 16GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in harsh industrial settings
  • Fanless aluminium cooling runs silently from -20 °C to +60 °C for 24/7 reliability
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports connect diverse factory equipment
  • Windows 11 Pro on Core i5-6200U with 16 GB DDR4 and 512 GB SSD ready for automation tasks

Industrial All-in-One with IP65 front panel

The Partaker A30 is a 21.5 inch panel PC built for factory automation and HMI tasks. Its resistive touchscreen and sealed front face meet IP65 protection against dust and water jets. A sixth-generation Intel Core i5-6200U processor, 16 GB of DDR4 memory and a 512 GB SSD ship with Windows 11 Pro pre-installed. The unit suits integrators who need a ready-to-deploy industrial computer.

Fanless aluminium cooling from -20 °C to 60 °C

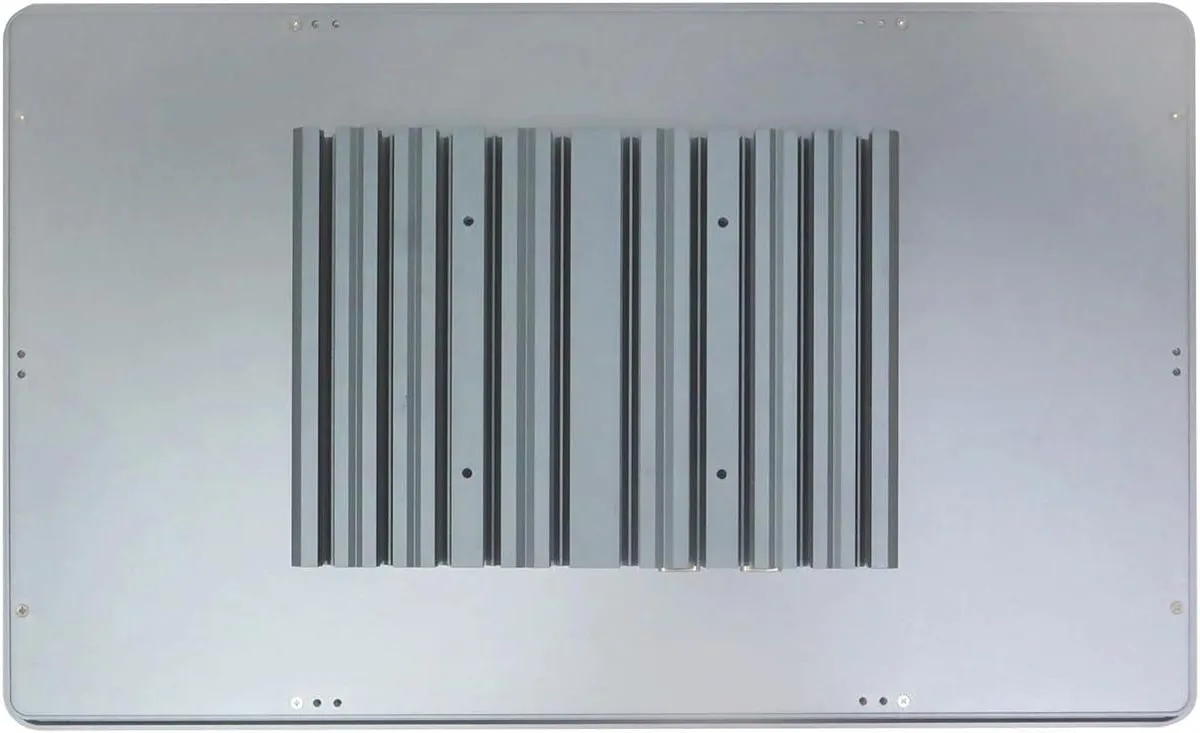

An aluminium alloy chassis dissipates heat without fans, enabling silent 24/7 operation across a -20 °C to 60 °C range when an SSD is fitted. Humidity tolerance spans 5 % to 95 % non-condensing. Power input accepts 100-240 V AC via a 12 V DC adapter, with an optional 9-36 V wide-voltage mode for mobile or unstable supplies. The design targets maintenance-free reliability in harsh environments.

Sustained load stability

A hardware watchdog timer (0-255 level), Wake-on-LAN, PXE boot and auto power-on functions keep the system responsive during long production runs. Dual Gigabit LAN ports and two RS232/485 COM ports maintain deterministic communication under continuous data flow. Expansion via two Mini PCIe slots with a SIM slot allows field upgrades without opening the enclosure. The platform is engineered for uninterrupted industrial workloads rather than short benchmark bursts.

Přednosti

  • IP65 front panel resists dust and water in harsh industrial settings
  • Fanless aluminium cooling runs silently from -20 °C to +60 °C for 24/7 reliability
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 and two COM ports connect diverse factory equipment
  • Windows 11 Pro on Core i5-6200U with 16 GB DDR4 and 512 GB SSD ready for automation tasks

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How is the A30 mounted for embedded installation and which step is often missed?

Use the four supplied clips to secure the 528 x 320 mm cut-out; the step often missed is leaving clearance for the fanless aluminum alloy chassis to dissipate heat in the enclosure.

What maintenance or replacement will the resistive touch screen need over its life?

The resistive panel is rated for more than 50 million touches; no calibration or overlay replacement is required unless physical damage occurs.

What thermal limit appears first during sustained full-load operation in a sealed cabinet?

The internal temperature will reach the 60 °C SSD operating ceiling before any throttling occurs, so ensure adequate surface air flow around the 78 mm depth.
