Gray 21.5 inch all-in-one with flat IP65 touch panel and fanless aluminum chassis

partaker

Partaker A30 21.5" IP65 all-in-one PC, Core i5-6200U, 16GB, 256GB, Win 11 Pro

SKU CH-J47G-TC6WN

A fanless 21.5" industrial all-in-one with an IP65-rated capacitive touchscreen, Core i5-6200U, 16GB DDR4, 256GB SATA SSD, dual LAN, dual COM, four USB 3.0 and Windows 11 Pro for 24/7 HMI duty

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A30 21.5" Capacitive I5 6200U 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial peripherals
  • 16 GB DDR4 and 256 GB SATA SSD deliver responsive Windows 11 Pro performance
  • Capacitive multi-touch rated for 50 million touches ensures long HMI life

Industrial 21.5" all-in-one PC

The Partaker A30 integrates a 21.5-inch capacitive touch display, an Intel Core i5-6200U processor, 16GB of DDR4 memory and a 256GB SSD into a single IP65-rated front panel. It ships with Windows 11 Pro and targets automation, HMI and industrial control tasks that demand a sealed, fanless unit.

Build integration and connectivity

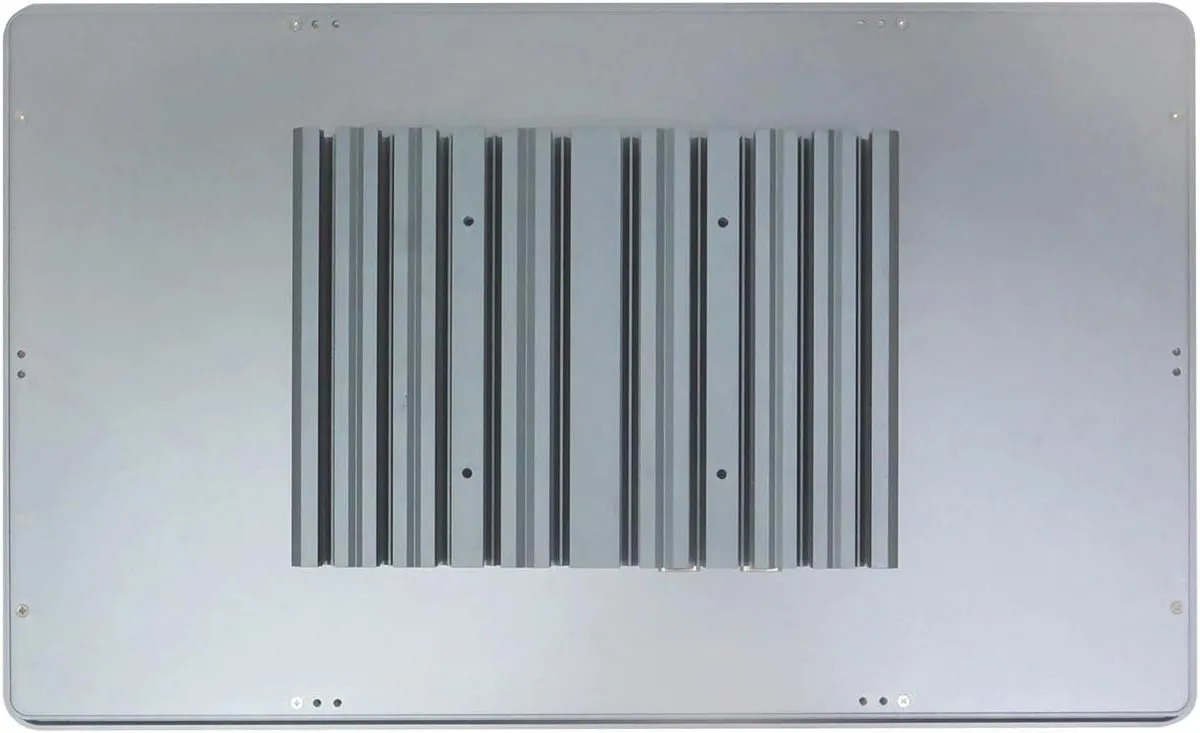

Fanless aluminium alloy cooling removes the need for internal airflow, so the unit fits embedded, wall, desktop or cantilever mounts without extra clearance for fans. Dual Gigabit LAN, four USB 3.0 ports, two COM ports for RS232/485, HDMI, audio and two Mini PCIe slots with a SIM slot provide field-wiring flexibility. Onboard mSATA and a 2.5-inch SATA bay allow storage expansion without opening the sealed face.

Sustained-load behaviour

The fanless design maintains silent 24/7 operation across a -20°C to 60°C range (with SSD) and 5% to 95% humidity. Auto power-on, Wake on LAN, PXE boot and a 0-255 level watchdog timer keep the system recoverable during unattended runs. The capacitive touch panel is rated beyond 50 million touches for long-term point-of-use durability.

Přednosti

  • IP65 front panel resists dust and water jets
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial peripherals
  • 16 GB DDR4 and 256 GB SATA SSD deliver responsive Windows 11 Pro performance
  • Capacitive multi-touch rated for 50 million touches ensures long HMI life

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What is the maximum operating temperature before the fanless cooling reaches its limit?

The fanless aluminium chassis is rated for continuous operation up to 60 °C when an SSD is installed, with 5 % to 95 % non-condensing humidity tolerance.

How much noise and heat does the system produce during 24/7 operation?

The fanless design makes it completely silent; the aluminium alloy body acts as a heatsink and is validated for ambient temperatures from -20 °C to 60 °C.

Which power source must already be on site for the unit to start?

It requires a 12 V DC supply; the included adapter accepts 100–240 V AC at 50–60 Hz, and an optional 9–36 V wide-voltage input can be specified.
