15-inch industrial all-in-one panel PC with IP65 front, fanless aluminium chassis, resistive touchscreen

partaker

partaker A5 15" IP65 i7-1165G7 8GB DDR4 128GB SSD

SKU CH-VN4Q-EEPB3

15-inch IP65-rated industrial all-in-one with i7-1165G7, 8 GB DDR4, 128 GB SSD and fanless aluminium cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity8GB DDR4
  • HDDNo

Memory Capacity 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD

HDD None

  • 1TB
  • None

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets in harsh environments
  • 5-wire resistive touchscreen operates reliably up to 50 °C with SSD
  • Fanless aluminium alloy cooling runs silently for 24/7 industrial use
  • Intel Core i7-1165G7 with 8 GB DDR4 and 128 GB SSD delivers responsive performance
  • HDMI, VGA, dual LAN, dual COM and four USB ports give versatile connectivity

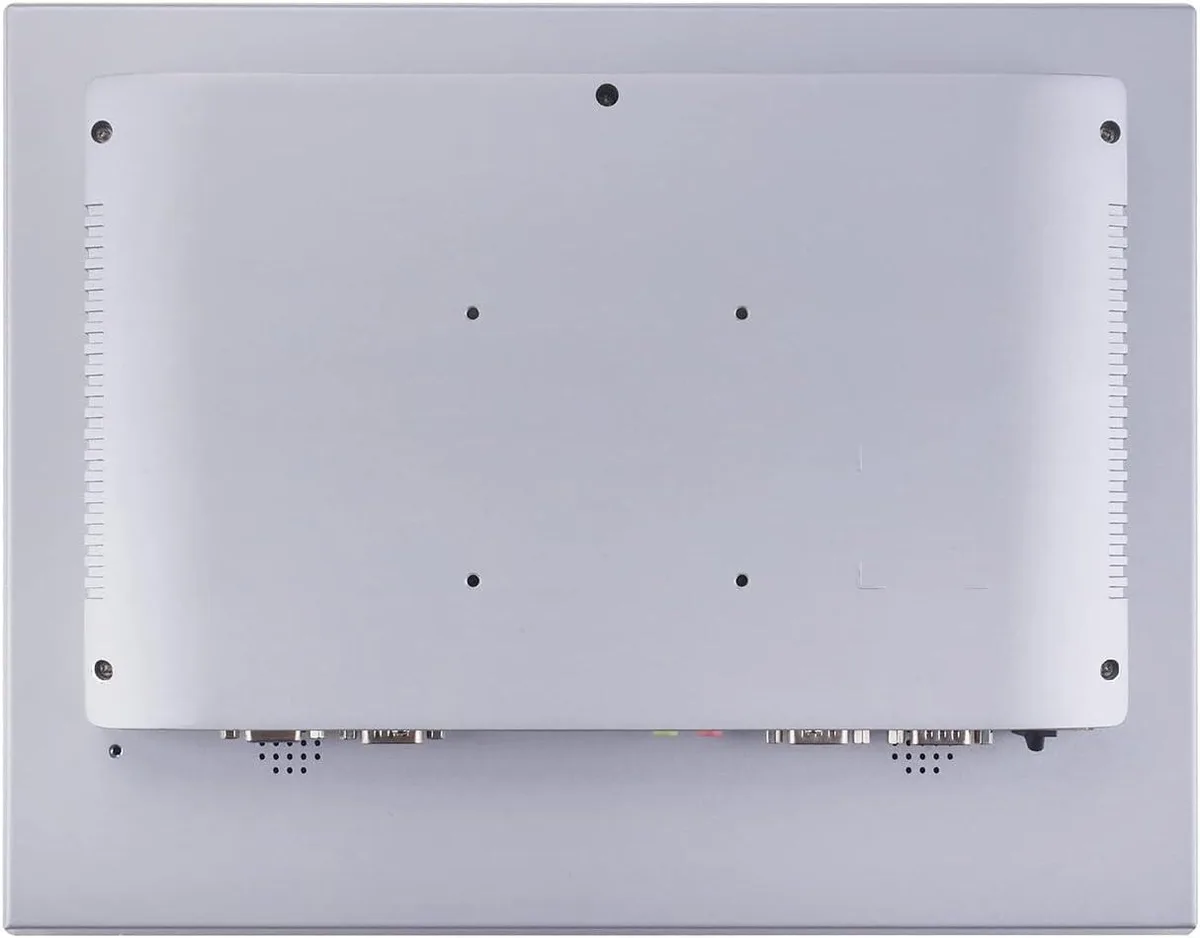

Industrial 15-inch Panel PC

The Partaker A5 is a 15-inch all-in-one computer built for industrial environments. It integrates an Intel Core i7-1165G7 processor, 8GB of DDR4 memory and a 128GB SSD within an IP65-rated front panel. The fanless aluminum alloy chassis enables silent 24/7 operation across a wide temperature range. Windows 11 Pro comes preinstalled for immediate deployment.

Resistive touch and video limits

The 5-wire resistive touchscreen requires pressure input and delivers 80% transmittance at 550 nm wavelength. It is rated for 35 million touches and offers viewing angles of 80 degrees left/right and 60 degrees top/bottom. The native panel resolution is 1024 x 768 at 350 cd/m2 brightness with a 1000:1 contrast ratio. External displays connect via HDMI and VGA ports.

Power, mounting and expansion checks

The unit operates on 12V DC supplied by an included 100-240V AC adapter and supports automatic power-on after failure. Verify the 348 x 272mm cut-out dimensions match your enclosure for embedded installation. Two SODIMM slots allow memory expansion up to 64GB DDR4-3200. An M.2 Key E slot accepts WIFI6 modules and an M.2 Key B slot with SIM tray supports 5G connectivity.

Přednosti

  • IP65 front panel resists dust and water jets in harsh environments
  • 5-wire resistive touchscreen operates reliably up to 50 °C with SSD
  • Fanless aluminium alloy cooling runs silently for 24/7 industrial use
  • Intel Core i7-1165G7 with 8 GB DDR4 and 128 GB SSD delivers responsive performance
  • HDMI, VGA, dual LAN, dual COM and four USB ports give versatile connectivity

Specifikace

ModelA5-PA-150TPC-CE5A(I7B)-8G128G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
HDDNo
Screen Size15"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Should I pick the 8GB DDR4 and 128GB SSD configuration or upgrade memory and storage later?

The unit ships with 8GB DDR4-3200 and a 128GB SSD installed. Two SODIMM slots support up to 64GB total, and the M.2 slot plus a 2.5" bay accept additional SATA or PCIe drives.

What does the i7-1165G7 up to 4.70 GHz mean for daily industrial workloads?

The quad-core processor with 12MB cache boosts to 4.70 GHz, while the fanless aluminium chassis dissipates heat silently, enabling continuous 24/7 operation within the 0–50°C SSD range.

Which video outputs does the HDMI and VGA combination actually drive?

HDMI and VGA ports are both available, letting you connect two external displays alongside the built-in 1024 x 768 panel for multi-monitor setups.
