Silver aluminium 17 inch fanless panel PC with resistive touch screen and IP65 front

partaker

Partaker A9 17" IP65 Industrial All-in-One PC i5-3rd 1.70GHz 8GB DDR3 256GB SSD 1TB HDD

SKU CH-FNCS-BGPB6

IP65-sealed 17" industrial all-in-one with resistive touch, Intel Core i5 3rd Gen, 8 GB DDR3, 256 GB SSD and 1 TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

  • 64GB
  • 256GB
  • 512GB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in harsh environments
  • Five-wire resistive touchscreen rated for 200 million touches
  • Intel Core i5 third generation with 8 GB DDR3 and dual storage
  • Wide DC 100–240 V input with auto power-on after failure

Industrial All-in-One with IP65 Front Panel

The Partaker A9 is a 17-inch fanless panel PC built around a 1.70 GHz Intel Core i5 third-generation processor. It ships with Windows 10 Pro, 8 GB DDR3L memory, a 256 GB mSATA SSD and a 1 TB 2.5-inch SATA hard drive. The aluminium chassis carries an IP65-rated front bezel and a high-temperature five-wire resistive touchscreen rated for 200 million touches. It targets integrators deploying HMIs, SCADA clients or kiosks in dusty or wash-down environments.

Embedded Mounting with Mini PCIe Expansion

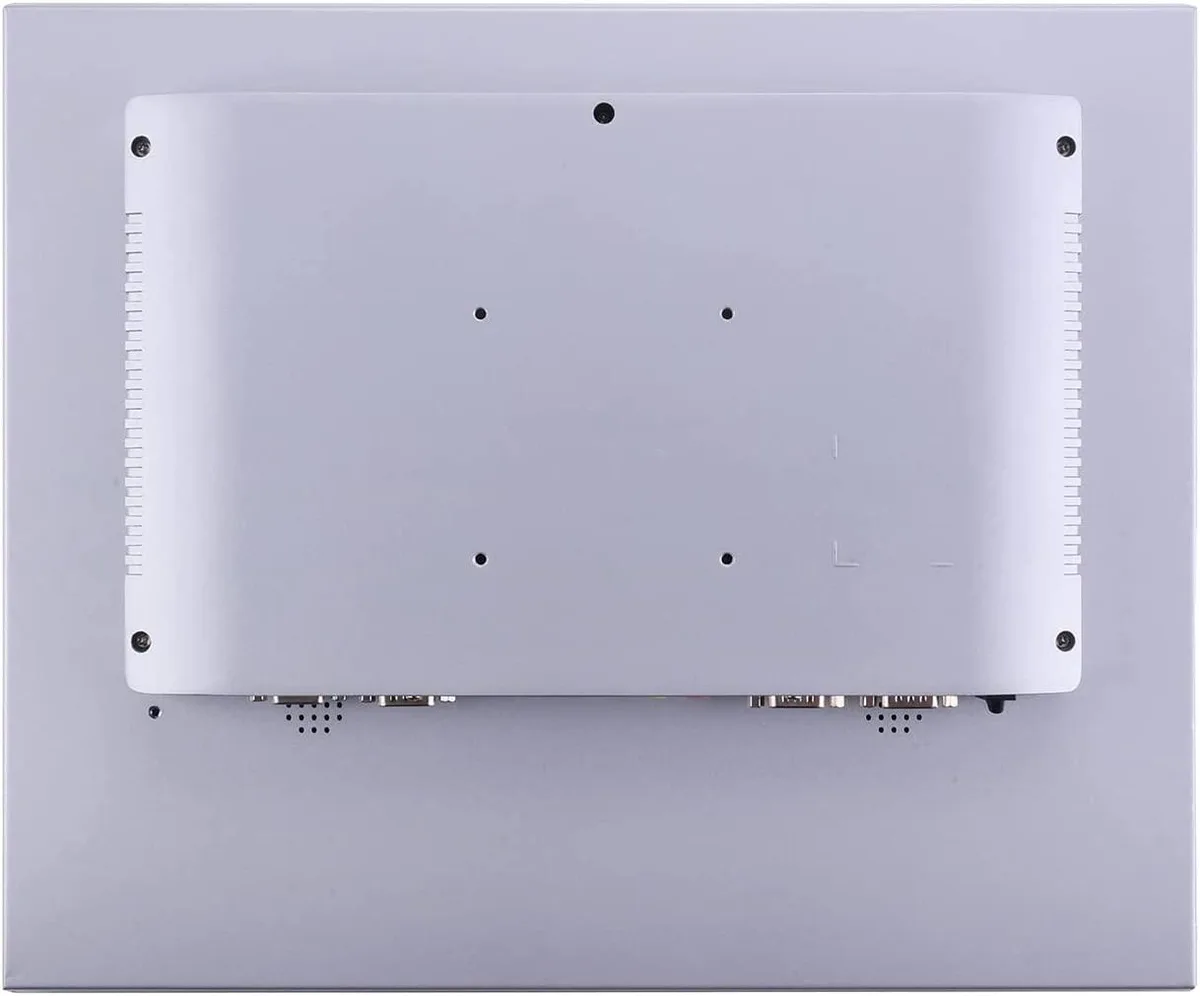

Installation uses the supplied embedded buckle kits that fit a 380 x 315 mm cut-out; the unit also accepts VESA 75, wall, desktop or cantilever mounts. A full-size Mini PCIe slot with SIM holder allows adding Wi-Fi or 4G without opening the sealed front. The fanless design removes moving parts, but the operating ceiling drops to 40 °C when the mechanical hard drive is active. I/O includes VGA, HDMI, four USB 2.0 ports, dual COM, audio in/out, LAN and a 12 V DC jack.

1280 x 1024 Resistive Touch at 250 cd/m²

The 17-inch TFT LED panel delivers a 1280 x 1024 image at 250 cd/m² brightness with a 1000:1 contrast ratio and 80/60 degree viewing angles. Five-wire resistive technology works with gloves or stylus and survives the specified 200 million actuations. Backlight life is rated at 30,000 hours minimum. This resolution and touch type determine whether the display fits existing HMI layouts or whether a higher-pixel or capacitive alternative is required.

Přednosti

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in harsh environments
  • Five-wire resistive touchscreen rated for 200 million touches
  • Intel Core i5 third generation with 8 GB DDR3 and dual storage
  • Wide DC 100–240 V input with auto power-on after failure

Specifikace

ModelA9-PA-170TPC-CE5A(I53)-8G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDD1TB
Screen Size17.0"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How can I verify the IP65 front panel is sealing correctly after mounting the A9 in its 380 x 315 mm cut-out?

After securing the embedded buckle kits, inspect the gasket for even compression around the 17" panel, power on the unit, and confirm the five-wire resistive touch registers input across the full 1280 x 1024 area without gaps.

Which items from the packing list come in the box and what must I source separately for a typical deployment?

The box includes the panel PC, 12 V power supply, power cord, embedded buckle kits, and warranty card. You must supply any Mini PCIe Wi-Fi or 4G module, SIM card, and VESA 75 mounting hardware if not using the embedded method.

Should I choose the 256 GB mSATA SSD alone or add the 1 TB 2.5" SATA HDD for my workload?

Use the 256 GB mSATA SSD as the boot drive for the 0 – 50 °C operating range; add the 1 TB 2.5" SATA HDD only if you need bulk storage and can accept the reduced 0 – 40 °C range.
