Black aluminium fanless mini PC, compact rectangular block with VESA mount visible

partaker

partaker I28 barebone mini PC Core i7 10810U 16GB DDR4 512GB NVME

SKU CH-ECGJ-4Y153

Fanless aluminium mini PC with a six-core Intel Core i7 10810U, 16 GB DDR4, 512 GB NVME, dual 2.5 GbE LAN and RAID support for 24/7 industrial workloads

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

Group 16GB RAM / 512GB SSD

  • Fanless cooling runs silent in industrial settings
  • Core i7 10810U six-core CPU reaches 4.9 GHz turbo
  • Dual 2.5 GbE LAN ports handle heavy network loads
  • RAID 0/1 support protects or accelerates dual storage
  • VESA and DIN-rail mounts fit tight spaces

Industrial fanless mini PC with Core i7 10810U

The Partaker I28 is a fanless barebone built around an Intel Core i7 10810U processor with six cores and twelve threads. It ships with 16 GB of DDR4 memory and a 512 GB NVME drive, and it comes pre-installed with Windows 11 Pro. The aluminium chassis runs without moving parts, making it suited to noise-sensitive or dust-prone industrial environments.

Dual LAN, COM ports and RAID support

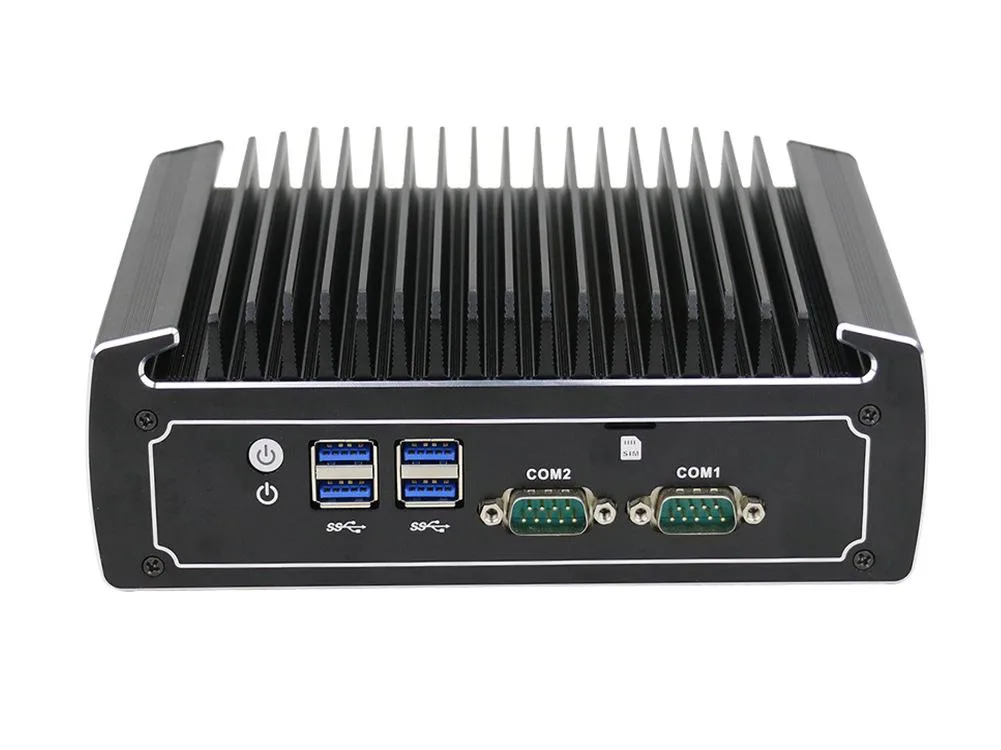

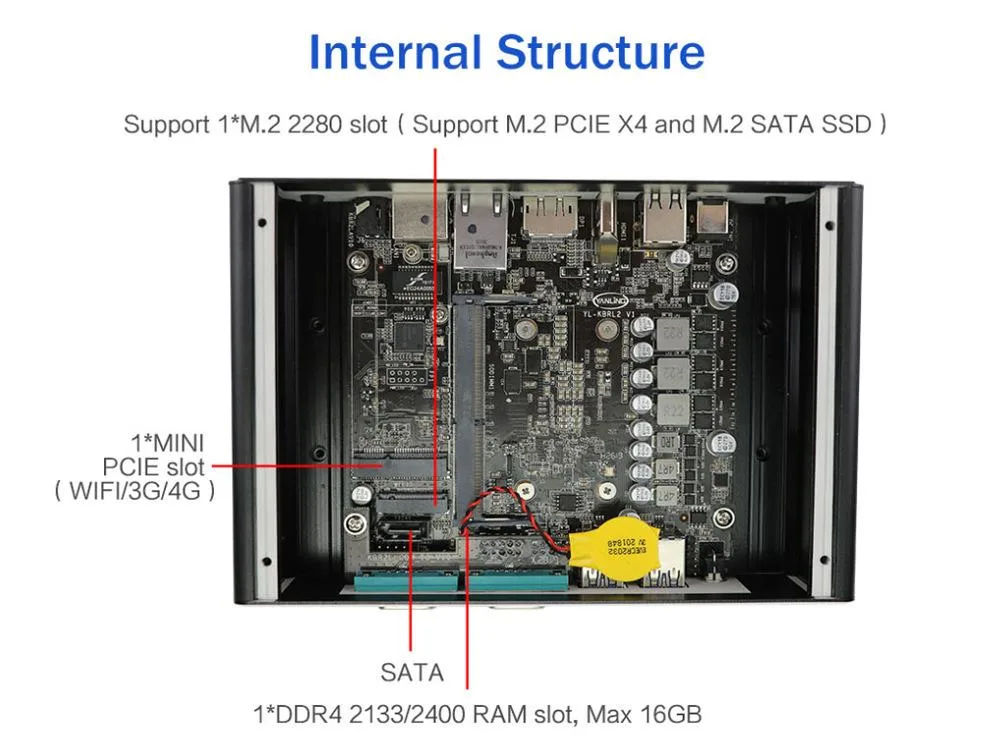

Two Intel 2.5 GbE ports provide redundant wired networking for machine-to-machine links. Two configurable COM ports handle RS232 or RS485 serial gear, while a SIM slot and Mini PCIe bay allow 4G or Wi-Fi add-ons. The board accepts one M.2 2280 drive and one 2.5 inch SATA drive with hardware RAID 0 or 1, letting integrators mirror or stripe storage without extra controllers.

15 W TDP in a sealed 186 x 126.5 x 66 mm case

The 15 watt thermal envelope is dissipated passively through the case surface, so the unit operates from 0 °C to 40 °C with a commercial drive or -20 °C to 50 °C with an industrial SSD. Mounting options include VESA, DIN rail or desktop, but the single SODIMM slot caps memory at 32 GB and there is no discrete graphics output beyond HDMI and DP.

Přednosti

  • Fanless cooling runs silent in industrial settings
  • Core i7 10810U six-core CPU reaches 4.9 GHz turbo
  • Dual 2.5 GbE LAN ports handle heavy network loads
  • RAID 0/1 support protects or accelerates dual storage
  • VESA and DIN-rail mounts fit tight spaces

Specifikace

ColorBlack
CPU TypeIntel Core i7 10th Gen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Will the fanless aluminium chassis need any internal cleaning or thermal-paste replacement over time?

The sealed, fanless design has no moving parts to dust or service; the 15 W TDP is dissipated passively through the case, so no scheduled internal maintenance is required.

What limits sustained performance when the six-core i7-10810U runs at its 4.9 GHz turbo?

The 15 W TDP and passive cooling cap long-duration speeds; once the 6 MB cache workload saturates the thermal envelope the processor settles to its 1.1 GHz base clock.

How much heat and power does the unit draw when it runs 24/7?

The 15 W TDP defines the maximum heat output; the included 12 V 7.5 A adapter supplies ample headroom, and with no fan the system remains completely silent.
