Phanteks PH-GEF_KIT360-D30_DBK DIY cooling 360mm radiator 16mm tubing LGA 1700 AM5
Complete DIY water-cooling kit with 360mm radiator, CPU block for LGA 1700 and AM5, reservoir, fans, tubing and bending tools
- TypeComplete DIY Water-Cooling Kit
- Block CompatibilityIntel: LGA 1700 AMD: AM4 /AM5
- Block Dim.72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
- Radiator Size360mm
- Tube Dim.3 meters
- Tube MaterialClear PVC
- Simplifies custom builds with all parts included in one box
- Fits modern CPUs using LGA 1700 and AM5 socket support
- Offers flexible tubing runs with 16mm hard tube and bending tools
- Provides strong cooling surface via 360mm radiator and triple 120mm fans

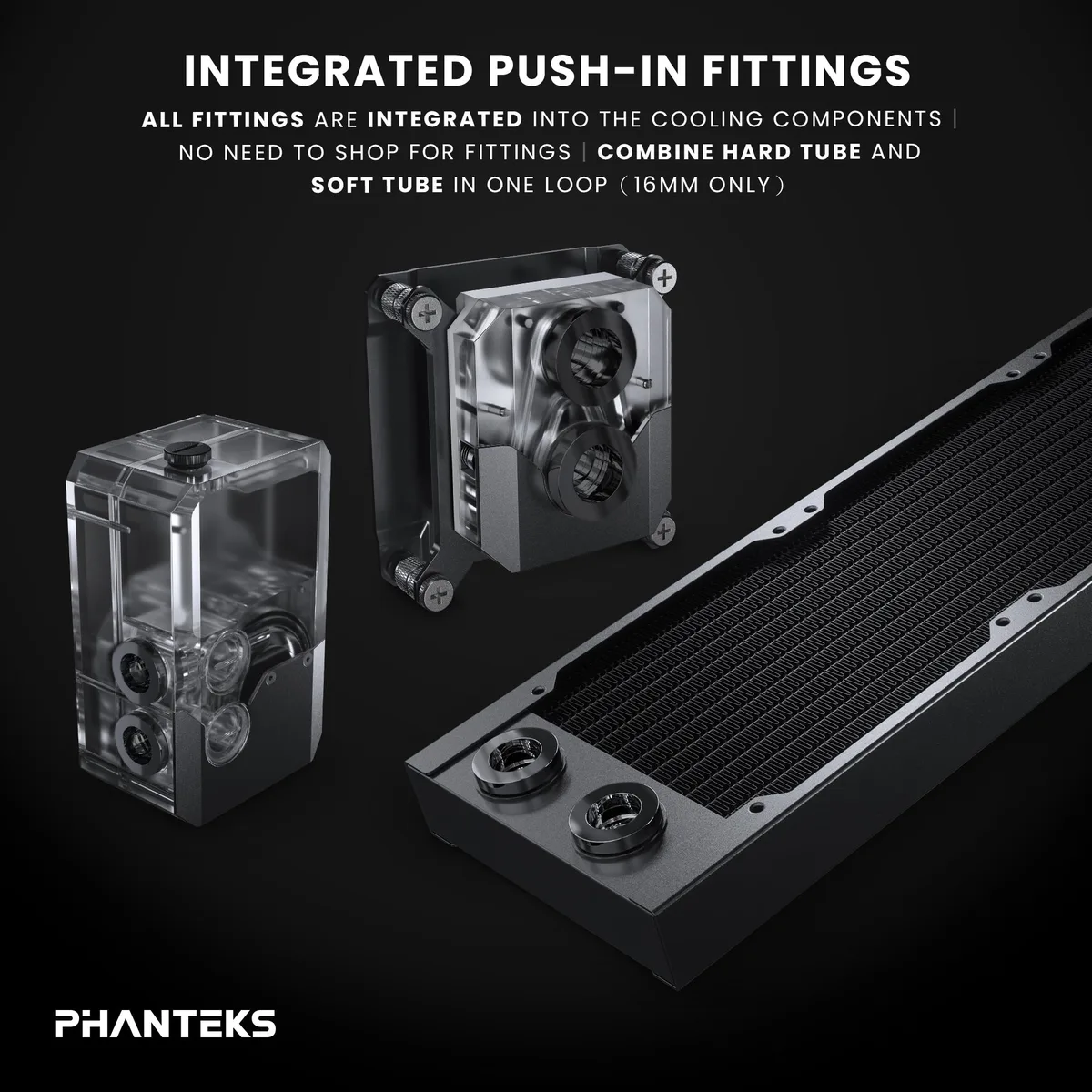

- Ensures leak-free assembly through integrated fittings on every component
Complete DIY water-cooling kit

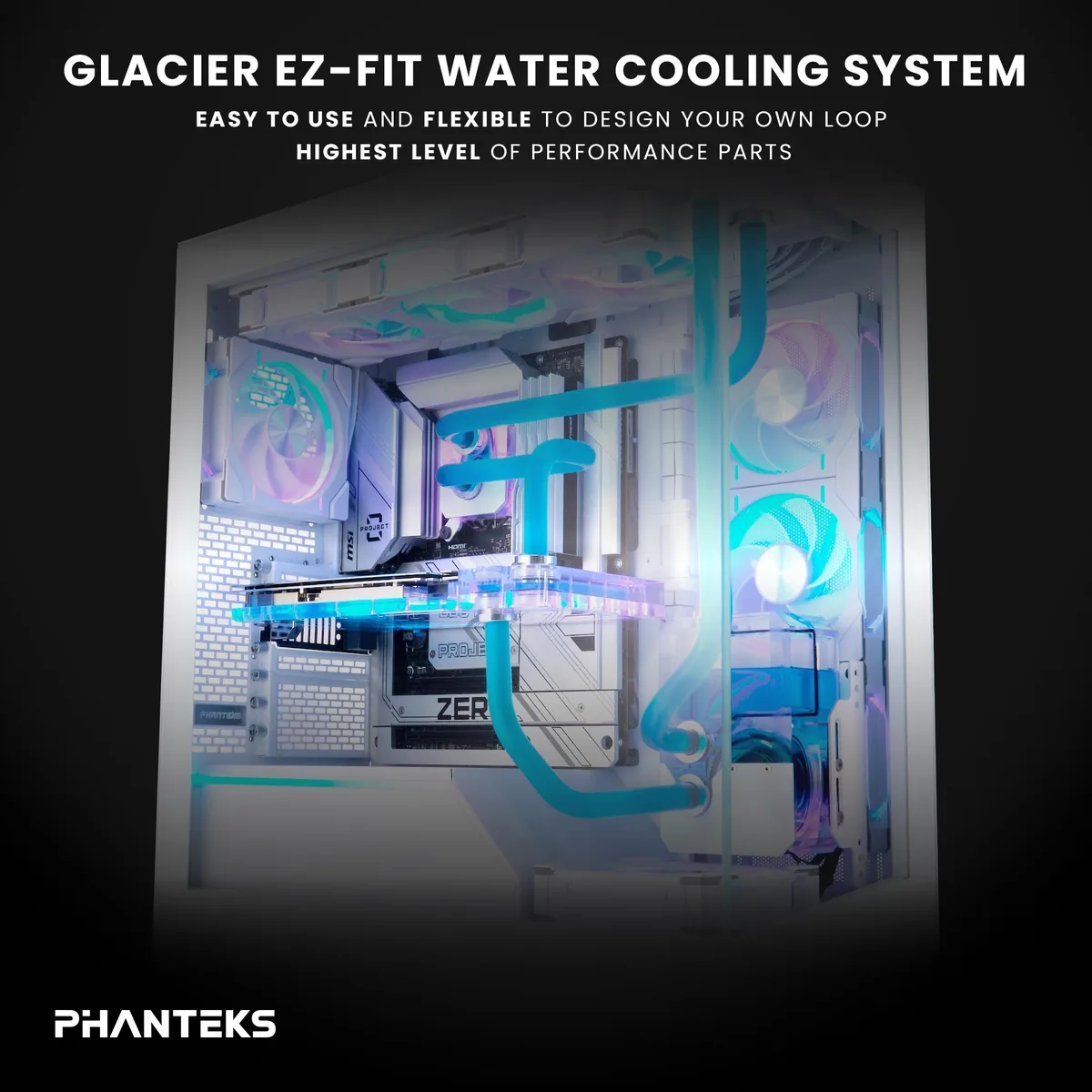

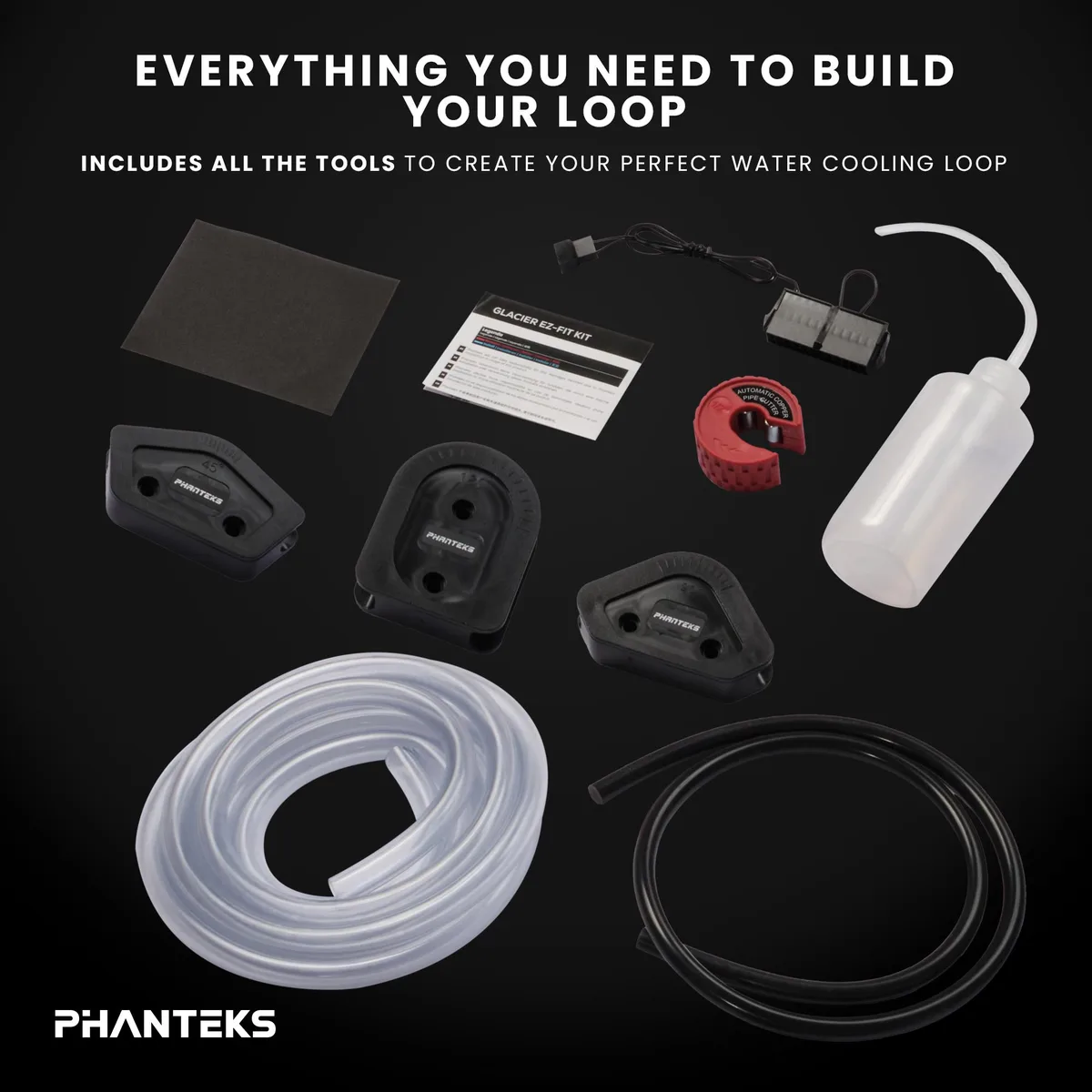

The Phanteks Glacier EZ-Fit 360 D30-KIT is a complete DIY water-cooling kit supplied new. It provides a CPU block, reservoir, 360mm radiator, three 120mm fans, 3 metres of clear PVC tubing, bending tools and all required fittings in a single package. The kit is designed for builders who want to assemble a custom loop without sourcing individual components.
Suits LGA 1700 and AM5 builds
This kit suits builders using Intel LGA 1700 or AMD AM4 and AM5 sockets who want an all-in-one hard-tube solution with integrated fittings. It is not for systems that require a different socket mounting pattern, nor for loops that need more than one radiator or a larger reservoir capacity. Buyers planning soft-tube-only builds or who lack space for a 360mm radiator should look at other options.
16mm hard-tube compatibility decides fit

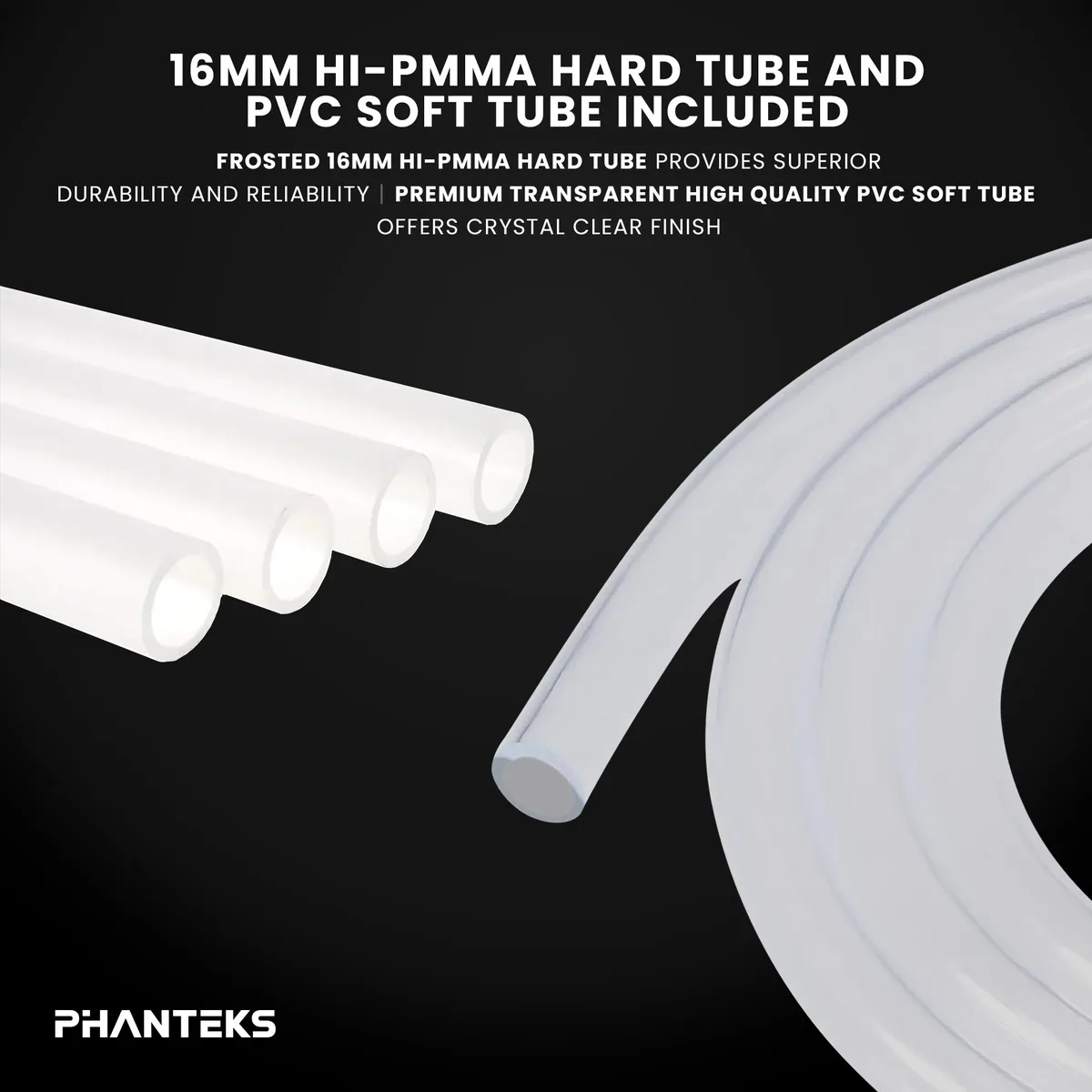

The single specification that decides whether this is the right part is the 16mm outer-diameter hard-tube compatibility built into every block, radiator and reservoir fitting. The kit includes four rigid 16mm fittings, a tube cutter, bending insert, bending guides and sandpaper sized for that diameter. If your loop design calls for a different tube size, the integrated fittings will not accept it.
Přednosti
- Simplifies custom builds with all parts included in one box
- Fits modern CPUs using LGA 1700 and AM5 socket support
- Offers flexible tubing runs with 16mm hard tube and bending tools
- Provides strong cooling surface via 360mm radiator and triple 120mm fans
- Ensures leak-free assembly through integrated fittings on every component
Specifikace
| Brand | Phanteks |
|---|---|
| Model | PH-GEF_KIT360-D30_DBK |
| Type | Complete DIY Water-Cooling Kit |
| Block Compatibility | Intel: LGA 1700 AMD: AM4 /AM5 |
| Block Dim. | 72 x 64 x 25.7mm (2.83 x 2.52 x 1in) |
| Radiator Size | 360mm |
| Tube Dim. | 3 meters |
| Tube Material | Clear PVC |
| Package Contents | PH-GEF_RAD363_BK 1x PH-GEF_CPU450_DBK 1x PH-GEF_RES140_DBK 1x PH-GEF_ST16_CL 1x PH-GEF_HT16_FR 4x PH-F120D30_DRGB_PWM_BK01_3P 1x Tube Cutter 1x Bending Insert 1x Bending Guides 1x Squeeze Bottle 1x 24-Pin Jumper 1x Sandpaper 1x Tool Set Manual 1x GLACIER EZ-FIT KIT Manual 1x |
| Přepravní hmotnost | 7.33 kg |
| Rozměry balení | 978 × 406 × 244 mm |
Otázky k tomuto produktu
How do I install the hard tubes into the integrated fittings on the CPU block, reservoir and radiator?
Cut the 16mm PVC tube to length, deburr the ends with the supplied sandpaper, insert the bending insert, heat and shape using the guides, then push each end firmly into the integrated fittings on the CPU block, reservoir and radiator until seated.
Which parts will need replacement after extended use?
The clear PVC tubing may cloud or stiffen over time and should be replaced during a fluid change; the D30-120 PWM fans and the 24-pin jumper are the only moving or electrical parts that can wear out.
What thermal limit appears first when the 360mm radiator runs under sustained load?
The 360x30mm radiator surface area and the three 120mm fans set the maximum heat dissipation; once coolant temperature stabilises, further load raises CPU temperature until the loop reaches equilibrium.
