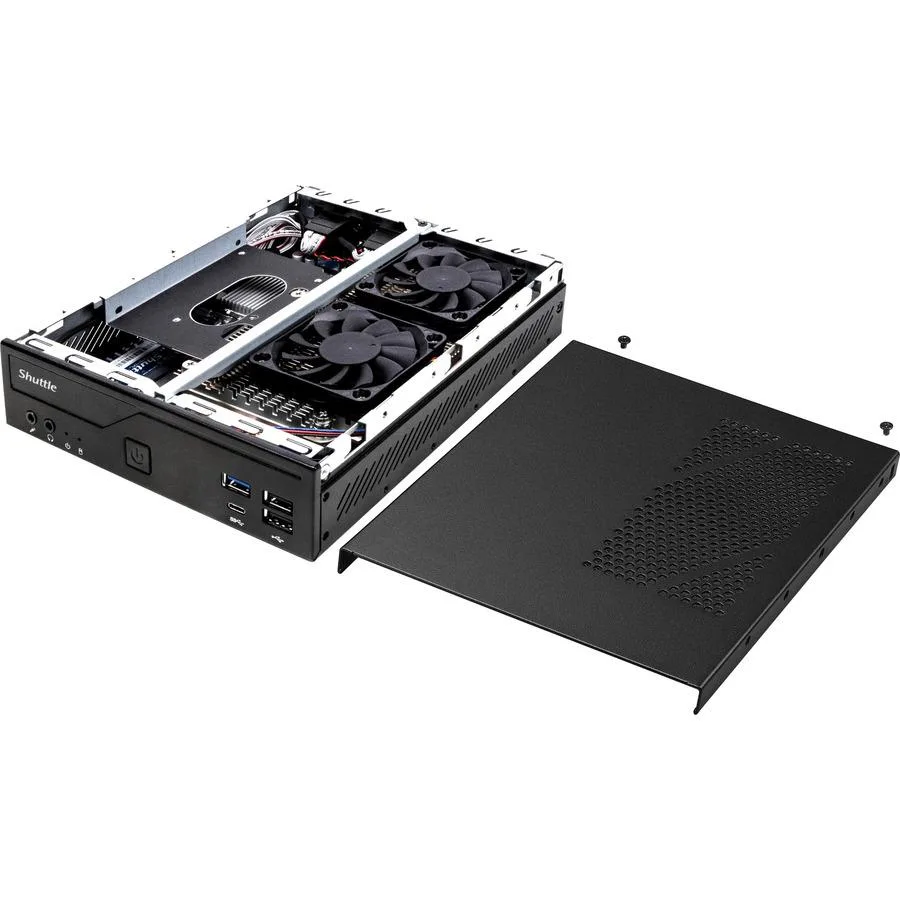

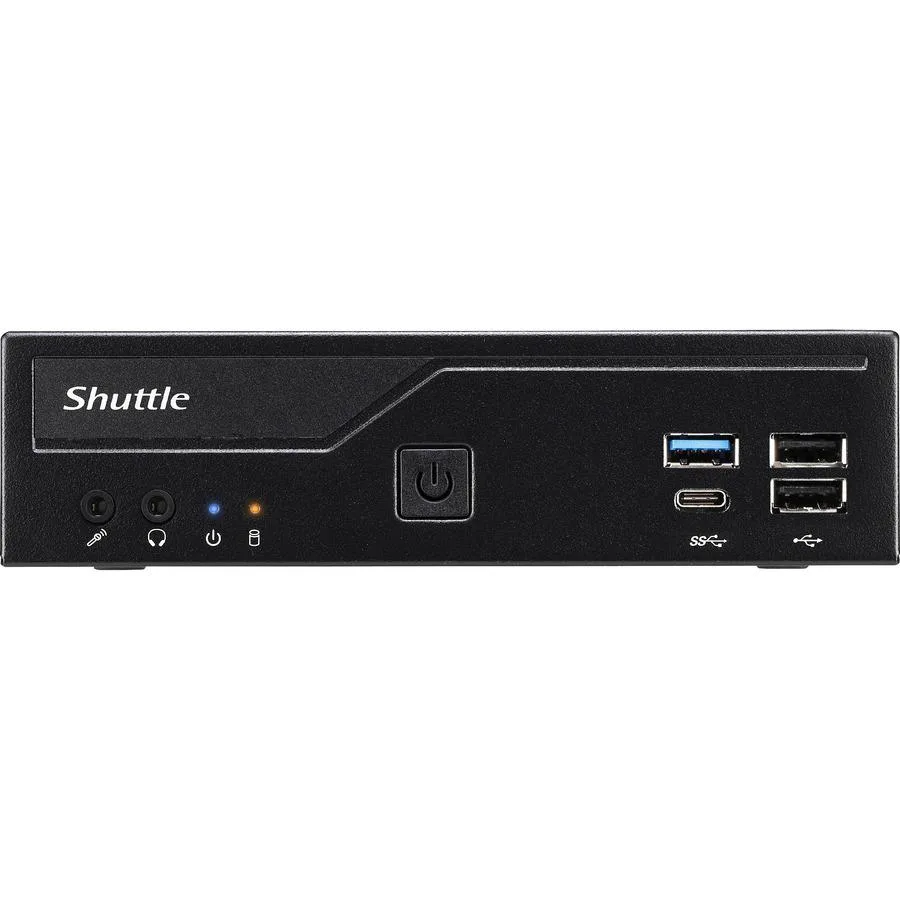

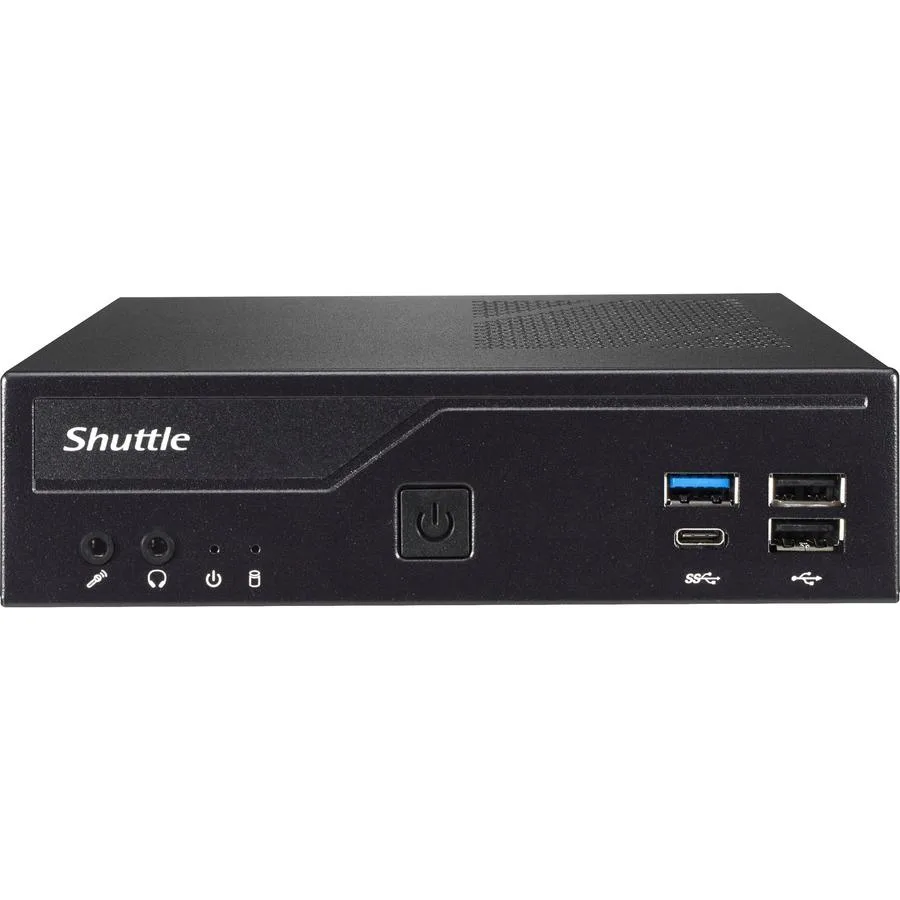

Compact black slim barebone PC, 1.3 litre metal chassis with front ports visible

Shuttle Computer

Shuttle Computer DH610 barebone pc LGA1700 H610 64GB DDR4 1.3L

SKU CH-3RW7-26N9B MPN DH610

Compact 1.3-litre barebone PC supports Intel LGA1700 processors with dual-channel DDR4-3200 memory up to 64 GB, dual LAN including 2.5 GbE, and an M.2 slot for NVMe or SATA storage

  • ColorBlack
  • CPU TypeIntel Core i9 / i7 / i5 / i3 (LGA1700)

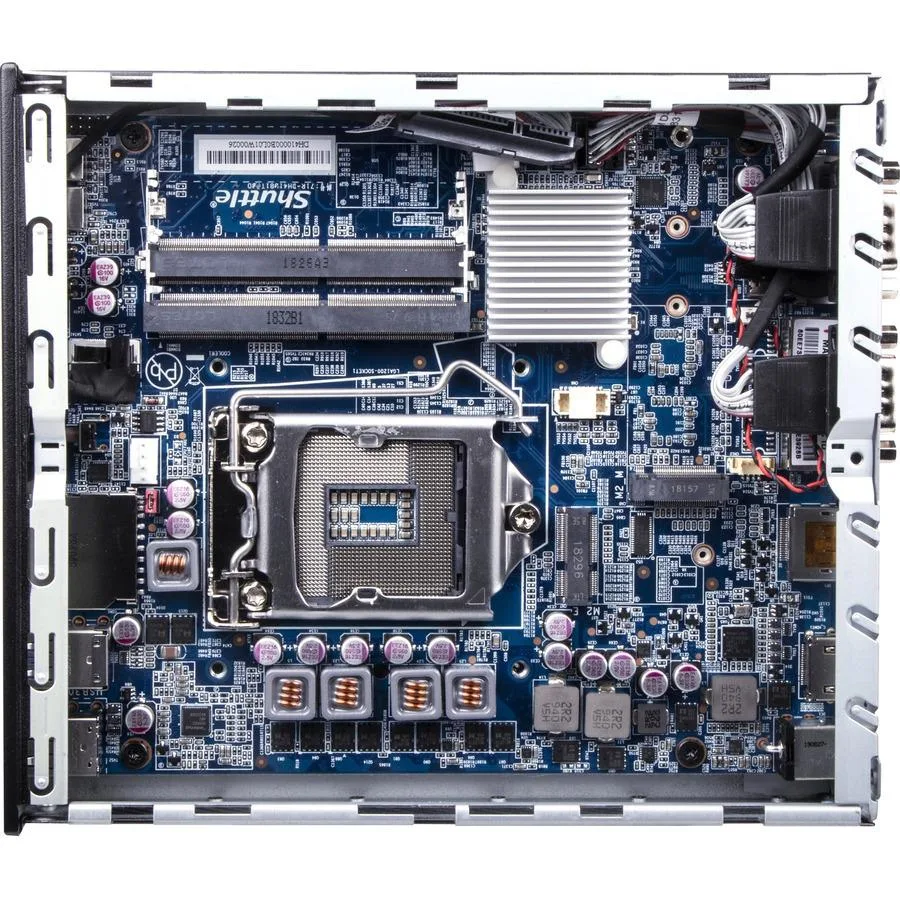

  • CPU SocketIntel Socket LGA1700
  • North BridgeIntel H610
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Compact 1.3-litre chassis fits tight professional spaces
  • LGA1700 socket supports Intel Core i9/i7/i5/i3 processors
  • Dual SO-DIMM slots accept up to 64GB DDR4-3200 memory
  • M.2-2280 slot takes PCIe 3.0 x4 NVMe or SATA drives
  • Dual LAN with 2.5GbE and 1GbE for reliable wired networking

Compact Slim PC for Professional Deployments

The Shuttle DH610 is a 1.3-litre barebone system built around the Intel H610 chipset and LGA1700 socket. It accepts 12th generation Intel Core i9, i7, i5 or i3 processors for digital signage, point-of-sale, industrial or office workloads. The metal chassis includes a VESA mount and operates in ambient temperatures up to 50 °C.

Memory and Storage Interface Limits

Two 260-pin SO-DIMM slots support DDR4 3200 memory up to 64 GB total capacity. A single M.2 2280 slot provides PCIe 3.0 x4 NVMe or SATA connectivity for the primary boot drive. One internal 2.5-inch bay adds a SATA 600 interface for a secondary hard disk or SSD.

Display Output Determines Multi-Screen Suitability

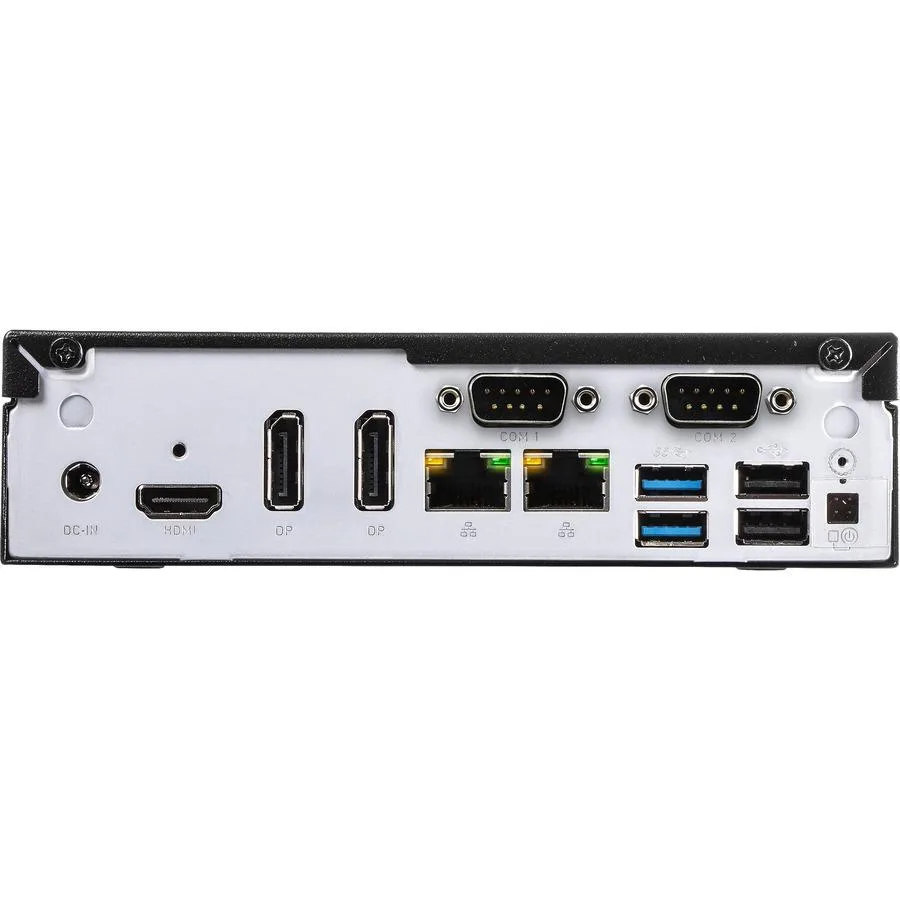

One HDMI 2.0b port and two DisplayPort connections drive up to three Ultra HD displays simultaneously. Buyers who require four or more independent screens cannot meet that need with this platform. The integrated Intel UHD graphics performance scales with the specific processor installed.

Přednosti

  • Compact 1.3-litre chassis fits tight professional spaces
  • LGA1700 socket supports Intel Core i9/i7/i5/i3 processors
  • Dual SO-DIMM slots accept up to 64GB DDR4-3200 memory
  • M.2-2280 slot takes PCIe 3.0 x4 NVMe or SATA drives
  • Dual LAN with 2.5GbE and 1GbE for reliable wired networking

Specifikace

BrandShuttle
ModelDH610
ColorBlack
CPU TypeIntel Core i9 / i7 / i5 / i3 (LGA1700)
CPU SocketIntel Socket LGA1700
North BridgeIntel H610
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.21 x M.2-2280M slot (supports PCIe 3.0 x4 NVMe or SATA)
Onboard AudioRealtek 897
BluetoothYes
Max LAN Speed2.5GbE + 1GbE
2.5" Internal bays1 x 2.5" bay for SATA hard disk or SSD
Front USB2 x USB 2.0
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 Type-C
Front Audio Ports2 x audio (line out, mic)
COM2
HDMI1 x HDMI 2.0b
DisplayPort2 x DP 1.4
Rear USB2 x USB 2.0
2 x USB 3.2 Gen 1 Type-A
RJ452
Other Rear PortsConnector for external power button
"Always on" Jumper
Power SupplyExternal 120W/19V power adapter
Dimensions1.69" x 7.48" x 6.5"
Přepravní hmotnost0.64 kg
Rozměry balení254 × 241 × 140 mm

Otázky k tomuto produktu

Which DDR4 SO-DIMM capacity should I pick to reach the 64GB maximum?

Install two 32GB DDR4-3200 SO-DIMM modules to fill both 260-pin slots and reach the 64GB limit.

What does the 2.5GbE port actually deliver when connected to a typical switch?

The 2.5GbE LAN runs at up to 2.5 Gb/s when the switch and cabling support that speed; otherwise it falls back to 1 Gb/s.

Does the M.2-2280 slot run at PCIe 3.0 x4 or SATA speeds with an NVMe drive?

An NVMe drive in the M.2-2280 slot operates at PCIe 3.0 x4; a SATA M.2 drive runs at SATA 600 speeds.
