Silverstone low-profile PCI-E card with two internal 19-pin USB 3.1 headers

Silverstone

Silverstone SST-ECU04-E expansion card PCI-E 2.0 x2 10Gbps 2 x 19pin USB 3.1

SKU CH-6FR2-MC7Q4 MPN SST-ECU04-E

Adds two internal USB 3.1 headers at 10 Gbps via PCIe 2.0 x2 with ReDriver chips for longer cables

  • TypeLow profile - PCI-E 2.0 x2 (10Gbps)
  • Internal USB Ports2 x 19pin USB 3.1 ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10Gbps
  • Operating Systems SupportedWindows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit), Ubuntu/Linu
  • SpecificationsPower requirement: 5V via SATA 15pin power connector USB 3.1
  • Low-profile PCIe 2.0 x2 card fits slim cases
  • ASMedia ASM1142 controller delivers 10 Gbps USB 3.1 speed
  • Two 19-pin headers add four front-panel USB ports
  • Pericom PI3EQX1002B ReDrivers maintain 10 Gbps over two-metre cables
  • SATA 15-pin power connector supplies stable 5 V current

Two USB 3.1 internal headers

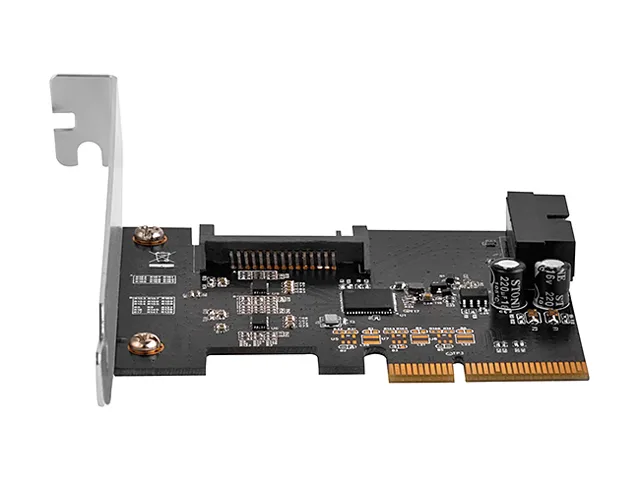

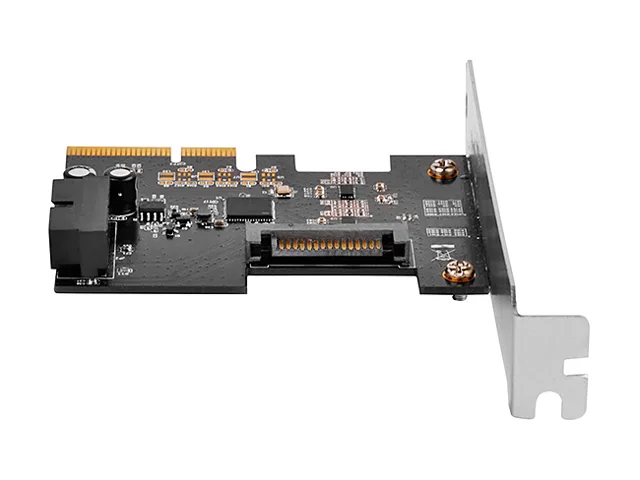

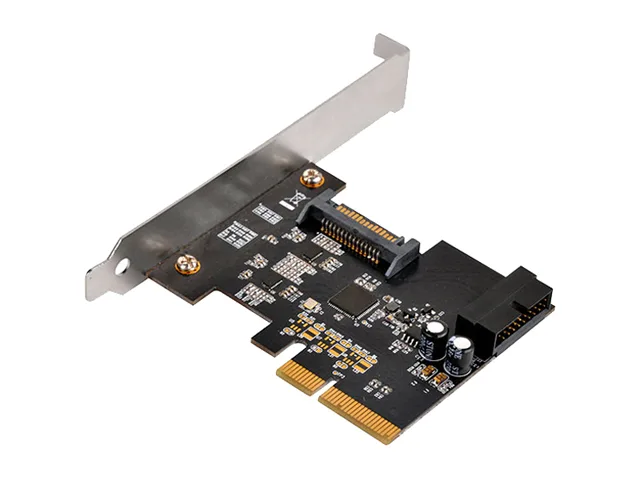

This PCIe 2.0 x2 add-in card provides two 19-pin USB 3.1 internal connectors, adding front-panel SuperSpeed ports to a desktop. It uses the ASMedia ASM1142 controller and draws 5 V power from a SATA 15-pin connector. Pericom PI3EQX1002B ReDriver chips extend reliable cable reach beyond the standard one-metre limit. The card fits low-profile brackets and supports Windows 7 through 10, Ubuntu, Linux and Mac OS.

Builders adding front USB 3.1 ports

Suits system integrators and enthusiasts who need two internal USB 3.1 headers on a motherboard that lacks them. Not for users whose chassis only offers USB 2.0 front-panel cables or who require external USB Type-A or Type-C ports directly on the bracket. Buyers without a free PCIe x2 or larger slot and a spare SATA power connector should look elsewhere.

PCIe 2.0 x2 host interface

The card connects through a PCI Express 2.0 x2 slot, delivering up to 10 Gbps of theoretical bandwidth to match the USB 3.1 10 Gbps specification. This single link width and generation determines whether the card will operate at its rated speed in a given motherboard slot.

Přednosti

  • Low-profile PCIe 2.0 x2 card fits slim cases
  • ASMedia ASM1142 controller delivers 10 Gbps USB 3.1 speed
  • Two 19-pin headers add four front-panel USB ports
  • Pericom PI3EQX1002B ReDrivers maintain 10 Gbps over two-metre cables
  • SATA 15-pin power connector supplies stable 5 V current

Specifikace

BrandSilverstone
ModelSST-ECU04-E
TypeLow profile - PCI-E 2.0 x2 (10Gbps)
Internal USB Ports2 x 19pin USB 3.1 ports
StandardUSB 3.1
Data Transfer RateUp to 10Gbps
Operating Systems SupportedWindows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit), Ubuntu/Linux/Mac OS
SpecificationsPower requirement: 5V via SATA 15pin power connector
USB 3.1 controller: ASMedia ASM1142
ReDriver ASIC: Pericom PI3EQX1002B
Power Management: Support USB 3.1 and USB 2.0 link power management
Current protection: Support over current detection and protection
Extra: UASP function
FeaturesIncludes ReDriver ASIC chips for overcoming 1 meter cable length limitation
Includes USB 3.1 internal 19pin connector
PCI-E Gen 2.0 x2, throughput up to 10Gbps
Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1
Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0
Includes optional low profile slot cover for supporting low profile cases
Dimensions0.34" x 3.46" x 5.45"
Weight0.78 lb.
Přepravní hmotnost0.13 kg
Rozměry balení183 × 127 × 25 mm

Otázky k tomuto produktu

How do I install the Silverstone SST-ECU04-E and what step is often missed?

Insert the low-profile card into a PCI-E 2.0 x2 slot, then connect the 19-pin USB 3.1 header to the motherboard; the step many miss is plugging the SATA 15-pin power connector so the ASM1142 controller receives 5 V.

What maintenance or replacement will this card need later?

No scheduled maintenance is required; if a Pericom PI3EQX1002B ReDriver or the ASM1142 controller fails after extended use, the entire add-on card would be replaced.

What limit appears first under sustained 10 Gbps transfers?

The PCI-E 2.0 x2 host interface caps sustained throughput at 10 Gbps, so the bus bandwidth is the first bottleneck during continuous high-speed operation.
