Supermicro
Supermicro MBD-X11DPI-N-B server motherboard, dual LGA 3647, C621, 16 DIMM slots, E-ATX
Dual-socket E-ATX board with 16 DDR4 slots supporting up to 2 TB ECC memory, 14 SATA 6.0 Gb/s ports, four PCIe 3.0 x16 and two x8 slots, plus dual Gigabit LAN
- CPU Socket TypeDual LGA 3647
- CPU TypeSupports 2nd Gen Intel Xeon Scalable Processors and Intel Xe
- North BridgeIntel C621
- DDR4 Standard2666 / 2400 / 2133 MHz ECC DDR4 RDIMM, LRDIMM
- Maximum Memory SupportedUp to 2TB 3DS ECC RDIMM, DDR4-2666 MHz; Up to 2TB 3DS ECC LR
- PCI Express 3.0 x164
Option Dual LAN with GbE
- Dual LAN with 10GBase-T
- Dual LAN with GbE
- Dual LGA 3647 sockets scale compute for heavy workloads
- 16 DDR4 slots support up to 2 TB ECC memory for large datasets
- Four PCIe 3.0 x16 slots enable multiple GPU or accelerator cards
- Fourteen SATA 6.0 Gb/s ports provide high-density local storage
- Dual Gigabit LAN from C621 ensures redundant network connectivity
Dual LGA 3647 server platform

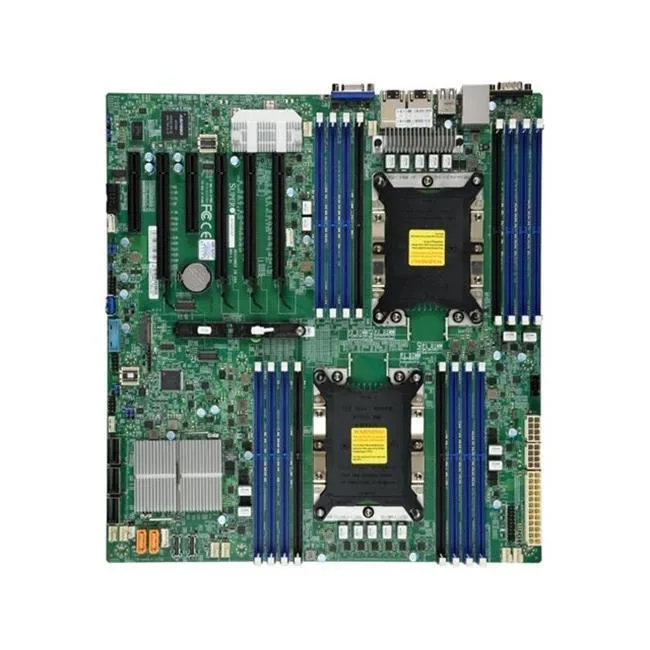

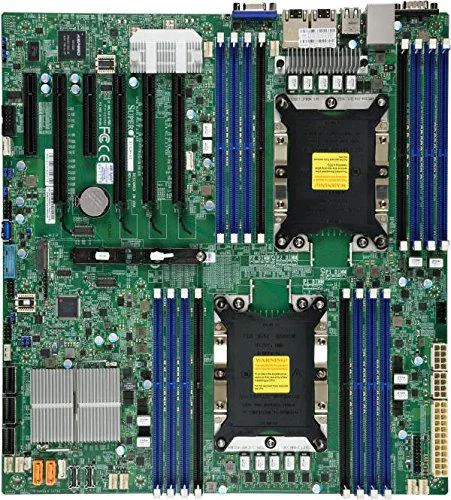

The Supermicro MBD-X11DPI-N-B is an extended ATX motherboard built for dual-socket Intel Xeon Scalable processors. It targets operators who need high core counts and large memory capacity in a single chassis. Two sockets support up to 205 W TDP each with dual UPI links at 10.4 GT/s.
Fits dense compute and memory-heavy workloads
This board suits virtualisation hosts, database servers and HPC clusters that can use 16 DIMM slots and 14 SATA ports. It is not for builds that require a single-socket design, standard ATX dimensions, or more than two GbE ports without add-in cards. The form factor demands an E-ATX compatible case.
16 DDR4 slots scale to 2 TB
Sixteen slots accept ECC RDIMM or LRDIMM modules at 2666, 2400 or 2133 MHz, reaching 2 TB with 3DS parts. The C621 chipset provides four PCI-E 3.0 x16 slots, two x8 slots and dual Gigabit LAN from the PCH. Onboard Aspeed AST2500 handles video and management.
Přednosti
- Dual LGA 3647 sockets scale compute for heavy workloads
- 16 DDR4 slots support up to 2 TB ECC memory for large datasets
- Four PCIe 3.0 x16 slots enable multiple GPU or accelerator cards
- Fourteen SATA 6.0 Gb/s ports provide high-density local storage
- Dual Gigabit LAN from C621 ensures redundant network connectivity
Specifikace
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11DPI-N-B |
| CPU Socket Type | Dual LGA 3647 |
| CPU Type | Supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
| DDR4 Standard | 2666 / 2400 / 2133 MHz ECC DDR4 RDIMM, LRDIMM |
| Maximum Memory Supported | Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
| PCI Express 3.0 x16 | 4 |
| PCI Express x8 | 2 x PCI-E 3.0 x8 |
| SATA | 14 x SATA 6.0Gb/s |
| Onboard Video Chipset | Aspeed AST2500 |
| Number of LAN | Dual LAN with GbE from C621 |
| COM | 1 |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Intel C621 Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots 4 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key, 2 x PCI-E 3.0 NVMe x4 Internal Port (s) 1 x VGA port Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Dual LAN with GbE from C621 |
| Form Factor | Extended ATX |
| Dimensions (W x L) | 12.0" x 13.0" |
| Přepravní hmotnost | 2.25 kg |
| Rozměry balení | 610 × 406 × 102 mm |
Další verze tohoto modelu
Dalších 1 v této řadě
Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.
Otázky k tomuto produktu
Which DDR4 memory types and speeds does the MBD-X11DPI-N-B support for its 16 DIMM slots?
The board accepts ECC RDIMM and LRDIMM modules at 2666, 2400 or 2133 MHz, with a maximum capacity of 2 TB using 3DS RDIMM or 3DS LRDIMM.
Can I keep my existing PCIe 3.0 x16 and x8 add-in cards when moving to this motherboard?
Yes, the board provides four PCIe 3.0 x16 slots and two PCIe 3.0 x8 slots, so current PCIe 3.0 cards will fit and operate at their native speeds.
How can I confirm the dual Gigabit LAN ports are active after installation?
Connect network cables to the two RJ45 ports; link LEDs on each port will light when a live connection is detected, and the OS will list two Gigabit Ethernet adapters.
