Thermaltake
Thermaltake Pure Duo 12 ARGB 120mm 2-pack CL-F115-PL12SW-B
Two 120 mm PWM fans with dual addressable LED rings, hydraulic bearings, 500–1500 RPM and 56.51 CFM airflow at 28 dBA
- Fan Counts2 Fans
- Fan ControllerController
- TypeCase Fan, Radiator Fan
- CompatibilityCase
- Fan Thickness25mm
- Bearing TypeHydraulic
- 8 million colours across dual LED rings with 18 addressable LEDs
- PWM control from 500 to 1500 RPM delivers 56.51 CFM airflow
- Hydraulic bearing self-lubricates for quiet operation at 28 dBA

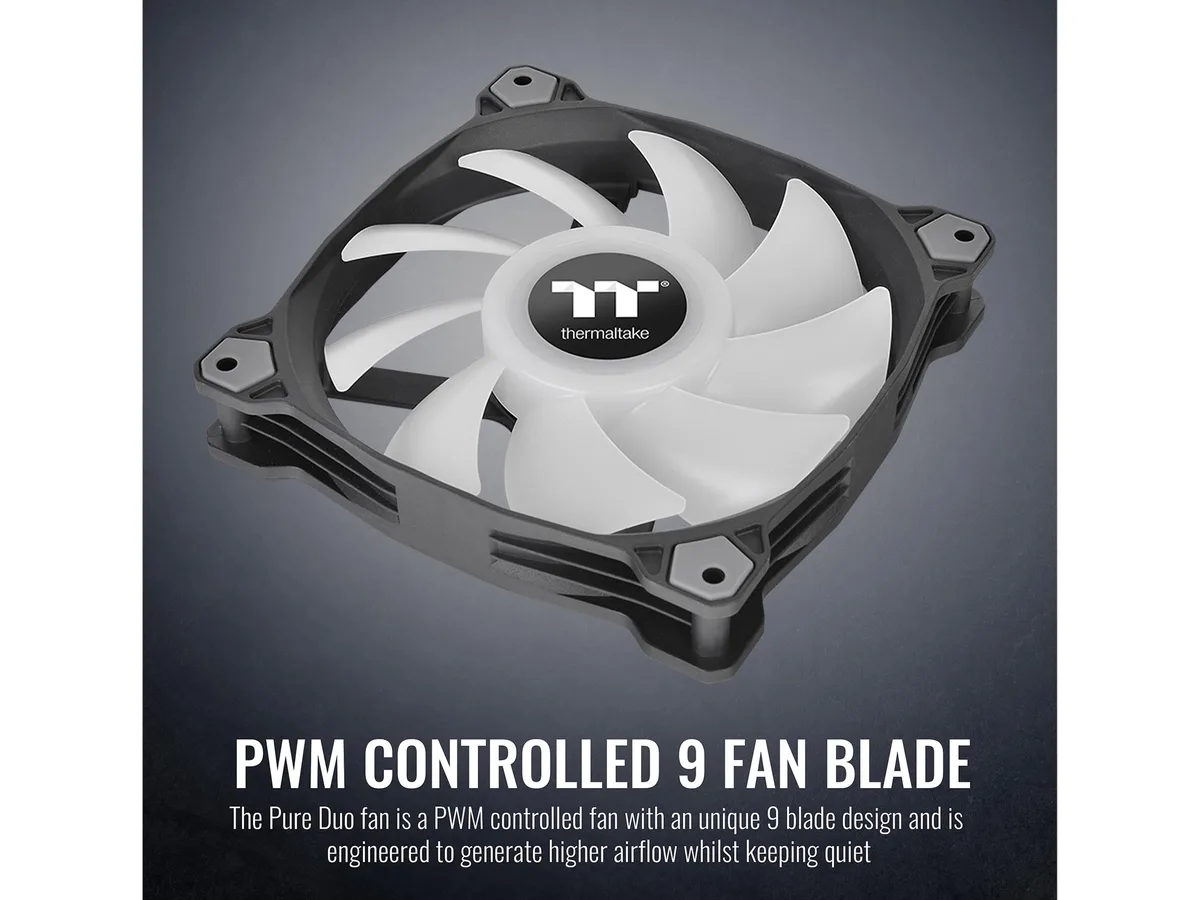

- Nine-blade design optimises airflow for cases and radiators
- Anti-vibration rubber pads reduce vibration transfer to the chassis

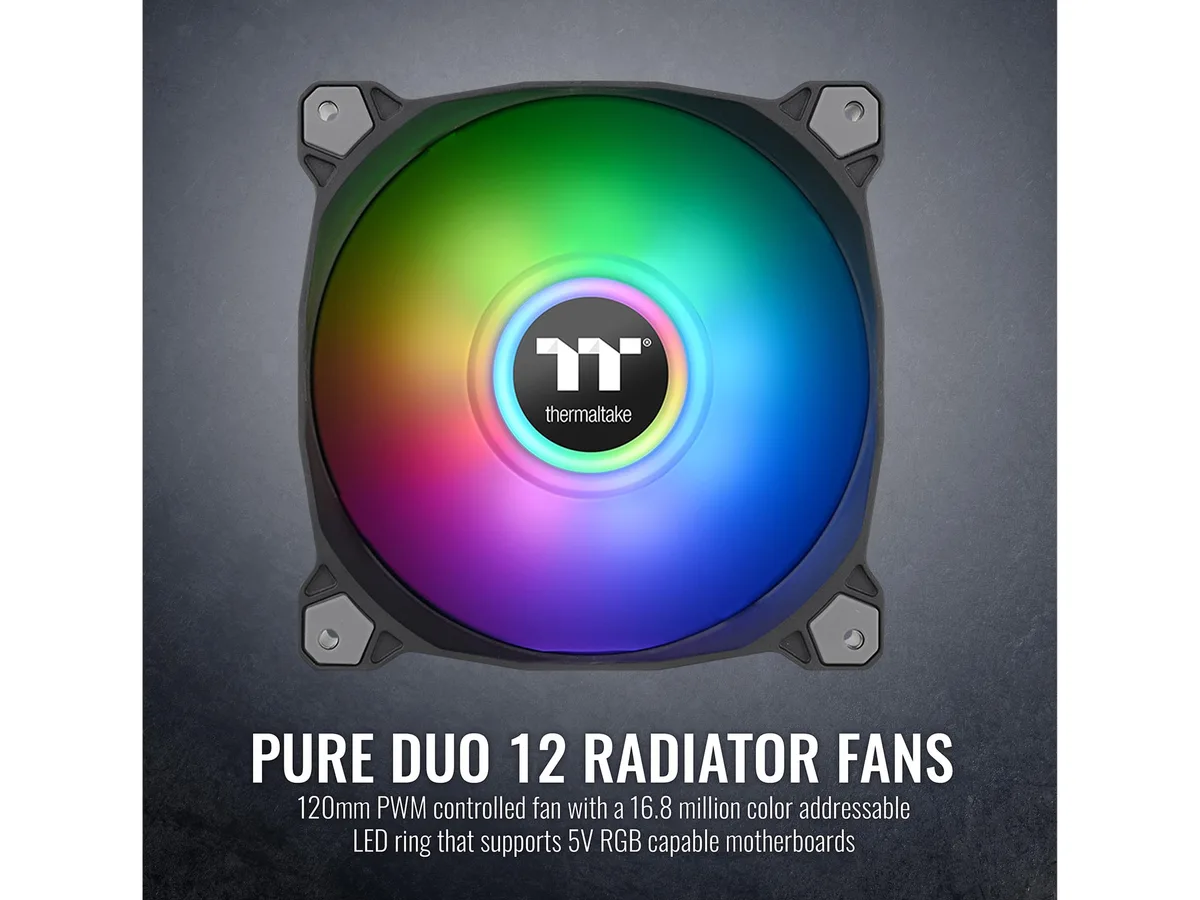

Dual 120 mm ARGB fan kit
The Pure Duo 12 ships as a pair of black 120 mm fans designed for case or radiator mounting. Each unit uses a 4-pin PWM connector and a 5 V addressable RGB header for motherboard software sync. The hydraulic bearing and nine-blade design target a balance of airflow and acoustic comfort. Builders who want a simple two-fan lighting upgrade will find the kit straightforward.
Hydraulic bearing with anti-vibration mounts

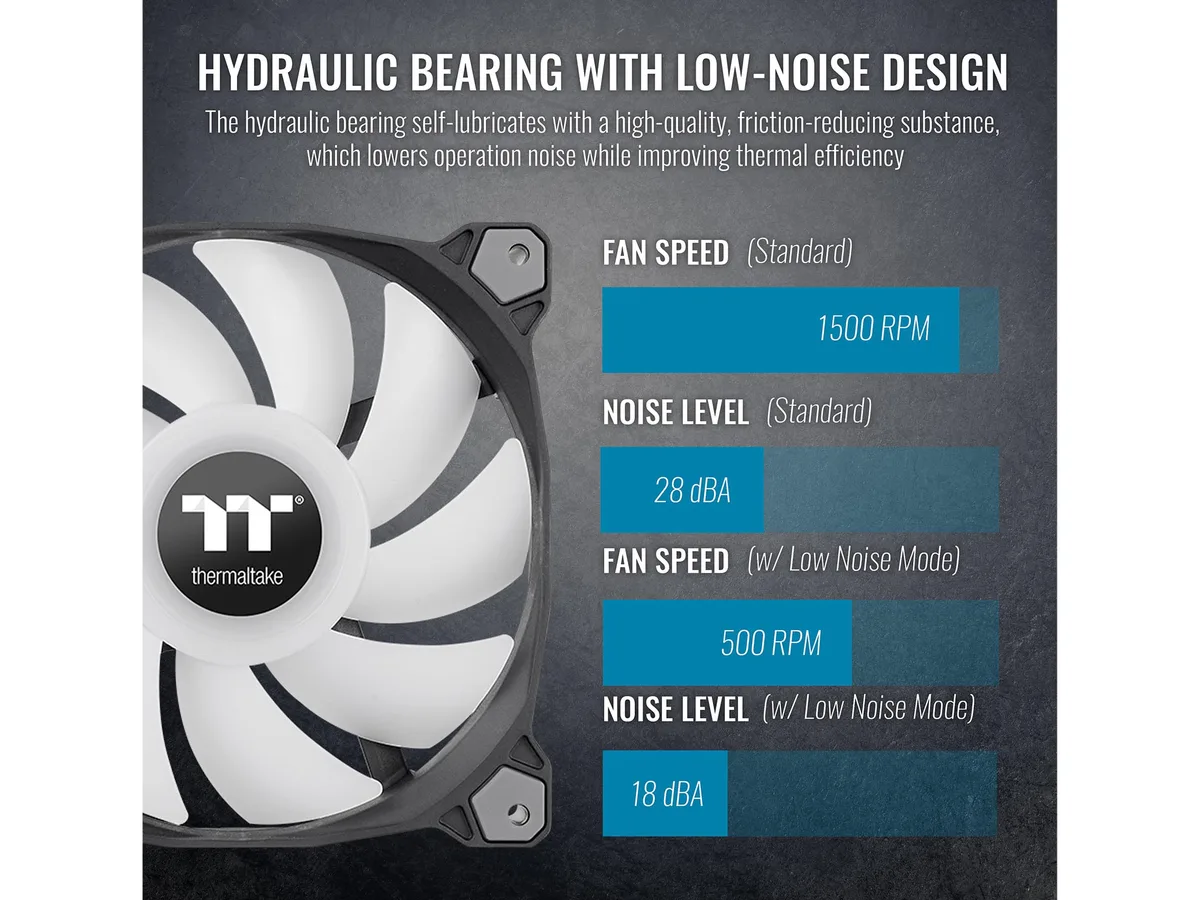

A hydraulic bearing self-lubricates to reduce friction noise and extend service life. Rubber pads moulded into the frame corners absorb vibration when the fans are screwed to a chassis or radiator. The 25 mm thickness fits standard 120 mm mounting holes without clearance issues. Installers who need thinner 15 mm fans for slim enclosures cannot use this model.
500–1500 RPM delivering 56.51 CFM at 28 dBA

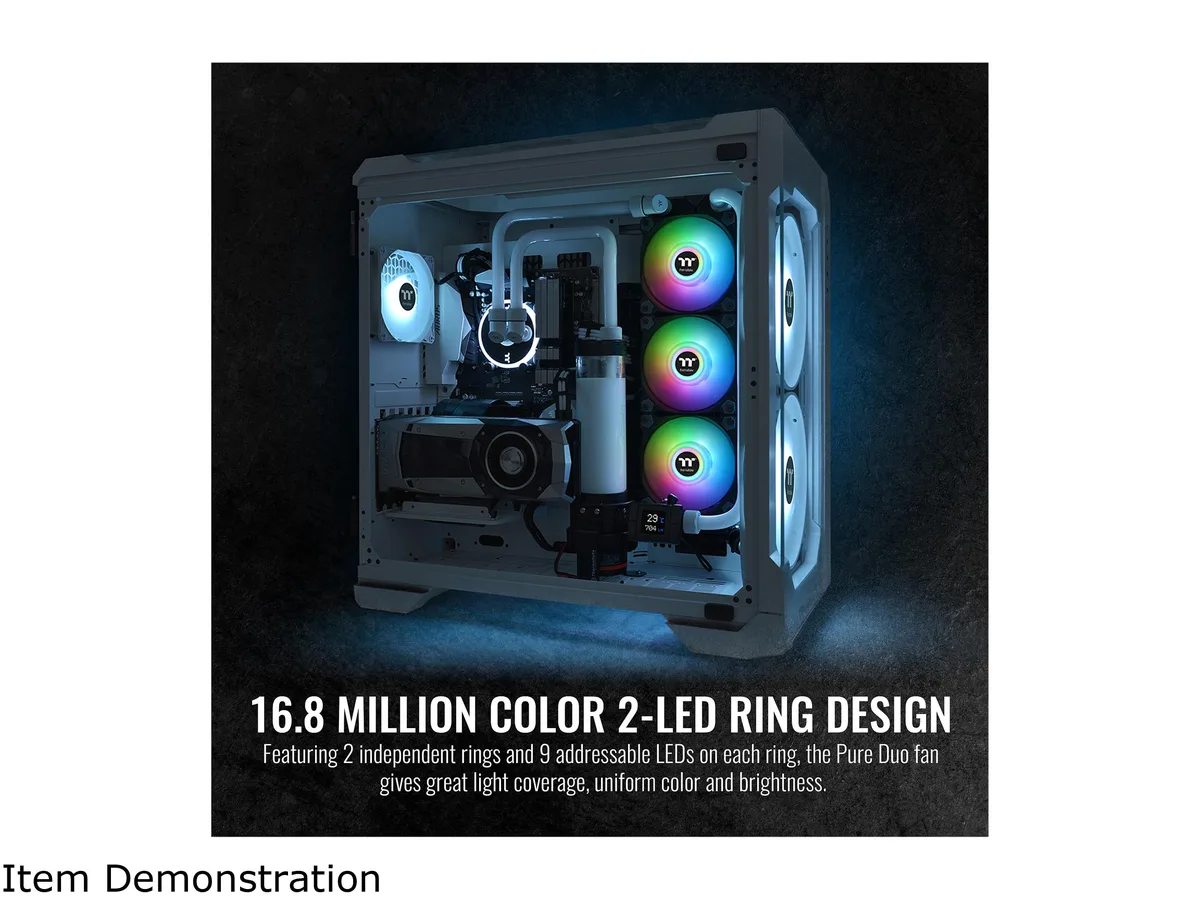

PWM control spans 500 to 1500 RPM, producing 56.51 CFM maximum airflow while the manufacturer rates noise at 28 dBA. The dual LED rings contain 18 addressable LEDs in total for 16.8 million colour options. Users who require static-pressure curves or higher maximum RPM for dense radiators should check the specifications carefully.
Přednosti
- 8 million colours across dual LED rings with 18 addressable LEDs
- PWM control from 500 to 1500 RPM delivers 56.51 CFM airflow
- Hydraulic bearing self-lubricates for quiet operation at 28 dBA
- Nine-blade design optimises airflow for cases and radiators
- Anti-vibration rubber pads reduce vibration transfer to the chassis
Specifikace
| Brand | Thermaltake |
|---|---|
| Series | Pure Duo 12 ARGB Sync - Black |
| Model | CL-F115-PL12SW-B |
| Fan Counts | 2 Fans |
| Fan Controller | Controller |
| Type | Case Fan, Radiator Fan |
| Compatibility | Case |
| Fan Thickness | 25mm |
| Bearing Type | Hydraulic |
| RPM | 500 - 1500 R.P.M PWM |
| Air Flow | 56.51 CFM |
| Noise Level | 28 dBA |
| Power Connector | 4 Pin PWM |
| Color | Black |
| LED | Addressable RGB |
| Features | PWM Controlled Fan with 9 Fan Blade Design Low-Noise Hydraulic Bearing Anti-Vibration Mounting System 16.8 Million Color 2-LED Ring Design Sync with Motherboard RGB Software |
| Dimensions | 120 x 120 x 25 mm |
| Přepravní hmotnost | 0.48 kg |
| Rozměry balení | 175 × 127 × 56 mm |
Otázky k tomuto produktu
What does the 4-pin PWM connector control on these 120 mm fans?
The 4-pin PWM connector lets the motherboard vary fan speed between 500 and 1500 RPM, delivering up to 56.51 CFM at a maximum noise level of 28 dBA.
How much clearance do the 25 mm thick fans and their anti-vibration pads need?
Each fan measures 120 x 120 x 25 mm; the in-mould rubber pads add minimal height, so allow at least 25 mm depth plus standard screw clearance for case or radiator mounting.
How do I connect the two fans and their ARGB lighting to a 5 V motherboard header?

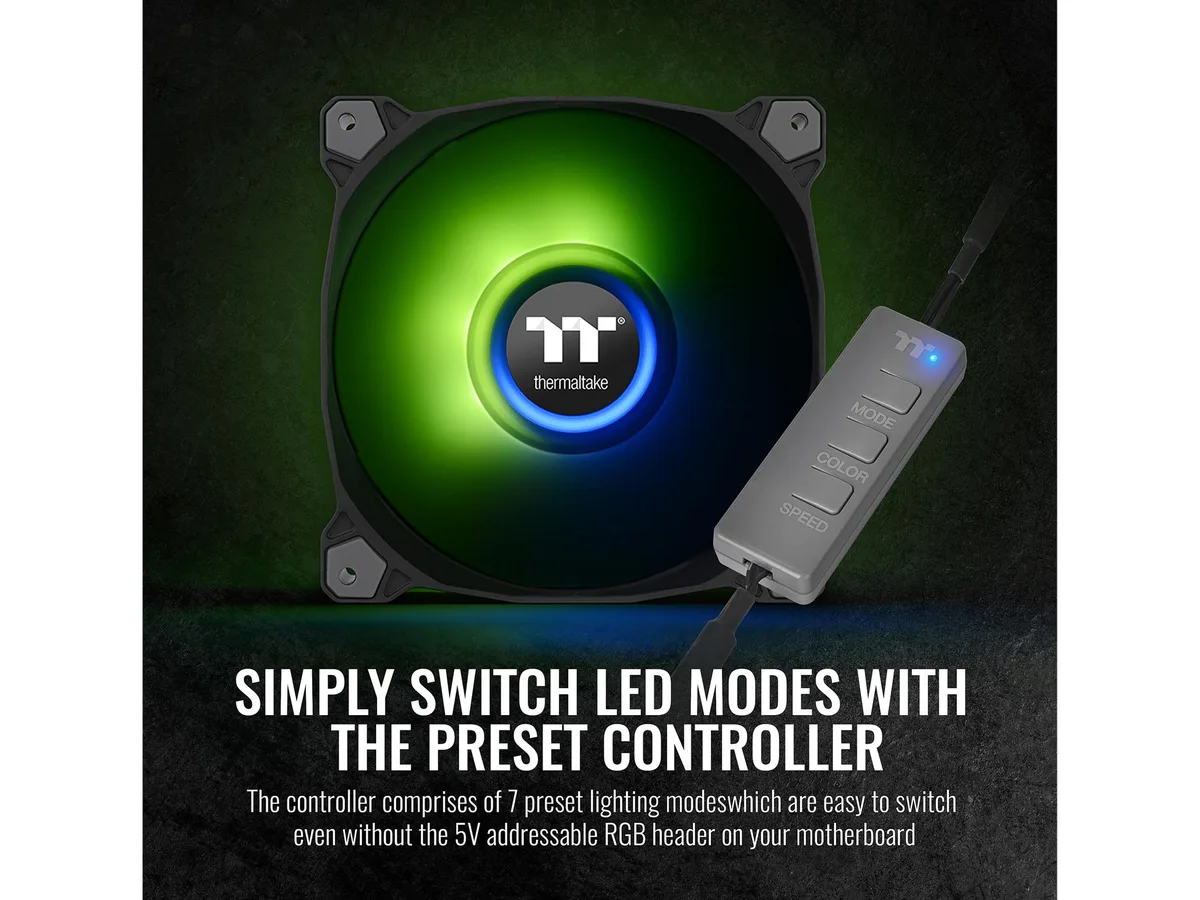

Plug each fan's 4-pin PWM lead into a motherboard fan header and each 3-pin 5 V ARGB lead into a 5 V addressable RGB header; then control lighting via the motherboard software or the included controller.
