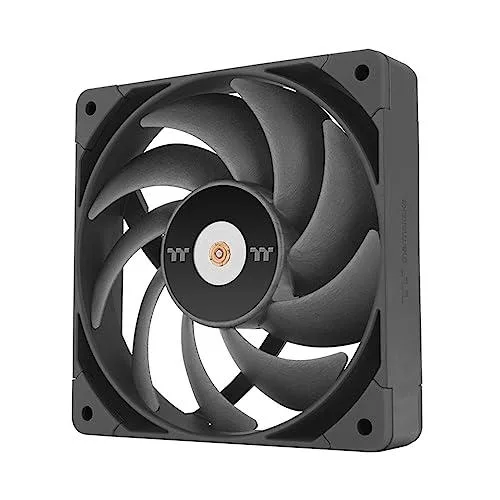

Black 120 mm case fan, 25 mm thick, non-LED, hydraulic bearing, PWM connector

Thermaltake

Thermaltake ToughFan Pro 12 CL-F139-PL12BL-A case fan

SKU CH-R2QZ-T9PAJ MPN CL-F139-PL12BL-A

A 120 mm PWM case fan delivering 70.8 CFM at 22.6 dB-A with a Gen.2 hydraulic bearing and anti-vibration mounts

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Thickness25mm
  • Bearing TypeHydraulic Bearing Gen.2
  • RPMPWM 500~2000 R.P.M With L.N.C PWM 500~1500 R.P.M
  • Air Flow70.8 CFM With L.N.C 49.13 CFM
  • Engineered LCP blades deliver 70.8 CFM airflow for demanding cooling
  • Gen.2 hydraulic bearing runs at 22.6 dB-A for quiet operation
  • PWM control spans 500 to 2000 RPM for flexible speed management
  • Tight tip clearance design boosts 3.19 mmH₂O static pressure on radiators
  • Anti-vibration mounts cut resonance to 18.3 dB-A in low-noise mode

Single 120 mm PWM fan for high static pressure

This single 120 mm case fan uses a 4 pin PWM connector to deliver 500 to 2000 rpm and 70.8 CFM airflow at 22.6 dB‑A. The second‑generation hydraulic bearing and liquid crystal polymer blades are engineered for radiator and chassis cooling where strong static pressure matters.

PWM range and low‑noise adapter limit maximum speed

Without the supplied low‑noise cable the fan runs 500 to 2000 rpm producing 70.8 CFM at 22.6 dB‑A. With the adapter fitted the range drops to 500 to 1500 rpm, reducing airflow to 49.13 CFM and noise to 18.3 dB‑A. Static pressure peaks at 3.19 mm H₂O only at full PWM speed.

Check motherboard header

Your board must provide a standard 4 pin PWM header to control the fan curve. The frame is 25 mm thick so verify that your case, radiator or heatsink allows that depth and that the 120 mm mounting holes line up. Anti‑vibration pads are included but require four clear screw positions.

Přednosti

  • Engineered LCP blades deliver 70.8 CFM airflow for demanding cooling
  • Gen.2 hydraulic bearing runs at 22.6 dB-A for quiet operation
  • PWM control spans 500 to 2000 RPM for flexible speed management
  • Tight tip clearance design boosts 3.19 mmH₂O static pressure on radiators
  • Anti-vibration mounts cut resonance to 18.3 dB-A in low-noise mode

Specifikace

BrandThermaltake
SeriesToughFan Pro 12
ModelToughFan Pro 12 (2 pack)
Part NumberCL-F159-PL12BL-A
Fan Counts1 Fan
TypeCase Fan
Fan Thickness25mm
Bearing TypeHydraulic Bearing Gen.2
RPMPWM 500~2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
Air Flow70.8 CFM
With L.N.C 49.13 CFM
Noise Level22.6 dB-A
With L.N.C 18.3 dB-A
Power Connector4 PIN PWM
ColorBlack
LEDNon-LED
Přepravní hmotnost0.34 kg
Rozměry balení191 × 140 × 32 mm

Otázky k tomuto produktu

One fan or two — which pack should I pick?

This listing is the single-fan pack (CL-F139-PL12BL-A). A two-fan version exists under a different part number (CL-F159-PL12BL-A) if you need a pair.

What does 70.8 CFM actually deliver inside my case?

At full PWM speed the fan moves 70.8 CFM with 3.19 mm H₂O static pressure at 22.6 dB-A, giving strong airflow through radiators or restrictive meshes.

How does the 4-pin PWM connector limit control?

The 4-pin PWM header lets the motherboard vary speed from 500 to 2000 rpm; with low-noise cable fitted the range drops to 500–1500 rpm and 18.3 dB-A.
