Tripp Lite
Tripp Lite SMART3000RM2U 3000VA 3000W 120V 2U Rack/Tower UPS
Line-interactive sine-wave UPS delivers 3000 VA / 3000 W with 7 NEMA outlets, 2U rack/tower form, LCD monitoring and SNMP-card slot
- International Version120V
- Input Voltage Range80V-151V; adjustable to 70-153V
- Input ConnectionNEMA L5-30P
- VA Rating3000 VA
- Watts3000 Watts
- Output Voltage120V
VA 3000 VA
- 1000 VA
- 1500 VA
- 1500 VA w/ WEBCARDLX
- 2200 VA / 8 Outlets
- 2200 VA w/ WEBCARDLX
- 3000 VA
- 3000 VA w/ WEBCARDLX
Přeškrtnuté varianty existují, ale zde nejsou skladem.
- Unity power factor delivers full 3000 W from 3000 VA rating
- Line-interactive sine wave output protects servers from blackouts brownouts surges line noise
- Auto-voltage regulation corrects brownouts overvoltages 80 V to 151 V without battery use
- LCD shows 10 selectable screens for real-time UPS and power data

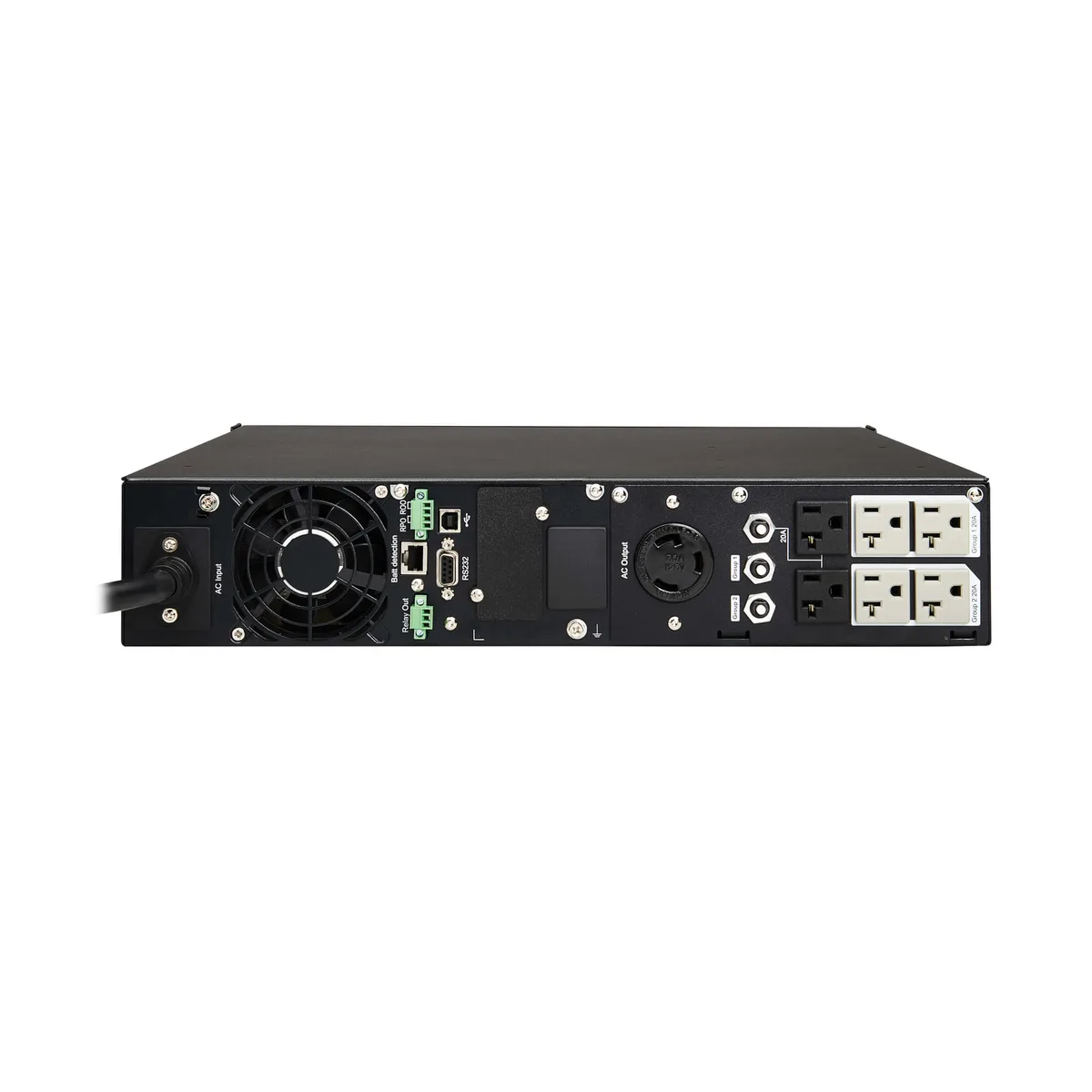

- 7 outlets include six 5-20R and one L5-30R plus USB DB9 SNMP slot
3000VA Line-Interactive Sine Wave UPS
The Tripp Lite SMART3000RM2U is a 3000VA 3000W 120V line-interactive UPS delivering pure sine wave output with unity power factor. It accepts an input range of 80V-151V adjustable to 70-153V via a NEMA L5-30P plug. The unit provides seven outlets: six NEMA 5-20R and one NEMA L5-30R. It fits a 2U rack or tower form factor.
Replaces Standby or Simulated Sine Units
This UPS upgrades from standby or simulated sine wave models by providing continuous AVR correction for brownouts and overvoltages without using battery power. The dual-level voltage boost handles severe undervoltage conditions down to 70V. Switchover to battery occurs within milliseconds during blackouts. Runtime is 3 minutes at 3000W and 9 minutes at 1500W, with recharge under 5 hours.
For Critical Server and Network Loads
Suits administrators protecting critical servers, network gear and telecommunications equipment requiring pure sine wave power and detailed LCD monitoring. The SNMP slot supports the optional WEBCARDLXE for remote management; the older WEBCARDLX is not compatible. Buyers needing extended runtime beyond 9 minutes at half load or 120V input outside the 70-153V window should evaluate other solutions.
Přednosti
- Unity power factor delivers full 3000 W from 3000 VA rating
- Line-interactive sine wave output protects servers from blackouts brownouts surges line noise
- Auto-voltage regulation corrects brownouts overvoltages 80 V to 151 V without battery use
- LCD shows 10 selectable screens for real-time UPS and power data
- 7 outlets include six 5-20R and one L5-30R plus USB DB9 SNMP slot
Specifikace
| Brand | TRIPP LITE |
|---|---|
| Series | SmartPro |
| Model | SMART3000RM2U |
| International Version | 120V |
| Input Voltage Range | 80V-151V; adjustable to 70-153V |
| Input Connection | NEMA L5-30P |
| VA Rating | 3000 VA |
| Watts | 3000 Watts |
| Output Voltage | 120V |
| Output Frequency | 50 / 60 Hz |
| Outlets | 7 |
| Outlet Type | NEMA (6) 5-20R; NEMA (1) L5-30R |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Run Time | Full load: 3 min. (3000W) Half load: 9 min. (1500W) |
| Battery Recharge Time | Less than 5 hours from 10 to 90% (typical, full load discharge) |
| Alarms | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Interface Port | Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled) |
| Approvals | ENERGY STAR Qualified; FCC Part 15 Class A (USA); RoHS |
| Rackmountable | Yes |
| Surge Energy Rating | 380 Joules |
| Temperature | Operating Temperature Range: 32° to 104°F (0° to 40°C) Storage Temperature Range: 5° to 122°F (-15° to 50°C) |
| Humidity | 20 to 90%, non-condensing |
| Dimensions | 3.40" x 17.20" x 23.70" |
| Weight | 74.5 lbs. |
| Package Contents | 3000VA 3000W 120V Line-Interactive UPS USB cable DB9 cable Rack-mounting hardware Tower support stands Safety instructions Advanced User Guide |
| Přepravní hmotnost | 34.79 kg |
| Rozměry balení | 620 × 572 × 221 mm |
Další verze tohoto modelu
Dalších 1 v této řadě
Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.
Otázky k tomuto produktu
What rack depth and rail kit does the 2U SMART3000RM2U need for mounting?
The unit is 2U rackmountable and also supports tower orientation; the rail kit is sold separately so verify your rack depth before ordering.
Which cables must be connected during first installation, and which step is most often missed?
Connect the NEMA L5-30P input cord and attach equipment to the six 5-20R and one L5-30R outlets; the step most often missed is inserting the USB or DB9 cable and installing the monitoring software so the UPS can trigger graceful shutdown.
When and how should the internal VRLA batteries be replaced?
Expect 3–5 years service; replace with the same VRLA type when runtime drops below the rated 3 minutes at 3000 W or 9 minutes at 1500 W, and recycle the old modules.
