Ubiquiti Networks
Ubiquiti Networks U6-IW Wi-Fi 6 in-wall access point
Wall-mounted Wi-Fi 6 access point with six spatial streams, four gigabit Ethernet ports and PoE power for single-room coverage up to 115 m²
- # of Users300+
- Standards802.11a/b/g/n/ac/ax (WiFi 6)
- WiFi GenerationWi-Fi 6
- Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
- SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO)
Options U6 In-Wall
- U6 Enterprise
- U6 Enterprise In-Wall
- U6 Pro
- U6 Long-Range
- U6+
- U6 Mesh
- U6 Mesh Pro
- U6 In-Wall
Přeškrtnuté varianty existují, ale zde nejsou skladem.
- Wi-Fi 6 supports 300+ simultaneous users
- 6 spatial streams deliver 4.8 Gbps peak throughput
- Four GbE ports plus PoE output simplify room wiring
- Indoor coverage reaches 115 m² from a wall mount
- Operates from -30 to 60 °C in humid conditions

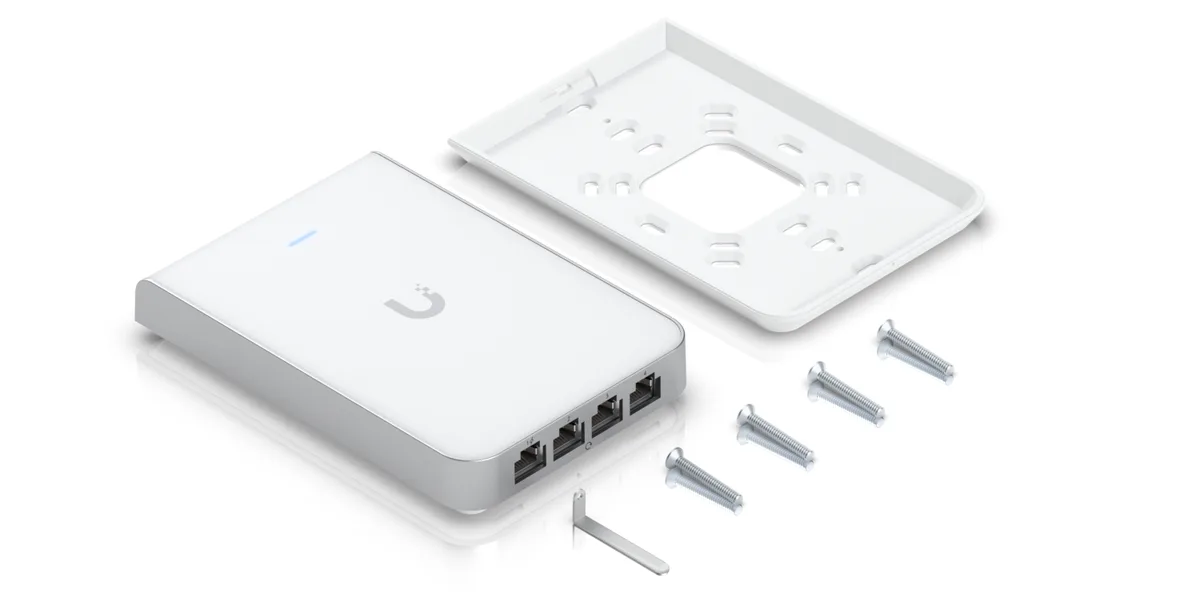

In-wall Wi-Fi 6 access point
The Ubiquiti U6-IW mounts inside a standard wall box to deliver Wi-Fi 6 coverage for a single room. It supports up to 300+ simultaneous users and provides indoor range up to 115m. The unit draws power through PoE or PoE+ and includes a four-port gigabit switch with one PoE output port.
Hospitality rooms and dense client environments
This model suits hotels, dormitories or offices where a clean in-wall installation and a built-in switch for wired devices are required. It is not intended for buyers who need outdoor-rated hardware, larger multi-room coverage from a single unit, or uplink speeds beyond gigabit ethernet.
PoE-powered with integrated four-port switch
The access point requires a PoE or PoE+ source on its single gigabit uplink port. When fed with PoE+, it can pass power to one downstream device through the switch. Four gigabit data-out ports free up cabling for desktops, phones or IoT gear in the same room.
Přednosti
- Wi-Fi 6 supports 300+ simultaneous users
- 6 spatial streams deliver 4.8 Gbps peak throughput
- Four GbE ports plus PoE output simplify room wiring
- Indoor coverage reaches 115 m² from a wall mount
- Operates from -30 to 60 °C in humid conditions
Specifikace
| Brand | Ubiquiti Networks |
|---|---|
| Series | WIFI Access points |
| Model | U6 In-Wall |
| Part Number | U6-IW |
| # of Users | 300+ |
| Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| WiFi Generation | Wi-Fi 6 |
| Wireless Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| Antenna | 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) |
| Transmitted Power | 2.4 GHz 22 dBm 5 GHz 26 dBm |
| Mounting Location | Indoor |
| Operating Range | Indoor: Up to 115m, Outdoor: Up to 115m |
| Interface | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| LAN Ports | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Power Supply | PoE PoE+ (Required for PoE output) |
| Temperature | -30 to 60° C (-22 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3") |
| Weight | 460 g (1 lb) |
| Features | BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ Zero-wait DFS Yes* *Supported with upcoming firmware versions. |
| Přepravní hmotnost | 4.54 kg |
| Rozměry balení | 254 × 254 × 254 mm |
Další verze tohoto modelu
Dalších 2 v této řadě
Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.
Ubiquiti Networks
Ubiquiti Networks U6-MESH-PRO-US WiFi 6 access point
- 250+
- 802.11a/b/g/n/ac
175,99 US$
0.00225181BTC
SklademOtázky k tomuto produktu
Do I need a PoE+ switch or injector to power the U6-IW and use its PoE output port?
The access point requires PoE+ to activate its single PoE output on one of the four GbE data-out ports; standard PoE powers the unit but disables that output.
Will the 2.4 GHz 2x2 and 5 GHz 4x4 MU-MIMO radios work with my existing 802.11n and 802.11ac devices?
The radios support 802.11a/b/g/n/ac/ax standards, so older 802.11n and 802.11ac clients connect at their rated MCS speeds.
How can I verify the U6-IW is delivering Wi-Fi 6 throughput after installation?
Connect a Wi-Fi 6 client and confirm a PHY rate up to 4.8 Gbps on the 5 GHz 4x4 radio; the UniFi controller also shows per-client MCS index and spatial streams.
