Tall rectangular UPS cabinet, dark grey finish, LCD panel on front, rack or tower orientation

Vertiv

Vertiv Liebert AS5A0NCUGNNXLKB 5 kVA UPS

SKU CH-DWWD-N2JYN MPN AS5A0NCUGNNXLKB

A 5 kVA online double-conversion UPS delivering 4.5 kW with five minutes full-load runtime, scalable to 15 kVA N+1 redundancy in a rack/tower chassis

  • International Version208V
  • Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection4-Wire (L-L-N-G)
  • VA Rating5 kVA
  • Watts4.5 kW

Option AS5A0NCUGNNXLKB

Zobrazit dalších 16 konfigurací
  • Scalable to 15 kVA for growing power demands
  • Online double-conversion topology delivers clean 4.5 kW output
  • Five minutes runtime at full load protects critical equipment
  • Rack or tower form factor fits diverse installations
  • Factory-fitted SNMP card enables remote monitoring

Scalable 5 kVA Double-Conversion UPS

The Vertiv Liebert AS5A0NCUGNNXLKB is a new online double-conversion UPS rated at 5 kVA and 4.5 kW. It accepts 200/100 to 240/120 VAC split-phase input and provides matching output voltages. The unit is scalable to 15 kVA in an N+1 redundant configuration and includes a factory-installed SNMP/web card for network management.

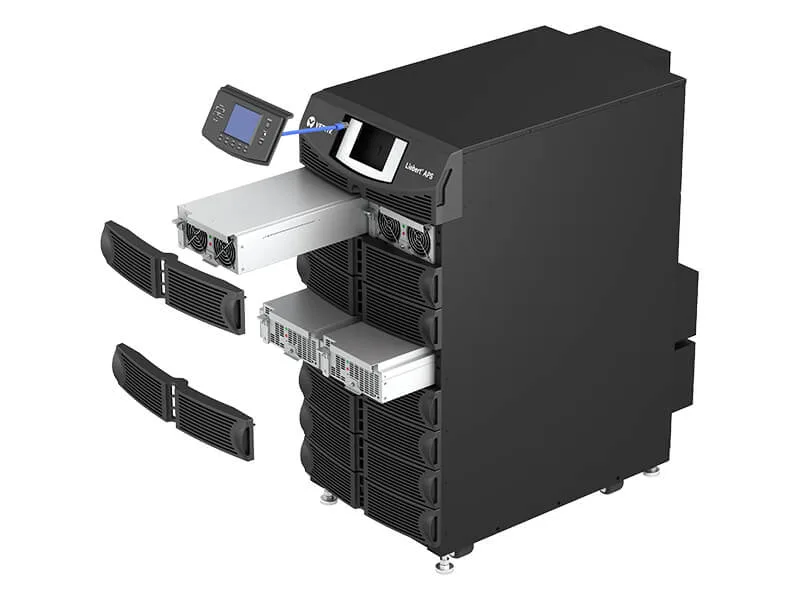

Modular Rack-Tower for Mission-Critical Rooms

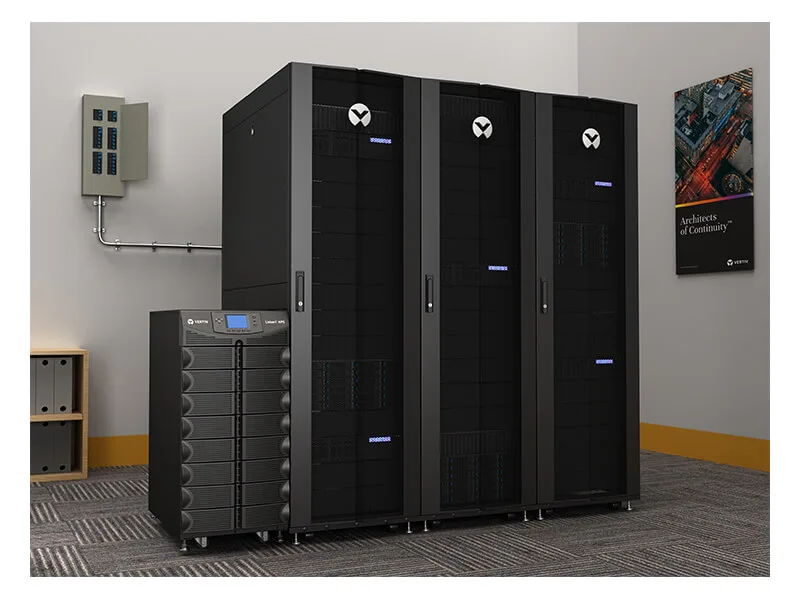

This UPS suits computer rooms and mission-critical equipment that need continuous power conditioning and short-duration battery ride-through. It operates from 0°C to 40°C in 0 to 95% non-condensing humidity. Buyers who need longer battery autonomy or a different voltage architecture should look at other solutions.

Five-Minute Full-Load Runtime

At full load the internal VRLA batteries deliver 5 minutes of runtime, extending to 15 minutes at half load. The 4-wire hard-wire input connection and configurable 50/60 Hz output frequency complete the key installation parameters.

Přednosti

  • Scalable to 15 kVA for growing power demands
  • Online double-conversion topology delivers clean 4.5 kW output
  • Five minutes runtime at full load protects critical equipment
  • Rack or tower form factor fits diverse installations
  • Factory-fitted SNMP card enables remote monitoring

Specifikace

BrandVertiv
SeriesLiebert
ModelAS5A0NCUGNNXLKB
International Version208V
Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection4-Wire (L-L-N-G)
VA Rating5 kVA
Watts4.5 kW
Output Voltage200/100, 208/120, 220/110, 230/115, 240/120 VAC
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5 mins.
Half Load: 15 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions27" x 17" x 32"
Weight375 lbs.
Přepravní hmotnost170.10 kg
Rozměry balení813 × 813 × 432 mm

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What 4-wire input connection does the UPS require for its 208/120 VAC split-phase supply?

The unit needs a hard-wired 4-wire feed (L-L-N-G) matching the 200/100 to 240/120 VAC input range and 40-70 Hz auto-sensing frequency.

Can the Liebert APS 5 kVA share a 208/120 VAC split-phase bus with older 208 V single-phase loads?

Yes, its output is configurable to 208/120 VAC split-phase at 50 or 60 Hz, so legacy 208 V single-phase equipment can be fed from one leg while the neutral supports 120 V circuits.

How do I confirm the UPS is delivering 4.5 kW to my rack after installation?

The front LCD status display shows real-time output voltage, frequency and load percentage; verify the load reading matches your 4.5 kW design target and that output voltage sits at the configured 208/120 VAC setting.
