Black 15-inch resistive touchscreen monitor with integrated stand and VGA cable

VIEWERA

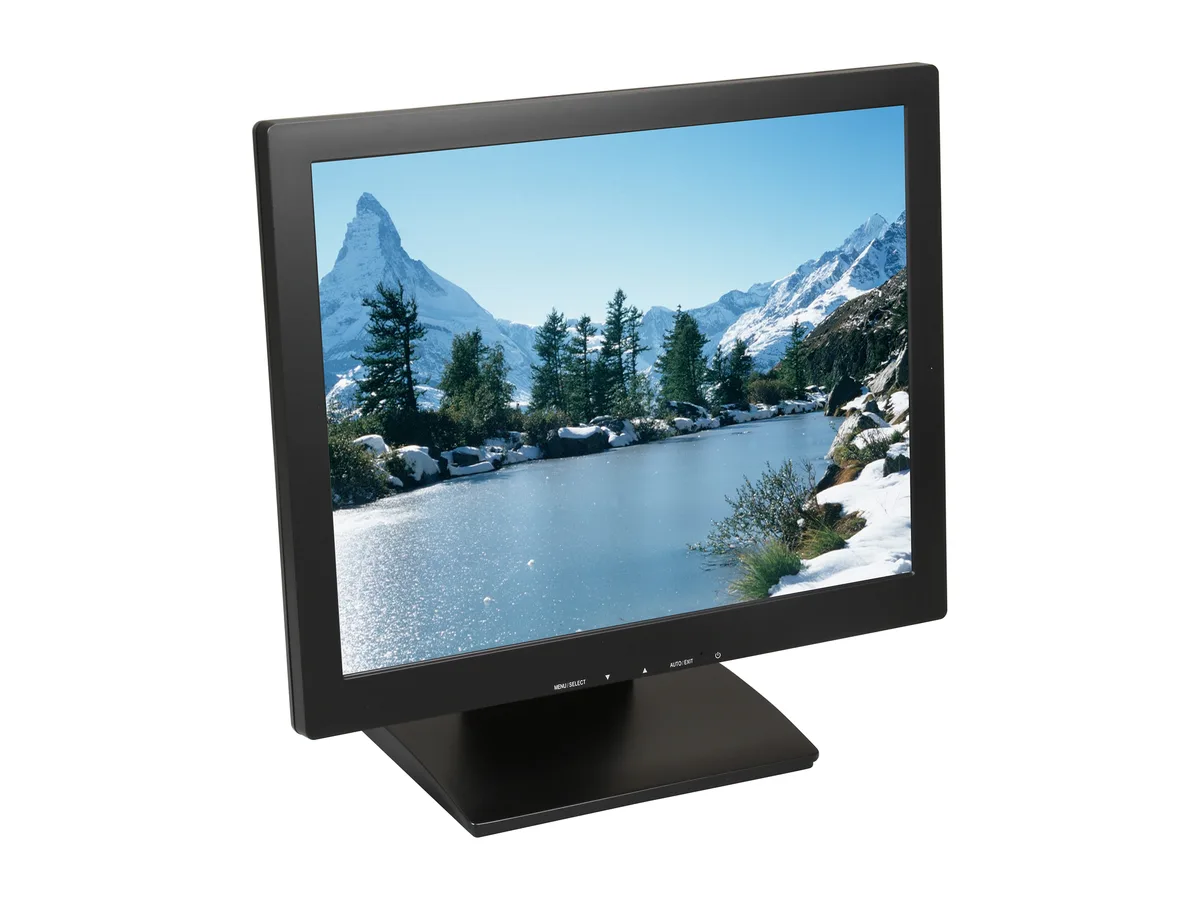

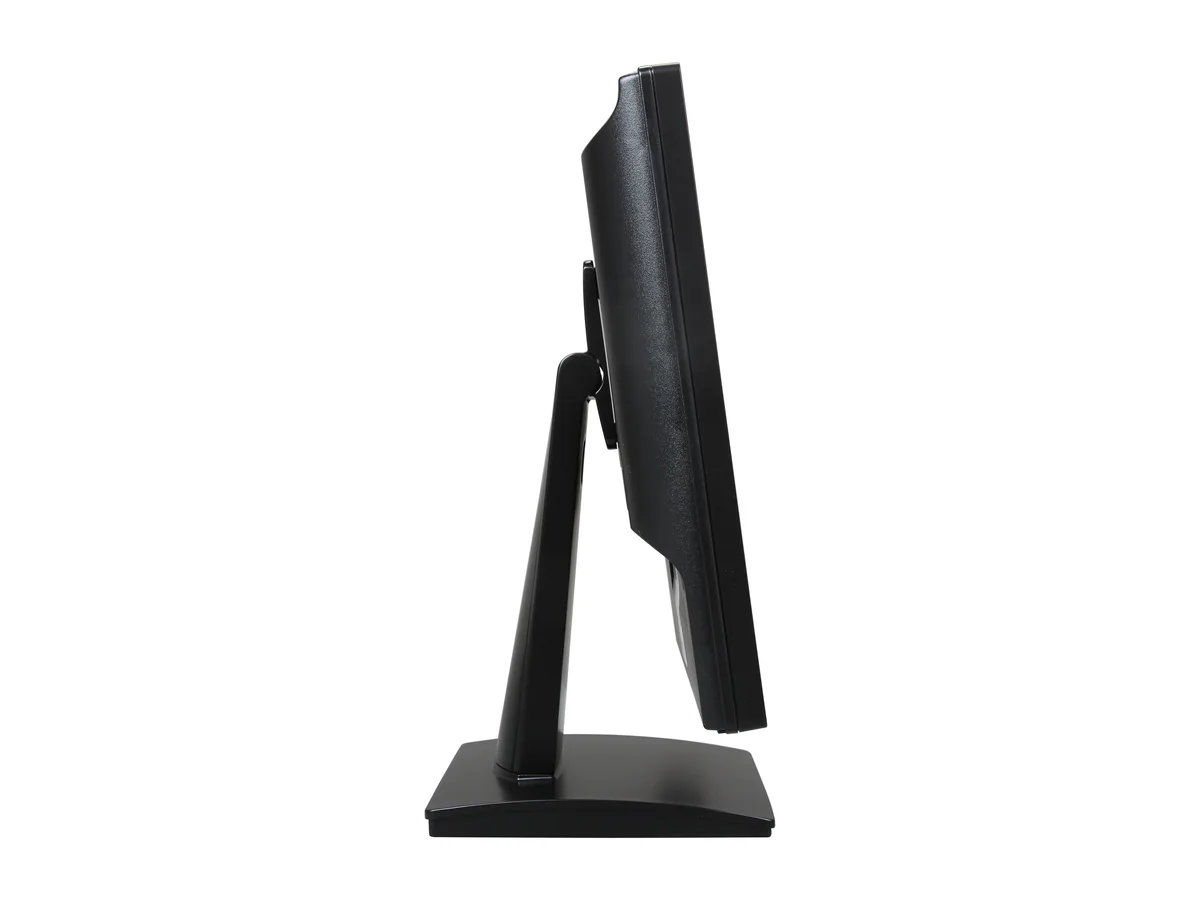

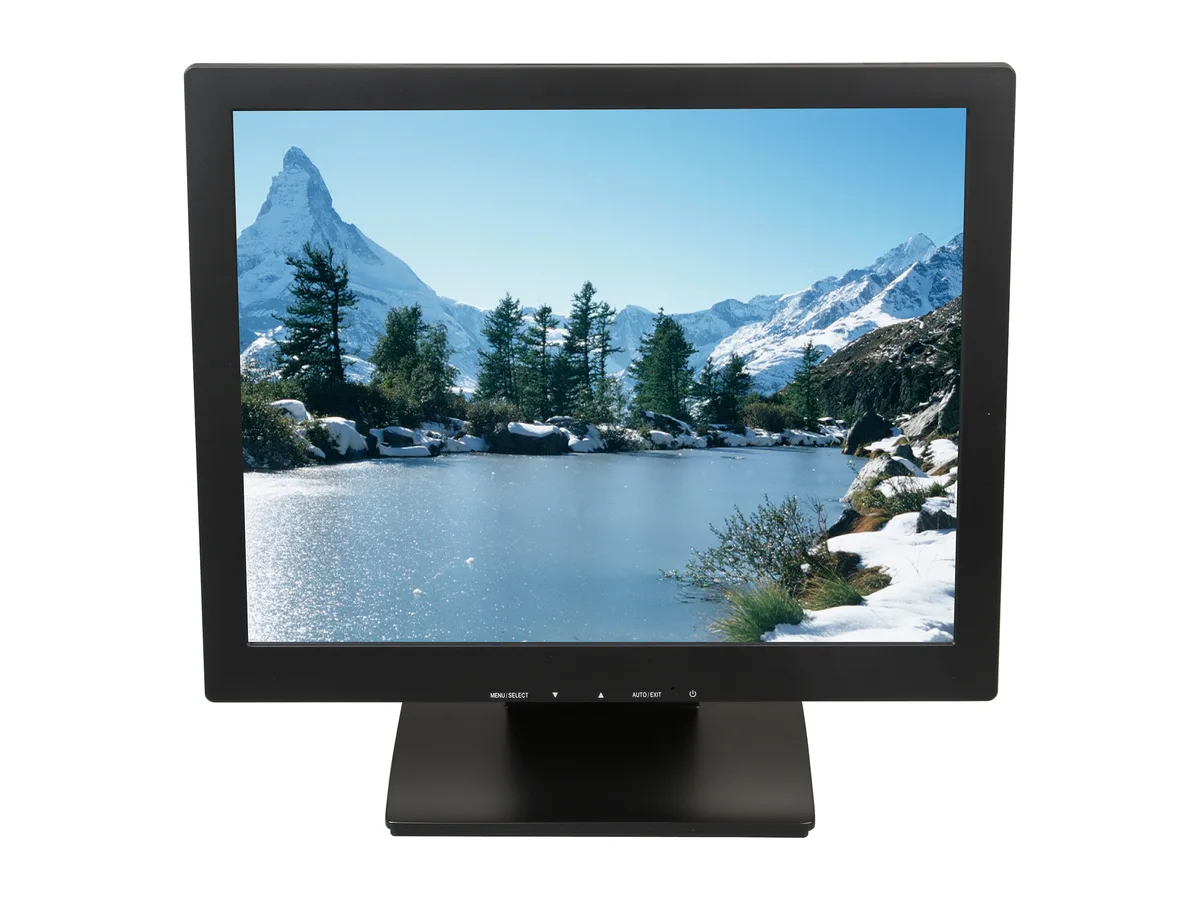

VIEWERA V157TP 15" 1024x768 5-wire Resistive Touch Portable Monitor

SKU CH-J2TG-XRDDT MPN V157TP

A 15-inch resistive touchscreen monitor with VGA input, USB touch interface and VESA 75 mounting

  • Touchscreen Type5-wire Resistive
  • Cabinet ColorBlack
  • PanelTFT LCD
  • Screen Size15"
  • Resolution1024 x 768
  • Viewing Angle140° (H) / 130° (V)
  • Resistive touch works with gloves or stylus via USB interface
  • 1024 x 768 resolution on 15 inch panel for legacy app clarity
  • VGA input connects older PCs and industrial equipment directly
  • VESA 75 x 75 mount enables fixed or arm installations
  • 7 watt max draw suits low-power deployments

Product identity

The ViewEra V157TP is a 15-inch portable monitor with a 1024 x 768 TFT LCD panel and a 5-wire resistive touchscreen. It connects through a single VGA input and a USB port for touch data, drawing up to 17.7 watts from an internal 100-240 VAC supply. A 75 x 75 mm VESA pattern allows fixed mounting when mobility is not required.

Suitability and limits

This unit suits legacy industrial or point-of-sale systems that rely on analog RGB video and resistive touch input. It is not for users who need digital video interfaces, higher resolutions, wider viewing angles, or modern USB-C connectivity.

Deciding specification

The 5-wire resistive touchscreen driven by USB is the single specification that determines compatibility; the host must provide a VGA output and a USB port with the supplied driver for touch operation.

Přednosti

  • Resistive touch works with gloves or stylus via USB interface
  • 1024 x 768 resolution on 15 inch panel for legacy app clarity
  • VGA input connects older PCs and industrial equipment directly
  • VESA 75 x 75 mount enables fixed or arm installations
  • 7 watt max draw suits low-power deployments

Specifikace

BrandViewEra
ModelV157TP
Touchscreen Type5-wire Resistive
Cabinet ColorBlack
PanelTFT LCD
Screen Size15"
Resolution1024 x 768
Viewing Angle140° (H) / 130° (V)
Pixel Pitch0.297mm
Brightness250 cd/m2
Contrast Ratio500:1
Response Time12ms
Touchscreen InterfaceUSB
Input Video CompatibilityAnalog RGB
ConnectorsD-Sub
D-Sub1
DVINo
Power Supply100 - 240 VAC, 50/60Hz
Power Consumption17.7 watts (max.), 3 watts (standby)

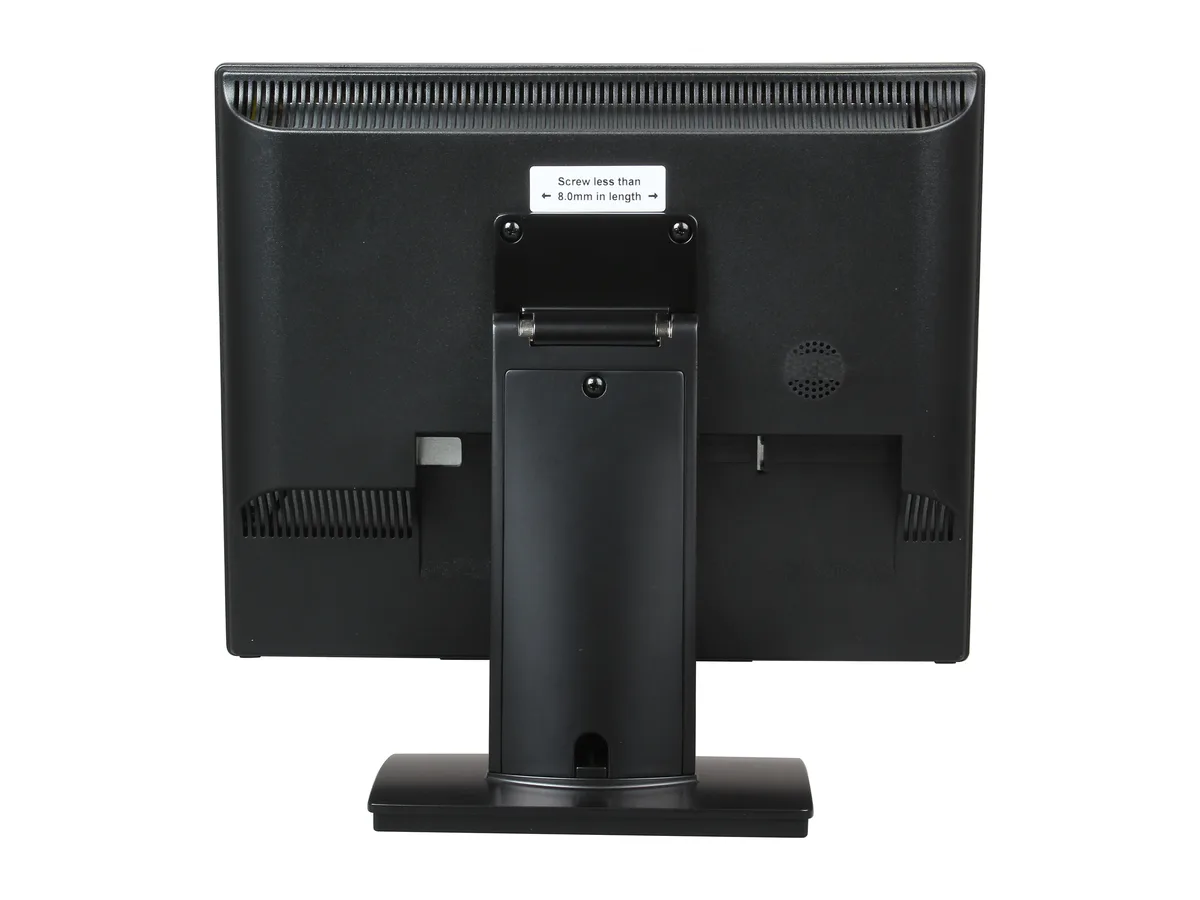

VESA Compatibility - Mountable75 x 75mm
Dimensions13.66" (W) x 12.87" (H) x 6.30" (D) w/ stand
13.66" (W) x 10.87" (H) x 1.78" (D) w/o stand
Weight8.89lbs
Package ContentsV157TP, Power adapter, Power cord, VGA cable, USB cable, User manual, Touch Driver CD
Přepravní hmotnost5.17 kg
Rozměry balení457 × 422 × 231 mm

Otázky k tomuto produktu

Will the resistive touch layer on this 15" monitor wear out and need replacement after heavy daily use?

The 5-wire resistive touchscreen is built for durability and does not have a user-replaceable layer; if the surface becomes damaged the entire panel would require service.

What limit appears first when the V157TP runs continuously at its maximum brightness of 250 cd/m2?

The panel reaches its peak power draw of 17.7 watts and a surface temperature dictated by the 12 ms response time before any thermal throttle engages.

How much heat and noise does the unit produce when powered all day from the 100-240 VAC adapter?

Maximum consumption is 17.7 watts with no internal fan, so heat output stays low and operation is silent; standby drops to 3 watts.
