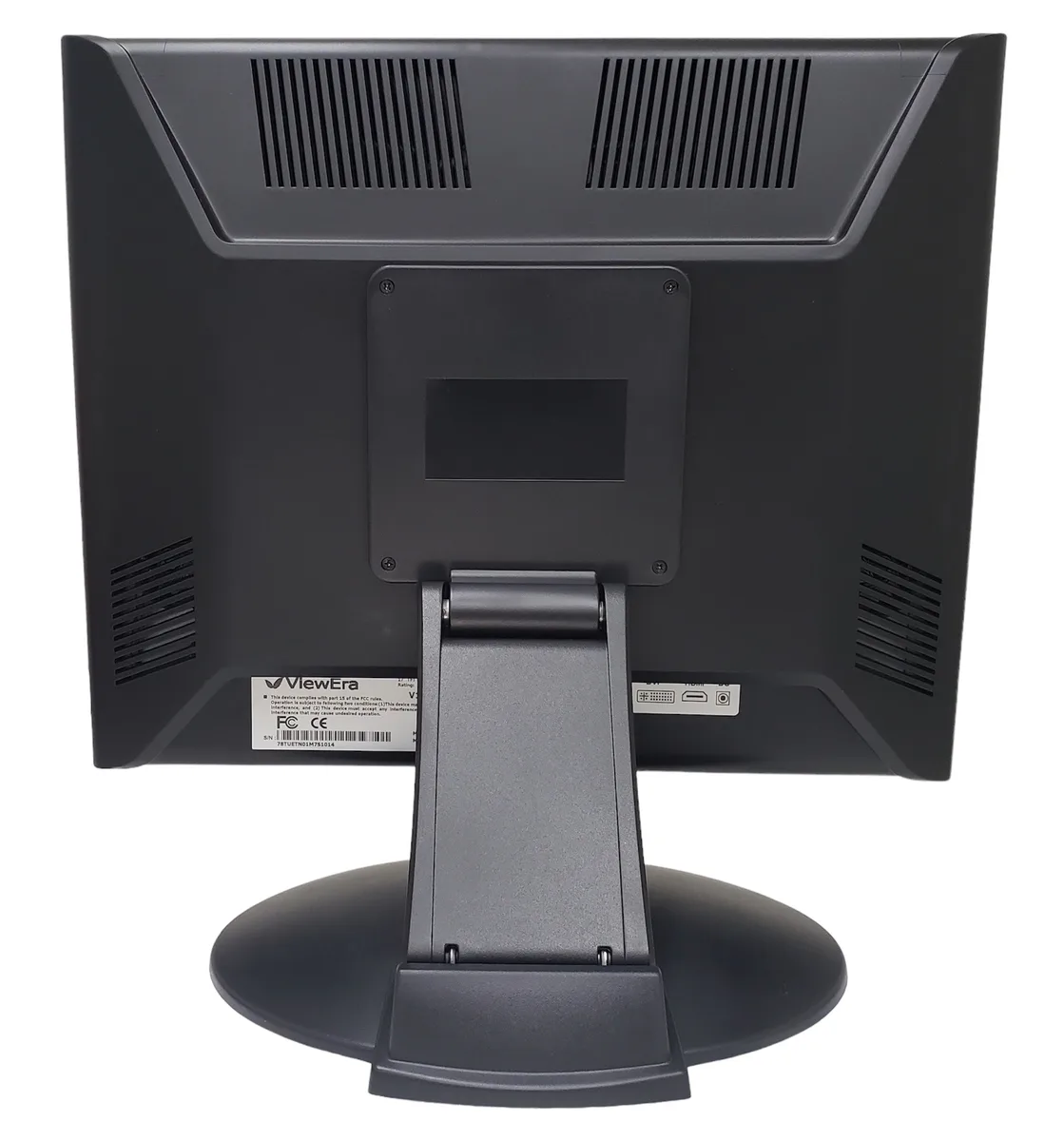

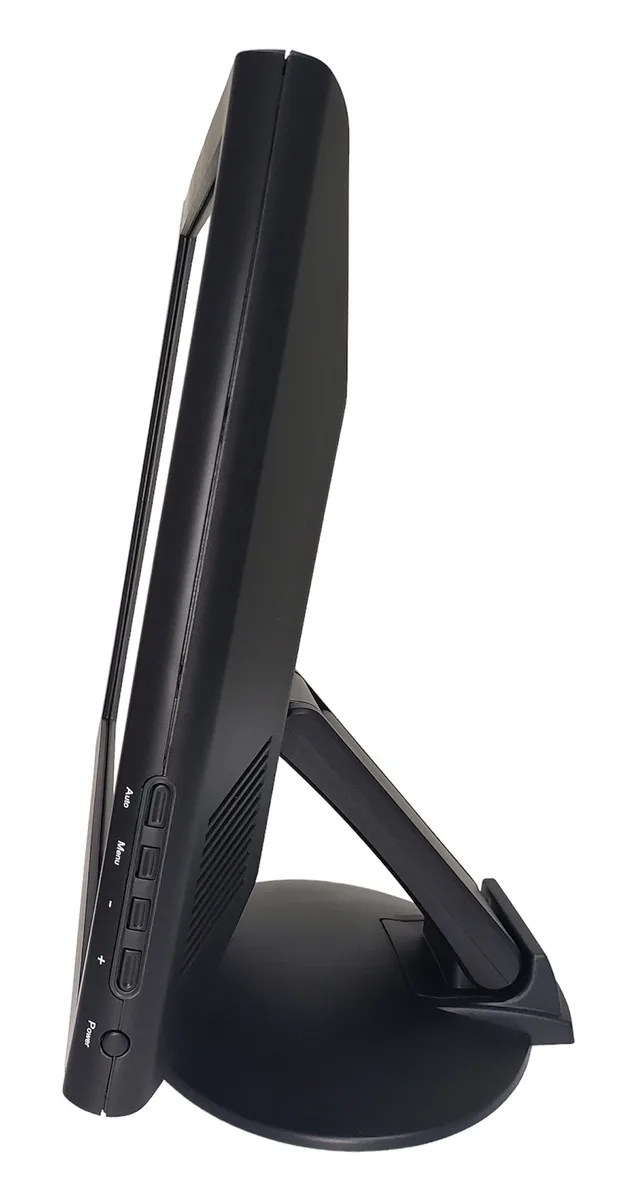

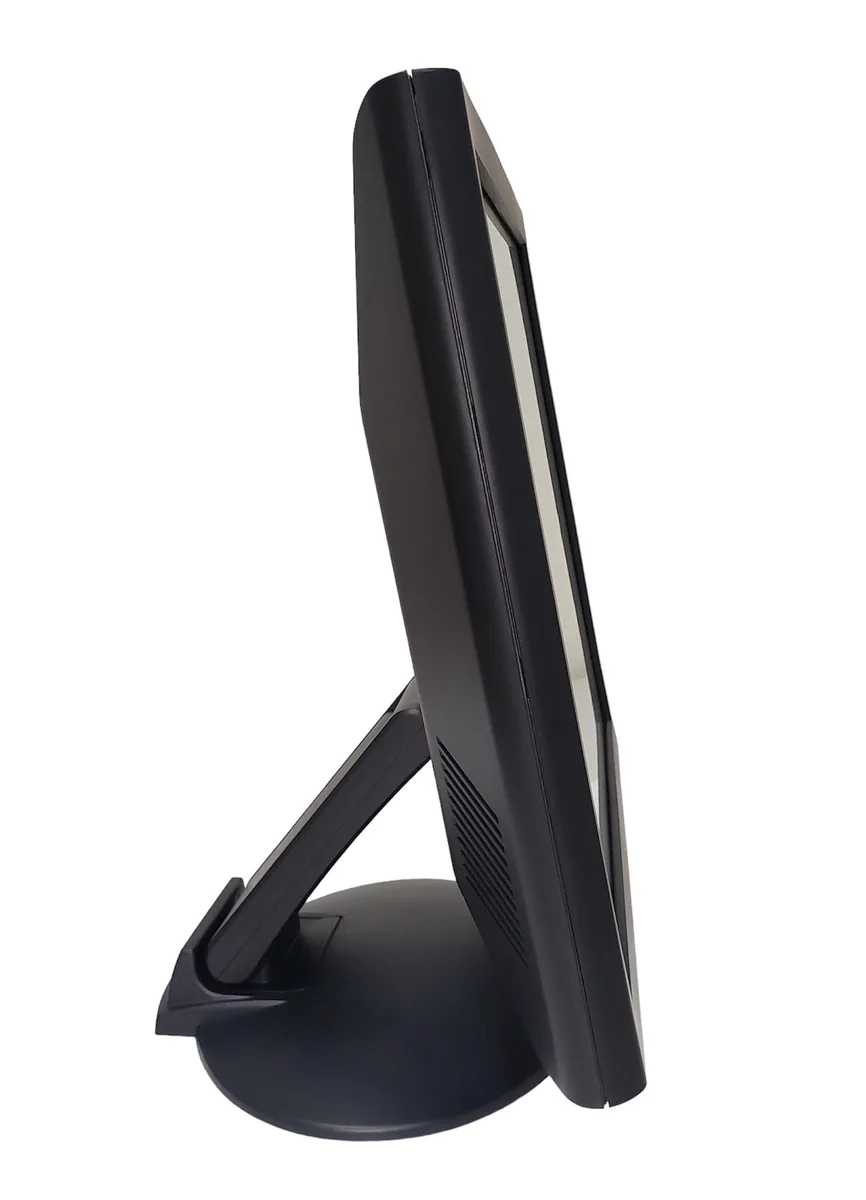

Black 17-inch portable monitor with resistive touchscreen and built-in stand

VIEWERA

VIEWERA V178TP 17" portable monitor 1280x1024 5-wire resistive touch

SKU CH-EJTC-K2ZS6 MPN V178TP

A 17-inch portable monitor with 1280x1024 resolution and 5-wire resistive USB touchscreen

  • Touchscreen Type5-wire Resistive
  • Cabinet ColorBlack
  • BezelYes
  • PanelActive TFT LCD
  • Screen Size17"
  • Maximum Resolution1280 x 1024
  • Sharp 1280 x 1024 resolution on a 17 inch screen
  • Responsive 5-wire resistive touch via USB interface
  • Wide 170° horizontal and 160° vertical viewing angles

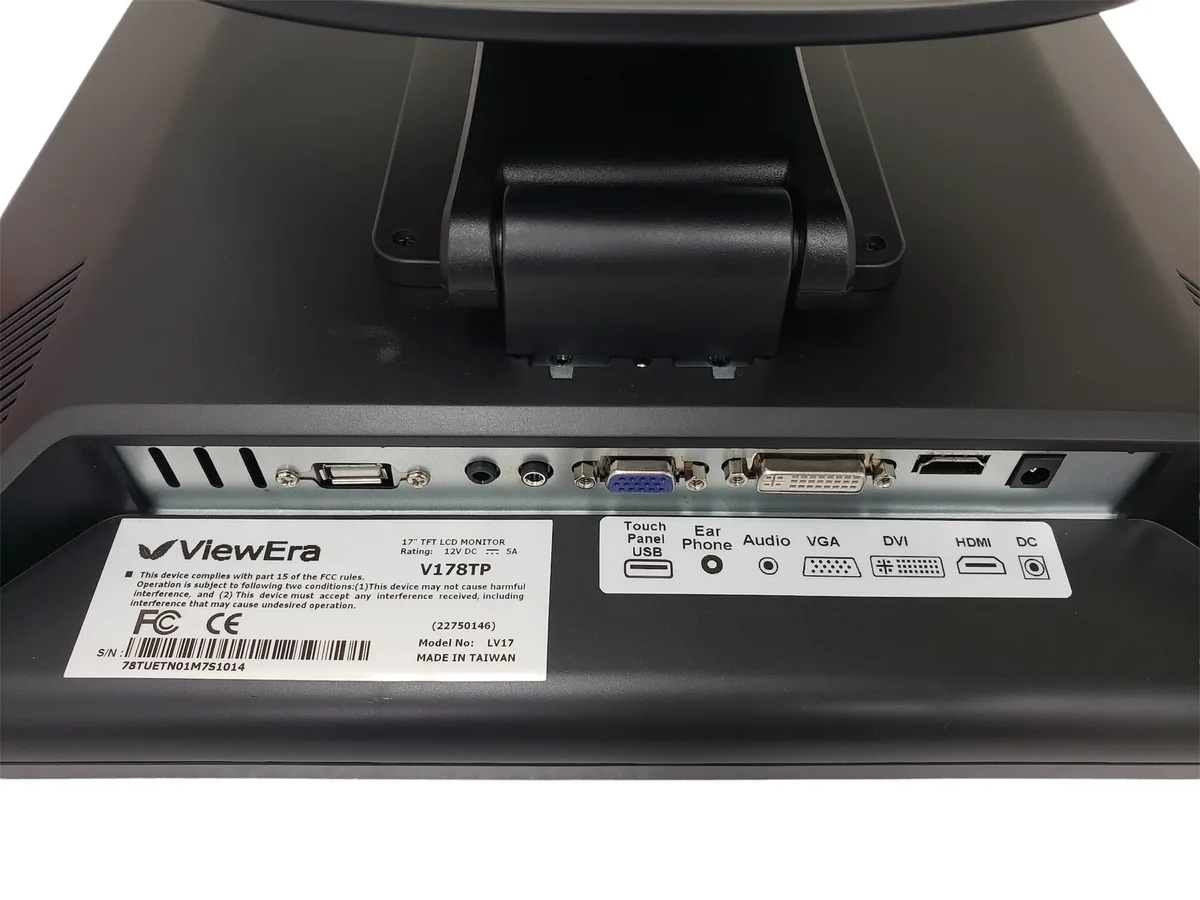

  • Flexible connectivity with D-Sub, DVI and HDMI ports
  • 1000:1 contrast ratio and 250 cd/m² brightness for clear visuals

17" resistive touchscreen monitor

The VIEWERA V178TP is a 17 inch portable monitor with a 5-wire resistive touchscreen. It delivers a 1280 x 1024 resolution on an Active TFT LCD panel with a 75Hz refresh rate. The unit includes D-Sub, DVI and HDMI video inputs plus a USB connection for the touch interface. Built-in speakers add audio convenience for kiosk or industrial deployments.

Limits of the USB touch interface

The 5-wire resistive layer requires a USB link to the host for touch data, separate from the video cable. Only single-touch input is supported by this technology. The panel offers 170° horizontal and 160° vertical viewing angles with a 5ms response time. Brightness reaches 250 cd/m2 and contrast sits at 1000:1, suitable for indoor ambient light.

1280 x 1024 native resolution

This resolution fixes the amount of on-screen detail and the 5:4 aspect ratio. Buyers needing higher pixel density or a widescreen format should consider other models. The monitor draws up to 25 watts from an external 12V 5.0A power adapter that accepts 100-240V AC input. Operating temperature range spans 0 to 40°C.

Přednosti

  • Sharp 1280 x 1024 resolution on a 17 inch screen
  • Responsive 5-wire resistive touch via USB interface
  • Wide 170° horizontal and 160° vertical viewing angles
  • Flexible connectivity with D-Sub, DVI and HDMI ports
  • 1000:1 contrast ratio and 250 cd/m² brightness for clear visuals

Specifikace

BrandViewEra
ModelV178TP
Part NumberV178TP
Touchscreen Type5-wire Resistive
Cabinet ColorBlack
BezelYes
PanelActive TFT LCD
Screen Size17"
Maximum Resolution1280 x 1024
Resolution1280 x 1024
Refresh Rate75Hz
Viewing Angle170° (H) / 160° (V)
Pixel Pitch0.264 (W) x 0.264 (H) mm
Display Colors16.2 Million
Brightness250 cd/m2
Contrast Ratio1000:1
Response Time5ms
Touchscreen InterfaceUSB
D-Sub1
DVI1
HDMI1
Power SupplyAC Input: 100-240V~1.8A, 50-60HzDC
DC Output: 12V/5.0A
Power Consumption25 Watts (Max.)
Built-in SpeakersYes
DimensionsDimensions (Pack Size)
18(W) x 15.25(H) x 7(D) inch
[458(W) x 388(H) x 178(D) mm]
Dimensions (Set Size)
15.32(W) x 15.0(H) x 8.25(D) inch
[389(W) x 381(H) x 210(D) mm]
Dimensions (Without Stand)
15.32(W) x 12.50(H) x 2.32(D) inch
[389(W) x 311(H) x 59(D) mm]
WeightGross: 10.25 lbs(4.65 Kgs)/ Net: 7.4 lbs(3.36 Kgs)
No Stand: 5.6 lbs(2.54 Kgs)
Temperature RangeOperating Conditions Temperature: 0 ~ 40? [32 ~ 104?]
Storage Conditions Temperature: -20 ~ 60 ?[-4 ~ 140?]
Humidity RangeOperating Conditions
Humidity: 20%~85% (%RH)
Storage Conditions
Humidity: 10% ~ 95%(%RH)
Přepravní hmotnost4.65 kg
Rozměry balení457 × 387 × 178 mm

Otázky k tomuto produktu

Should I pick the V178TP with resistive touch or look for a capacitive version?

The V178TP uses a 5-wire resistive touchscreen driven over USB, so it works with a stylus, gloved hand or any pressure — useful for industrial or point-of-sale tasks where capacitive screens can misread.

What does the 1280 x 1024 resolution look like on a 17-inch panel in daily use?

At 1280 x 1024 the 17-inch Active TFT LCD gives a pixel pitch of 0.264 mm, so text and UI elements are comfortably sized for close-up work without scaling.

Which video inputs does the monitor actually have, and do they limit the 75 Hz refresh rate?

The unit provides one D-Sub, one DVI and one HDMI port; all three can drive the native 1280 x 1024 at the panel's 75 Hz maximum refresh rate.
