Black 24-inch touchscreen monitor with adjustable stand, frameless bezel, and 10-point multi-touch display

ViewSonic

ViewSonic TD2430 24-inch 1080p 10-point touch portable monitor

SKU CH-MJ9R-50NAW MPN TD2430

A 24-inch Full HD touchscreen with 10-point multi-touch, HDMI 1.4, DisplayPort, USB 3.0, and VGA inputs, plus a 7H scratch-resistant surface and adjustable stand

  • Cabinet ColorBlack
  • Touchscreen TypeProjected Capacitive (10-Point Touch)
  • Monitor TypeTouchscreen Monitor
  • Screen Size24.0
  • Resolution1920 x 1080
  • Brightness250 cd/m2

Screen Size 23.6"

  • 10-point multi-touch for responsive interaction
  • 24-inch Full HD 1920 x 1080 resolution for clear visuals
  • 178° wide viewing angles for consistent image quality
  • 7H scratch-resistant surface for durable use

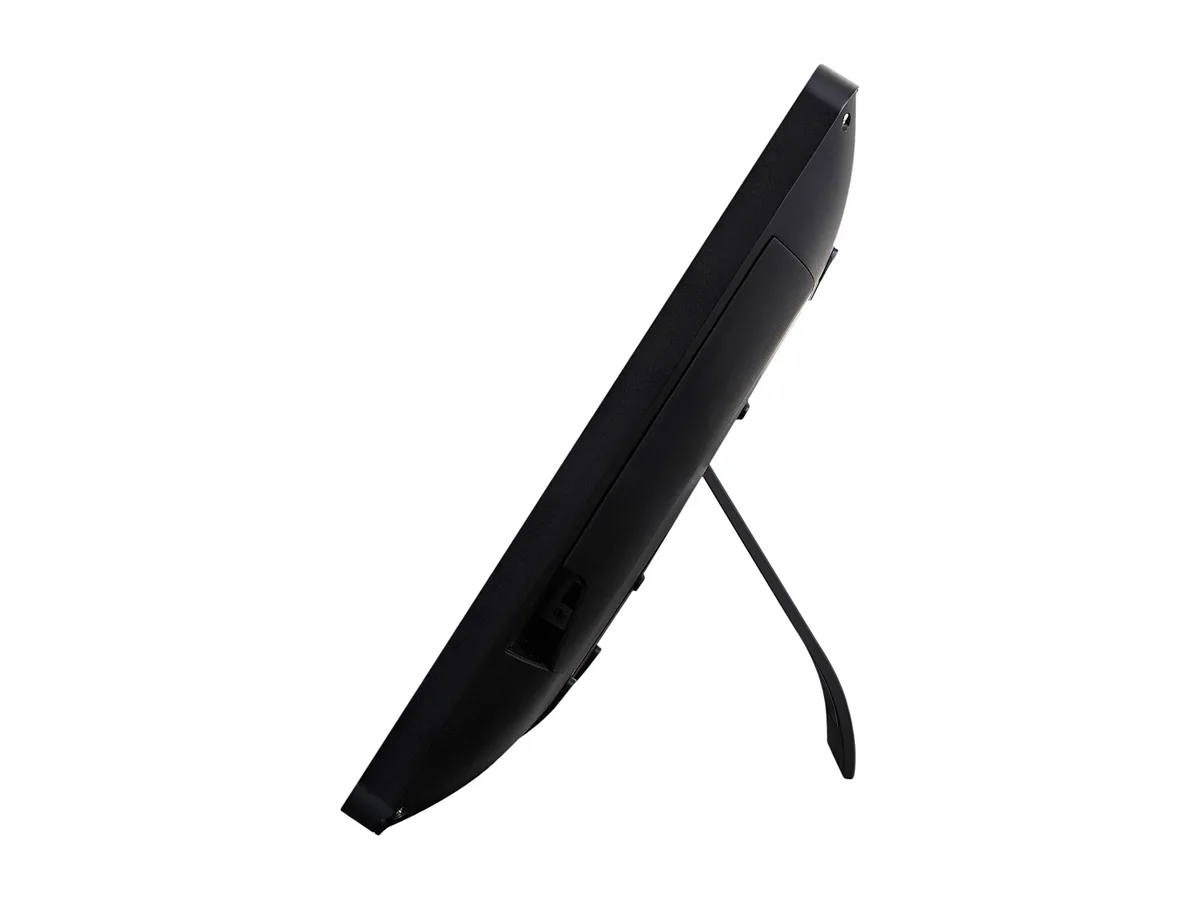

  • Adjustable stand with flat or angled positioning

24-inch 10-point touch monitor

The ViewSonic TD2430 is a 24-inch Full HD touchscreen monitor with a 1920 x 1080 resolution and 10-point projected capacitive touch. It suits retail, point-of-sale, education and commercial users who need direct screen interaction. The MVA panel delivers 178-degree horizontal and vertical viewing angles with 16.7 million colours. A 7H scratch-resistant surface and adjustable stand support heavy public use.

Upgrade from non-touch displays

This model replaces standard non-touch monitors when finger or stylus input becomes essential for kiosks, wayfinding or classroom collaboration. The jump is worth it when operators need 10 simultaneous touch points for gestures or multi-user activities. It also adds touch capability to MacOS via the vTouch driver, plus Windows 10 and select Android or Linux systems. Buyers who only need passive viewing gain no advantage here.

HDMI 1.4 and DisplayPort limits

Video connectivity relies on HDMI 1.4, DisplayPort, VGA and USB 3.0 ports with a 60 Hz refresh rate at 1080p. Digital horizontal scan rates run from 15 to 82 kHz and vertical rates from 50 to 76 Hz, capping the panel at its native resolution and refresh. The 25 ms grey-to-grey response time and 250 cd/m² brightness suit static or slow-moving content but not fast motion. No higher refresh rates or adaptive-sync features are supported.

Přednosti

  • 10-point multi-touch for responsive interaction
  • 24-inch Full HD 1920 x 1080 resolution for clear visuals
  • 178° wide viewing angles for consistent image quality
  • 7H scratch-resistant surface for durable use
  • Adjustable stand with flat or angled positioning

Specifikace

BrandViewSonic
ModelTD2430
Cabinet ColorBlack
Touchscreen TypeProjected Capacitive (10-Point Touch)
Monitor TypeTouchscreen Monitor
Screen Size24.0
Resolution1920 x 1080
Brightness250 cd/m2
Contrast RatioDC 50,000,000:1 (3,000:1)
Response Time25ms (GTG)
PanelMVA
Display TypeProjected Capacitive
Maximum Resolution1920 x 1080
Viewing Angle178° (H) / 178° (V)
Display Colors16.7 Million
Horizontal Refresh RateAnalog: 24 - 82KHz
Digital: 15 - 82KHz
Vertical Refresh RateAnalog: 50 - 76Hz
Digital: 50 - 76Hz
Refresh Rate60Hz
Aspect Ratio16:9
Input Video CompatibilityAnalog RGB, Digital
ConnectorsD-Sub, HDMI1.4, DisplayPort, USB3.0 Type A, USB3.0 Type B
D-Sub1
DVINo
HDMI1
DisplayPortNo
Built-in Speakers2 x 2.5W
User ControlsPhysical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
VESA Compatibility - Mountable100 x 100mm
Features10-point Projected Capacitive Touch
SuperClear MVA-type panel technology
Frameless Design
Versatile Connectivity
Durable, Scratch-resistant Screen
Complies withcTUVus, FCC-B w/ ICES003, DOE Energy Star 7.0, DOE EPEAT Silver, TUV-MX-CoC, Mexico Energy
Power Supply100 - 240 VAC, 50/60Hz
Power ConsumptionEco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 25W
Consumption (max): 28W
Stand-by: 0.5W
Dimensions13.90" x 22.60" x 1.90"
Weight11.60 lbs.
Temperature Range0 to 40 degree C
Humidity Range20 - 90% (non-condensing)
Package ContentsLCD Display AC/DC Adapter Power Cable (1.5m) HDMI Cable (1.5m) USB3.0 Upstream Cable (1.5m) Audio Cable (1.5m) Quick Start Guide ViewSonic Wizard CD-ROM
Přepravní hmotnost7.42 kg
Rozměry balení643 × 419 × 137 mm

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What are the exact physical dimensions of the TD2430 so I can check desk fit?

The monitor measures 22.6 inches wide by 13.9 inches deep by 1.9 inches thick, with a 23.6 inch viewable screen diagonal.

How do I enable 10-point touch on macOS, and which driver step is commonly missed?

Install the ViewSonic vTouch driver, then grant Accessibility and Input Monitoring permissions in System Settings — skipping the privacy approvals is the step most users miss.

What part of the TD2430 is most likely to need attention after extended public use?

The 7H scratch-resistant surface and projected capacitive touch layer are rated for heavy interaction; the built-in dual speakers and HDMI 1.4 or DisplayPort cables are the items most likely to require replacement over time.
