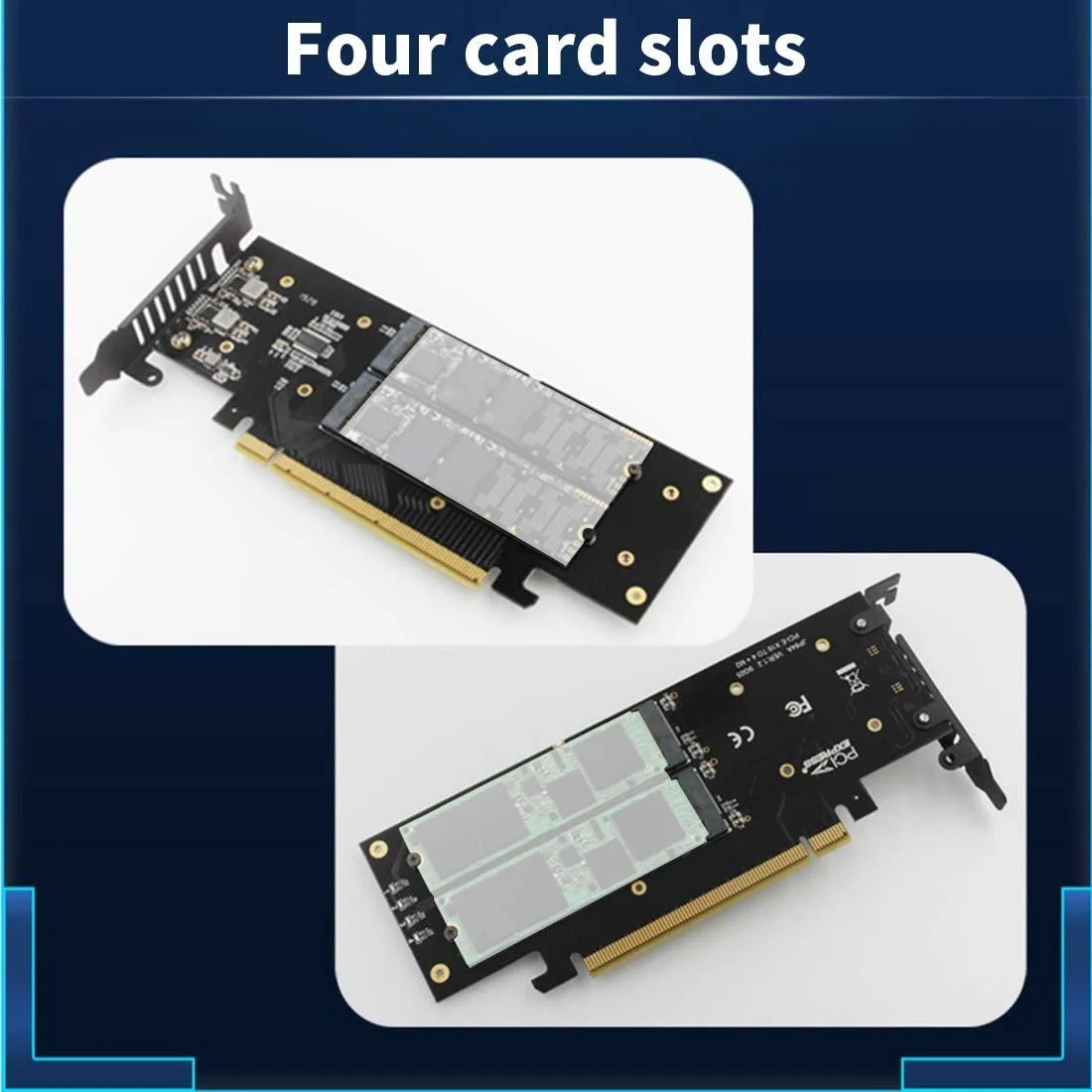

Silver PCIe x16 card with aluminium heatsink covering four M.2 slots

Vszerda

Vszerda iHyper M2 X16 PCIe 4.0 4x NVMe Card with Aluminium Heatsink

SKU CH-TMQQ-N02F0

PCIe 4.0 x16 card holds four NVMe M.2 2280 drives with aluminium heatsink for full-speed RAID

  • Interfacesolid_state_drive
  • BUSsolid_state_drive
  • FeaturesDesktop (with compatible motherboard)
  • Add four NVMe drives at full speed with PCIe 4.0 x16 bandwidth
  • All-aluminium heatsink keeps four SSDs cool under sustained load
  • Supports 4-disk soft RAID in Windows 10 for data redundancy
  • Thickened PCB prevents drive bending during installation
  • Requires motherboard with PCIe lane splitting for full four-drive operation

PCIe 4.0 x16 four-NVMe expansion card

The Vszerda iHyper M2 X16 plugs into a PCIe 4.0 x16 slot and presents four M.2 2280 NVMe drives to the system. It is built for desktop or 2U server chassis that can split the x16 lane into four x4 links. Without motherboard bifurcation support only one drive will be detected.

Bifurcation requirement limits compatibility

The card operates at PCIe 4.0 x16 speeds with backward compatibility to PCIe 3.0. Full four-drive bandwidth of 32 Gbps is available only when the motherboard firmware splits the x16 link into four x4 lanes. Listed compatible boards include several X299 models; other chipsets must confirm bifurcation capability before purchase.

Aluminium heatsink distinguishes Pro version

Only the iHyper-Pro variant ships with the integrated aluminium heatsink for thermal management across all four drives. The standard iHyper version lacks this cooler. The package includes both full-height and half-height brackets for flexible chassis fit.

Přednosti

  • Add four NVMe drives at full speed with PCIe 4.0 x16 bandwidth
  • All-aluminium heatsink keeps four SSDs cool under sustained load
  • Supports 4-disk soft RAID in Windows 10 for data redundancy
  • Thickened PCB prevents drive bending during installation
  • Requires motherboard with PCIe lane splitting for full four-drive operation

Specifikace

BrandVszerda
ModeliHyper M2 X16
Part NumberN38207-32702
Interfacesolid_state_drive
BUSsolid_state_drive
FeaturesDesktop (with compatible motherboard)

Otázky k tomuto produktu

Should I pick the iHyper or the iHyper-Pro version of this M.2 X16 card?

Choose the iHyper-Pro if you want the aluminium heatsink included; the standard iHyper version ships without one.

What does the 32 Gbps figure mean when four NVMe drives are installed?

It represents the combined PCIe 4.0 x16 bandwidth shared across all four slots, so each drive can run at up to PCIe 4.0 x4 speed simultaneously.

How does the PCIe 4.0 x16 interface limit performance if my motherboard cannot split the lane?

Without lane-splitting support the board will only recognise a single NVMe drive, leaving the other three slots inactive.
