Silver square honeycomb metal plate with aluminum panel and printed ruler scales

ACMER

ACMER E10 Honeycomb Laser Bed 440 mm aluminum panel

SKU CH-RX8W-3PMM8

A honeycomb laser bed with an aluminum panel that dissipates heat quickly and protects the desktop during engraving and cutting

  • Honeycomb structure speeds smoke evacuation for cleaner cuts
  • Aluminum panel adds a second barrier against heat damage
  • Iron and aluminum construction resists rust and stays flat
  • 440 mm square bed with X and Y scales aids quick alignment
  • 22 mm total thickness fits standard desktop laser frames

Honeycomb bed with aluminum panel

The ACMER E10 honeycomb laser bed is a 440 mm square work surface built for laser engravers and cutters. Its iron frame and aluminum top plate give a rigid, rust-resistant platform that suits hobbyists and small workshops. Precise scale lines on the X and Y axes form a right-angle ruler for quick part alignment.

Replaces open-frame beds or bare desktops

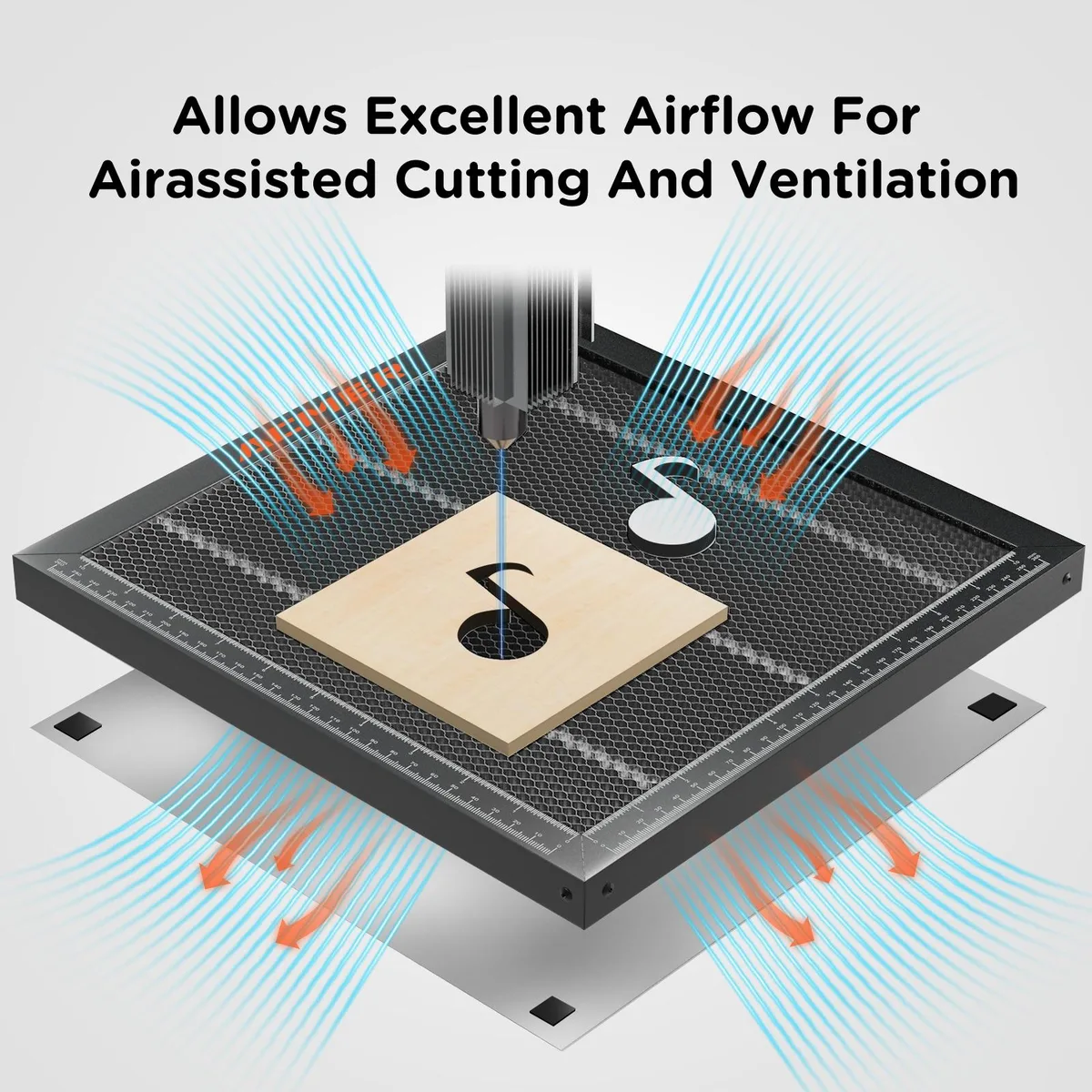

The honeycomb lattice speeds smoke evacuation so hot fumes do not stain or warp the workpiece. An aluminum panel underneath catches debris and shields the bench from stray laser energy. The upgrade is worth it when cut quality suffers from smoke buildup or when the existing surface shows heat damage.

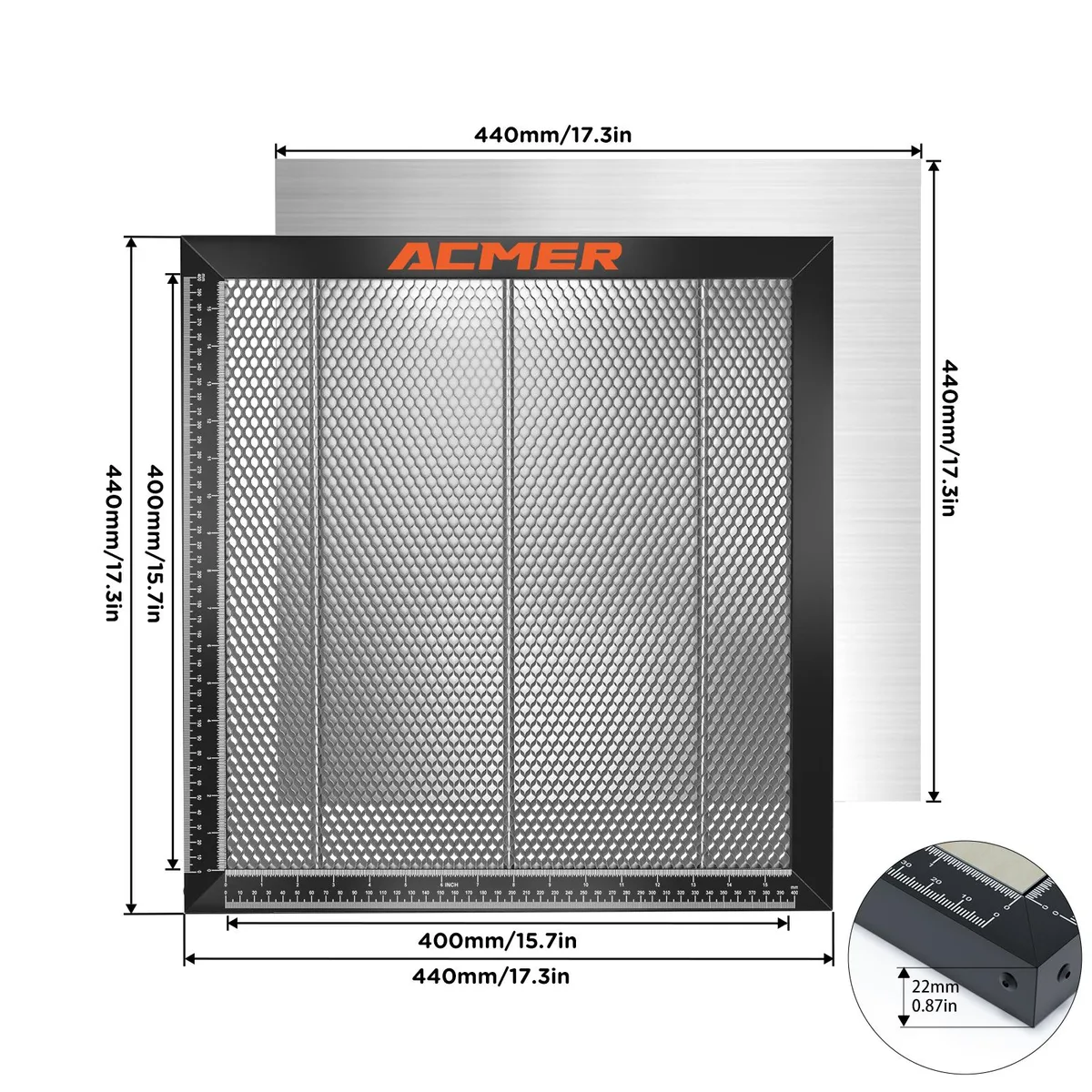

440 x 440 mm working area with 22 mm thickness

The bed handles standard desktop laser projects and materials up to the full 440 mm span. Heavy or oversized sheets that exceed the frame dimensions will need a larger table. The 22 mm profile fits most machine gantries without raising the focal point beyond typical adjustment range.

Besonderheiten

  • Honeycomb structure speeds smoke evacuation for cleaner cuts
  • Aluminum panel adds a second barrier against heat damage
  • Iron and aluminum construction resists rust and stays flat
  • 440 mm square bed with X and Y scales aids quick alignment
  • 22 mm total thickness fits standard desktop laser frames

Technische Daten

BrandACMER
ModelE10

Fragen zu diesem Artikel

Will the 440 mm square bed fit inside my machine's 440 x 440 mm work area?

The bed measures exactly 440 x 440 x 22 mm, so it matches a 440 mm square work envelope.

How do I align the bed using the built-in X and Y scale lines?

Place the bed flat, line up your material with the right-angle ruler marks on the axes, then secure the bed before starting the job.

When should I replace the aluminum panel underneath the honeycomb plate?

Swap the panel if it shows burn-through marks, warping, or deep scratches that could reflect the beam back onto the honeycomb.
