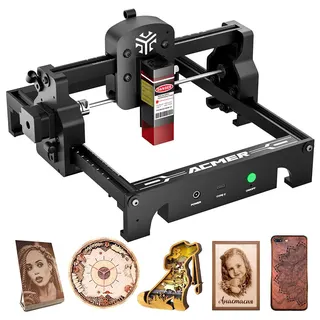

Compact square laser engraver with open frame, dark metal rails, visible blue laser module, 130mm work area

ACMER

ACMER S1-2.5W Laser Engraver 130x130mm 10000mm/min

SKU CH-39M3-5GH8E

Compact 2.5 W laser engraver with a 130 x 130 mm work area and 10 000 mm/min speed for wood, leather, acrylic and glass

  • TypeLaser Engraver
  • Max Working Speed10000mm/min
  • FeaturesPortable and Mini
  • Portable 1.5 kg design fits any workspace
  • 130 x 130 mm area engraves multiple small items
  • 10 000 mm/min speed finishes projects quickly
  • 04 mm spot size renders fine detail
  • Pre-assembled with X and Y safety limit switches

Portable laser engraver for beginners

The ACMER S1-2.5W is a compact Class 4 laser engraver designed for hobbyists and newcomers. It arrives pre-assembled so users can start engraving wood, leather, acrylic and glass within minutes. The 130 x 130 mm work area fits small jewellery pieces and ornaments. Safety limit switches on both axes simplify reset operations.

Ideal for small crafts, not large sheets

This machine suits crafters making personalised gifts, jewellery tags or detailed ceramics on a desktop. Buyers needing to engrave large panels, cut thick hardwood or run continuous production batches will find the 5.1 inch square bed and 2.5 W output limiting. The portable frame is not built for heavy industrial duty cycles.

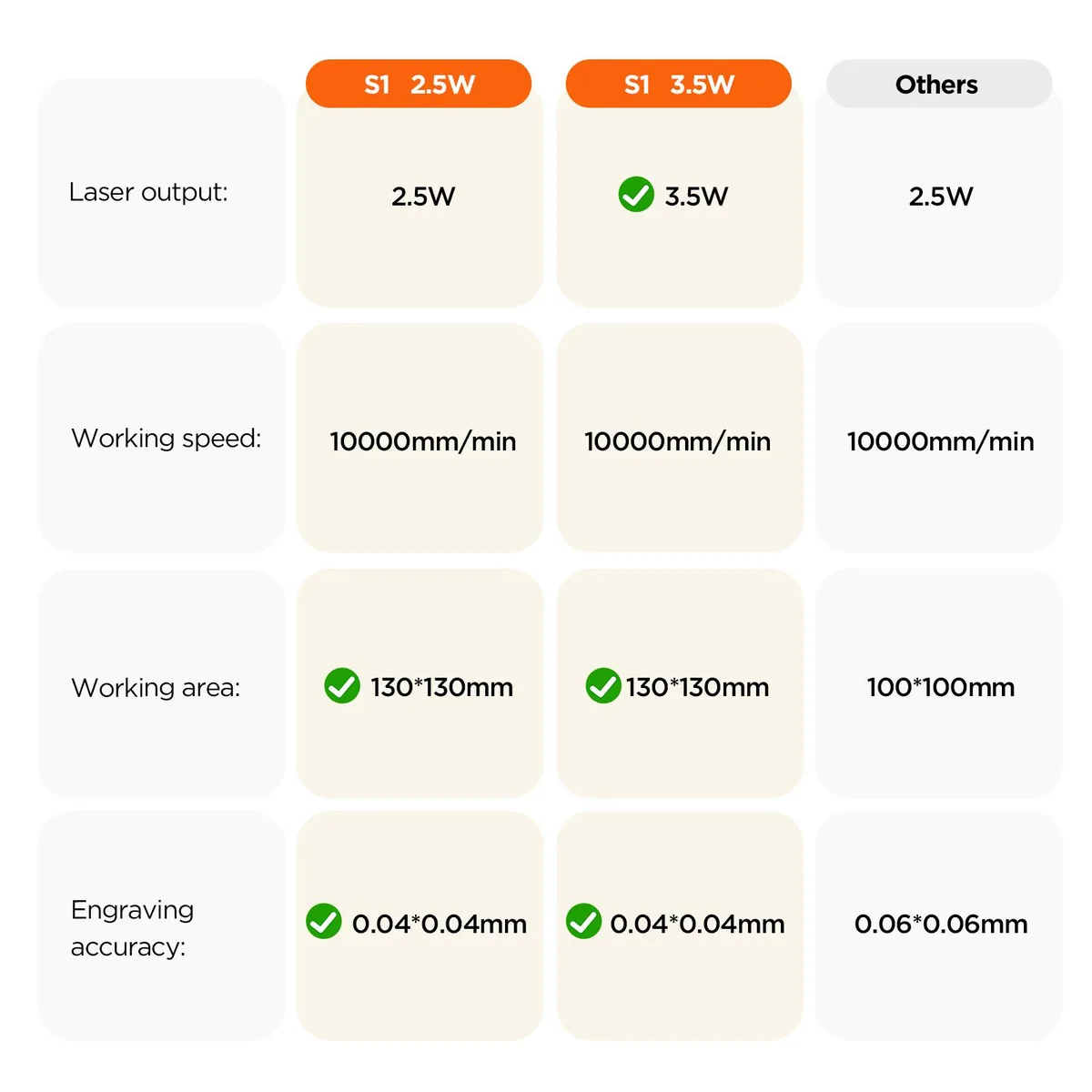

130 mm bed with 10000 mm/min speed

The engraver handles intricate designs on wood, plastic, paper, leather, acrylic and glass at speeds up to 10000 mm/min. A 0.04 x 0.04 mm spot size delivers fine detail on small objects. The 130 x 130 mm area accommodates multiple tiny items per pass but cannot accept anything wider than 130 mm. For larger formats a bigger machine is required.

Besonderheiten

  • Portable 1.5 kg design fits any workspace
  • 130 x 130 mm area engraves multiple small items
  • 10 000 mm/min speed finishes projects quickly
  • 04 mm spot size renders fine detail
  • Pre-assembled with X and Y safety limit switches

Technische Daten

BrandAcmer
SeriesS1
ModelS1-2.5W
TypeLaser Engraver
Max Working Speed10000mm/min
FeaturesPortable and Mini

Fragen zu diesem Artikel

What computer connection do I need to run the ACMER S1 2.5W engraver?

The machine connects via USB to a computer running control software such as LaserGRBL or LightBurn; no proprietary interface is required.

Can I keep using my existing 445 nm laser safety glasses with this 2.5W diode module?

Yes — the S1 emits at 445±5 nm, so standard 445 nm OD-rated eyewear remains appropriate for this wavelength.

How do I verify the 0.04 mm spot size is performing correctly after setup?

Engrave a 1 mm grid on paper at 10000 mm/min; clean, distinct lines with no overlap confirm the 0.04×0.04 mm spot is focused properly.
