Large matte-grey resin 3D printer with a 16-inch 8K mono LCD and tall vertical build area

ApexMaker

ApexMaker X1 16 inch 8K Resin 3D Printer 353x198x400mm

SKU CH-CSGV-B8KWT

Large-format mSLA printer with a 16 inch 8K mono LCD, 46 µm pixels, 353 x 198 x 400 mm build volume and automatic resin feeding

  • Type3D Printer
  • 16 inch 8K mono LCD renders fine detail at 46 µm pixels
  • 353 × 198 × 400 mm build volume fits large models in one print
  • 180 mm/h max speed with high‑speed TSP film cuts production time
  • Automatic resin feeding plus tank heating keeps material ready for long jobs
  • 7 inch touchscreen and Chitubox or Lychee compatibility simplify workflow

Large-format resin printer

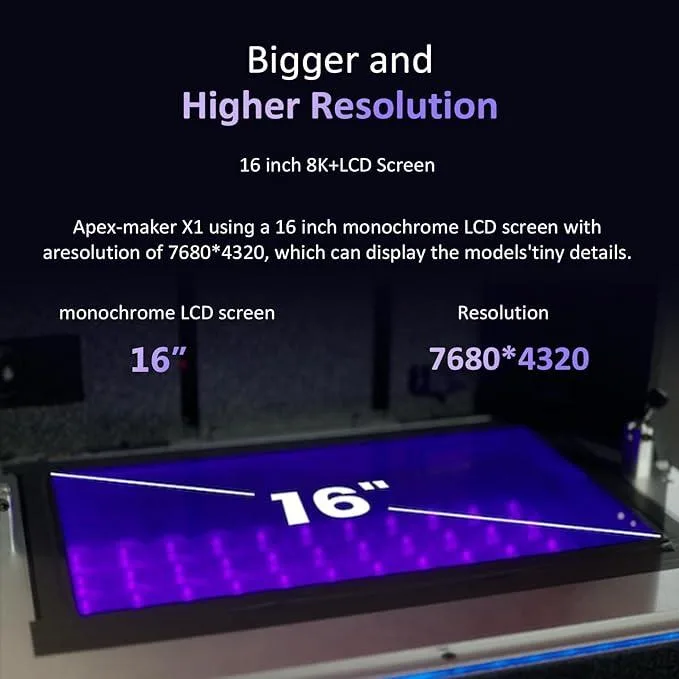

The ApexMaker X1 is a 16 inch 8K mSLA 3D printer built for users who need a 353.28 x 198.72 x 400 mm build volume. Its 7680 x 4320 mono LCD delivers 46 µm square pixels for fine detail on large parts. The machine suits prototyping, miniatures and engineering models that exceed typical desktop volumes.

Heated vat and 300 W draw

A resin tank heater maintains consistent viscosity while the UV LCD cures layers at up to 180 mm/h. Total power consumption is 300 W from a standard supply. The 7 inch touchscreen handles operation without an external PC.

46 µm pixel size

This single figure defines the XY resolution limit for every print. Buyers who need finer features than 46 µm should evaluate smaller-format printers. The X1 does not support filament or powder materials.

Besonderheiten

  • 16 inch 8K mono LCD renders fine detail at 46 µm pixels
  • 353 × 198 × 400 mm build volume fits large models in one print
  • 180 mm/h max speed with high‑speed TSP film cuts production time
  • Automatic resin feeding plus tank heating keeps material ready for long jobs
  • 7 inch touchscreen and Chitubox or Lychee compatibility simplify workflow

Technische Daten

Type3D Printer

Fragen zu diesem Artikel

How do I level the build plate on the 353.28 x 198.72 mm vat, and what step do people skip?

Loosen the four levelling screws, home the Z-axis with a sheet of paper on the 46 µm pixel screen, tighten the screws in a cross pattern while feeling slight drag, then run the calibration print; most users forget to re-check after the first layer cures.

Which consumables need regular replacement on the ApexMaker X1?

The high-speed TSP release film and the 405 nm UV LCD screen are the main wear items; film life depends on peel force and resin type, while the mono LCD degrades slowly over thousands of hours.

What limits continuous printing at the 180 mm/h max speed?

The 300 W power budget and resin tank heating cycle cap sustained throughput; once the vat reaches temperature the heater idles, but prolonged 180 mm/h runs can trip thermal protection until the 548 x 440 x 862 mm chassis dissipates heat.
