Black 80mm square case fan with black blades and 4-pin PWM connector

ARCTIC COOLING

ARCTIC COOLING P8 PWM PST CO ACFAN00151A 80mm case fan

SKU CH-S8PX-9VYE5 MPN ACFAN00151A

80 mm pressure-optimised case fan with dual ball bearing, 200-3.000 RPM PWM control, 23.4 CFM airflow and 0.3 Sone noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size80mm
  • Fan Thickness25mm

Model P8 PWM PST CO

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • Pressure-optimised for heatsinks, radiators and covered vents
  • PWM control from 200 to 3.000 RPM delivers 23.4 CFM airflow
  • Quiet motor runs at 0.3 Sone at full speed
  • Dual ball bearing rated for 5x longer life than regular bearings
  • PST shares one PWM signal across multiple fans in push or pull

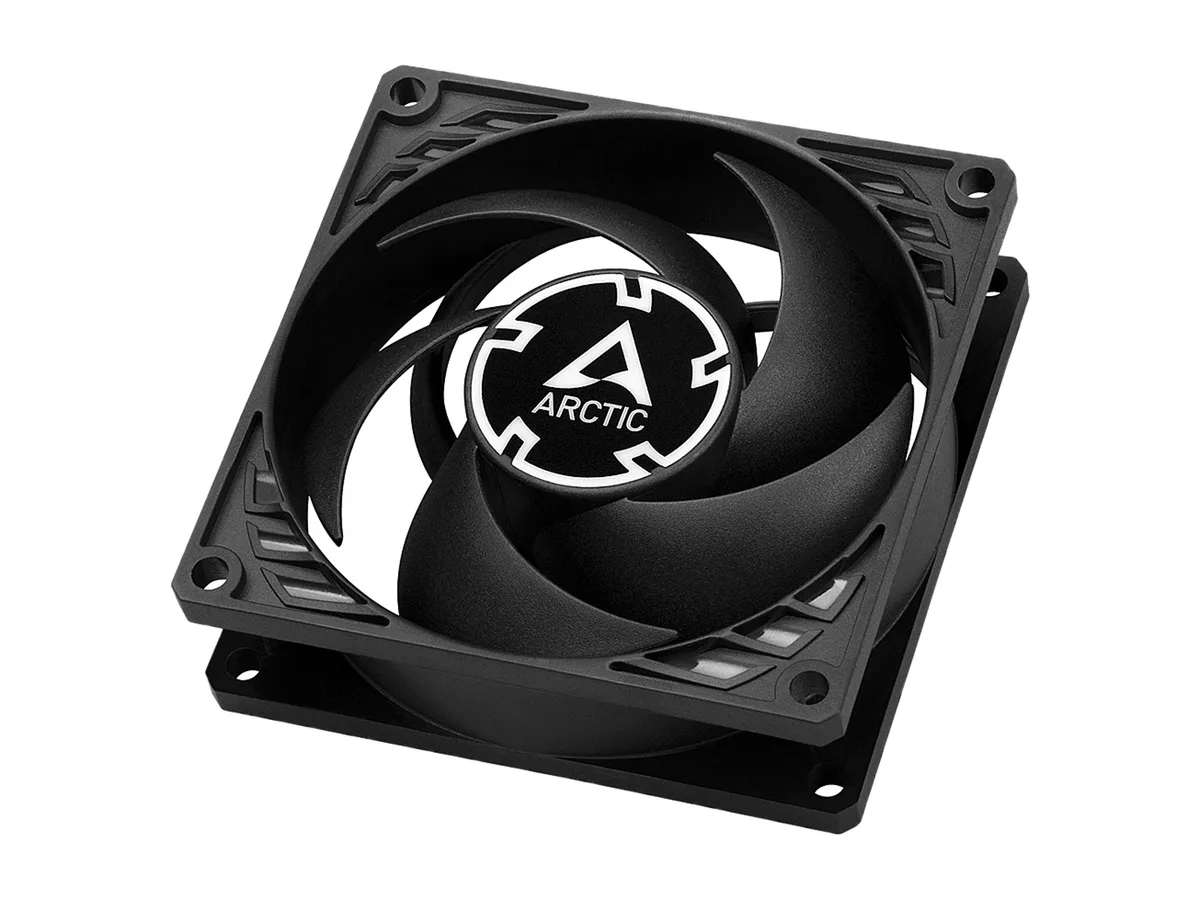

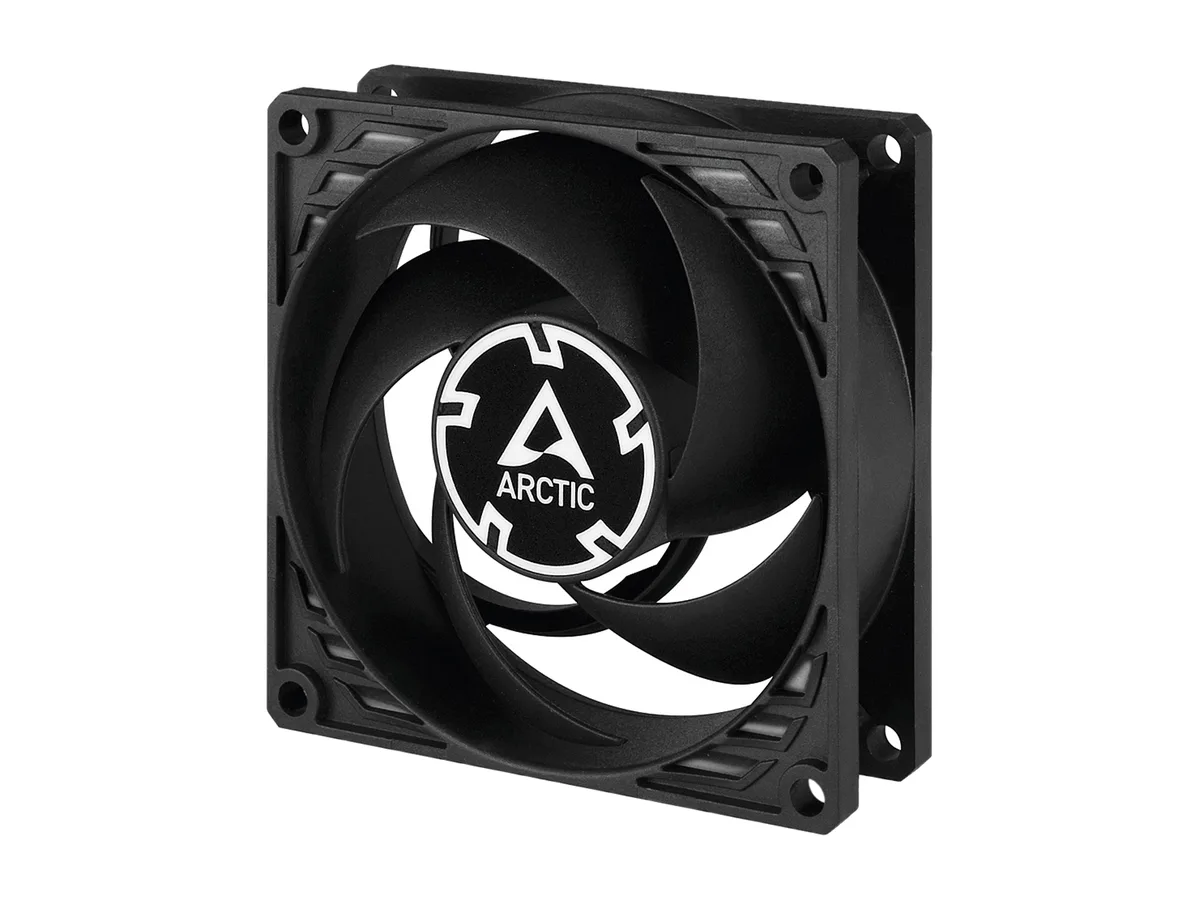

80 mm pressure-optimised case fan

The ARCTIC P8 PWM PST CO is an 80 mm case fan built for continuous operation. Its dual ball bearing is rated for five times the lifespan of regular bearings. The non-LED black frame suits builds that prefer no lighting. PWM Sharing Technology lets multiple fans run synchronously from one header.

PWM control limits and connector layout

Speed is regulated between 200 and 3.000 RPM through a standard 4-pin PWM connector. A matching 4-pin socket on the fan housing allows daisy-chaining additional fans without extra motherboard headers. At maximum speed the fan moves 23.4 CFM while producing 0.3 Sone. The motor cannot exceed the stated RPM ceiling.

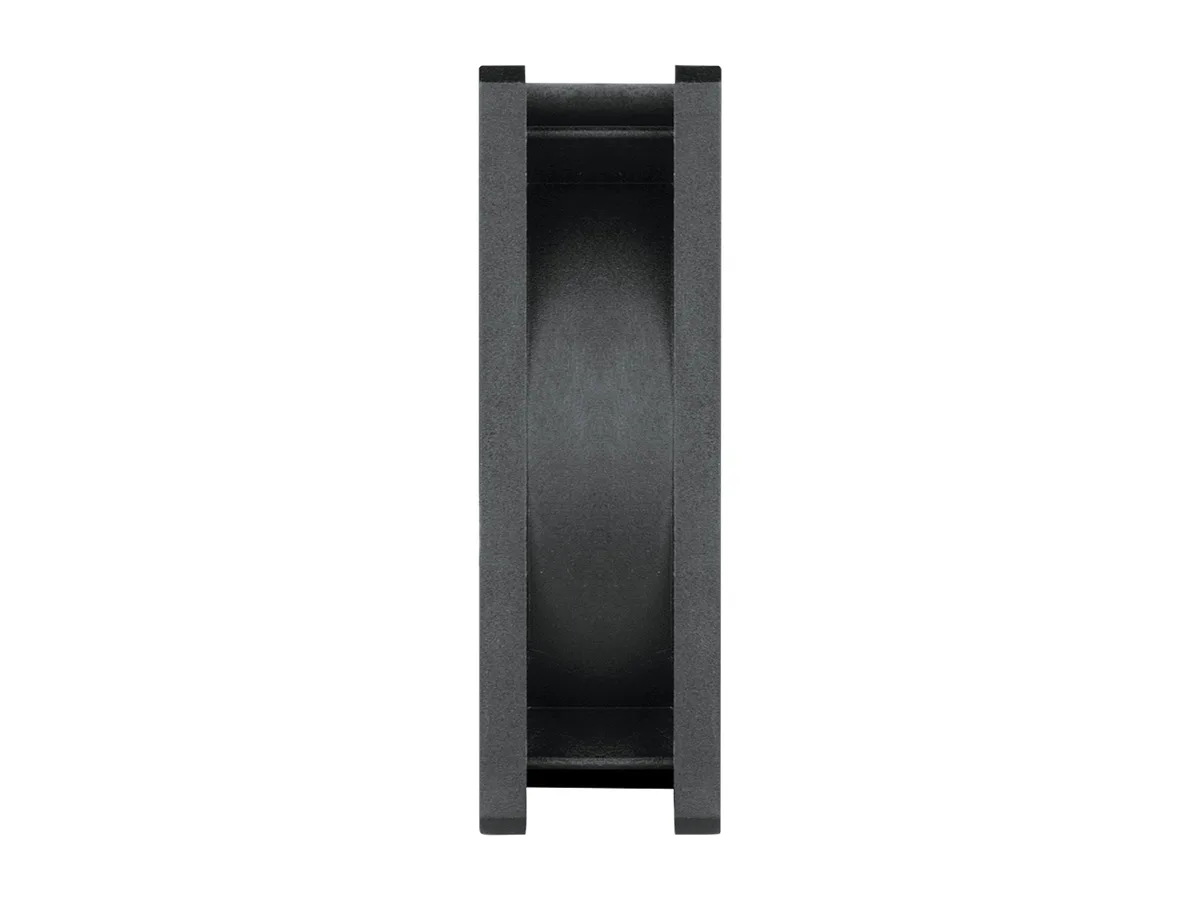

25 mm thickness decides fit

The frame measures 25 mm thick, so clearance at the mounting location must accommodate that depth. Builders using slim radiators, compact heatsinks or tight side-panel vents should verify the available space before ordering. No thinner variant of this model exists.

Besonderheiten

  • Pressure-optimised for heatsinks, radiators and covered vents
  • PWM control from 200 to 3.000 RPM delivers 23.4 CFM airflow
  • Quiet motor runs at 0.3 Sone at full speed
  • Dual ball bearing rated for 5x longer life than regular bearings
  • PST shares one PWM signal across multiple fans in push or pull

Technische Daten

BrandARCTIC COOLING
SeriesP8 PWM PST CO
ModelACFAN00151A
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size80mm
Fan Thickness25mm
Bearing TypeDual Ball Bearing
RPM200 - 3.000 RPM (Controlled by PWM)
Air Flow23.4 CFM (@ 3.000 RPM)
Noise Level0.3 Sone (@ 3.000 RPM)
Power Connector4-pin Connector + 4-pin Socket
ColorBlack
LEDNon-LED
FeaturesOptimised for static pressure
Ideal choice on heatsinks, radiators and (partly-) covered case vents
Newly developed, very quiet motor
Wide RPM range
Extended life span
For continous operation
Dual ball bearing with 5x longer lifetime than regular bearings
PWM Sharing Technology (PST) regulates fan speed synchronously
Push- or pull-configuration
Dimensions80.00 x 80.00 x 25.00 mm
Package Contents1 x P8 PWM PST CO Fan
4 x Screws
1 x Manual Card
Versandgewicht0.10 kg
Paketgröße84 × 81 × 28 mm

Andere Versionen dieses Modells

4 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Which version of the P8 PWM PST CO 80 mm fan should I pick for a radiator or heatsink?

The single ACFAN00151A model is pressure-optimised and built for continuous operation on heatsinks, radiators or partly covered vents, so no alternative version is needed.

What does the 23.4 CFM airflow figure mean when the fan is running at full speed in my case?

At the maximum 3.000 RPM the fan moves 23.4 CFM, delivering strong static pressure through dense fins while the dual ball bearing keeps noise at 0.3 Sone.

How does the 4-pin PWM connector and PST socket affect speed control in practice?

The 4-pin connector plus 4-pin socket lets the motherboard drive the fan from 200 to 3.000 RPM and daisy-chain multiple fans so they run in sync via PWM Sharing Technology.
