Deep mini-ITX server board with dual 10G LAN ports

ASRock Rack

ASRock Rack AM5D4ID-2T/BCM server motherboard AM5 dual 10G LAN

SKU CH-46MX-GFDJF MPN AM5D4ID-2T/BCM

Deep mini-ITX server board with dual 10GbE LAN, PCIe 5.0 x16 and DDR5 ECC support for AMD EPYC 4005/4004 and Ryzen 9000/8000/7000 CPUs

  • CPU Socket TypeSocket AM5
  • CPU TypeAMD Ryzen 7000 Series
  • Deep mini-ITX form factor fits dense 1U server chassis
  • Supports AMD EPYC 4004/4005 and Ryzen 7000/8000/9000 processors
  • Four DDR5 DIMM slots with ECC and non-ECC UDIMM support
  • Dual 10GbE RJ45 ports powered by Broadcom BCM57416 controller
  • PCIe 5.0 x16 slot plus OCuLink and M.2 for fast expansion

AM5 Server Motherboard with Dual 10G LAN

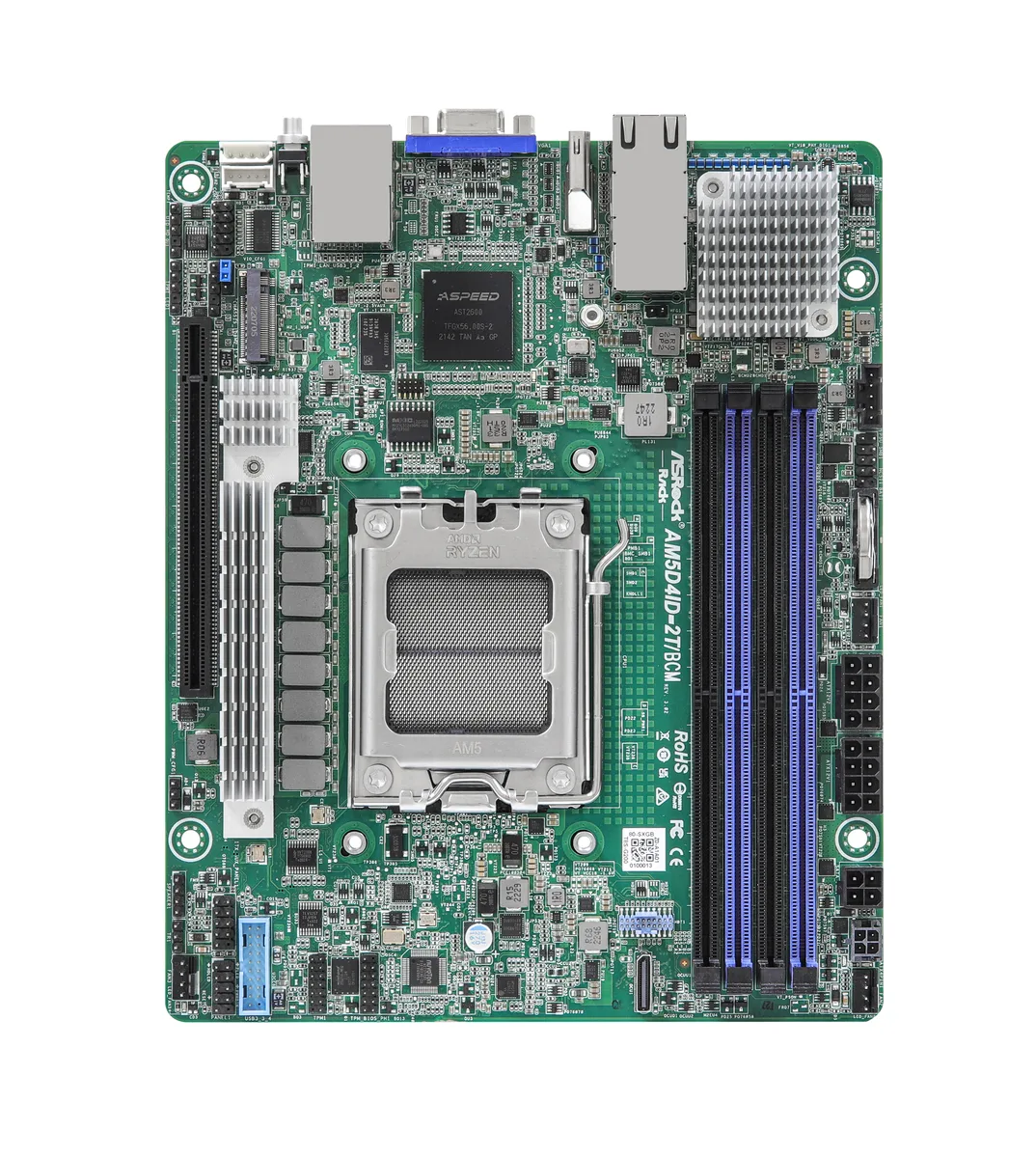

This deep mini-ITX board fits AMD Ryzen 7000, 8000 and 9000 series processors plus EPYC 4004 and 4005 CPUs in socket AM5. It provides four DDR5 DIMM slots with ECC support, one PCIe 5.0 x16 slot, an OCuLink connector and a single M.2 slot. Two onboard 10 GbE ports use the Broadcom BCM57416 controller.

Builders Needing High-Density 10G Connectivity

The dual 10G LAN and compact 6.7 by 8.2 inch layout suit storage nodes, edge appliances or hyper-converged clusters where rack space is limited. ECC memory support targets workloads that require data integrity. Builds needing multiple GPUs, additional PCIe x8 slots or more than one M.2 drive should consider a larger form factor.

Dual 10GbE via Broadcom BCM57416

The two RJ45 ports are the defining feature for network-heavy deployments, delivering 10 GbE throughput without add-in cards. If a project requires 25 GbE, fibre interfaces or a higher port count, this specification will not meet the requirement.

Besonderheiten

  • Deep mini-ITX form factor fits dense 1U server chassis
  • Supports AMD EPYC 4004/4005 and Ryzen 7000/8000/9000 processors
  • Four DDR5 DIMM slots with ECC and non-ECC UDIMM support
  • Dual 10GbE RJ45 ports powered by Broadcom BCM57416 controller
  • PCIe 5.0 x16 slot plus OCuLink and M.2 for fast expansion

Technische Daten

CPU Socket TypeSocket AM5
CPU TypeAMD Ryzen 7000 Series
Versandgewicht1.36 kg
Paketgröße229 × 152 × 51 mm

Fragen zu diesem Artikel

Should I choose the EPYC 4004 or 4005 for this board?

Both EPYC 4004 and 4005 series are supported on the AM5 socket, so the choice depends on the core count and thermal envelope you need.

What does the dual 10G LAN deliver in a real server?

Two RJ45 ports driven by a Broadcom BCM57416 controller provide 10 GbE throughput each for high-speed storage or clustering traffic.

What does the PCIe 4.0 x2 OCuLink port cap in practice?

The OCuLink connector runs at PCIe 4.0 x2, limiting attached devices to two lanes of fourth-generation bandwidth.
