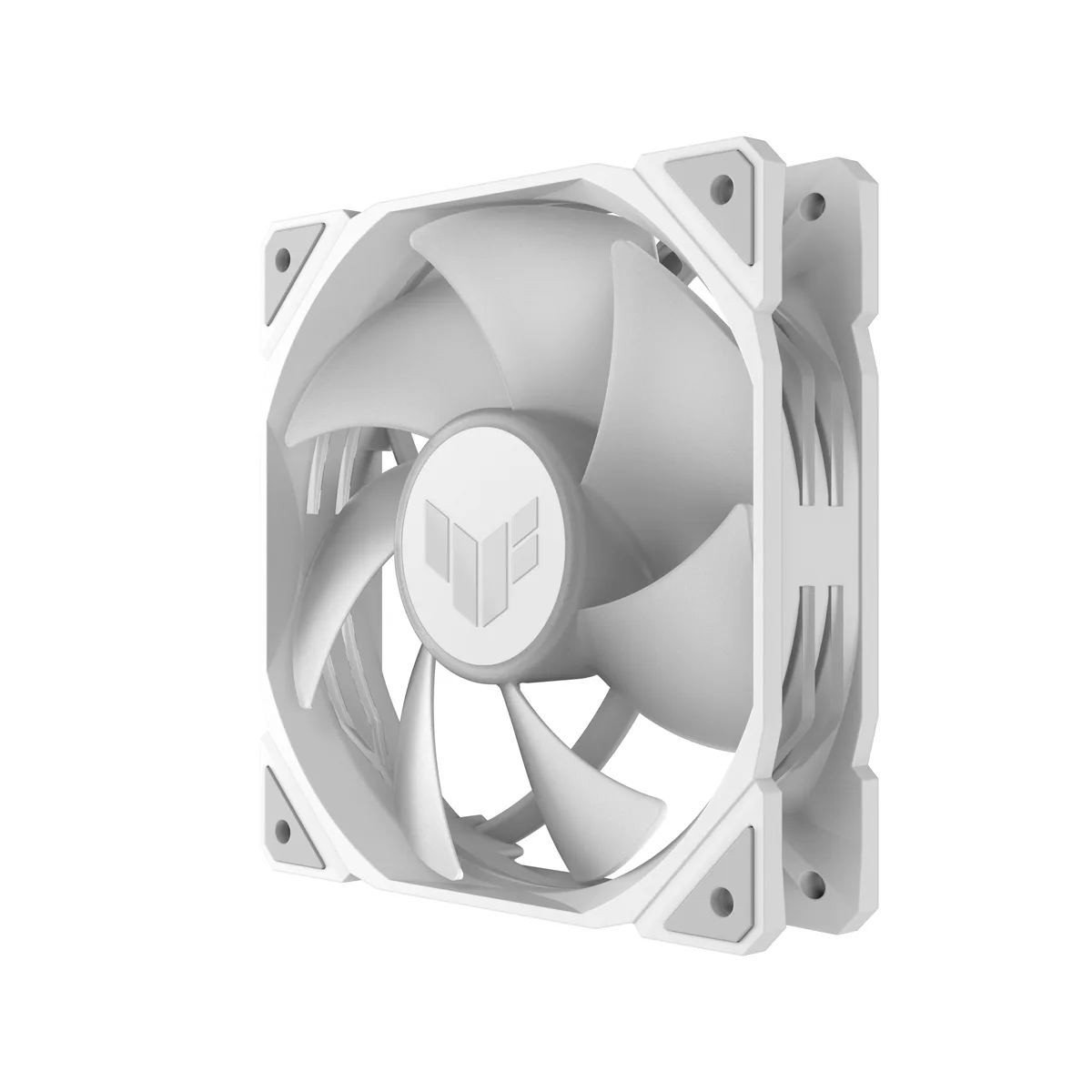

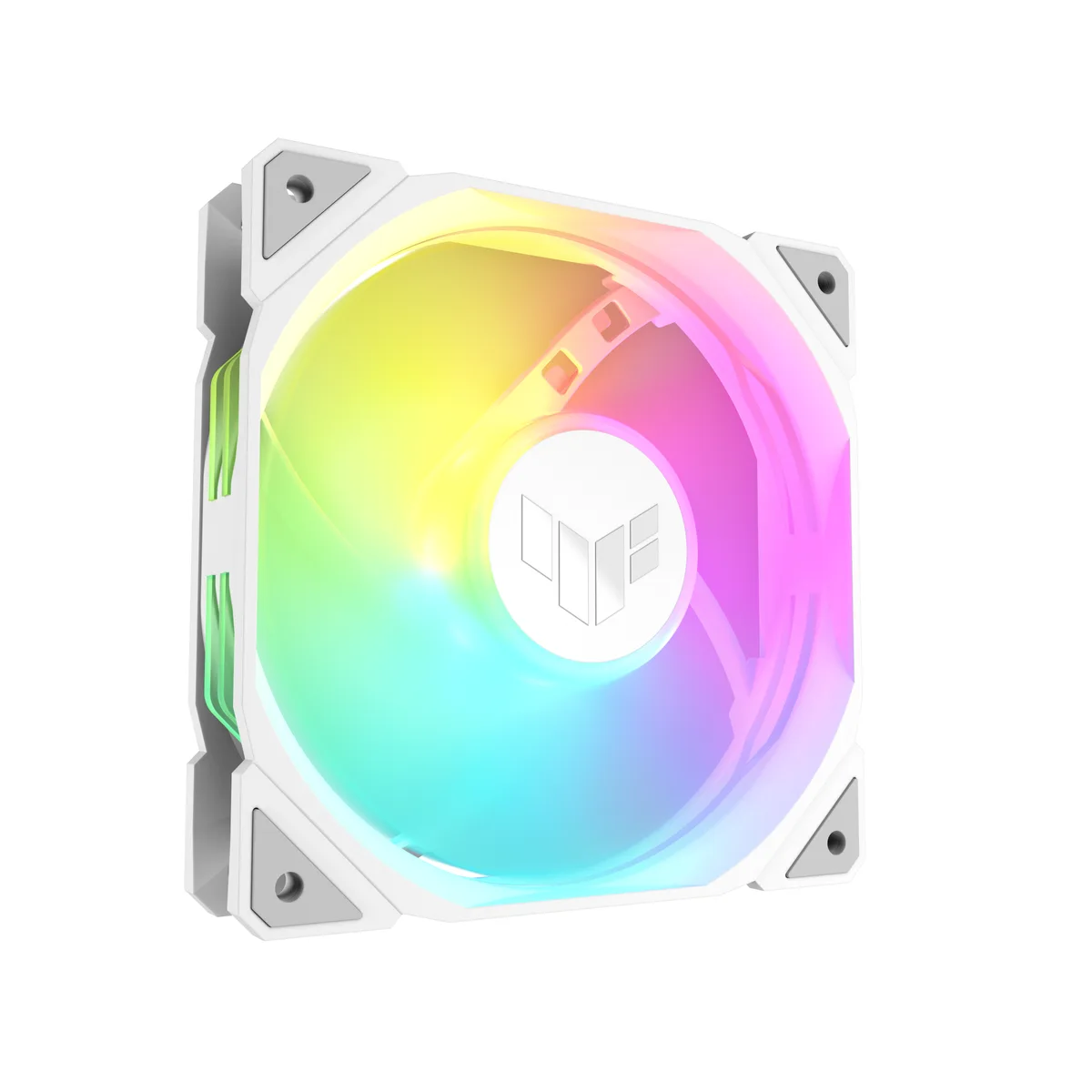

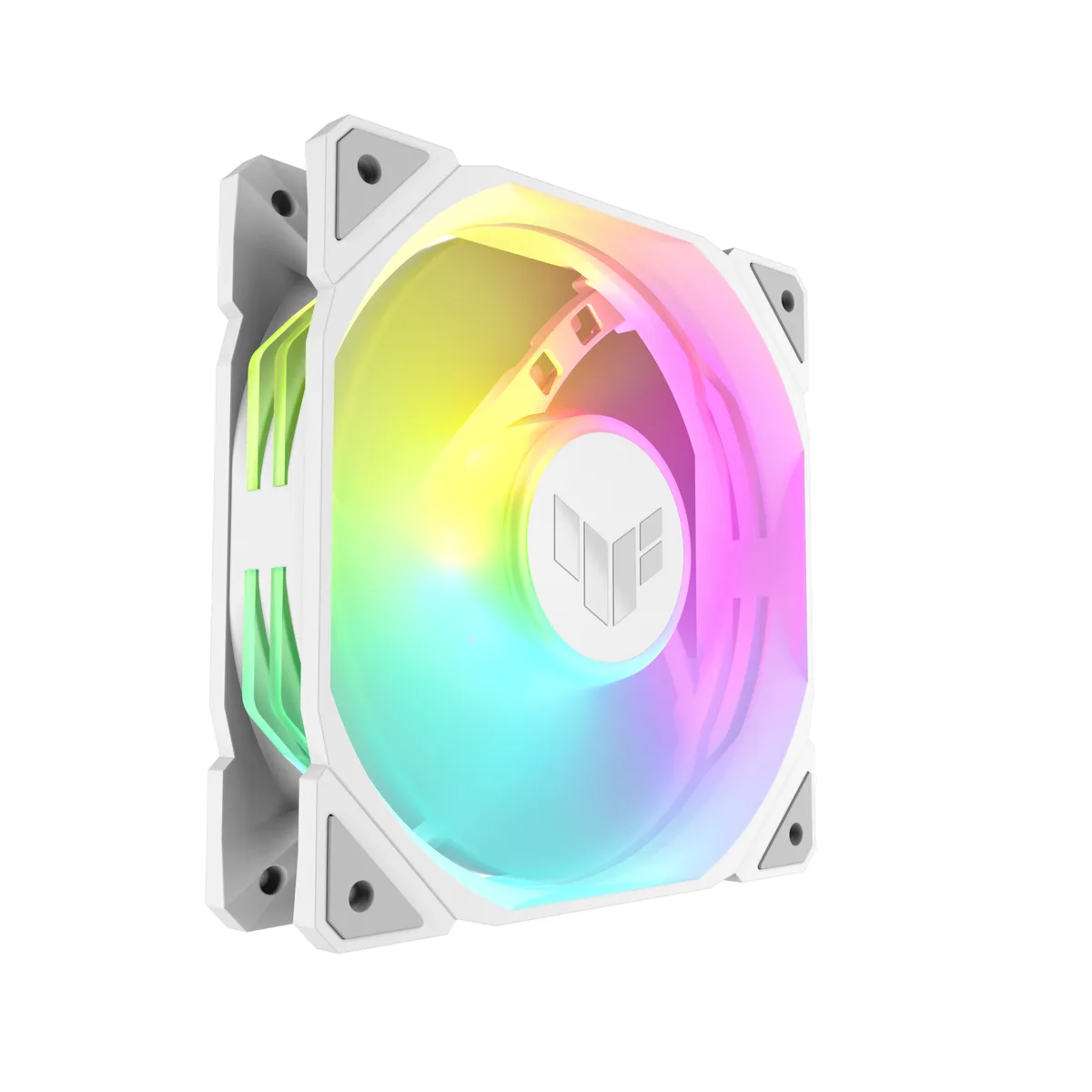

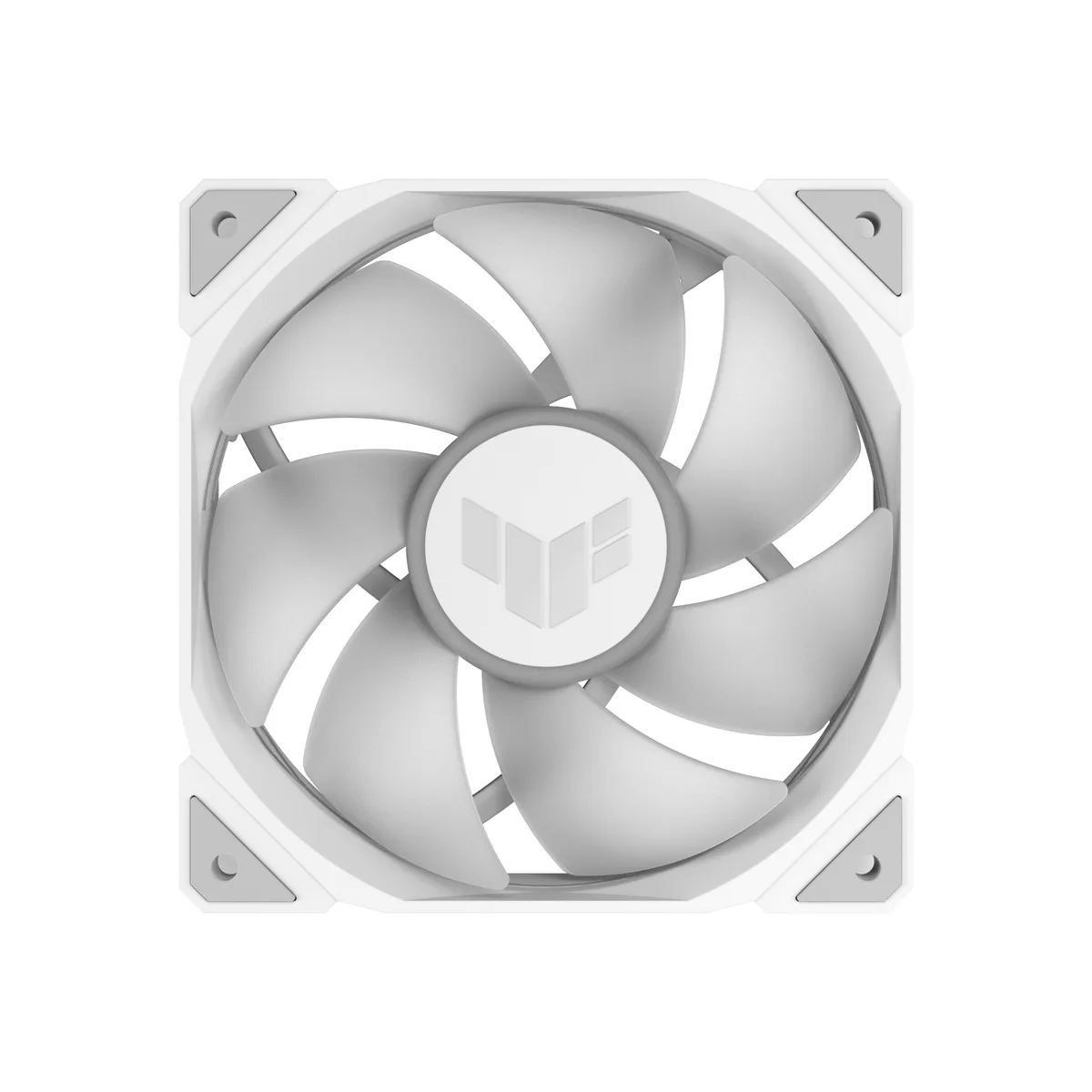

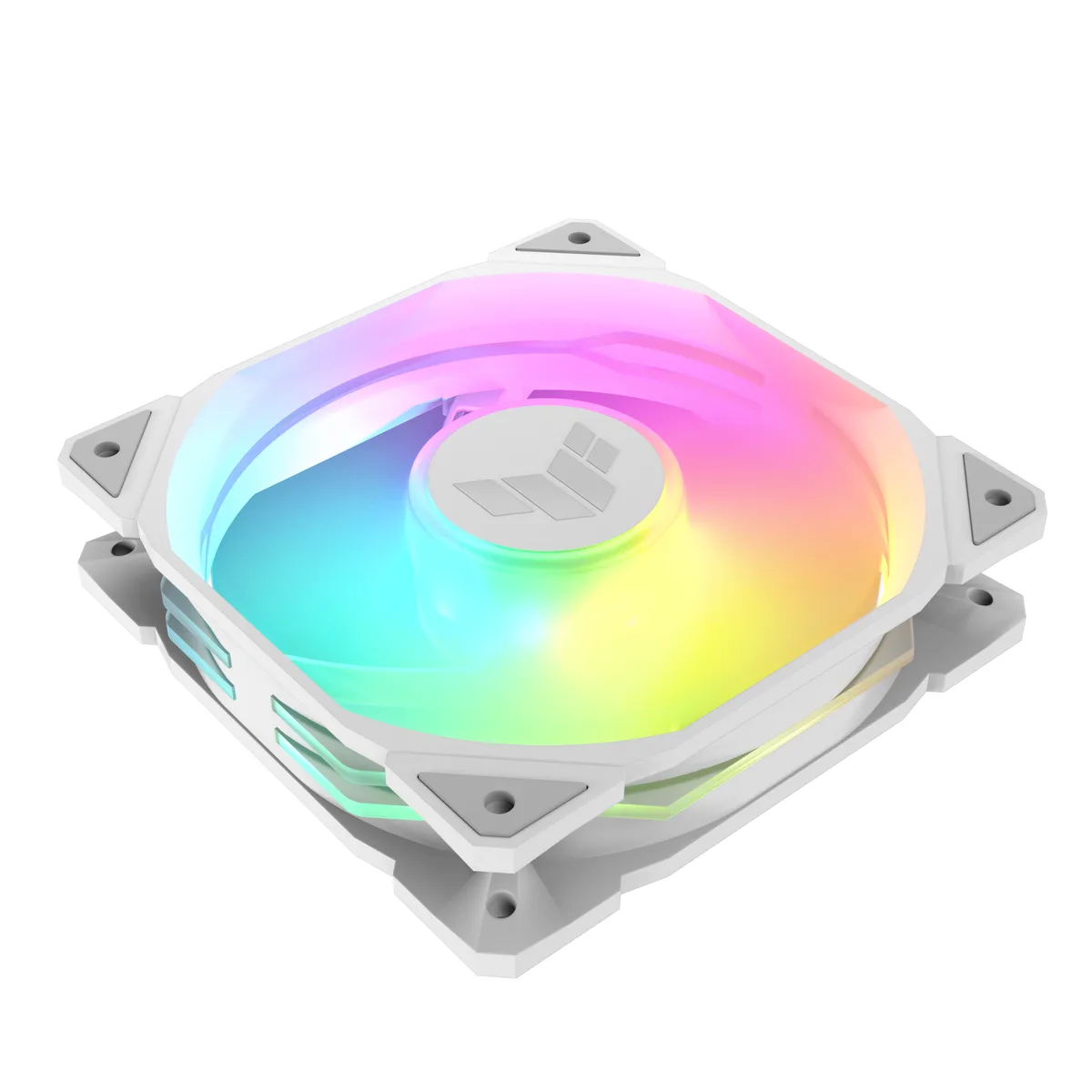

Three white 120mm ARGB case fans with thick 28mm frames and flexible side accents

ASUS

ASUS TUF Gaming TR120 120mm ARGB White Triple Pack 28mm

SKU CH-S51W-AC185 MPN TUF GAMING TR120 FAN ARGB WHITE 3IN1

Three 120 mm white ARGB case fans with a 28 mm thick frame deliver 77.4 CFM airflow and 3.3 mm H₂O static pressure at 29 dB(A)

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness28mm
  • Bearing TypeHydraulic
  • RPM2000 rpm(+/- 10%)
  • Thicker 28 mm frame delivers higher cooling performance
  • 3 mm H₂O static pressure excels at restrictive radiators
  • Double-layer LED matrix with 16 addressable RGB LEDs per fan
  • Flexible side pattern enables personalised frame aesthetics
  • PWM control up to 2000 rpm adapts to any workload

Triple-pack 28mm ARGB fans

The ASUS TUF Gaming TR120 triple pack supplies three 120mm white case fans with an extra-thick 28mm frame. Each fan uses a hydraulic bearing and addressable RGB lighting for coordinated colour effects across a build.

77.4 CFM airflow and 3.3mm H2O pressure

At 2000 rpm the fans move 77.4 CFM of air while developing 3.3mm H2O of static pressure, making them suited to restrictive radiators or dense mesh. Noise peaks at 29 dB(A) under full speed, so they remain audible but not intrusive in a typical chassis.

1-to-3 PWM cable simplifies motherboard headers

A single 1-to-3 PWM cable connects all three fans to one motherboard header, freeing extra headers for other devices. Twelve mounting screws are included for standard 120mm fan positions, and Aura Sync compatibility lets the 16 LEDs per fan match the rest of the system.

Besonderheiten

  • Thicker 28 mm frame delivers higher cooling performance
  • 3 mm H₂O static pressure excels at restrictive radiators
  • Double-layer LED matrix with 16 addressable RGB LEDs per fan
  • Flexible side pattern enables personalised frame aesthetics
  • PWM control up to 2000 rpm adapts to any workload

Technische Daten

BrandASUS
ModelTUF GAMING TR120 FAN ARGB WHITE 3IN1
Part Number90DA0093-B08020
Fan Counts3 Fans
TypeCase Fan
Fan Size120mm
Fan Thickness28mm
Bearing TypeHydraulic
RPM2000 rpm(+/- 10%)
Air Flow77.4 CFM
Air Pressure3.3 mm H2O
Noise Level29 dB(A)
ColorWhite
LEDARGB
Package Contents12 x screws (triple pack)
1 x 1 to 3 PWM cable (triple pack)
1 pack: 4 x screws (single pack)
Versandgewicht0.68 kg
Paketgröße165 × 127 × 102 mm

Fragen zu diesem Artikel

Will the 28 mm thick TR120 fans fit alongside my existing 25 mm case fans without clearance issues?

The 28 mm frame is 3 mm thicker than standard fans, so check your case specifications for 28 mm support before mixing them with 25 mm units.

How can I verify the ARGB lighting and 2000 rpm PWM control are working correctly after installation?

Connect the 1-to-3 PWM cable to a motherboard 5 V ARGB header and a 4-pin PWM header, then use ASUS Aura Sync software to confirm colour effects and fan-speed response.

What mounting hardware and cables are included in the triple pack, and do I need anything extra?

The box contains 12 screws and one 1-to-3 PWM cable for the three fans; no additional cables are required if your motherboard has a 5 V ARGB header and a 4-pin fan header.
