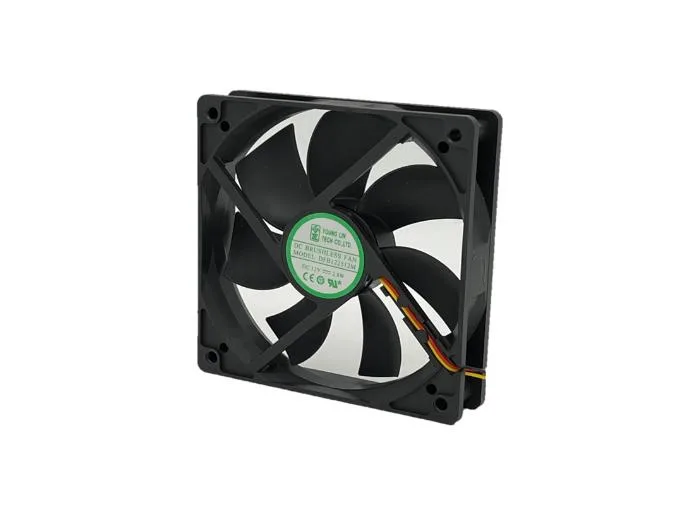

Black 120mm case fan with square plastic frame, 25mm thick, no LED, 3-pin connector

Athena Power

Athena Power FANC-12025BW3H 120mm case fan

SKU CH-MQJ4-VSWSX

120 mm case fan with ball bearing, 2000–2499 RPM and 50–55 CFM airflow at 15–20 dBA, 3-pin connector

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeBall
  • Quiet operation at 15-20 dBA noise level
  • Strong airflow of 50-55 CFM for effective cooling
  • Ball bearing ensures long-lasting durability
  • Standard 120x120x25mm size fits most cases
  • CE and UL certified for safety assurance

Purpose-built IPC cooling

The Athena Power FANC-12025BW3H is a single 120 mm case fan designed for industrial PC chassis. Its 3-pin connector plugs directly into standard motherboard headers without extra controllers. The 25 mm thickness fits common mounting points in server and embedded enclosures. Builders needing PWM speed curves or addressable lighting should look elsewhere.

Steady airflow at rated speed

The ball-bearing motor spins between 2000 and 2499 RPM to move 50 to 55 CFM through the chassis. Noise stays in the 15 to 20 dBA band even during continuous operation. Because the fan has no onboard controller, airflow remains constant as long as the header supplies full voltage. Systems that rely on variable fan curves will not benefit from this fixed-speed design.

Durable frame and simple wiring

Black plastic housing meets CE and UL safety marks for regulated environments. The 3-wire lead carries power, ground and tachometer signal for basic monitoring. No LEDs or extra cables keep cable routing clean in dense IPC builds. Mounting holes align with standard 120 mm patterns so the fan drops into existing cut-outs without modification.

Besonderheiten

  • Quiet operation at 15-20 dBA noise level
  • Strong airflow of 50-55 CFM for effective cooling
  • Ball bearing ensures long-lasting durability
  • Standard 120x120x25mm size fits most cases
  • CE and UL certified for safety assurance

Technische Daten

BrandAthena Power
ModelFANC-12025BW3H
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeBall
RPM2000-2499 RPM
Air Flow50-55 CFM
Noise Level15 - 20 dBA
Power Connector3 Pin
ColorBlack
LEDNo
Dimensions120x120x25mm

Fragen zu diesem Artikel

How loud is the 120mm fan at its 15-20 dBA rating during continuous operation?

The fan runs at 15-20 dBA, which is very quiet and suitable for continuous use in noise-sensitive environments.

Does the 3-pin connector work directly with my motherboard header?

Yes, the 3-pin connector plugs straight into a standard motherboard 3-pin fan header for power and speed monitoring.

Will this 25mm thick fan fit alongside older 120mm fans in my case?

At 120x120x25mm it matches the standard 120mm mounting pattern, so it aligns with older fans of the same size.
