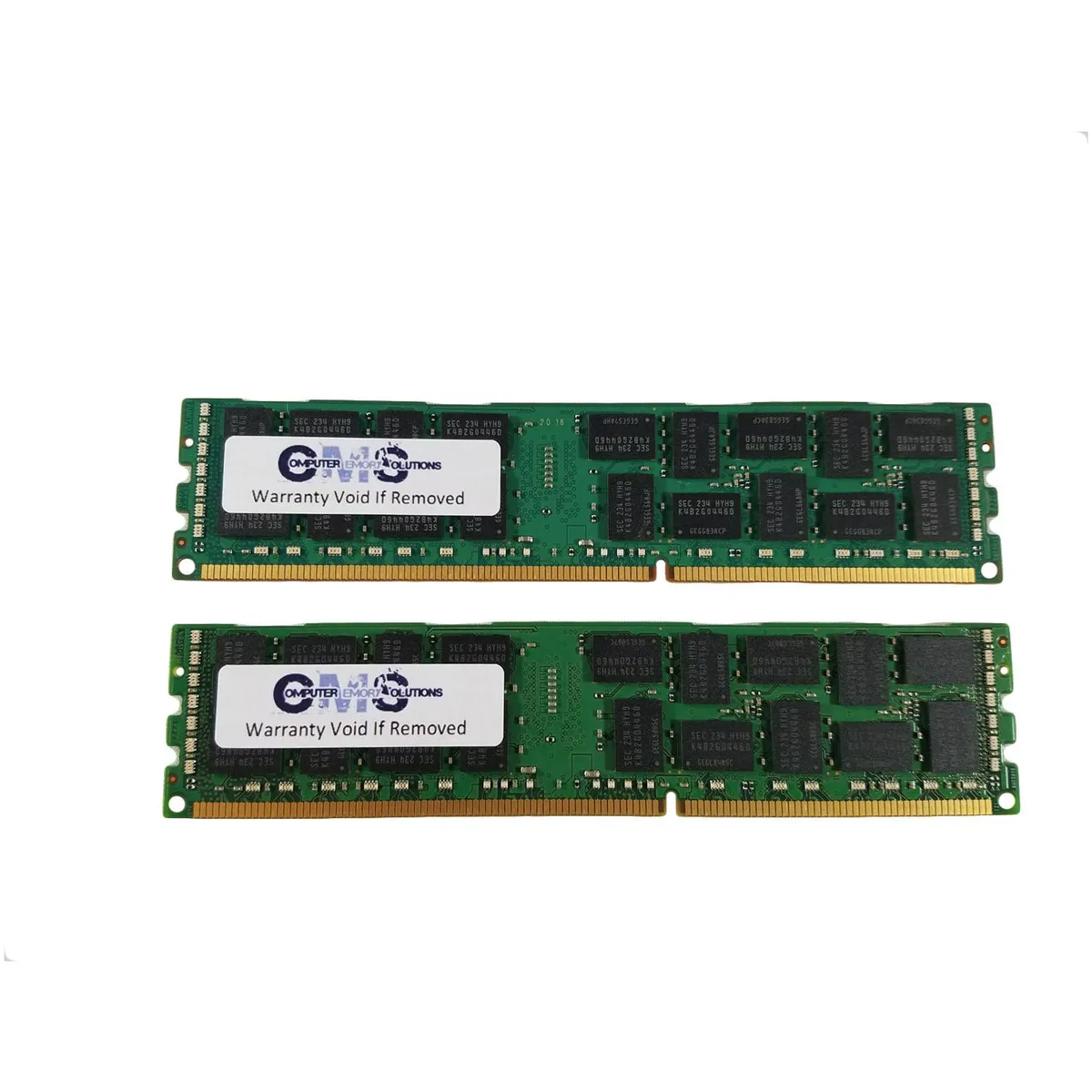

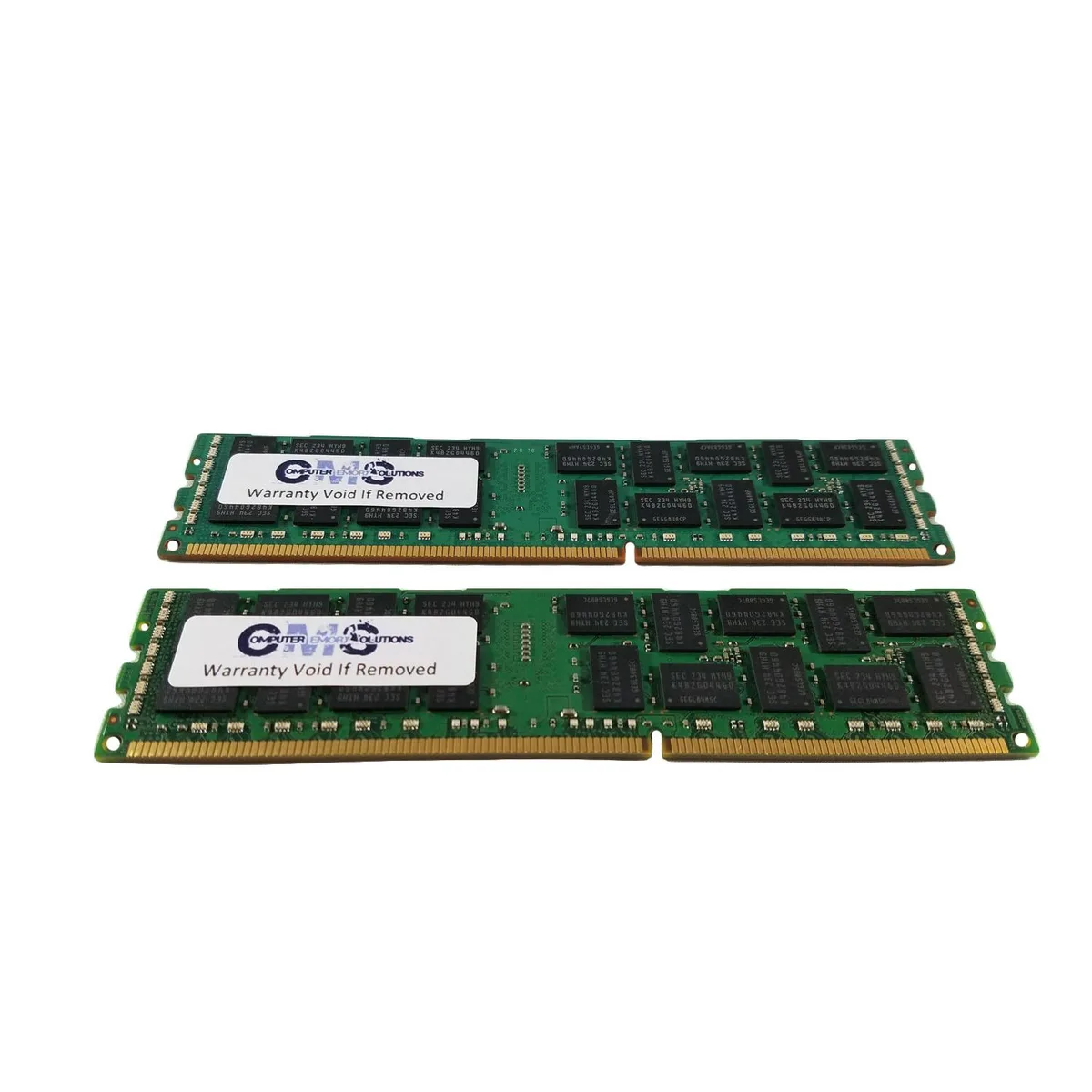

Two green DDR3 DIMM sticks with black chips, no heat spreader

Computer Memory Solutions

Computer Memory Solutions CM10247210600ECCR2R4H 16GB (2x8GB) DDR3 1333 ECC Registered DIMM

SKU CH-ECDR-45660

16 GB dual-channel DDR3-1333 ECC registered DIMM kit validated for HP ProLiant ML350 G6 servers

  • Capacity16GB (2 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • ECC protection for data integrity
  • Registered design for server stability
  • 16 GB dual-channel kit for capacity
  • DDR3 1333 CL9 for responsive performance
  • Validated for HP ProLiant ML350 G6

Server-specific DDR3 ECC Registered kit

This 16 GB kit contains two 8 GB DDR3-1333 modules built to PC3-10600 CL9 timings at 1.5 V. Each stick is a 240-pin dual-rank (2Rx4) registered DIMM with ECC, designed for the HP/Compaq ProLiant ML350 G6 server platform. The pair installs as a matched set for multi-channel operation.

Verify registered ECC support

The ML350 G6 accepts either registered ECC or unbuffered ECC, but the two types must not be mixed. With registered quad-rank modules the first triple-channel bank runs at 1333 MHz, the second bank drops to 1066 MHz, and the third bank must stay empty. Confirm your Xeon 55xx series processor and current memory configuration match these constraints before ordering.

Fills two DIMM slots in a triple-channel server

Each module occupies one of up to 18 registered DIMM sockets arranged in six banks of three. Adding this kit expands capacity toward the 144 GB registered maximum while leaving remaining banks available for further upgrades. No heat spreader is fitted, so airflow in the server chassis handles cooling directly.

Besonderheiten

  • ECC protection for data integrity
  • Registered design for server stability
  • 16 GB dual-channel kit for capacity
  • DDR3 1333 CL9 for responsive performance
  • Validated for HP ProLiant ML350 G6

Technische Daten

BrandComputer Memory Solutions
ModelCM10247210600ECCR2R4H
Capacity16GB (2 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemHp/Compaq Proliant Ml350 G6
Package Content2 Memory RAM Sticks

Fragen zu diesem Artikel

Does the box contain only the two 8 GB sticks or are mounting brackets or cables included?

The package contains exactly two 240-pin DDR3 ECC Registered DIMMs; no brackets, cables or other accessories are supplied.

Should I pick the 2Rx4 dual-rank kit or look for a quad-rank alternative for the ML350 G6?

This 2Rx4 dual-rank kit runs at the full 1333 MHz in the first triple-channel bank, while quad-rank modules drop to 1066 MHz or 800 MHz when a second bank is populated.

Will the CL9 1333 MHz rating hold once the modules are installed in a dual-processor ML350 G6?

With two Xeon 55xx CPUs the memory controller keeps the rated 1333 MHz in the first bank; adding modules to a second bank per processor forces the speed down to 1066 MHz.
