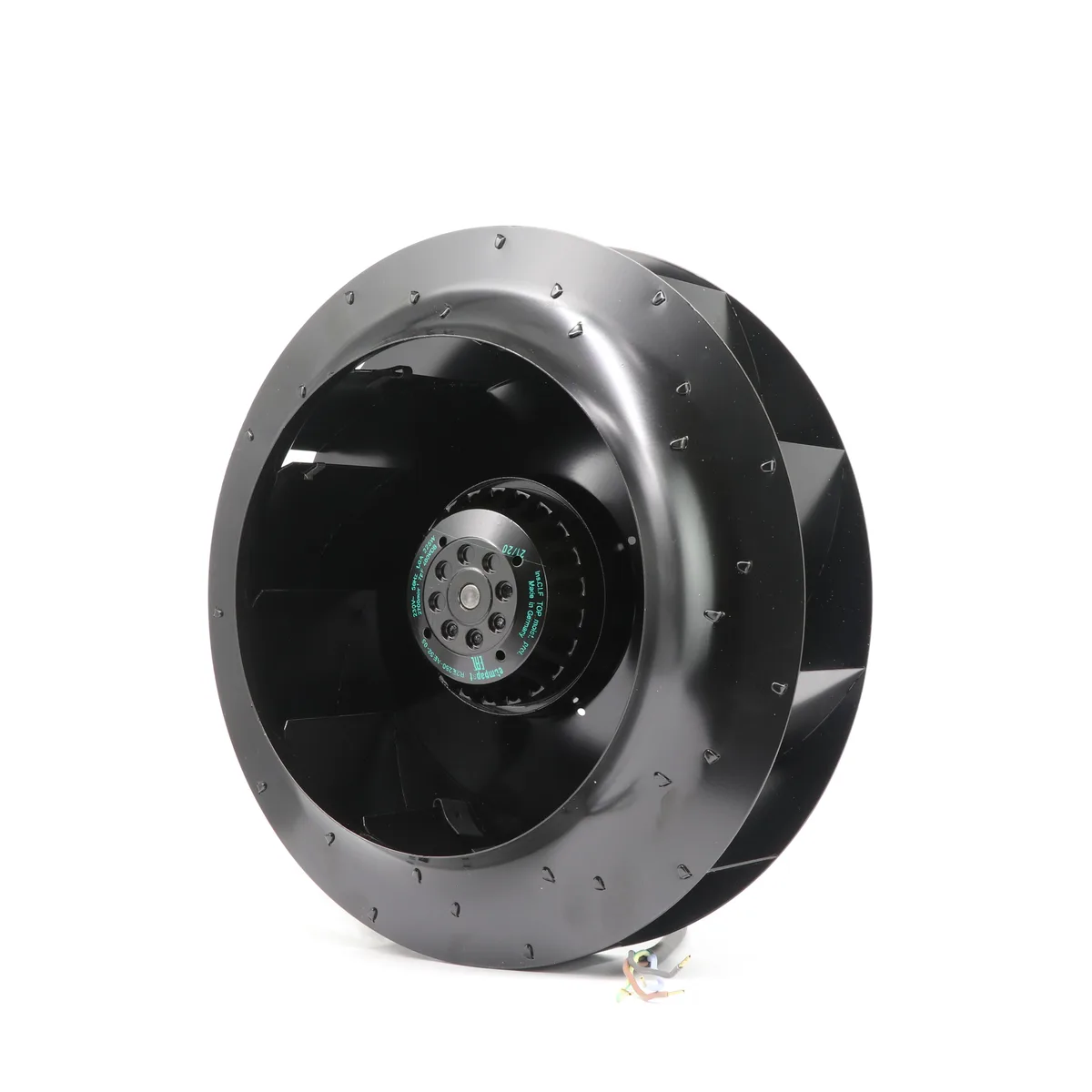

Black painted metal centrifugal fan housing with eleven visible blades, 280 mm diameter, new condition

ebmpapst-automotive

ebmpapst-automotive R2E280-AE52-05 230 VAC 225 W 280 mm industrial cooling fan

SKU CH-SN2S-N5SC0 MPN R2E280-AE52-05

A 230 VAC centrifugal fan delivering 225 W at 2,700 min⁻¹ with an IP44-rated steel impeller for AB, Vacon and Eaton inverters

  • Runs at 2700 min⁻¹ for strong inverter cooling
  • IP44 rating protects motor from dust and splashes
  • 225 W at 230 VAC delivers high airflow in a compact frame
  • 280 mm impeller with 11 blades moves air efficiently through tight cabinets
  • Insulation class F withstands continuous industrial heat cycles

Inverter-dedicated centrifugal fan

This ebmpapst-automotive R2E280-AE52-05 is a new 230 VAC centrifugal fan built for AB, Vacon and Eaton inverter cooling. The 280 mm impeller with 11 painted steel blades runs at 2700 min-1, drawing 1.0 A at 225 W input. IP44 protection and insulation class F suit industrial cabinet environments.

Capacity and headroom for inverter cooling

The 225 W power input and 2700 min-1 speed deliver the airflow demanded by dedicated inverter cooling slots. Single-phase 230 VAC supply simplifies wiring in standard panels. Motor size 68 matches the original mounting footprint for direct replacement of R2E280-AE52-17. Units needing higher static pressure or different voltage must select another model.

Thermals, noise and power draw

Rated 225 W at 230 VAC, the fan draws 1.0 A during continuous operation. Insulation class F withstands elevated internal temperatures while IP44 guards against splashing water and dust. The 11-blade sheet-steel impeller is balanced for steady running in cabinet-mounted inverter duty.

Besonderheiten

  • Runs at 2700 min⁻¹ for strong inverter cooling
  • IP44 rating protects motor from dust and splashes
  • 225 W at 230 VAC delivers high airflow in a compact frame
  • 280 mm impeller with 11 blades moves air efficiently through tight cabinets
  • Insulation class F withstands continuous industrial heat cycles

Technische Daten

Für diesen Artikel sind noch keine technischen Daten veröffentlicht.

Fragen zu diesem Artikel

Will the 230 VAC 225 W motor match the electrical specs of the AB inverter I am replacing?

The fan runs on 230 VAC single-phase, draws 1.0 A at 225 W and spins at 2700 min-1, matching the original AB, Vacon and Eaton inverter requirements.

How can I verify the 280 mm impeller is moving air correctly once installed?

With power applied the 11-blade sheet-steel impeller should reach 2700 min-1; steady rotation and normal airflow noise confirm correct operation.

Does the box include mounting hardware or just the IP44 motor-impeller assembly?

The package contains the complete R2E280-AE52-05 fan unit with 280 mm painted impeller, 68-size motor and IP44 housing; brackets, wiring or capacitors are not included.
