Elo Touch Solutions

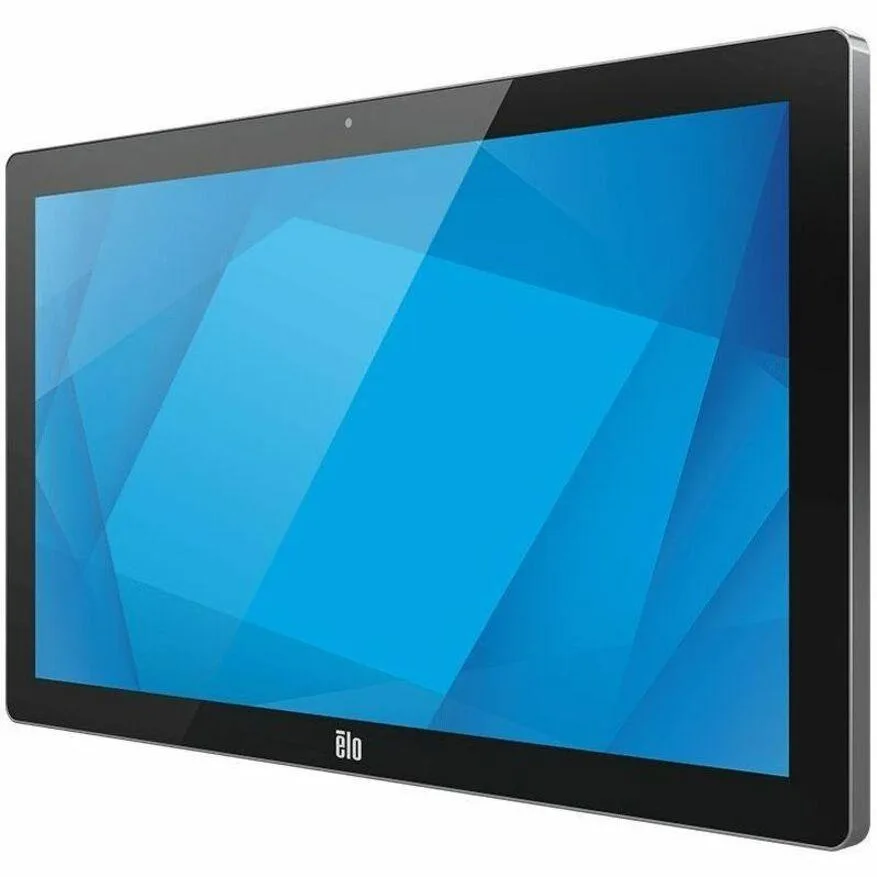

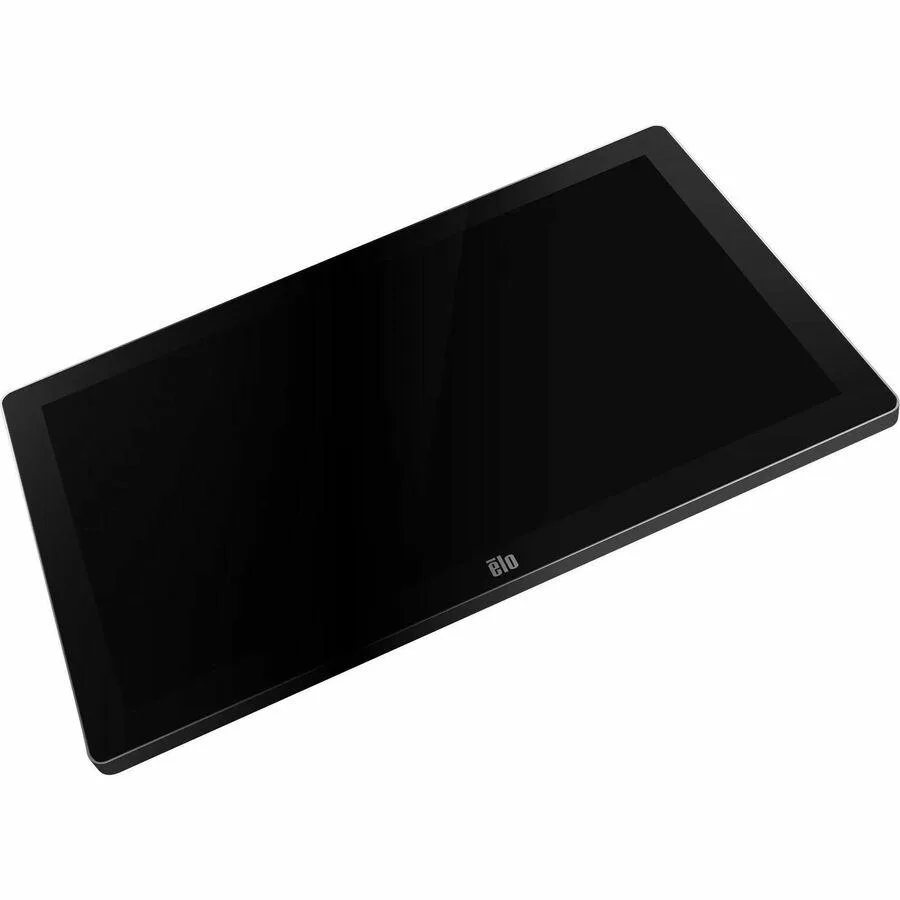

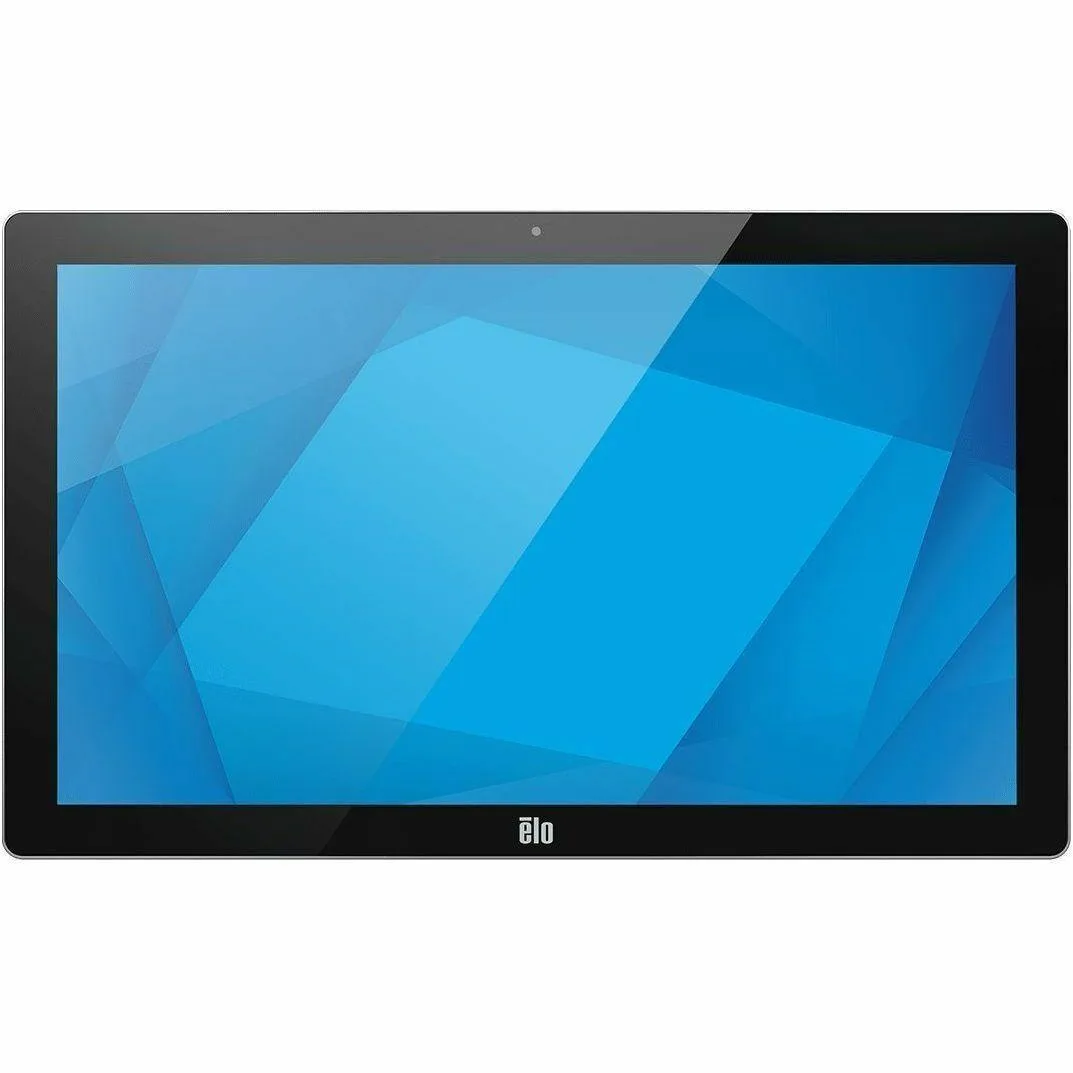

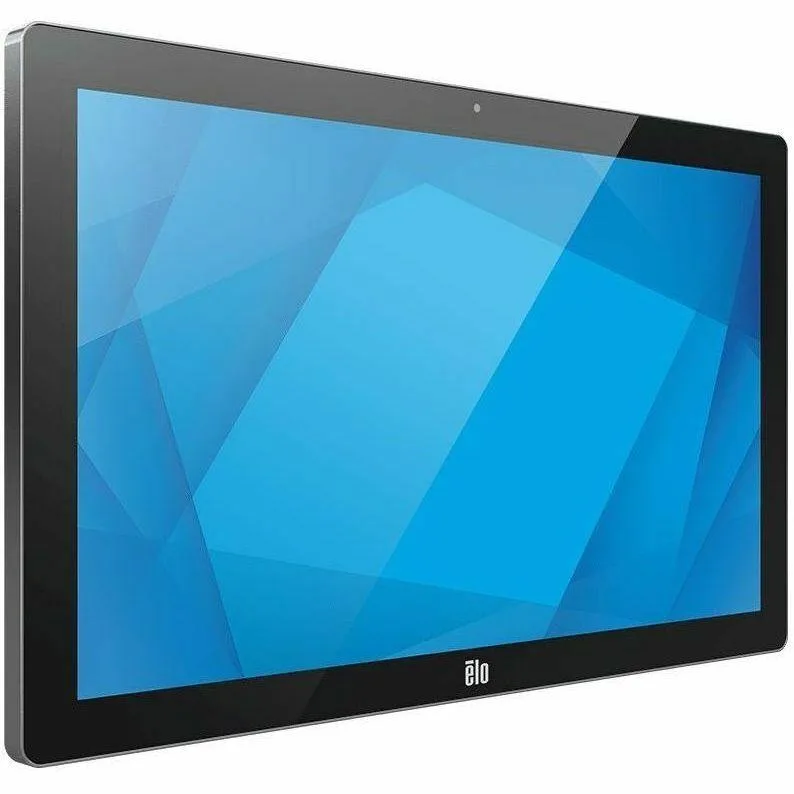

Elo Touch Solutions E176840 22" touchscreen monitor
A 22-inch Full HD touchscreen monitor with 10-point projected capacitive touch and a 14 ms response time
- Screen Size22"
- Responsive interaction with 10-point projected capacitive multi-touch
- Crisp Full HD detail at 1920 x 1080 resolution
- Smooth motion handling with 14 ms response time
- Widescreen 16:9 format suits modern content layouts
- Durable 21.5" viewable TFT display built for demanding use
22-inch Android touchscreen
The Elo E176840 is a 22-inch class touchscreen monitor with a 21.5-inch viewable area and a 16:9 aspect ratio. It runs Android 14 on a stainless-steel chassis designed for industrial and commercial environments. The projected capacitive panel supports up to 10 simultaneous touch points at Full HD 1920 x 1080 resolution. A 14 ms response time handles standard interactive workloads.
PoE and rugged IP-rated build
Power-over-Ethernet removes the need for a separate power adapter or dedicated power drops. The chemically strengthened display and superior IP ratings protect against moisture, dust and heavy use in kitchens or factory floors. Android 14 provides a familiar app platform for kiosk, point-of-sale or digital-signage software without an external PC.
VESA mount and PoE cabling
Installation uses standard VESA mounting points and a single Ethernet cable for both data and power when a PoE switch is available. The steel chassis adds weight, so verify the mount rating before hanging. Touch calibration may be required after the first boot, and network configuration must support the PoE class the monitor draws.
Besonderheiten
- Responsive interaction with 10-point projected capacitive multi-touch
- Crisp Full HD detail at 1920 x 1080 resolution
- Smooth motion handling with 14 ms response time
- Widescreen 16:9 format suits modern content layouts
- Durable 21.5" viewable TFT display built for demanding use
Technische Daten
| Brand | Elo |
|---|---|
| Screen Size | 22" |
| Versandgewicht | 8.51 kg |
| Paketgröße | 607 × 406 × 178 mm |
Fragen zu diesem Artikel
Does the projected capacitive touch layer require periodic recalibration or replacement over time?
The projected capacitive technology is solid-state with no moving parts, so it does not drift and does not need scheduled recalibration or replacement under normal use.
What limits continuous operation first — the 14 ms response time or the Android 14 thermal envelope?
The 14 ms response time is a fixed panel characteristic and does not degrade; sustained load is constrained by the passively cooled Android 14 system reaching its thermal throttle point.
How much heat and noise does the fanless steel chassis produce when powered via PoE all day?
The fanless design produces no audible noise, and the steel chassis dissipates heat passively, keeping surface temperatures low during continuous operation.
