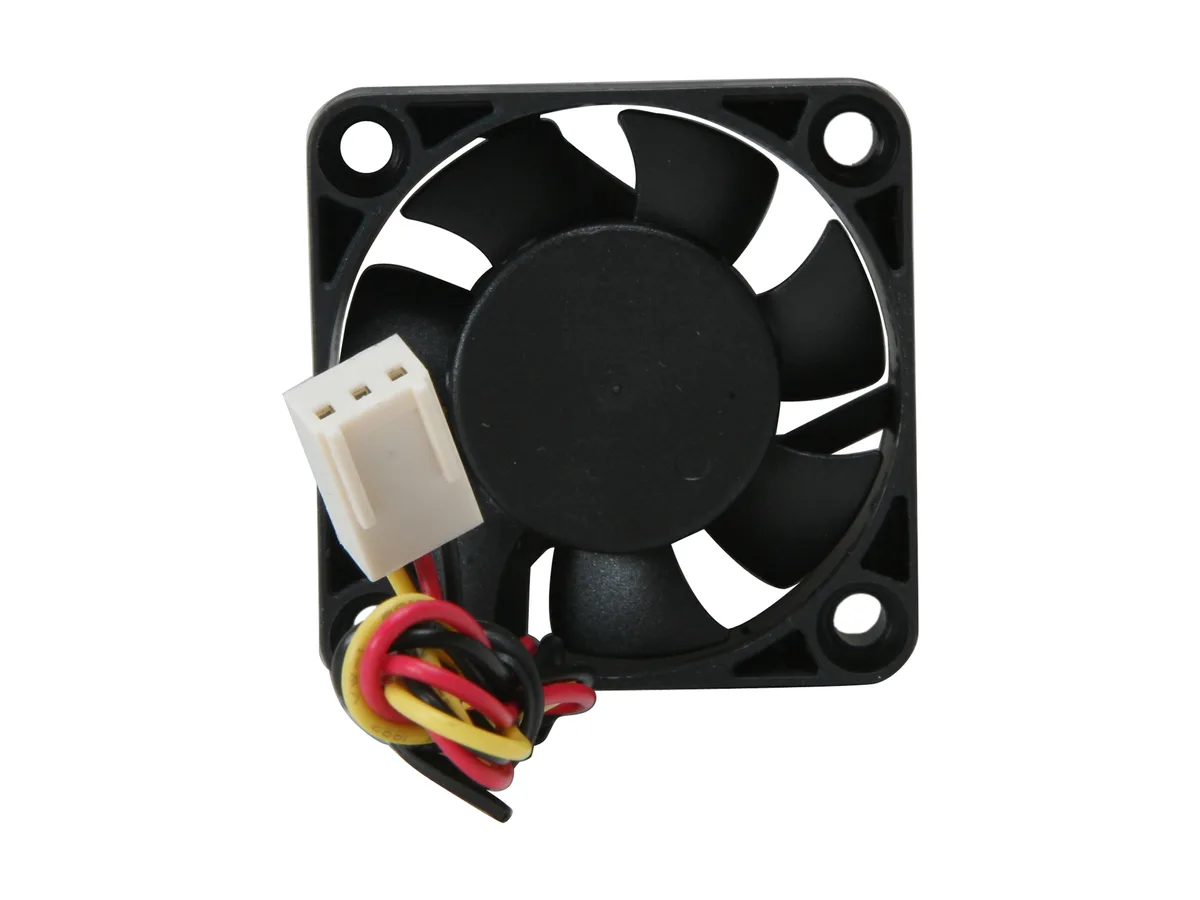

Small black square 40mm case fan with transparent blades and ball bearing, 3/4-pin connector included

EVERCOOL THERMAL CORP. LTD

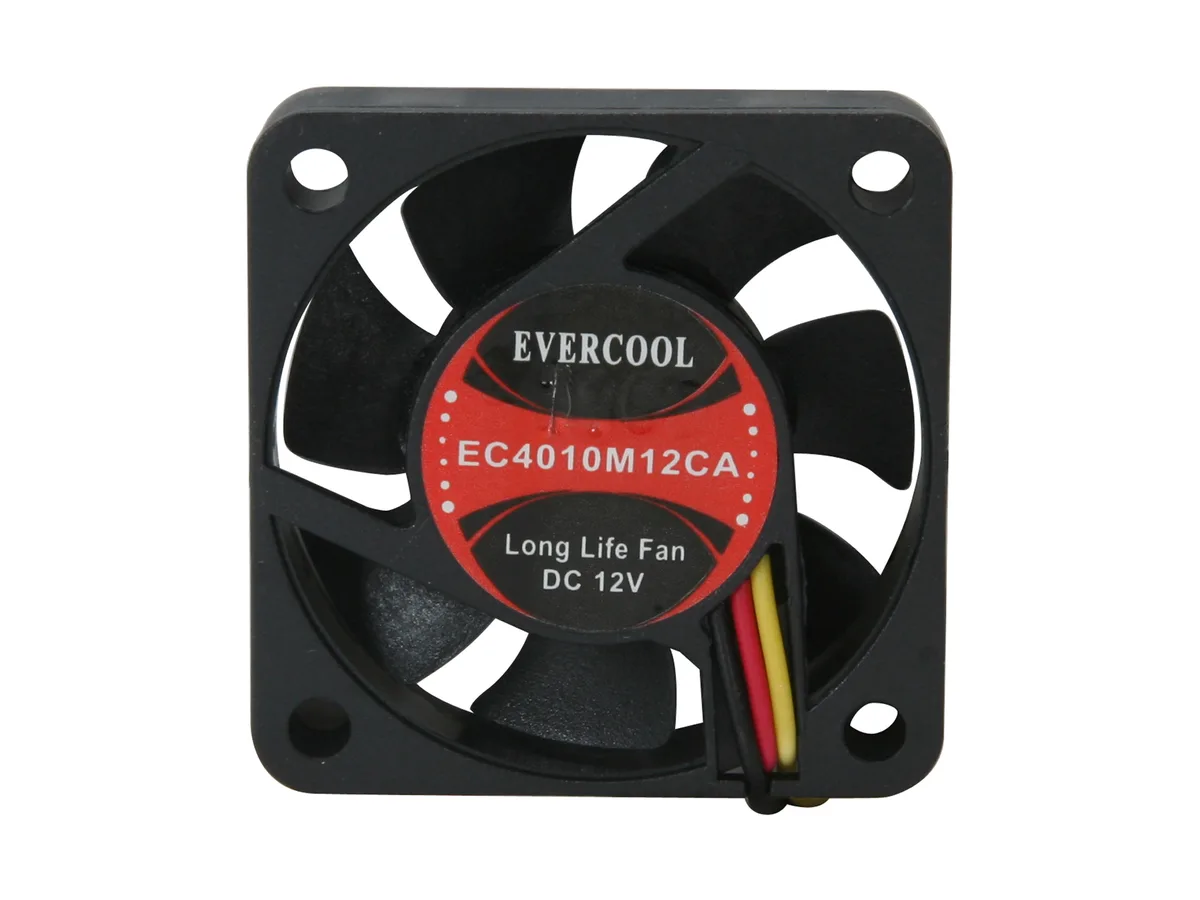

EVERCOOL THERMAL CORP. LTD FAN-EC4010M12CA 40mm case fan 5000 RPM 5.22 CFM ball bearing

SKU CH-Q95N-5BQVD MPN FAN-EC4010M12CA

40 mm case fan spins at 5000 RPM, moves 5.22 CFM and stays below 21 dBA with a ball bearing and 3/4-pin connector

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size40mm
  • Bearing TypeBall
  • RPM5000 RPM
  • Air Flow5.22 CFM
  • Compact 40 mm size fits tight case spaces
  • Ball bearing ensures durable long-term operation
  • 5000 RPM delivers 5.22 CFM airflow for focused cooling
  • Noise stays below 21 dBA for quiet running
  • 3 and 4 pin connector works with most motherboards

Compact 40mm Case Fan

The EVERCOOL FAN-EC4010M12CA is a 40mm case fan built for tight spaces in desktop chassis. It targets builders who need focused airflow for small-form-factor boards or auxiliary component cooling. Buyers requiring higher static pressure for dense radiators or larger air volumes for full-tower cases should look elsewhere.

Thermals and Acoustics

At 5000 RPM the fan moves 5.22 CFM while the ball bearing keeps noise below 21 dBA in typical operation. The dual 3/4-pin connector allows voltage or PWM control so speed can be lowered further for quieter idle states. Power draw is minimal and suited to standard motherboard headers.

Mounting and Extras

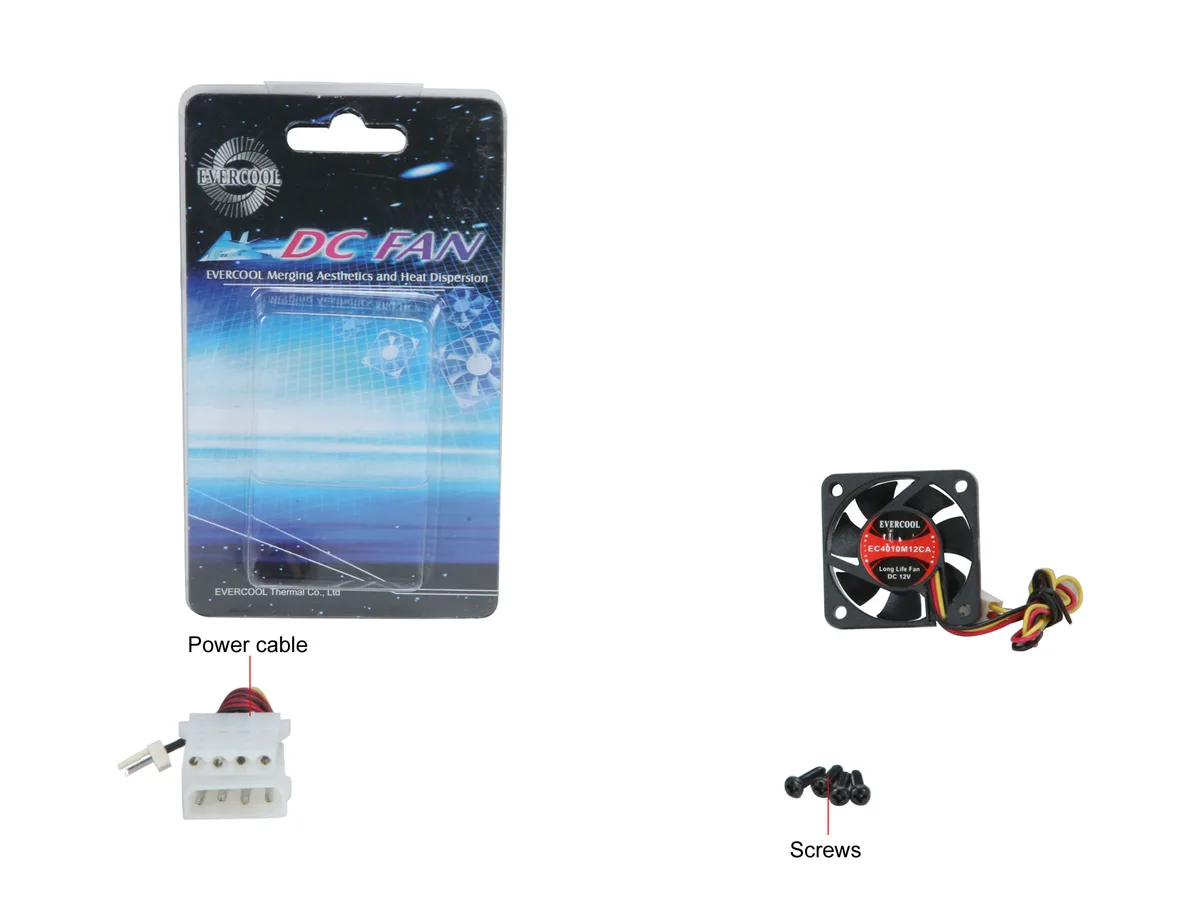

The retail pack includes the fan, a 3/4-pin power lead and mounting bolts for direct frame installation. No software, RGB controller or additional accessories are bundled. The simple hardware kit lets you secure the 40x40x10mm unit without proprietary brackets.

Besonderheiten

  • Compact 40 mm size fits tight case spaces
  • Ball bearing ensures durable long-term operation
  • 5000 RPM delivers 5.22 CFM airflow for focused cooling
  • Noise stays below 21 dBA for quiet running
  • 3 and 4 pin connector works with most motherboards

Technische Daten

BrandEVERCOOL
ModelFAN-EC4010M12CA
TypeCase Fan
CompatibilityCase
Fan Size40mm
Bearing TypeBall
RPM5000 RPM
Air Flow5.22 CFM
Noise Level< 21 dBA
Power Connector3 / 4 Pin
ColorBlack
FeaturesEvercool fans deliver the cooling power you need for your performance machine. So don't just cool...Evercool!
Dimensions40.00 x 40.00 x 10.00mm
Package ContentsCase Cooling Fan
3 / 4 Pin Power Connector
Bolts
Versandgewicht0.04 kg
Paketgröße140 × 80 × 24 mm

Fragen zu diesem Artikel

How do I mount the 40mm fan and which pin header do I use?

Use the included bolts through the four corner holes of the 40mm frame and plug the 3/4-pin connector into a standard motherboard fan header.

What part will wear out first and when should I replace it?

The ball bearing is the only moving part; expect replacement when noise rises above the rated <21 dBA or airflow drops below 5.22 CFM.

At what point does the 5000 RPM speed become limited under continuous load?

The 5000 RPM rating is the maximum; sustained operation stays at that speed unless the motherboard reduces voltage through the 3/4-pin header.
