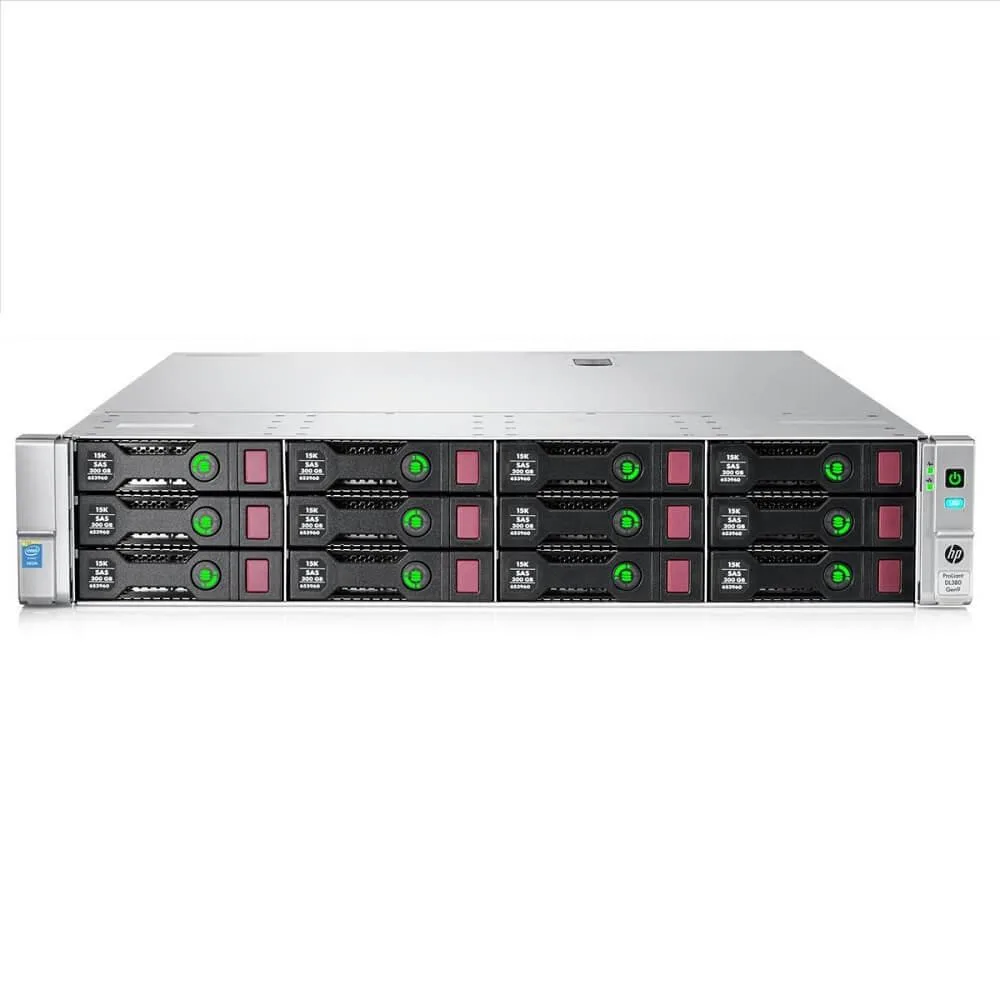

Silver 2U rack server chassis with twelve front 3.5-inch drive bays

HP

HP ProLiant DL380 Gen9 2U rack server 2× Xeon E5-2630 v3 2.4 GHz 128 GB DDR4 H240ar 12 LFF

SKU CH-PJTD-SEC6Q

2U rack server with dual 8-core Xeon E5-2630 v3 at 2.4 GHz, 128 GB DDR4, H240ar RAID and 12 LFF bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • MAX Processors2
  • ChipsetIntel C610
  • Dual Xeon E5-2630 v3 processors deliver 16 cores at 2.4 GHz for multi-threaded workloads
  • 128 GB DDR4 ECC memory fills 12 of 24 slots for high-capacity reliability
  • Smart HBA H240ar supports RAID 0/1/5/6/10/50/60 across 12 LFF drive bays
  • Two 500 W redundant power supplies keep the server running during a single-unit failure
  • 2U rack form factor fits standard cabinets while providing room for future expansion

Dual Xeon E5-2630 v3 2.4 GHz server

The HP ProLiant DL380 Gen9 is a 2U rack server fitted with two eight-core Intel Xeon E5-2630 v3 processors running at 2.4 GHz. It provides 128 GB of DDR4 ECC registered memory across 24 DIMM slots. The Smart HBA H240ar controller manages twelve 3.5-inch drive bays with support for RAID 0, 1, 5, 6, 10, 50 and 60. This system targets organisations that need dense compute and internal storage capacity in a standard rack footprint.

Redundant 500 W supplies and hot-swap power

Dual 500 W redundant hot-swap power supplies keep the server running if one unit fails. The 2U chassis uses system fans that adjust speed based on inlet temperature and component load. Under typical workloads the power draw stays within the capacity of a single supply, allowing the second to remain on standby. Acoustic output is managed by the integrated thermal control logic, which balances airflow against noise in a data-centre environment.

Sustained load across 32 threads and 12 bays

With both processors active the server presents 32 logical threads for parallel workloads such as virtualisation or database processing. Memory bandwidth scales with the two populated CPU sockets, and the H240ar controller maintains consistent throughput across all twelve SAS or SATA drives during extended I/O. The thermal design sustains full processor turbo states without throttling, provided the rack inlet temperature remains within specification.

Besonderheiten

  • Dual Xeon E5-2630 v3 processors deliver 16 cores at 2.4 GHz for multi-threaded workloads
  • 128 GB DDR4 ECC memory fills 12 of 24 slots for high-capacity reliability
  • Smart HBA H240ar supports RAID 0/1/5/6/10/50/60 across 12 LFF drive bays
  • Two 500 W redundant power supplies keep the server running during a single-unit failure
  • 2U rack form factor fits standard cabinets while providing room for future expansion

Technische Daten

BrandHP
SeriesProLiant
ModelProliant DL380 G9
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity128GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Storage ControllerHP Smart HBA H240ar Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media DrivesNone
GPU TypeMatrox G200eH2
Video Memory16MB
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 3 PCIe 3.0 Slots (1-3) available: 2x Full-Height Half Length, 1x Half-Lenth Full Height. Optional 3 additional slots (Slot 2 PCIe Riser and dual CPU required).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Fragen zu diesem Artikel

How do I install the 3.5" drives into the 12 LFF bays, and what step is often missed?

Slide each drive into a supplied tray, secure it with the included screws, then insert the tray until the latch clicks; the step often missed is tightening the tray screws before seating the drive.

Which components will need replacement first during long-term operation?

The two 500 W redundant power supplies and the system fans are the primary field-replaceable units that wear out under continuous load.

What limit appears first when the dual Xeon E5-2630 v3 CPUs run sustained workloads?

The 128 GB DDR4 memory ceiling is reached before the 36 total cores saturate, because the installed capacity equals the maximum supported.
