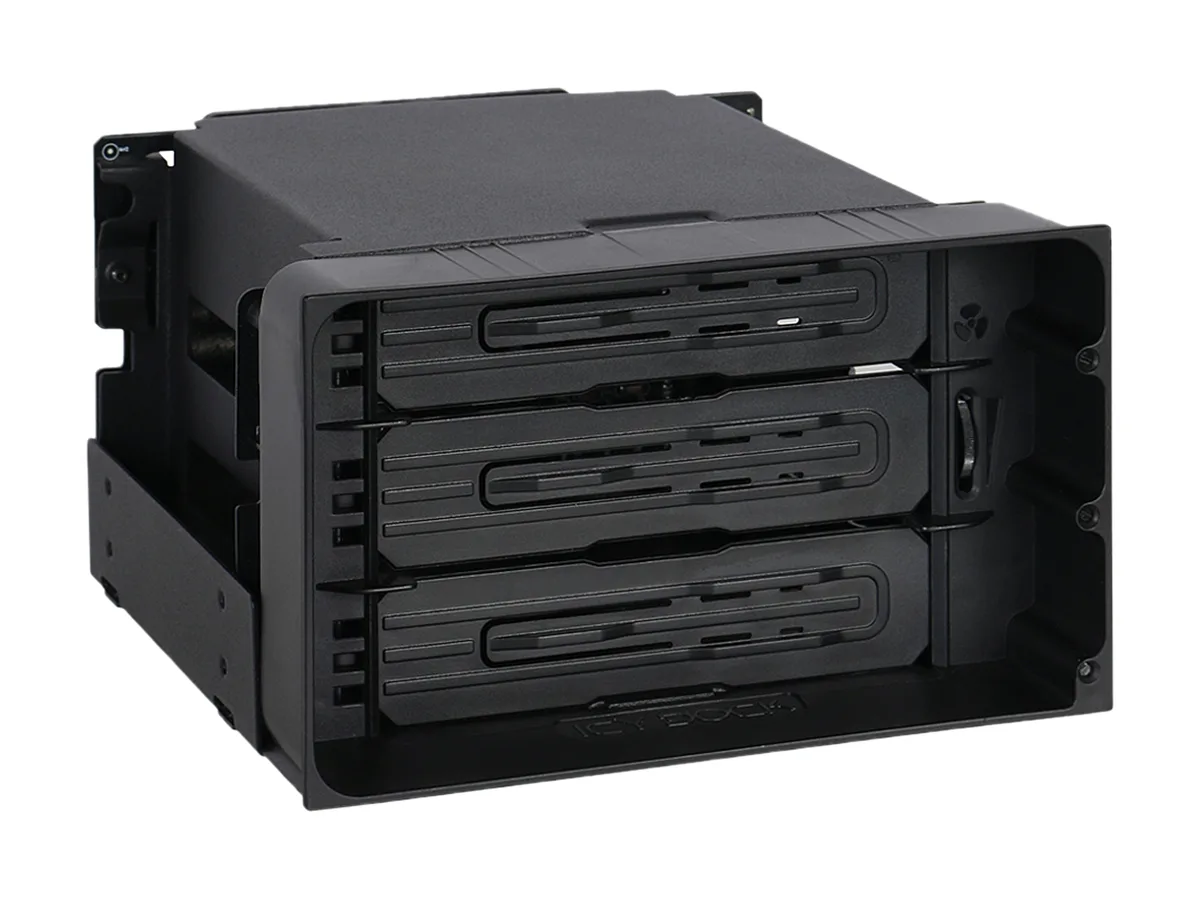

Black metal tray-less enclosure holding three 3.5-inch drives in two 5.25-inch bays with 80mm fan

ICY DOCK

ICY DOCK MB830SP-B 3.5" 3-bay SATA/SAS SSD accessory 5.25

SKU CH-RATF-MZAQS MPN MB830SP-B

Holds three 3.5-inch SATA or SAS drives in two 5.25-inch bays with tool-less trays and an 80 mm fan

  • ColorBlack
  • Mobile Rack Drives Support3 x 3.5" Drives to 2 x 5.25" Bays
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products3.5"
  • SpecificationsSupport Drive Size: 3.5" HDD Compatible Drive Type: SATA / S
  • Fits three 3.5-inch drives into two 5.25-inch bays for maximum density
  • Full SATA III 6 Gb/s speed keeps every drive at peak throughput
  • SAS single-channel support adds enterprise flexibility when a SAS host is present
  • 100% tool-less installation swaps drives in seconds without screws
  • 80 mm fan with speed wheel delivers adjustable cooling for sustained operation

Three-bay removable enclosure

The ICY DOCK MB830SP-B fits three 3.5-inch SATA or SAS hard drives into two external 5.25-inch bays. Drives slide in without tools or screws and connect through three internal SATA 7-pin ports. Two 15-pin SATA power connectors supply the unit. A built-in 80 mm fan with a manual speed wheel provides active cooling.

Builders adding hot-swap storage to a 5.25-inch

This enclosure suits systems that have two adjacent 5.25-inch bays and a motherboard or controller with three free SATA ports. It is not for cases lacking 5.25-inch openings, for 2.5-inch drives, or for SAS environments that require dual-port operation.

Tray-less 3.5-inch drive insertion

Drives install and eject by hand with no carriers or fasteners, making swaps quick during maintenance or data rotation. The all-metal chassis aids heat dissipation alongside the 80 mm fan.

Besonderheiten

  • Fits three 3.5-inch drives into two 5.25-inch bays for maximum density
  • Full SATA III 6 Gb/s speed keeps every drive at peak throughput
  • SAS single-channel support adds enterprise flexibility when a SAS host is present
  • 100% tool-less installation swaps drives in seconds without screws
  • 80 mm fan with speed wheel delivers adjustable cooling for sustained operation

Technische Daten

BrandICY DOCK
ModelMB830SP-B
ColorBlack
Mobile Rack Drives Support3 x 3.5" Drives to 2 x 5.25" Bays
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products3.5"
SpecificationsSupport Drive Size: 3.5" HDD
Compatible Drive Type: SATA / SAS
Number of Drives: 3
Drive Bay: 2 x external 5.25" drive bay
Host Interface: 3 x SATA 7pin
Power Input: 2 x 15 pin SATA power connector
Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation
Drive Cooling: 80mm cooling fan & Metal heat dispersion
Structure / Material: Metal and ABS plastic
Support Hot-Swap: Yes
Compliance: CE, RoHS, REACH

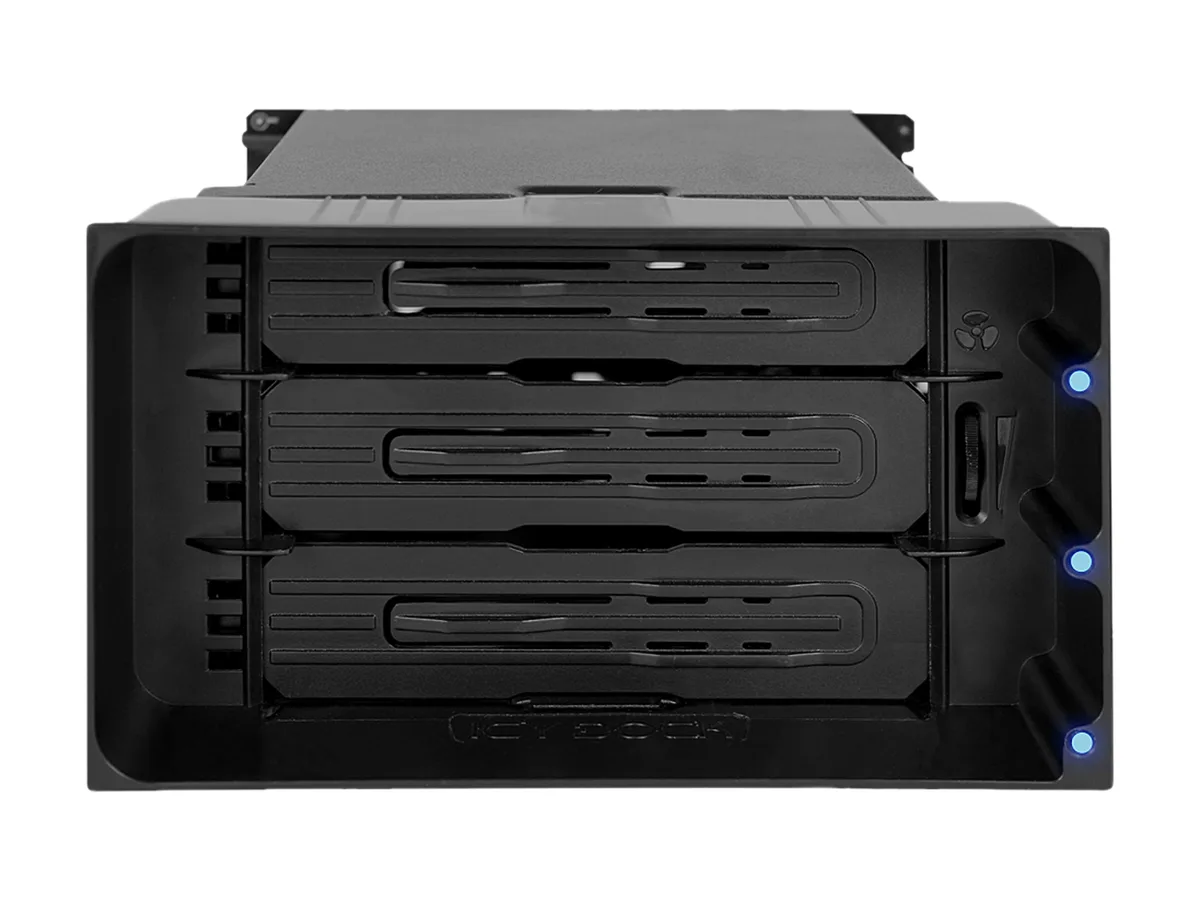

Drive Activity LED Indication: Drive power: solid blue; HDD access: flashing blue
FeaturesFits 3 x 3.5-inch SAS/SATA HDDs into 2 x 5.25-inch external ODD/device bays
Supports full SATA III (6 Gb/s) transfer speeds
Supports SAS single-channel operation (SAS host required)
Compact and space saving design to fit multiple drives
100% tool-less and screw-less drive installation
Large 80mm cooling fan with easy access fan speed control wheel
Cooling fan is upgradable with any standard 80mm 3-pin cooling fan
Sturdy full-metal chassis adds heat dissipation and extra protection
Ample ventilation holes for supreme cooling performance
Spring-loaded dust cover to prevent harmful dust
Package ContentsDevice, user manual, screws, 3 x SATA 7-pin cables
Versandgewicht1.00 kg
Paketgröße386 × 254 × 211 mm

Fragen zu diesem Artikel

Does the MB830SP-B ship with the SATA data cables I need, or must I buy them separately?

The package includes the enclosure, three SATA 7-pin data cables, mounting screws and a user manual.

My motherboard only has SATA ports; will the SAS-capable bays still work with my SATA drives?

Yes, each bay accepts 3.5-inch SATA or SAS drives and connects to the host through standard SATA 7-pin connectors, so SATA-only systems are fully supported.

What does the 6 Gb/s headline speed mean when I install three drives in my PC?

Each drive runs at up to SATA III 6 Gb/s, and because every bay has its own dedicated SATA 7-pin link to the host, all three drives can sustain that rate simultaneously.
