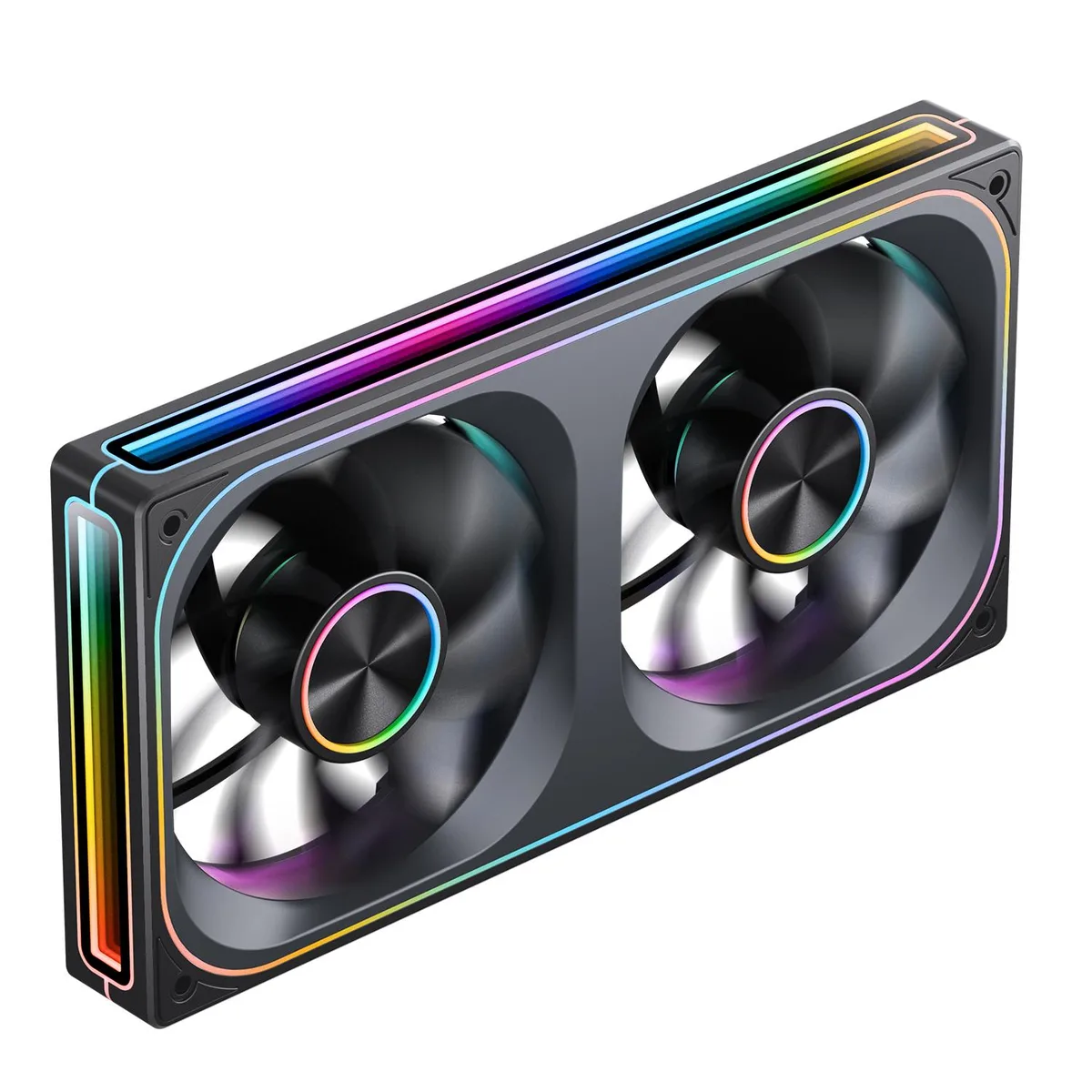

Black dual-fan unit in single frame, 240mm ARGB with infinity mirror sides

JONSBO

JONSBO ZA-240BR 240mm case fan 2×120mm ARGB 28mm 700-2400rpm black

SKU CH-G95X-XW52Y MPN ZA-240BR

Dual 120 mm ARGB fans in a single 240 mm frame with infinity-mirror lighting, PWM speed control from 700 to 2400 rpm and noise of 21.3 to 37.3 dB(A)

  • Fan Counts2 Fans
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size240mm
  • Fan Thickness28mm
  • RPM700-2400rpm(±10%)

Model ZA-240BR

9 weitere Konfigurationen anzeigen
  • 4-sided infinity mirror illusion creates depth
  • single 240 mm frame holds two 120 mm fans
  • PWM speed range 700-2400 rpm for quiet or high airflow
  • ARGB sync via 3-pin header supports 16 million colours
  • 28 mm thick aluminium nameplate design fits standard 240 mm mounts

Single-frame 240 mm fan unit

The JONSBO ZA-240BR combines two 120 mm ARGB fans inside one 242 mm by 123 mm by 28 mm frame, so only a single PWM 4-pin and a single 3-pin ARGB header are required. The reversed-blade design and 4-sided infinity mirror panels create a layered lighting effect while keeping cable routing simple.

Builders who want unified speed and light control

This unit suits anyone who prefers one connection point for both fans and wants addressable RGB synchronised through the motherboard. It is less convenient for cases that only accept individual 120 mm mounts or for users who need independent speed curves per fan.

Steady airflow from 700 to 2400 rpm

Under sustained load the fans spin between 700 and 2400 rpm, delivering 0.49 to 2.46 mmH2O of static pressure while noise rises from 21.3 to 37.3 dB(A). The integrated male and female PWM headers keep the signal stable during long sessions.

Besonderheiten

  • 4-sided infinity mirror illusion creates depth
  • single 240 mm frame holds two 120 mm fans
  • PWM speed range 700-2400 rpm for quiet or high airflow
  • ARGB sync via 3-pin header supports 16 million colours
  • 28 mm thick aluminium nameplate design fits standard 240 mm mounts

Technische Daten

BrandJONSBO
ModelZA-240BR
Part NumberZA-240BR
Fan Counts2 Fans
TypeCase Fan
CompatibilityCase
Fan Size240mm
Fan Thickness28mm
RPM700-2400rpm(±10%)
Air Pressure0.49-2.46 mmH2O
Noise Level21.3-37.3 dB(A)
Power ConnectorPWM 4PIN ARGB 3PIN
ColorBlack
LEDARGB
FeaturesJONSBO ZA-240 28MM ARGB Infinity Mirror Series Case Fan-
4-Sides Thousand- layer Mirror Illusion
All-IN-One: Single Frame unit with 2x120 ARGB fans, No need to connect individual fans, Speed & Lighting Unified Regulation
Easy Installation of the Joint Structure
One Line Connection to Motherboard
Aluminum CD Pattern Nameplate
Addressable RGB sync- Insert 3PIN ARGB pins directly into the motherboard, synchronizing Over 16 million color effects
Quiet/Low Noise PWN fan,PWM Integrated Male &Female head
Dimensions242mm（L）*123mm（W）*28mm（H）

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Do I need a motherboard with both a 4-pin PWM header and a 3-pin 5 V ARGB header to run the fan and lighting?

Yes, the unit draws power and speed control from a 4-pin PWM header and receives addressable RGB data through a standard 3-pin 5 V ARGB header on the motherboard.

Can the ZA-240BR share a PWM header with older 120 mm fans without losing speed control?

The frame already contains two 120 mm fans wired together; adding extra fans on the same header would exceed typical 1 A limits and is not recommended.

How do I confirm the infinity-mirror ARGB is syncing correctly after installation?

Connect the 3-pin ARGB plug to the motherboard, then use the board vendor's RGB software to cycle through effects — all 16 million colours should appear simultaneously on both fans.
